Ws Sensor Analysis Report - Day 181

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 10.0
Avg Fertigation Amount: 285.75 L
Avg Total Drain Amount: 17.95 L
Avg In-Fertigation Drain Amount: 1.60 L
Avg Post-Fertigation Drain Amount: 16.35 L
Avg Drainage Rate: 6.28%

Detail Section

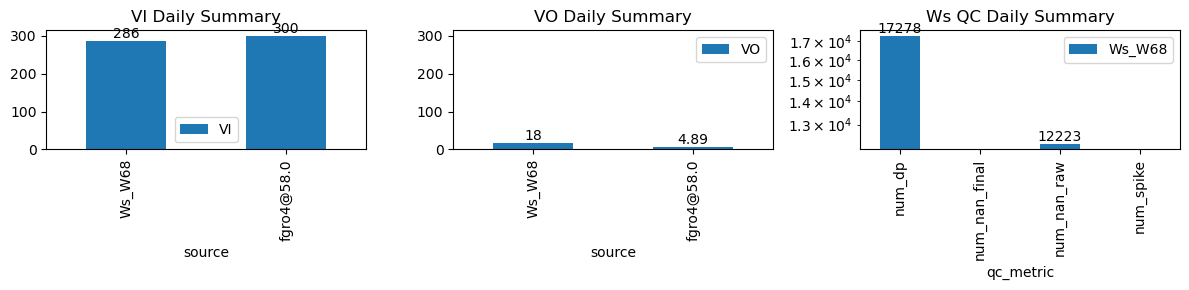

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 10
Number of Fertigation Events detected: 10
Total Fertigation Amount: 285.75 L
Total Drain Amount: 17.95 L
In-Fertigation Drain Amount: 1.60 L
Post-Fertigation Drain Amount: 16.35 L
Drainage Rate: 6.28%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,278	12,223	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-05 07:25:00+08:00	181	445	Ws_W68	0.63763	30	445.0	445.250000	446.0	447.666667	4541.600000	4689.000000	60	-0.065799	-0.035381	-0.076183	0.356917	0.491333	29.480000	True	15.0	100.0	29.480000	0.0	0.000000	0.000000	465	595	-0.012002	NaN
2026-04-05 08:10:00+08:00	181	490	Ws_W68	0.63763	30	490.0	490.250000	491.0	492.166667	4659.950000	4809.000000	60	-0.085909	-0.103336	-0.149246	0.383028	0.496833	29.810000	True	15.0	70.0	29.810000	0.0	0.000000	0.000000	180	169	-0.020717	NaN
2026-04-05 08:55:00+08:00	181	535	Ws_W68	0.63763	30	535.0	535.250000	536.0	536.583333	4748.200000	4882.566667	60	-0.153411	-0.239028	-0.185489	0.394722	0.447889	26.873333	True	15.0	35.0	28.080000	1.2	5.075221	6.275221	1055	39	-0.101141	4857.190564
2026-04-05 09:40:00+08:00	181	580	Ws_W68	0.63763	30	580.0	580.250000	581.0	581.583333	4769.400000	4908.900000	60	-0.188758	-0.270051	-0.249582	0.400639	0.465000	27.900000	True	15.0	35.0	28.080000	0.2	5.197126	5.397126	1450	39	-0.092381	4882.914372
2026-04-05 10:25:00+08:00	181	625	Ws_W68	0.63763	30	625.0	625.333333	626.0	626.666667	4766.800000	4906.100000	60	-0.256159	-0.299542	-0.265067	0.400500	0.464333	27.860000	True	20.0	40.0	28.080000	0.2	3.070057	3.270057	780	45	-0.060136	4890.749715
2026-04-05 11:10:00+08:00	181	670	Ws_W68	0.63763	30	670.0	670.333333	671.0	671.666667	4756.866667	4897.950000	60	-0.272087	-0.352809	-0.315952	0.403139	0.470278	28.216667	True	20.0	40.0	28.216667	0.0	3.012151	3.012151	474	45	-0.115162	4882.889246
2026-04-05 11:55:00+08:00	181	715	Ws_W68	0.63763	30	715.0	715.333333	716.0	717.083333	4736.200000	4877.966667	60	-0.279644	-0.318640	-0.292665	0.385819	0.472556	28.353333	True	20.0	65.0	28.353333	0.0	0.000000	0.000000	595	69	-0.049697	NaN
2026-04-05 13:15:00+08:00	181	795	Ws_W68	0.63763	30	795.0	795.250000	796.0	796.833333	4601.000000	4741.800000	60	-0.308398	-0.255247	-0.287546	0.387000	0.469333	28.160000	True	15.0	50.0	28.160000	0.0	0.000000	0.000000	110	594	-0.053064	NaN
2026-04-05 14:05:00+08:00	181	845	Ws_W68	0.63763	30	845.0	845.333333	846.0	846.750000	4587.183333	4725.500000	60	-0.296629	-0.257901	-0.256286	0.398347	0.461056	27.663333	True	20.0	45.0	28.080000	0.0	0.000000	0.000000	310	489	-0.037127	NaN
2026-04-05 14:55:00+08:00	181	895	Ws_W68	0.63763	30	895.0	895.333333	896.0	897.833333	4591.942857	4739.000000	60	-0.186569	-0.116276	-0.112944	0.358194	0.490190	29.411429	True	20.0	110.0	29.411429	0.0	0.000000	0.000000	40	324	-0.013193	NaN

Figures - Ws_W68

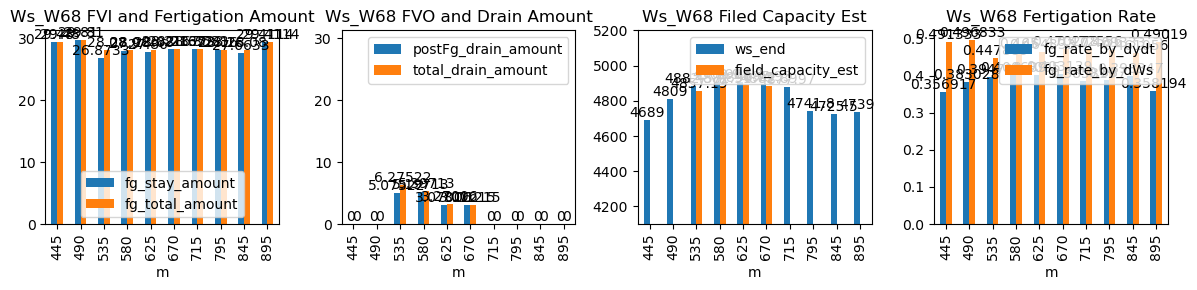

Figure figure_7.png

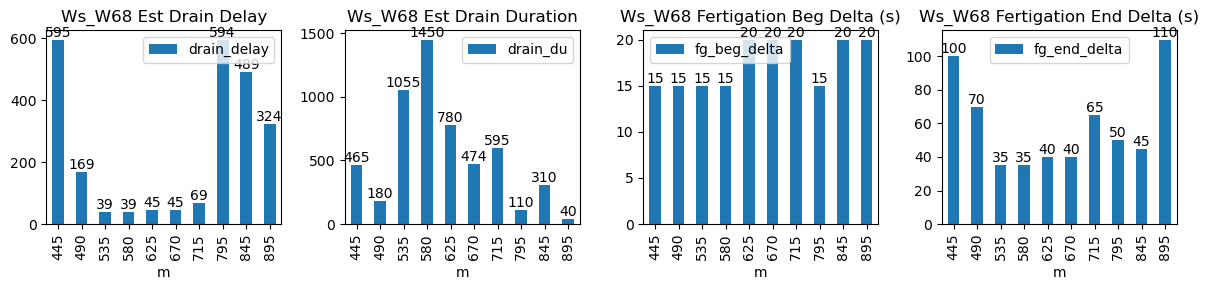

Figure figure_6.png

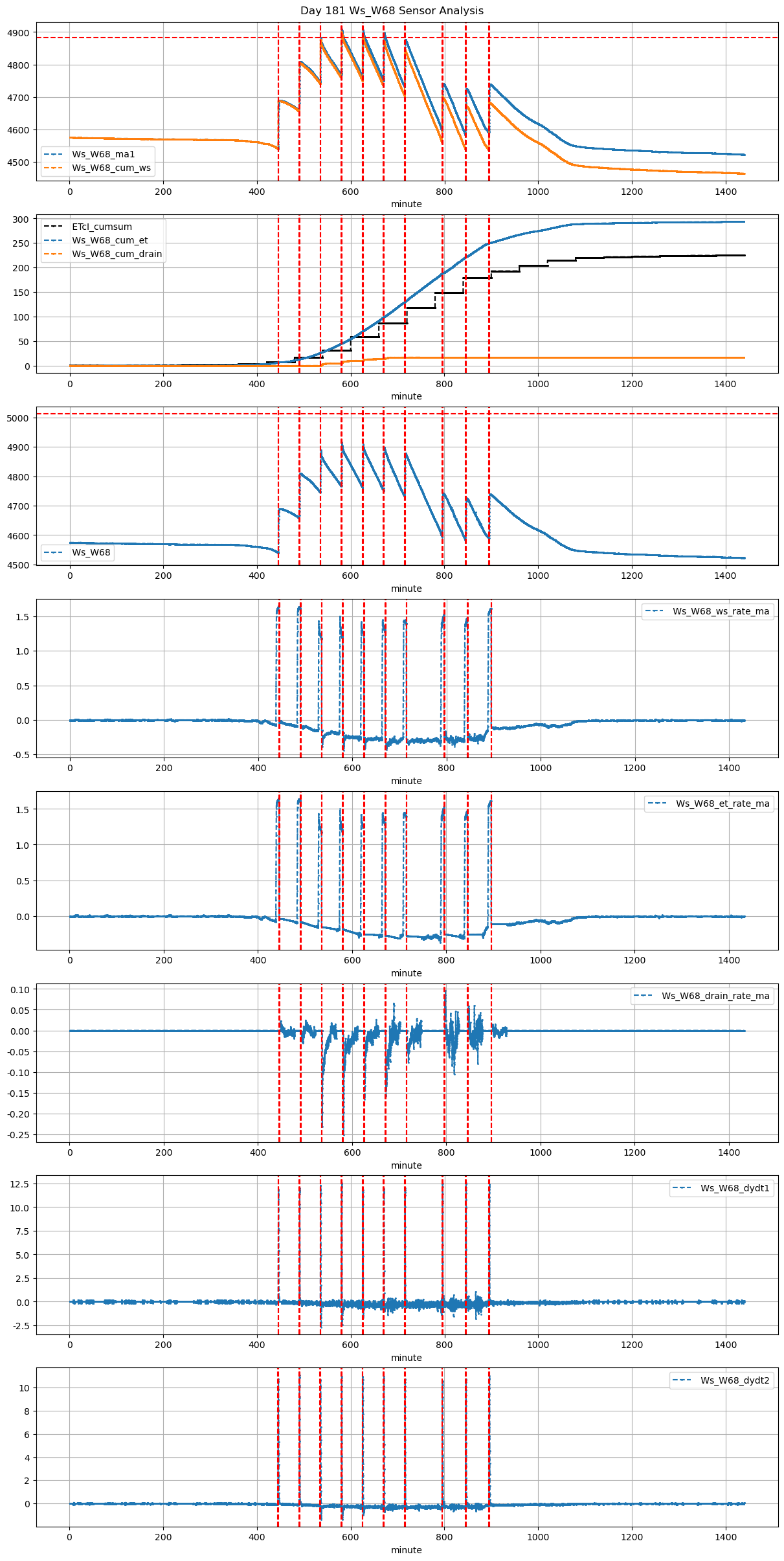

Figure figure_5.png

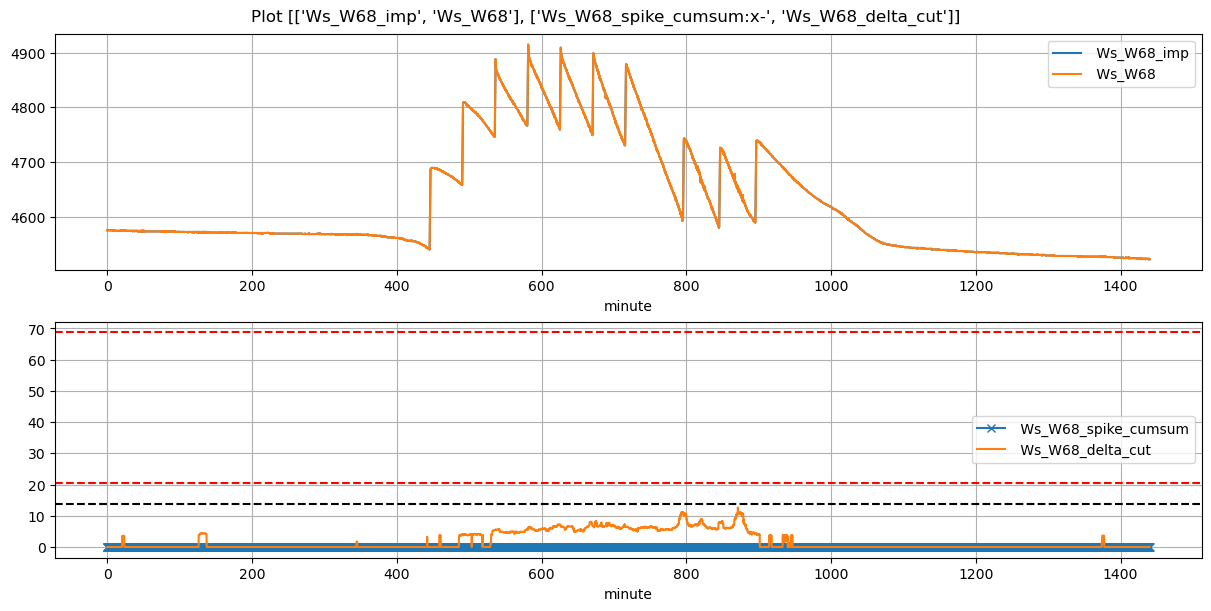

Figure figure_4.png
