Ws Sensor Analysis Report - Day 183

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 206.63 L
Avg Total Drain Amount: 9.01 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 9.01 L
Avg Drainage Rate: 4.36%

Detail Section

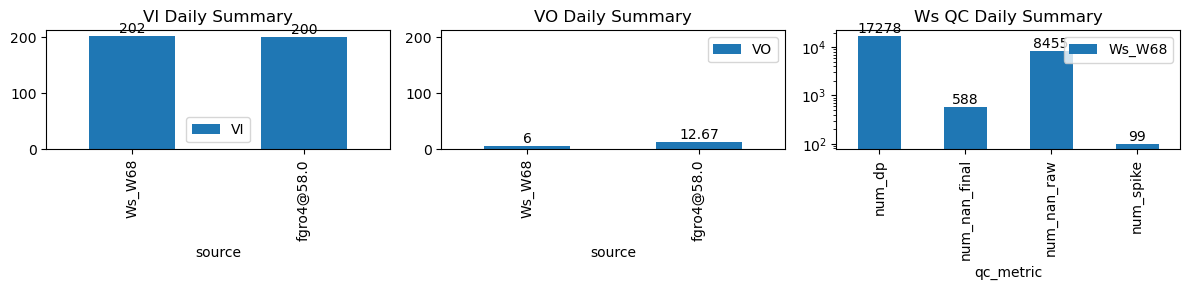

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 8
Number of Fertigation Events detected: 7
Total Fertigation Amount: 206.63 L
Total Drain Amount: 9.01 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 9.01 L
Drainage Rate: 4.36%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	16,722	7,982	588	177	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-07 07:35:00+08:00	183	455	Ws_W68	0.918748	30	455.0	455.250000	456.0	457.666667	4587.000000	4735.0	60	-0.037594	-0.010324	-0.072153	0.329472	0.493333	29.600000	True	15.0	100.0	29.600000	0.0	0.000000	0.000000	10.0	259.0	-1.510398	NaN
2026-04-07 08:20:00+08:00	183	500	Ws_W68	0.918748	30	500.0	500.250000	501.0	503.333333	4699.000000	4854.0	60	-0.123705	-0.086366	-0.135069	0.308222	0.516667	31.000000	True	15.0	140.0	31.000000	0.0	0.000000	0.000000	15.0	924.0	-2.014140	NaN
2026-04-07 09:05:00+08:00	183	545	Ws_W68	0.918748	30	545.0	545.250000	546.0	546.583333	4786.666667	4929.5	60	-0.136535	-0.303565	-0.141134	0.390444	0.476111	28.566667	True	15.0	35.0	28.566667	0.0	6.438754	6.438754	110.0	39.0	-1.937296	NaN
2026-04-07 09:50:00+08:00	183	590	Ws_W68	0.918748	30	590.0	590.166667	591.0	591.416667	4818.000000	4956.0	60	-0.123376	-0.182894	-0.254028	0.360000	0.460000	27.600000	True	10.0	25.0	28.260000	0.0	0.000000	0.000000	39.0	230.0	-2.080126	NaN
2026-04-07 10:35:00+08:00	183	635	Ws_W68	0.918748	30	635.0	635.333333	636.0	636.500000	4825.600000	4970.0	60	-0.232674	-0.271042	-0.265671	0.389389	0.481333	28.880000	True	20.0	30.0	28.880000	0.0	2.571293	2.571293	80.0	39.0	-1.691884	NaN
2026-04-07 11:20:00+08:00	183	680	Ws_W68	0.918748	30	680.0	680.166667	681.0	681.500000	4819.900000	4956.5	60	-0.209263	-0.253125	-0.208472	0.364028	0.455333	27.320000	True	10.0	30.0	28.260000	0.0	0.000000	0.000000	24.0	45.0	-1.582661	NaN
2026-04-07 13:00:00+08:00	183	780	Ws_W68	0.918748	30	780.0	780.333333	781.0	782.583333	4668.666667	4829.0	60	-0.217903	-0.148646	-0.169433	0.366889	0.534444	32.066667	True	20.0	95.0	32.066667	0.0	0.000000	0.000000	25.0	99.0	-1.336780	NaN
2026-04-07 14:10:00+08:00	183	850	Ws_W68	0.918748	30	850.0	NaN	851.0	NaN	NaN	NaN	60	NaN	NaN	NaN	NaN	NaN	NaN	False	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN

Figures - Ws_W68

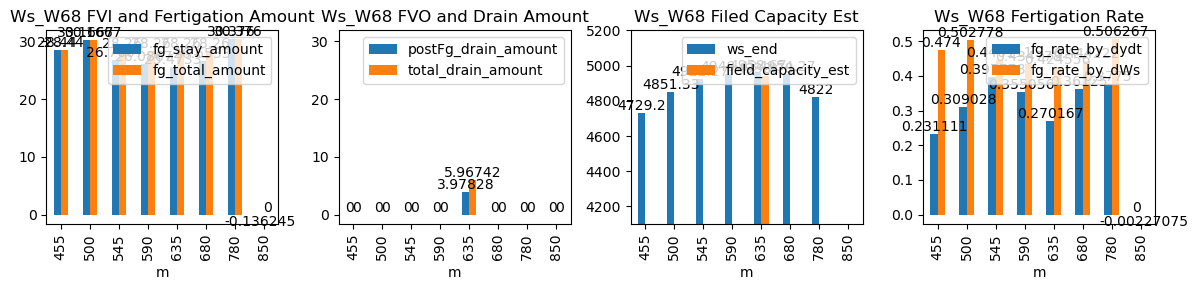

Figure figure_7.png

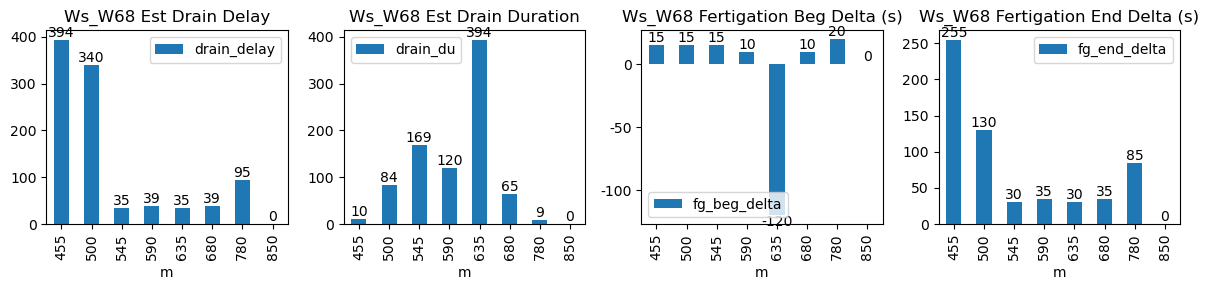

Figure figure_6.png

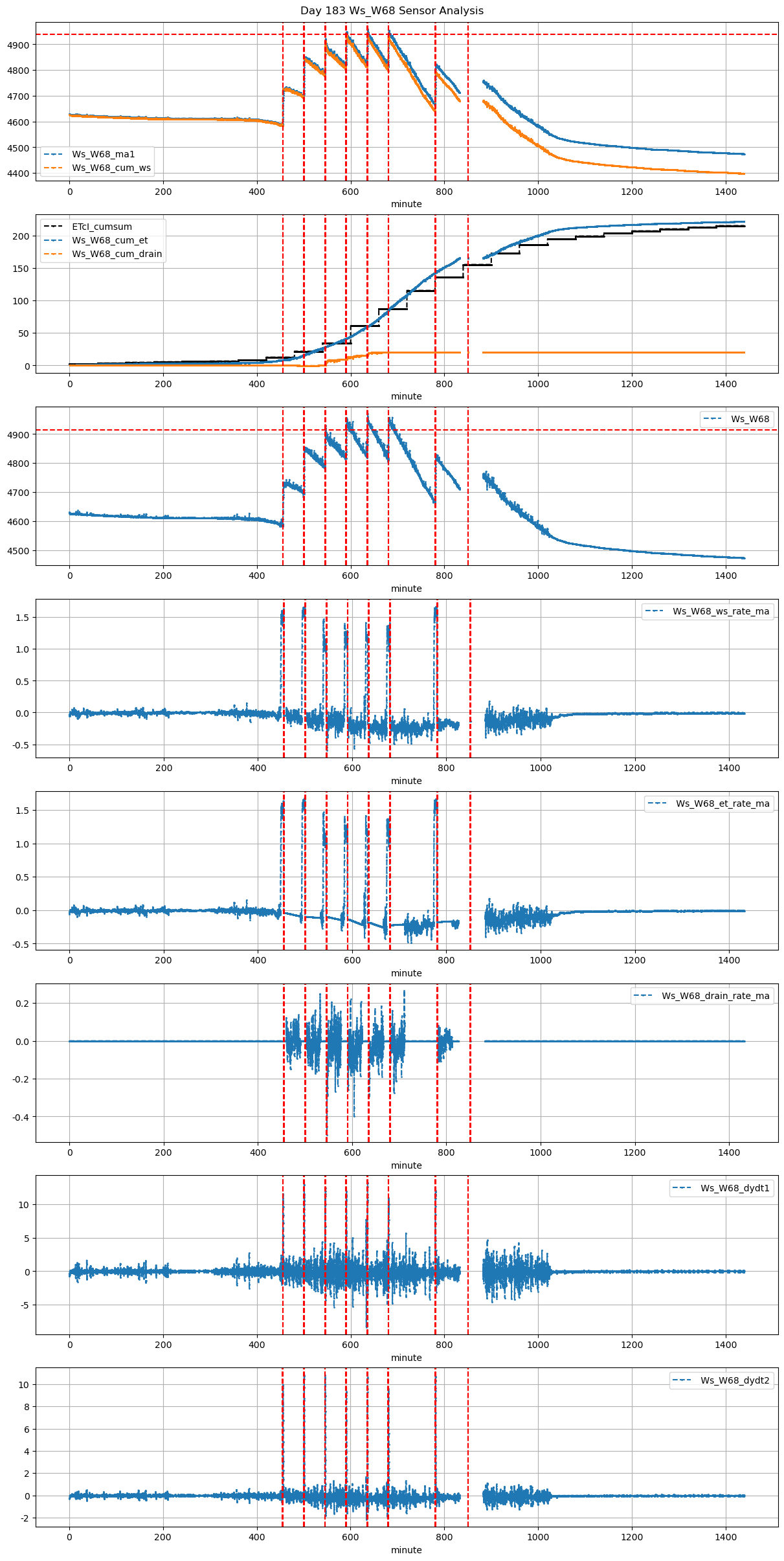

Figure figure_5.png

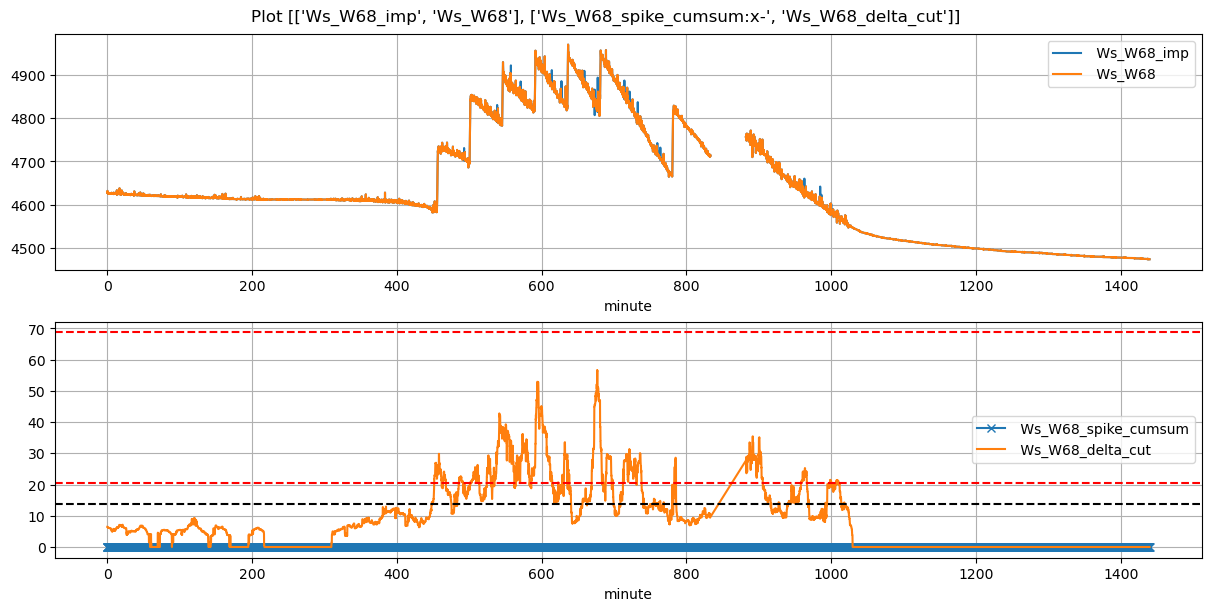

Figure figure_4.png
