Ws Sensor Analysis Report - Day 50

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 118.16 L
Avg Total Drain Amount: 0.00 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 0.00 L
Avg Drainage Rate: 0.00%

Detail Section

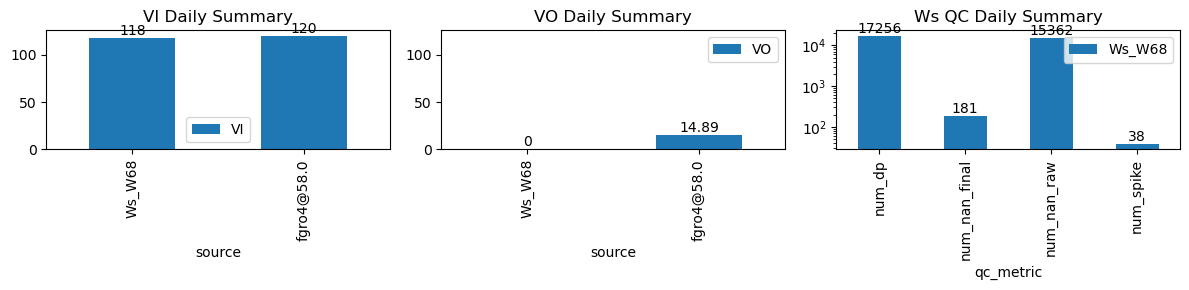

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 118.16 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,256	15,362	181	38	192.67

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2025-11-25 07:30:00+08:00	50	450	Ws_W68	6.152185	30	450.0	450.666667	450.72	452.250000	9990.000000	10040.000000	43	-0.001300	-0.010802	-0.001029	0.163333	0.232558	10.000000	True	40.0	91.8	19.694	0.0	0.0	0.0	10.0	366.0	-0.102362	NaN
2025-11-25 08:25:00+08:00	50	505	Ws_W68	6.152185	30	505.0	503.000000	505.72	508.083333	10030.000000	10110.000000	43	-0.005826	0.000000	0.000000	0.101000	0.372093	16.000000	True	-120.0	141.8	19.694	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2025-11-25 09:20:00+08:00	50	560	Ws_W68	6.152185	30	560.0	560.750000	560.72	560.083333	10110.000000	10024.416667	43	-0.010759	0.000000	-0.010759	NaN	-0.000250	-0.010759	False	45.0	-38.2	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2025-11-25 10:15:00+08:00	50	615	Ws_W68	6.152185	30	615.0	613.500000	615.72	616.750000	9892.666667	9967.666667	43	0.000000	-0.063858	-0.035597	0.178750	0.348837	15.000000	True	-90.0	61.8	19.694	0.0	0.0	0.0	124.0	66.0	-0.103088	NaN
2025-11-25 11:10:00+08:00	50	670	Ws_W68	6.152185	30	670.0	668.166667	670.72	672.083333	9952.666667	10032.666667	43	0.000000	-0.050617	-0.016667	0.163750	0.372093	16.000000	True	-110.0	81.8	19.694	0.0	0.0	0.0	25.0	146.0	-0.131209	NaN
2025-11-25 12:25:00+08:00	50	745	Ws_W68	6.152185	30	745.0	745.583333	745.72	747.250000	10012.666667	10092.666667	43	0.000000	-0.011111	0.000000	0.197917	0.372093	16.000000	True	35.0	91.8	19.694	0.0	0.0	0.0	60.0	96.0	-0.111111	NaN
2025-11-25 14:05:00+08:00	50	845	Ws_W68	6.152185	30	845.0	844.750000	845.72	847.500000	10072.666667	10152.666667	43	0.000000	-0.016049	0.000000	0.165000	0.372093	16.000000	True	-15.0	106.8	19.694	0.0	0.0	0.0	30.0	321.0	-0.101918	NaN

Figures - Ws_W68

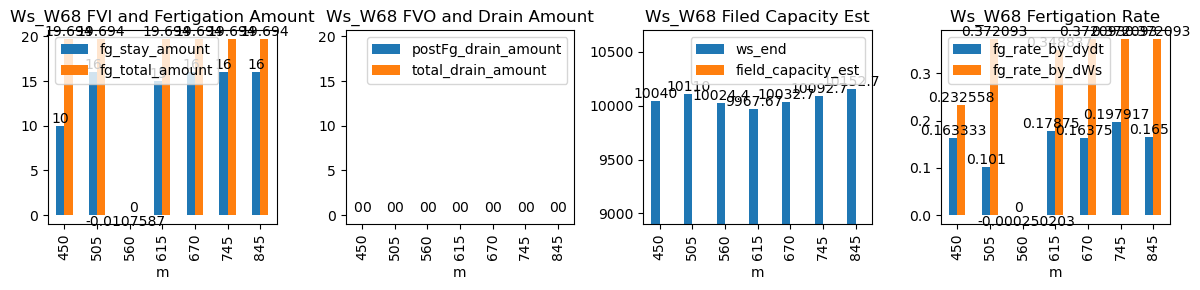

Figure figure_7.png

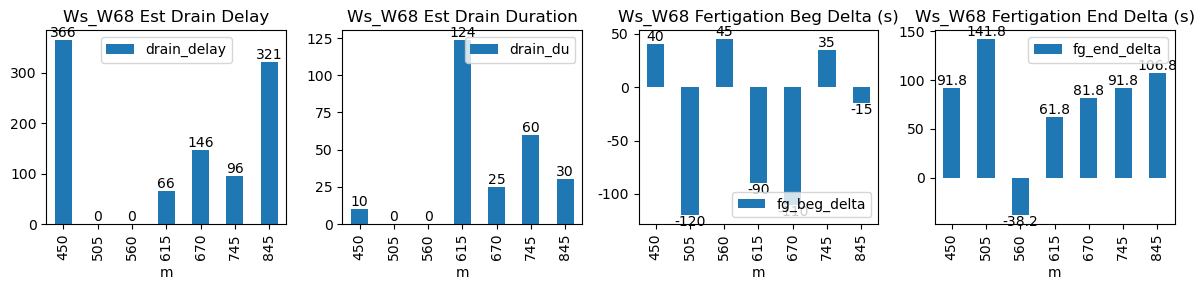

Figure figure_6.png

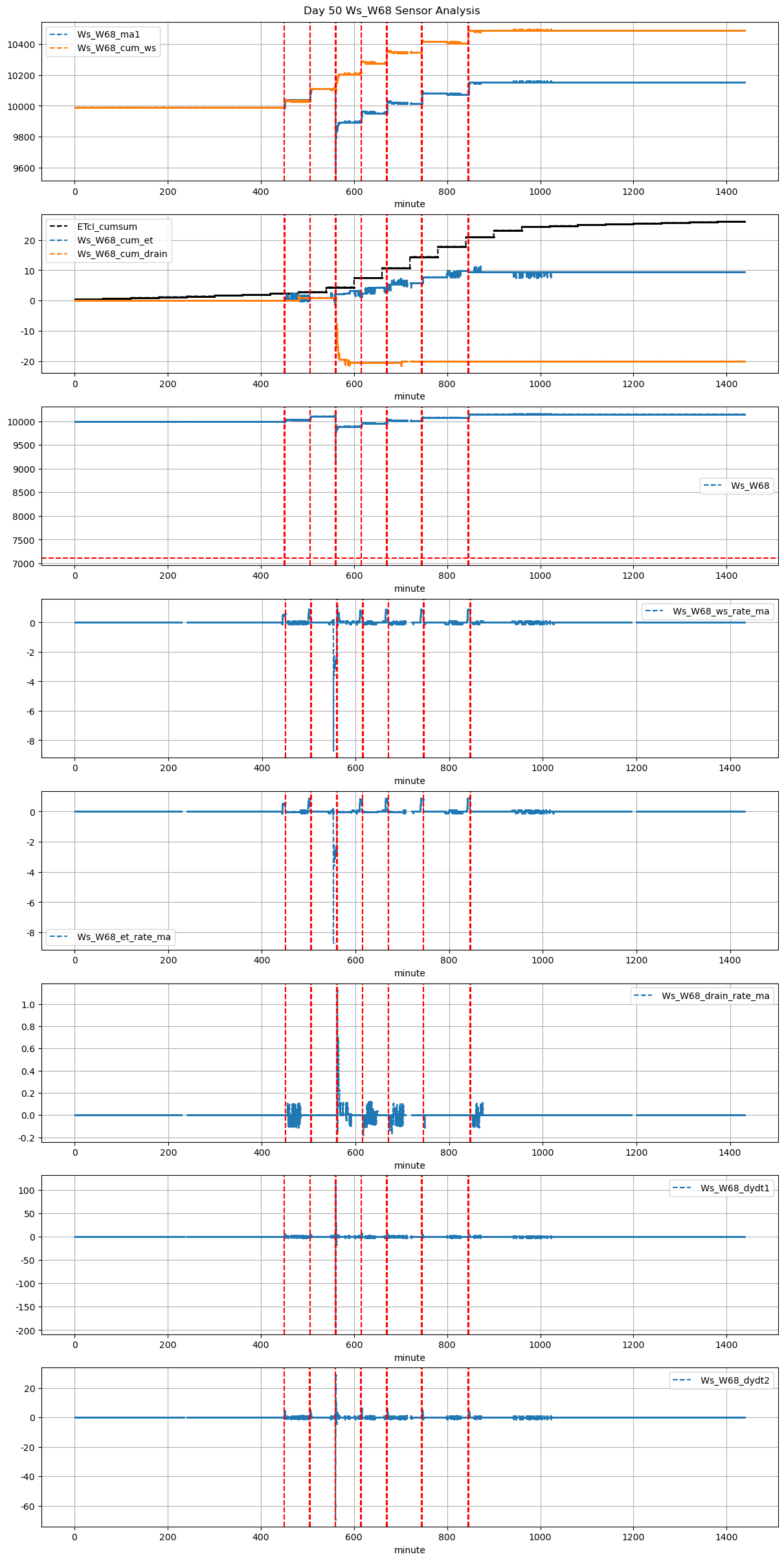

Figure figure_5.png

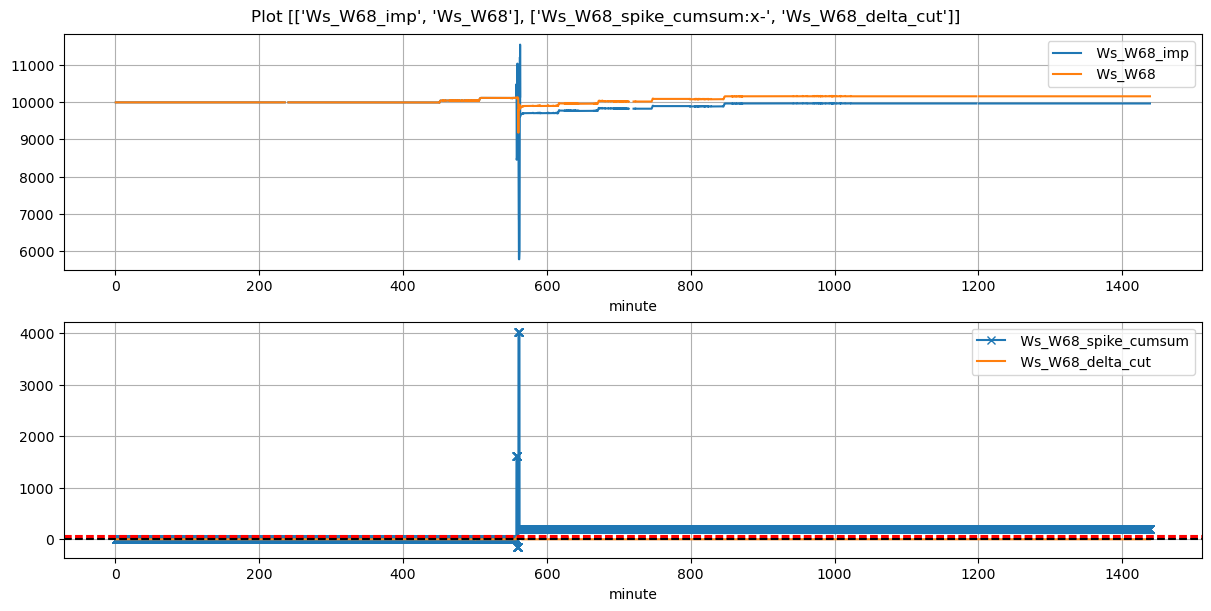

Figure figure_4.png
