Ws Sensor Analysis Report - Day 131

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 11.0
Avg Fertigation Amount: 4.83 L
Avg Total Drain Amount: 0.00 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 0.00 L
Avg Drainage Rate: 0.00%

Detail Section

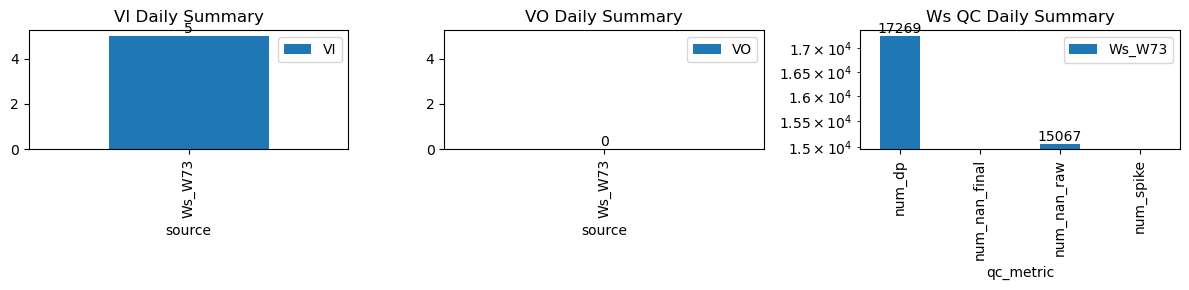

VI and VO Daily Summary

Summary Statistics - Ws_W73

Number of Fertigation Events: 11
Number of Fertigation Events detected: 6
Total Fertigation Amount: 4.83 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_W73

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W73	17,269	15,067	0	0	0.00

Fertigation Events Details Table - Ws_W73

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-02-14 07:50:01+08:00	131	470	Ws_W73	1.392108	30.00	470.02	469.833333	471.24	471.833333	4730.000000	4740.000000	73	0.000000	0.000000	-0.028395	0.016000	0.027397	2.000000	True	-11.2	35.6	2.000	0.0	0.0	0.0	79.0	40.0	-1.100631e-01	NaN
2026-02-14 08:25:01+08:00	131	505	Ws_W73	1.392108	30.00	505.02	507.333333	506.22	505.083333	4730.000000	4730.000000	72	-0.016672	-0.072134	-0.016672	NaN	-0.000232	-0.016672	False	138.8	-68.2	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2026-02-14 09:02:27+08:00	131	542	Ws_W73	1.392108	30.00	542.45	NaN	543.67	542.500000	4693.066667	4690.000000	73	-0.057784	-0.082099	-0.057784	NaN	-0.000792	-0.057784	False	NaN	-70.2	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2026-02-14 10:27:24+08:00	131	627	Ws_W73	1.392108	30.00	627.40	NaN	628.62	627.416667	4530.727273	4522.857143	73	-0.107975	-0.194198	-0.107975	NaN	-0.001479	-0.107975	False	NaN	-72.2	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2026-02-14 12:40:01+08:00	131	760	Ws_W73	1.392108	30.00	760.02	760.250000	761.27	760.916667	4340.000000	4340.000000	75	-0.206790	-0.275926	-0.573457	0.018352	-0.002757	-0.206790	True	13.8	-21.2	0.675	0.0	0.0	0.0	45.0	1753.0	-2.608627e-01	NaN
2026-02-14 15:02:23+08:00	131	902	Ws_W73	1.392108	28.39	902.38	NaN	903.61	902.416667	3710.000000	3710.000000	74	-0.162326	-0.053704	-0.162326	NaN	-0.002194	-0.162326	False	NaN	-71.6	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2026-02-14 15:32:27+08:00	131	932	Ws_W73	1.392108	28.32	932.45	931.416667	933.68	931.500000	3680.545455	3680.000000	74	-0.092082	0.000000	-0.074691	NaN	-0.001244	-0.092082	True	-62.0	-130.8	0.666	0.0	0.0	0.0	440.0	1139.0	-1.111111e-01	NaN
2026-02-14 16:02:27+08:00	131	962	Ws_W73	1.392108	30.00	962.45	960.833333	963.67	961.000000	3676.666667	3670.000000	73	-0.092082	0.000000	0.000000	NaN	-0.001261	-0.092082	True	-97.0	-160.2	0.657	0.0	0.0	0.0	9.0	244.0	-2.273737e-13	NaN
2026-02-14 16:56:15+08:00	131	1016	Ws_W73	1.392108	27.53	1016.25	NaN	1017.47	1016.333333	3660.000000	3660.000000	73	-0.048506	0.000000	-0.048506	NaN	-0.000664	-0.048506	False	NaN	-68.2	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2026-02-14 17:25:01+08:00	131	1045	Ws_W73	1.392108	28.76	1045.02	NaN	1046.24	1045.583333	3660.000000	3655.000000	73	-0.048506	-0.175926	-0.048506	NaN	-0.000664	-0.048506	False	NaN	-39.4	NaN	0.0	0.0	0.0	NaN	NaN	NaN	NaN
2026-02-14 17:55:01+08:00	131	1075	Ws_W73	1.392108	30.00	1075.02	1073.750000	1076.55	1076.000000	3597.600000	3599.568182	92	-0.010875	0.000000	0.000000	0.015942	0.004279	0.393636	True	-76.2	-33.0	0.828	0.0	0.0	0.0	NaN	NaN	NaN	NaN

Figures - Ws_W73

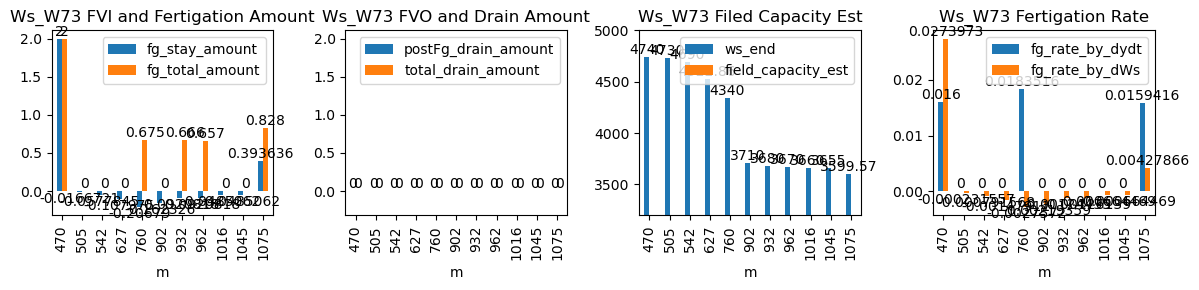

Figure figure_7.png

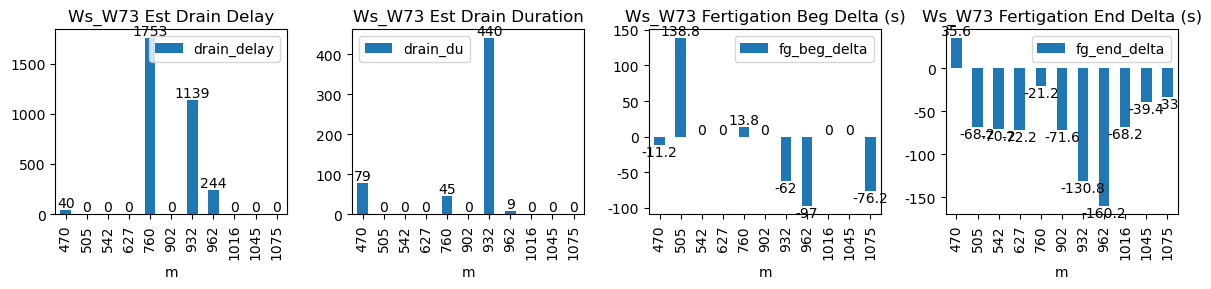

Figure figure_6.png

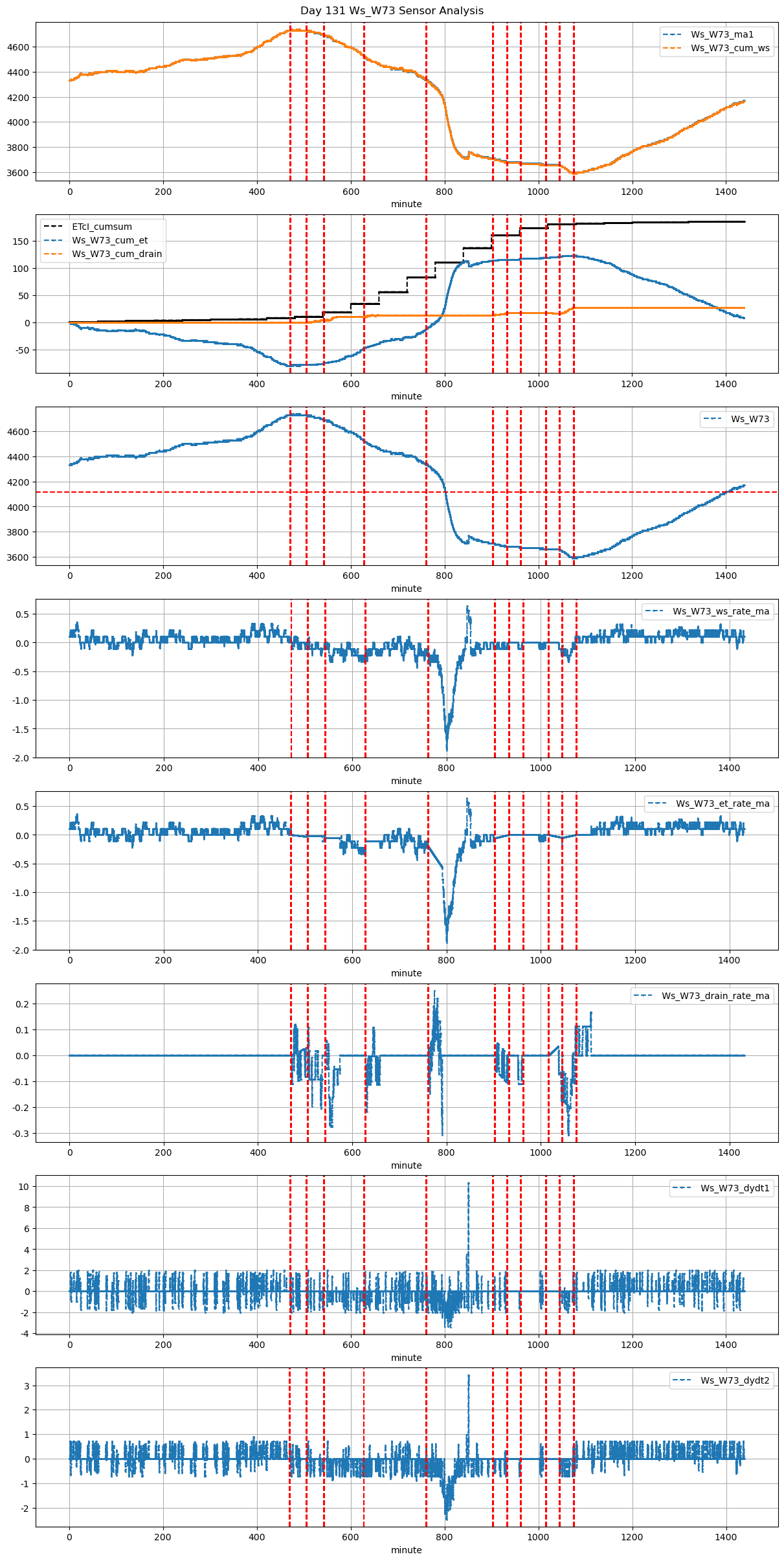

Figure figure_5.png

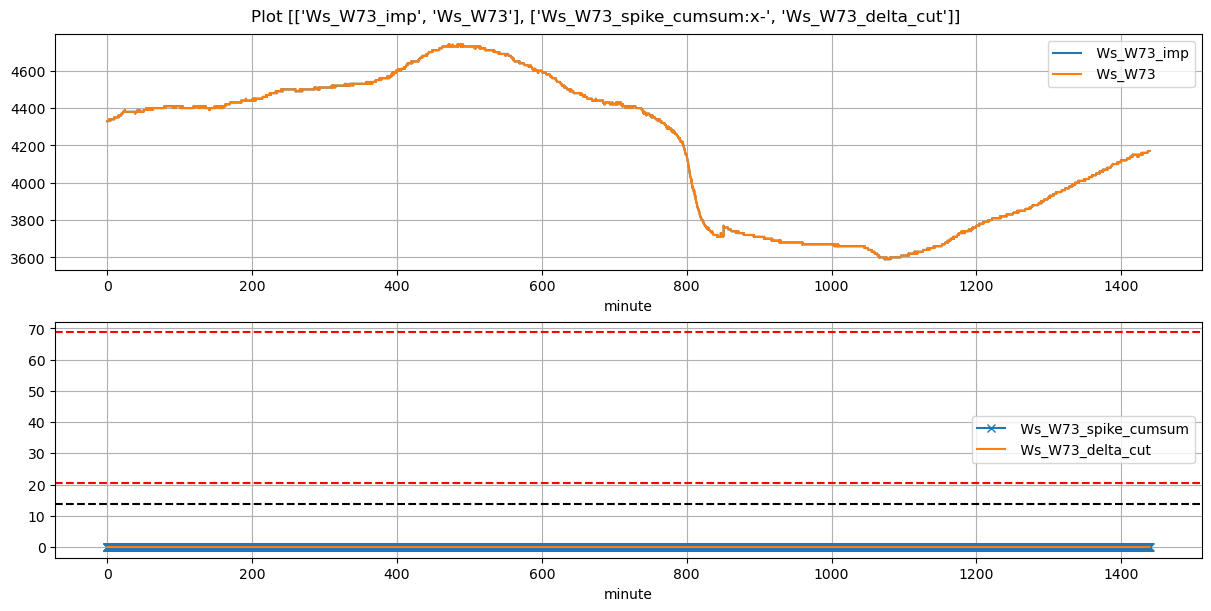

Figure figure_4.png
