Ws Sensor Analysis Report - Day 136

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 133.97 L
Avg Total Drain Amount: 5.17 L
Avg In-Fertigation Drain Amount: 1.20 L
Avg Post-Fertigation Drain Amount: 3.97 L
Avg Drainage Rate: 3.86%

Detail Section

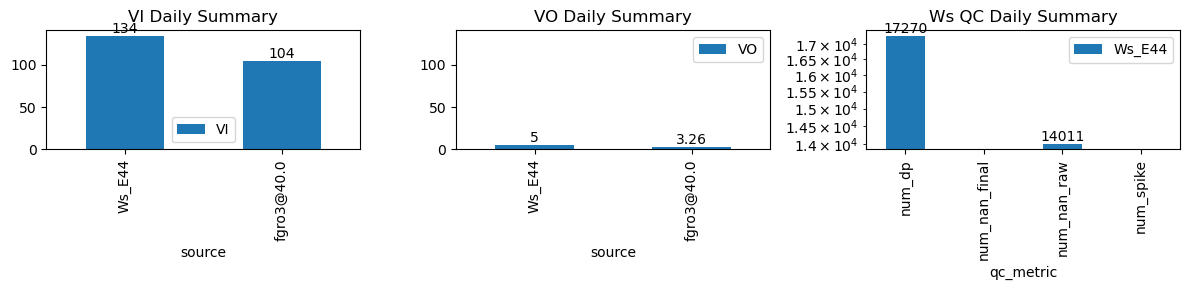

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 133.97 L
Total Drain Amount: 5.17 L
In-Fertigation Drain Amount: 1.20 L
Post-Fertigation Drain Amount: 3.97 L
Drainage Rate: 3.86%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,270	14,011	0	0	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-19 08:17:14+08:00	136	497	Ws_E44	0.357589	30.000000	497.23	497.666667	497.75	500.166667	4579.000000	4683.861111	31	-0.021313	-0.022014	-0.048916	0.271818	0.676523	20.972222	True	26.2	145.0	20.972222	0.0	0.000000	0.000000	40.0	154.0	-0.011303	NaN	NaN	NaN
2026-02-19 09:00:00+08:00	136	540	Ws_E44	0.357589	30.000000	540.00	540.416667	540.52	542.916667	4666.000000	4774.500000	31	-0.050475	-0.035538	-0.062593	0.280833	0.700000	21.700000	True	25.0	143.8	21.700000	0.0	0.000000	0.000000	69.0	148.0	-0.011381	NaN	NaN	NaN
2026-02-19 14:43:55+08:00	136	883	Ws_E44	0.357589	16.250000	883.92	884.416667	884.22	886.750000	4439.000000	4501.962963	18	-0.122738	-0.113025	-0.122738	0.154878	0.699588	12.592593	False	29.8	151.8	NaN	0.0	0.000000	0.000000	NaN	NaN	NaN	NaN	NaN	NaN
2026-02-19 15:03:02+08:00	136	903	Ws_E44	0.357589	30.000000	903.03	903.500000	903.70	907.000000	4481.100000	4619.722222	40	-0.122738	-0.090000	0.000000	0.239429	0.693111	27.724444	True	28.2	198.0	27.724444	0.0	0.000000	0.000000	834.0	917.0	-0.069425	NaN	NaN	NaN
2026-02-19 15:40:00+08:00	136	940	Ws_E44	0.357589	27.083333	940.00	940.333333	940.52	942.916667	4586.066667	4698.722222	31	-0.067433	-0.114599	0.000000	0.272333	0.726810	22.531111	True	20.0	143.8	22.531111	0.0	0.000000	0.000000	1194.0	148.0	-0.077752	NaN	NaN	NaN
2026-02-19 16:10:00+08:00	136	970	Ws_E44	0.357589	27.750000	970.00	970.416667	970.52	972.250000	4664.177778	4763.000000	31	-0.067433	-0.051173	0.000000	0.318019	0.637563	19.764444	True	25.0	103.8	20.522000	0.0	0.000000	0.000000	114.0	118.0	-0.115902	NaN	NaN	NaN
2026-02-19 16:40:00+08:00	136	1000	Ws_E44	0.357589	30.000000	1000.00	1000.416667	1000.52	1001.750000	4744.511111	4841.000000	31	-0.022798	-0.088889	-0.003519	0.393286	0.622509	19.297778	True	25.0	73.8	20.522000	1.2	3.965268	5.165268	484.0	78.0	-0.198214	4821.173659	NaN	NaN

Figures - Ws_E44

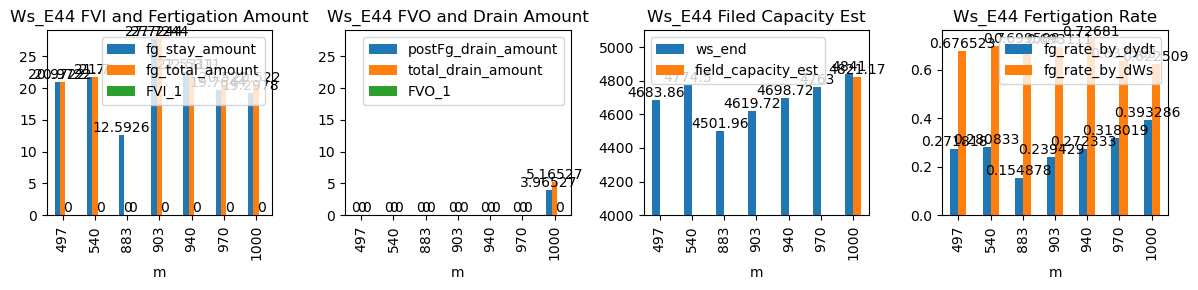

Figure figure_8.png

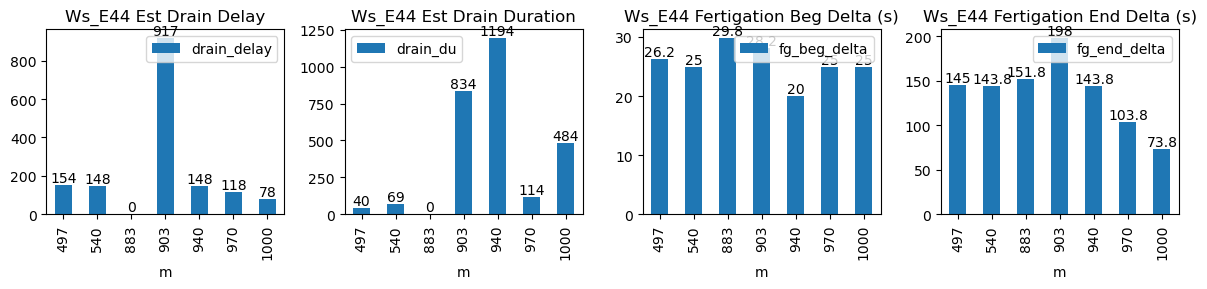

Figure figure_7.png

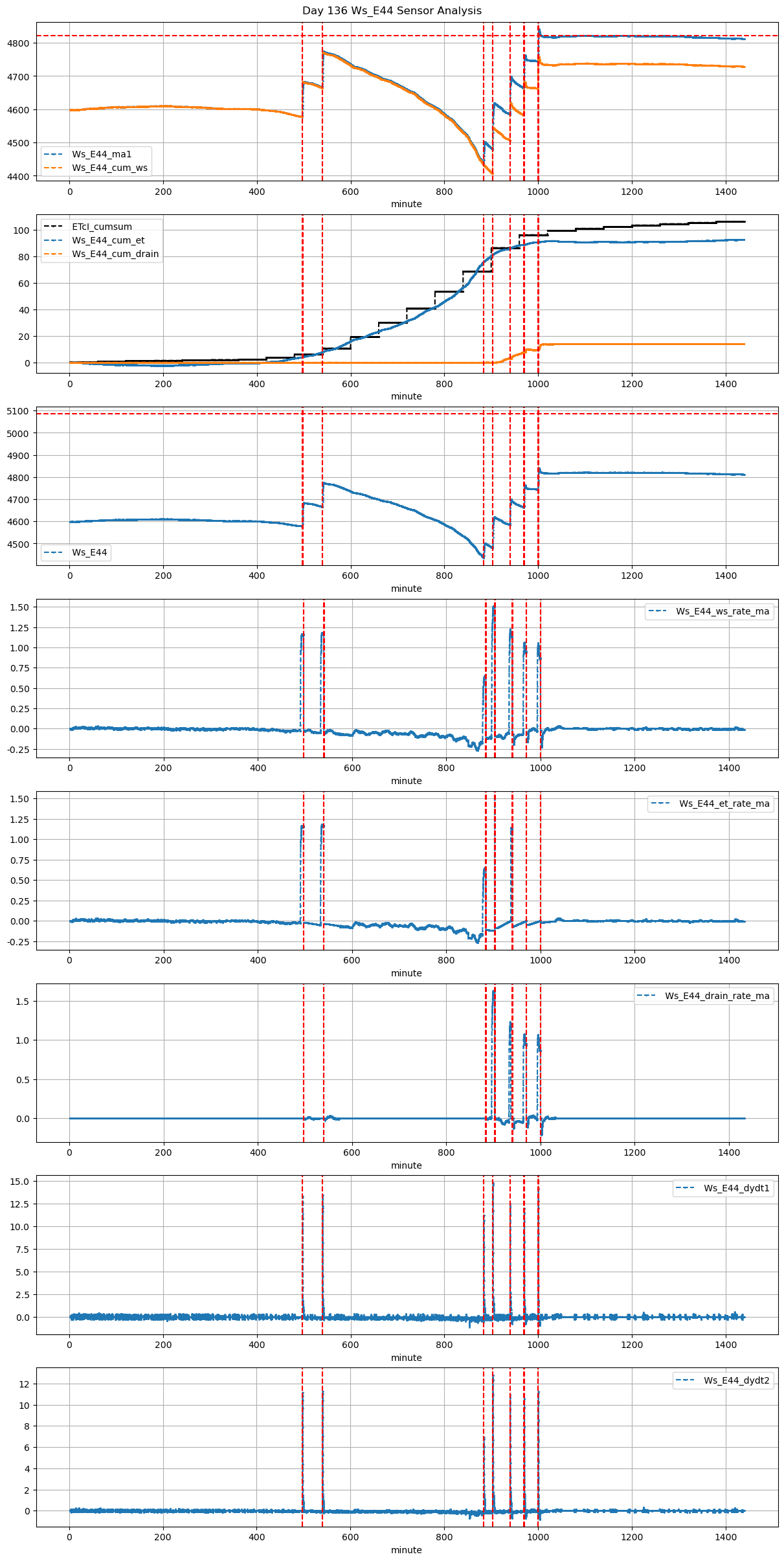

Figure figure_6.png

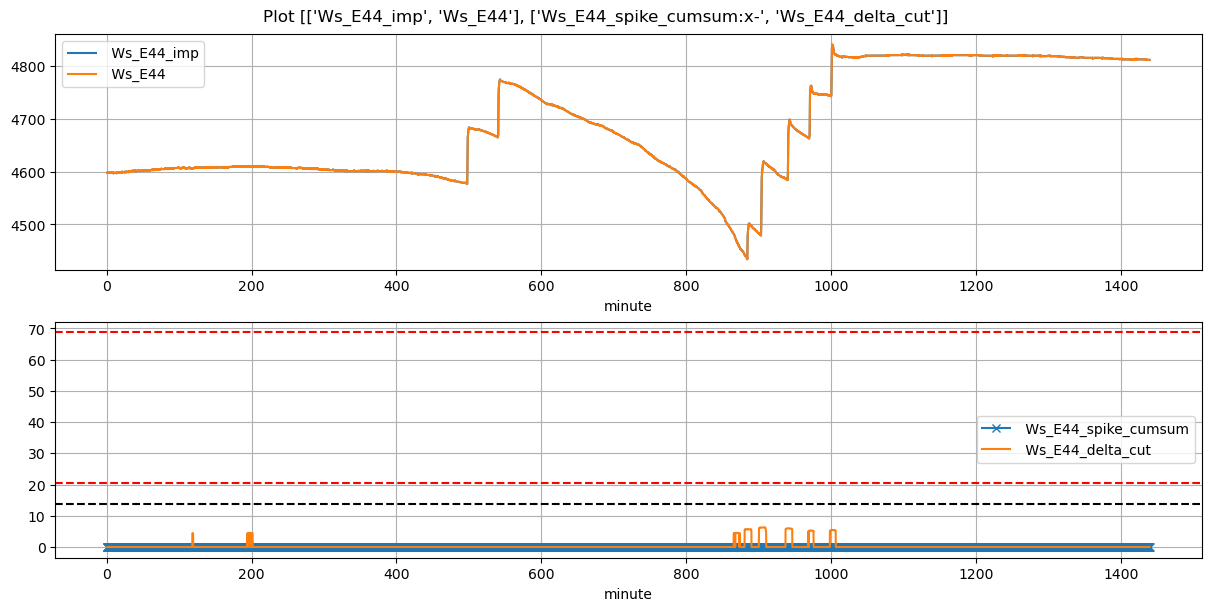

Figure figure_5.png

Figure figure_4.png
