Ws Sensor Analysis Report - Day 144

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 212.96 L
Avg Total Drain Amount: 175.35 L
Avg In-Fertigation Drain Amount: 31.20 L
Avg Post-Fertigation Drain Amount: 144.15 L
Avg Drainage Rate: 82.34%

Detail Section

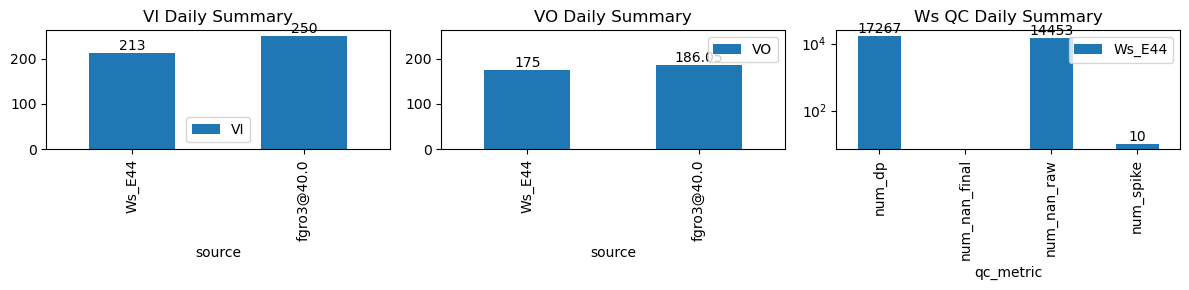

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 212.96 L
Total Drain Amount: 175.35 L
In-Fertigation Drain Amount: 31.20 L
Post-Fertigation Drain Amount: 144.15 L
Drainage Rate: 82.34%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,267	14,453	0	10	126.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-27 08:07:55+08:00	144	487	Ws_E44	1.55966	30.000000	487.92	488.250000	488.85	490.333333	5311.000000	5475.333333	56	-0.000920	-0.128477	-0.022099	0.411515	0.586905	32.866667	True	19.8	89.0	32.866667	0.0	6.819739	6.819739	1074	93	-0.200655	5441.234639	NaN	NaN
2026-02-27 08:55:00+08:00	144	535	Ws_E44	1.55966	28.583333	535.00	535.333333	535.93	536.416667	5433.853333	5560.800000	56	-0.014934	-0.274198	0.000000	0.418364	0.453381	25.389333	True	20.0	29.2	30.016000	4.6	21.921914	26.521914	1280	34	-0.537055	5451.190430	NaN	NaN
2026-02-27 09:25:00+08:00	144	565	Ws_E44	1.55966	28.583333	565.00	565.250000	565.93	566.416667	5446.000000	5571.800000	56	-0.018029	-0.280340	0.000000	0.401727	0.449286	25.160000	True	15.0	29.2	30.016000	4.9	23.081099	27.981099	1290	34	-0.540603	5456.394505	NaN	NaN
2026-02-27 09:55:00+08:00	144	595	Ws_E44	1.55966	28.583333	595.00	595.250000	595.93	596.416667	5450.000000	5574.200000	56	-0.024882	-0.285140	0.000000	0.403091	0.443571	24.840000	True	15.0	29.2	30.016000	5.2	23.061051	28.261051	1290	34	-0.545134	5458.894745	NaN	NaN
2026-02-27 10:25:00+08:00	144	625	Ws_E44	1.55966	28.583333	625.00	625.250000	625.93	626.416667	5451.000000	5573.700000	56	-0.024882	-0.303765	0.000000	0.401429	0.438214	24.540000	True	15.0	29.2	30.016000	5.5	23.581051	29.081051	1290	34	-0.546626	5455.794745	NaN	NaN
2026-02-27 10:55:00+08:00	144	655	Ws_E44	1.55966	28.583333	655.00	655.333333	655.93	656.416667	5448.000000	5572.600000	56	-0.036917	-0.266728	0.000000	0.414091	0.445000	24.920000	True	20.0	29.2	30.016000	5.1	22.562843	27.662843	1295	34	-0.506251	5459.785785	NaN	NaN
2026-02-27 11:25:00+08:00	144	685	Ws_E44	1.55966	30.000000	685.00	685.333333	685.93	686.333333	5449.000000	5569.600000	56	-0.036917	-0.312022	-0.024276	0.407727	0.430714	24.120000	True	20.0	24.2	30.016000	5.9	23.120504	29.020504	1345	29	-0.493516	5453.997478	NaN	NaN

Figures - Ws_E44

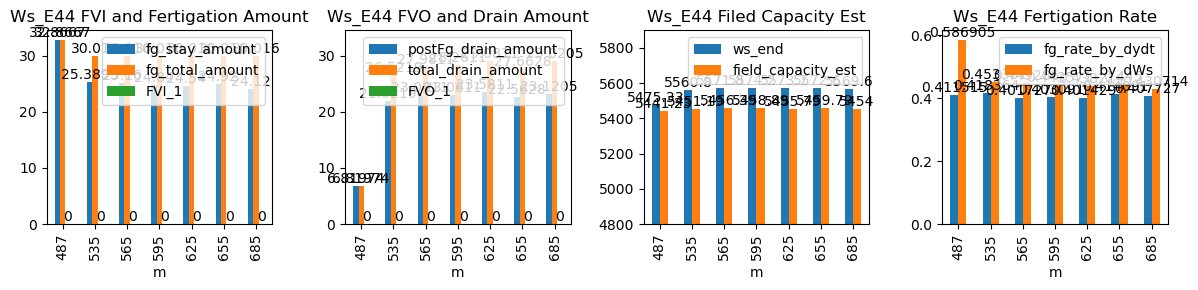

Figure figure_8.png

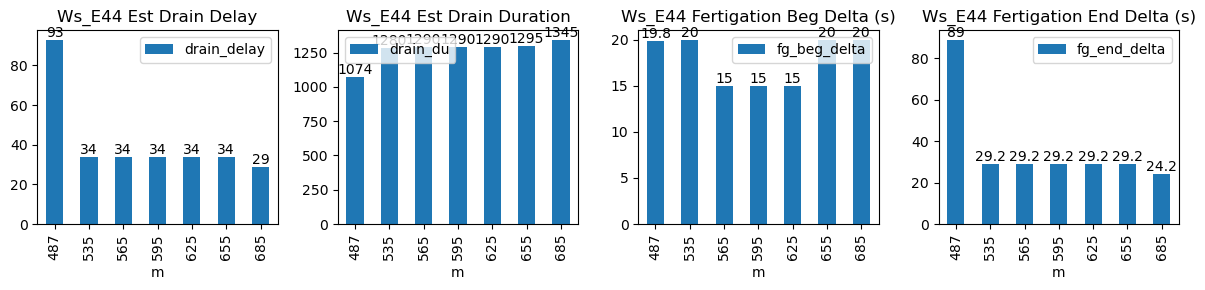

Figure figure_7.png

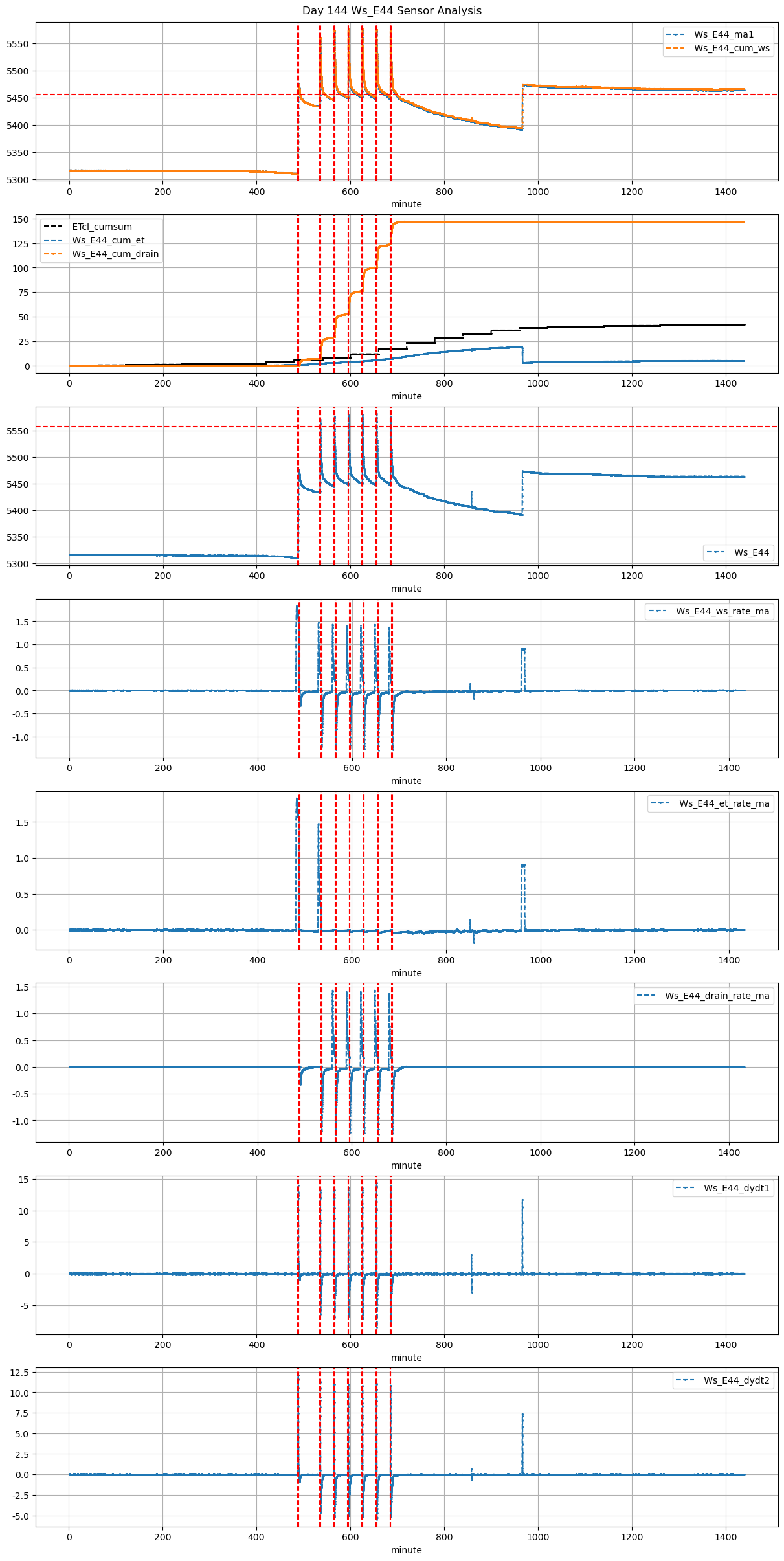

Figure figure_6.png

Figure figure_5.png

Figure figure_4.png
