Ws Sensor Analysis Report - Day 180

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 213.46 L
Avg Total Drain Amount: 67.37 L
Avg In-Fertigation Drain Amount: 13.30 L
Avg Post-Fertigation Drain Amount: 54.07 L
Avg Drainage Rate: 31.56%

Detail Section

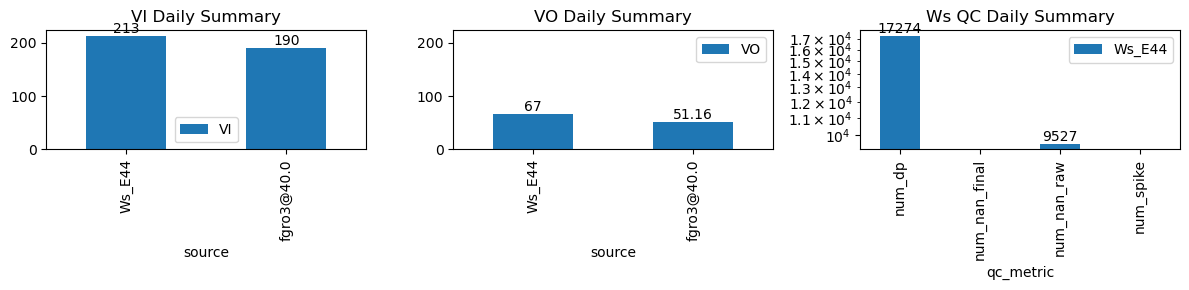

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 213.46 L
Total Drain Amount: 67.37 L
In-Fertigation Drain Amount: 13.30 L
Post-Fertigation Drain Amount: 54.07 L
Drainage Rate: 31.56%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,274	9,527	0	0	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-04 07:21:29+08:00	180	441	Ws_E44	1.072311	30.000000	441.48	441.750000	442.48	444.416667	4975.790000	5158.780000	60	-0.031320	-0.126348	-0.068107	0.399000	0.609967	36.598000	True	16.2	116.2	36.598	0.000000	2.924783	2.924783	600	121	-0.127994	5144.156087	NaN	NaN
2026-04-04 08:05:00+08:00	180	485	Ws_E44	1.072311	30.000000	485.00	485.333333	486.00	486.500000	5123.000000	5271.433333	60	-0.067395	-0.321996	-0.065350	0.444778	0.494778	29.686667	True	20.0	30.0	35.040	5.400000	19.650880	25.050880	560	34	-0.492723	5173.178934	NaN	NaN
2026-04-04 12:05:00+08:00	180	725	Ws_E44	1.072311	30.000000	725.00	725.333333	726.00	728.083333	4824.433333	4996.533333	60	-0.057407	-0.173158	-0.162191	0.372778	0.573667	34.420000	True	20.0	125.0	35.040	0.600000	5.925675	6.525675	1025	495	-0.214334	4966.904959	NaN	NaN
2026-04-04 13:20:00+08:00	180	800	Ws_E44	1.072311	30.000000	800.00	800.416667	801.00	804.416667	4834.000000	5013.000000	60	-0.252805	-0.110381	-0.143971	0.322833	0.596667	35.800000	True	25.0	205.0	35.800	0.000000	3.023496	3.023496	425	825	-0.199568	4997.882522	NaN	NaN
2026-04-04 14:05:00+08:00	180	845	Ws_E44	1.072311	18.083333	845.00	845.250000	846.00	846.916667	4935.000000	5114.700000	60	-0.239113	-0.359702	0.000000	0.447361	0.599000	35.940000	True	15.0	55.0	35.940	0.000000	7.945523	7.945523	425	60	-0.313209	5074.972384	NaN	NaN
2026-04-04 14:25:00+08:00	180	865	Ws_E44	1.072311	30.000000	865.00	865.333333	866.00	866.583333	5037.300000	5173.533333	60	-0.152194	-0.363889	-0.206255	0.409861	0.454111	27.246667	True	20.0	35.0	35.040	7.300931	14.601862	21.902792	350	39	-0.537430	5100.524026	NaN	NaN

Figures - Ws_E44

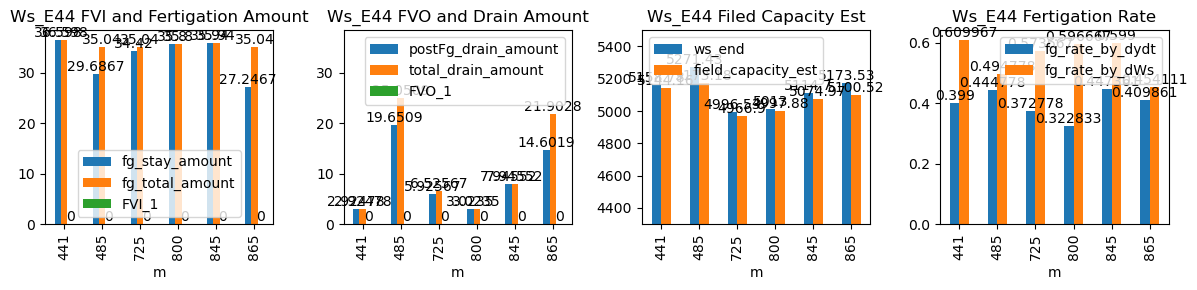

Figure figure_8.png

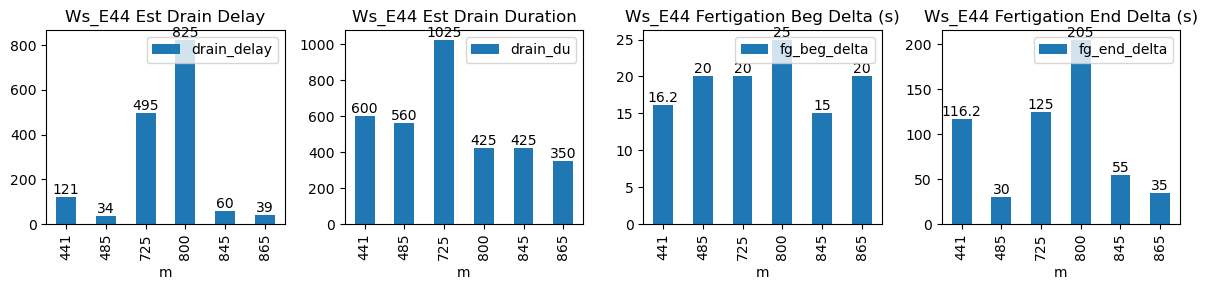

Figure figure_7.png

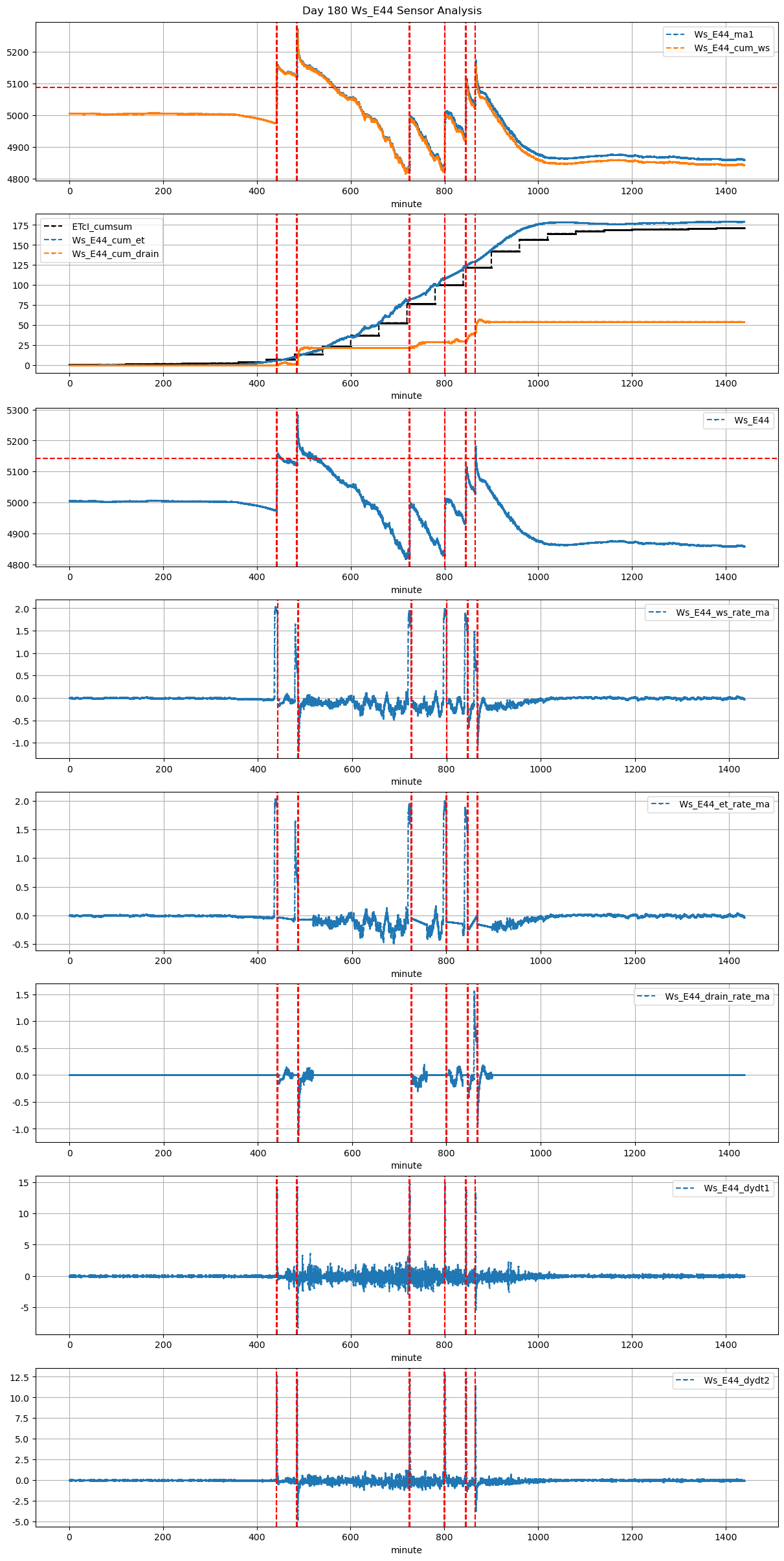

Figure figure_6.png

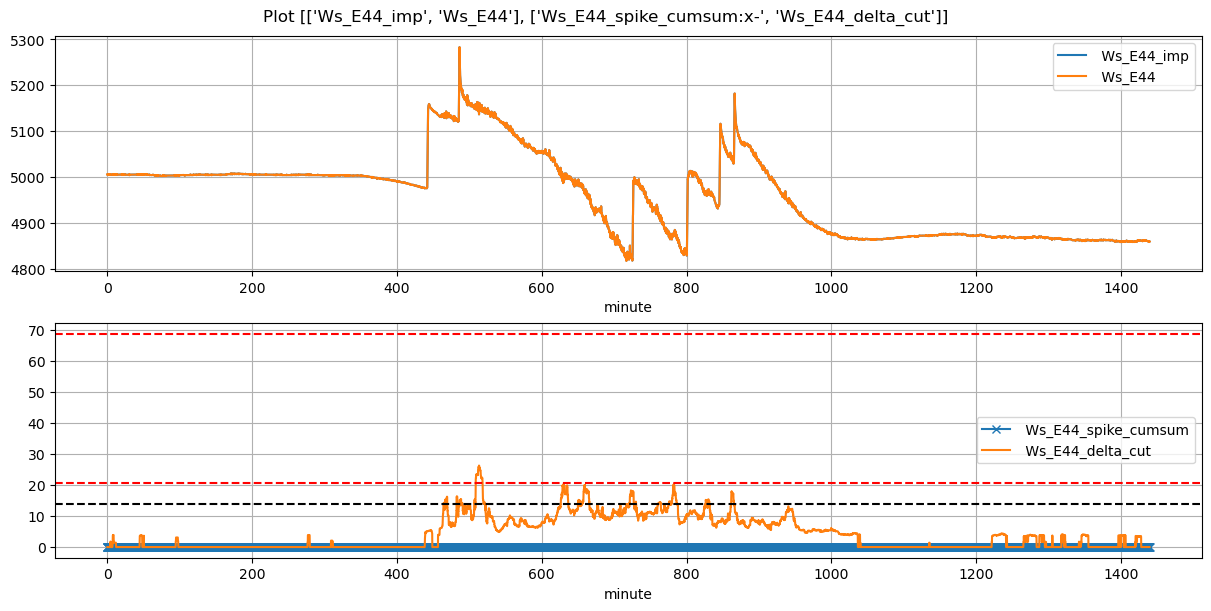

Figure figure_5.png

Figure figure_4.png
