Ws Sensor Analysis Report - Day 81

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 168.66 L
Avg Total Drain Amount: 39.17 L
Avg In-Fertigation Drain Amount: 11.61 L
Avg Post-Fertigation Drain Amount: 27.56 L
Avg Drainage Rate: 23.23%

Detail Section

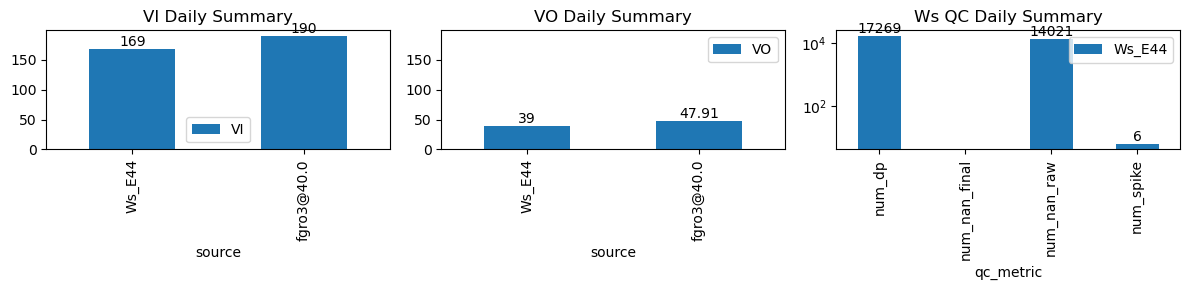

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 168.66 L
Total Drain Amount: 39.17 L
In-Fertigation Drain Amount: 11.61 L
Post-Fertigation Drain Amount: 27.56 L
Drainage Rate: 23.23%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,269	14,021	0	6	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2025-12-26 09:12:33+08:00	81	552	Ws_E44	0.437622	24.75	552.55	553.000000	553.10	555.250000	3791.790	3899.333333	33	-0.062246	-0.078062	0.000000	0.313037	0.651778	21.508667	True	27.0	129.0	21.508667	0.000000	0.000000	0.000000	1065	134	-0.047790	NaN	NaN	NaN
2025-12-26 09:40:00+08:00	81	580	Ws_E44	0.437622	30.00	580.00	580.500000	580.55	581.583333	3877.000	3969.833333	33	-0.037171	-0.148527	-0.114752	0.415667	0.562626	18.566667	True	30.0	62.0	21.021000	2.500000	5.384289	7.884289	1620	67	-0.169906	3942.911887	NaN	NaN
2025-12-26 10:45:00+08:00	81	645	Ws_E44	0.437622	30.00	645.00	645.500000	645.55	646.833333	3864.800	3959.833333	33	-0.124066	-0.134259	-0.099489	0.389000	0.575960	19.006667	True	30.0	77.0	21.021000	0.782581	1.565162	2.347743	170	82	-0.101743	3952.007524	NaN	NaN
2025-12-26 11:30:00+08:00	81	690	Ws_E44	0.437622	30.00	690.00	690.500000	690.55	691.833333	3901.825	3999.500000	33	-0.100739	-0.195000	-0.126366	0.386333	0.591970	19.535000	True	30.0	77.0	21.021000	1.500000	4.310184	5.810184	765	82	-0.175541	3977.949080	NaN	NaN
2025-12-26 12:15:00+08:00	81	735	Ws_E44	0.437622	30.00	735.00	735.500000	735.55	736.916667	3919.400	4013.750000	33	-0.126763	-0.190854	-0.127912	0.354000	0.571818	18.870000	True	30.0	82.0	21.021000	1.924570	3.849141	5.773711	639	87	-0.120823	3994.504297	NaN	NaN
2025-12-26 12:55:00+08:00	81	775	Ws_E44	0.437622	30.00	775.00	775.416667	775.55	776.750000	3937.650	4031.750000	33	-0.126182	-0.197309	-0.107145	0.390333	0.570303	18.820000	True	25.0	72.0	21.021000	2.105036	4.210072	6.315109	804	77	-0.156501	4010.699638	NaN	NaN
2025-12-26 13:41:05+08:00	81	821	Ws_E44	0.437622	30.00	821.08	821.500000	821.63	822.750000	3950.475	4047.833333	33	-0.120470	-0.189815	-0.083318	0.410000	0.590051	19.471667	True	25.2	67.2	21.021000	1.500000	3.884182	5.384182	814	72	-0.159599	4028.412424	NaN	NaN
2025-12-26 14:25:00+08:00	81	865	Ws_E44	0.437622	30.00	865.00	865.500000	865.55	866.666667	3981.200	4079.750000	33	-0.075968	-0.138868	-0.065006	0.403833	0.597273	19.710000	True	30.0	67.0	21.021000	1.300000	4.359744	5.659744	300	72	-0.193295	4057.951279	NaN	NaN

Figures - Ws_E44

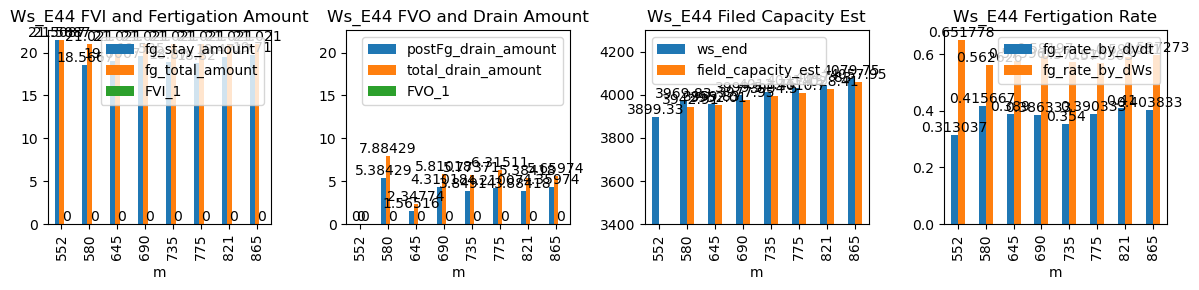

Figure figure_8.png

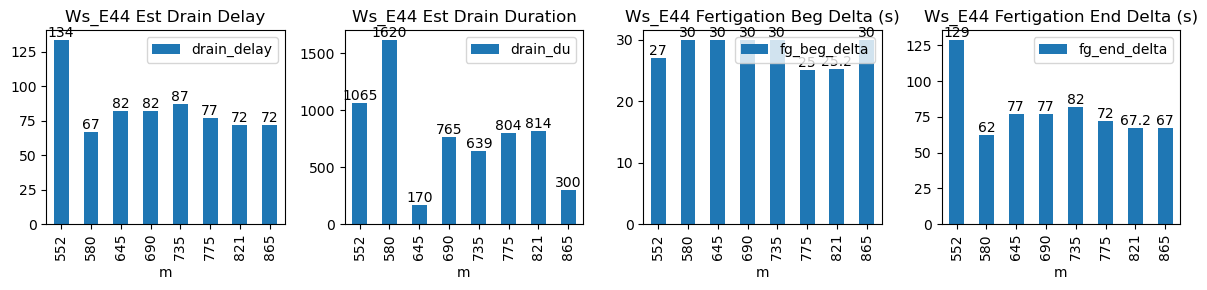

Figure figure_7.png

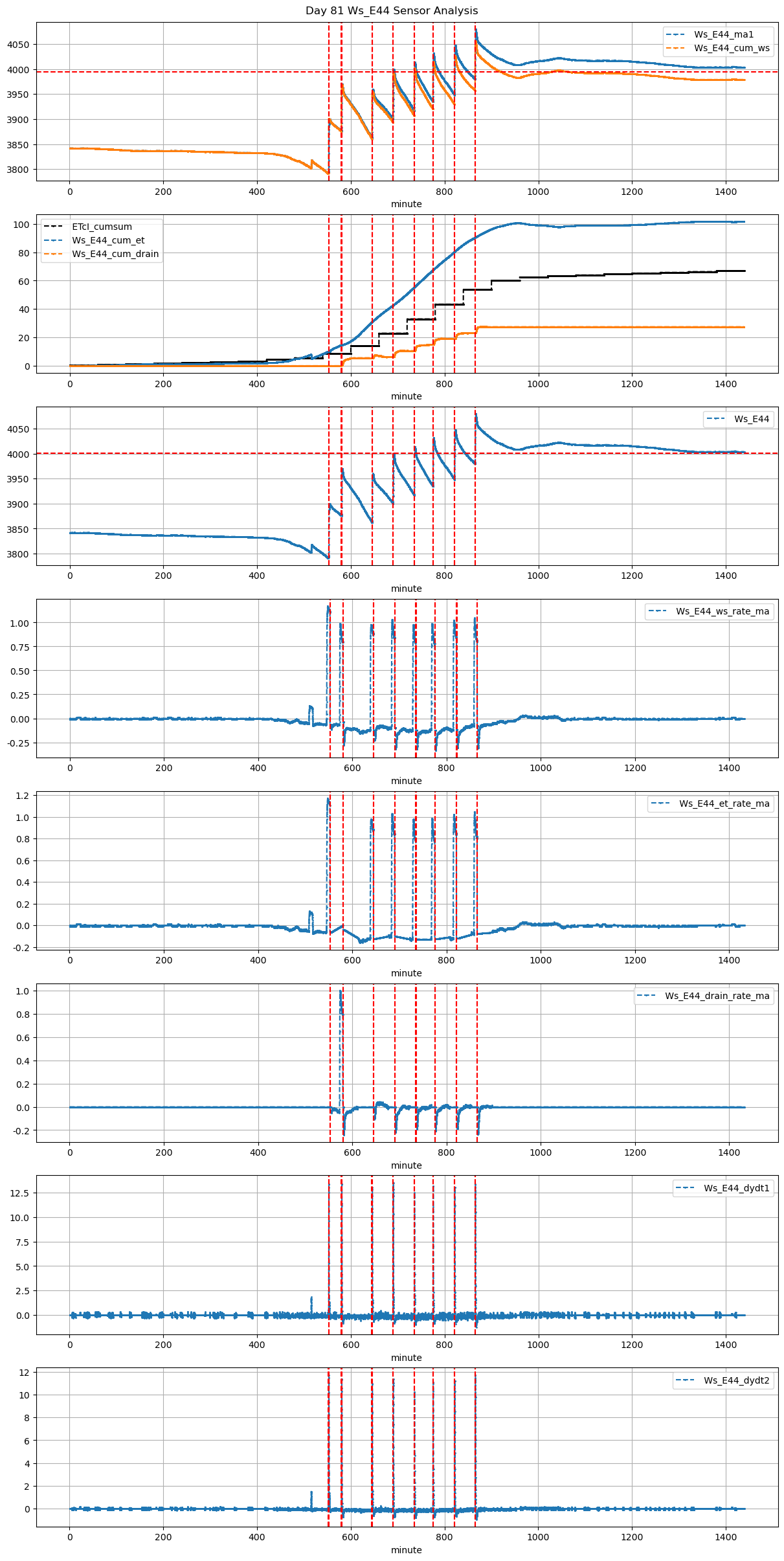

Figure figure_6.png

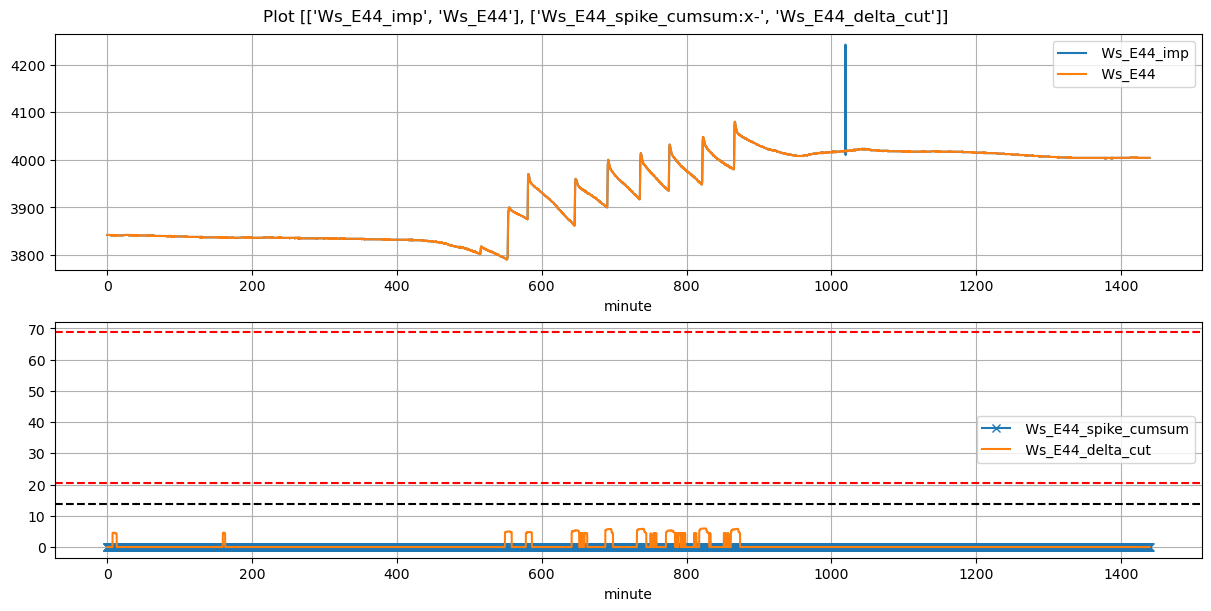

Figure figure_5.png

Figure figure_4.png
