Ws Sensor Analysis Report - Day 93

Summary Statistics (All Ws Sensors)

Detail Section

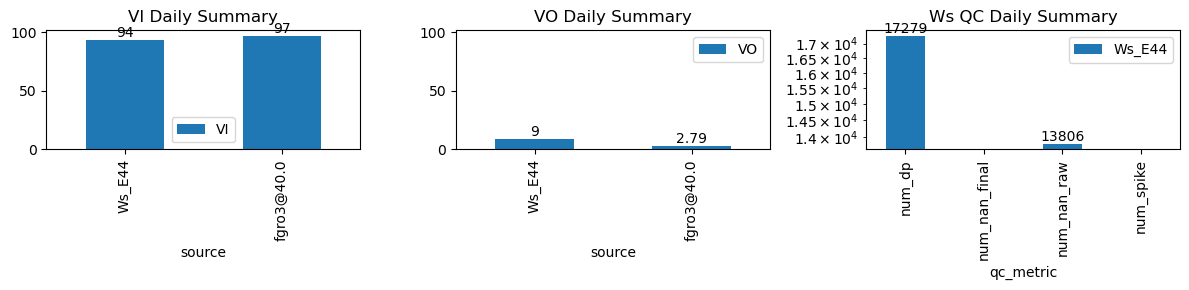

VI and VO Daily Summary


Summary Statistics - Ws_E44

Ws Cleaning Summary Table - Ws_E44

ws_name num_dp num_nan_raw num_nan_final num_spike cum_step_adj
Ws_E44 17,279 13,806 0 0 0.00

Fertigation Events Details Table - Ws_E44

ds d m ws_name prominence_cut max_drain_du fg_beg fg_beg_est fg_end fg_end_est ws_beg ws_end duc pre_fg_et post_fg_ws post_drn_et fg_rate_by_dydt fg_rate_by_dWs fg_stay_amount enough_data fg_beg_delta fg_end_delta fg_total_amount fg_drain_amount postFg_drain_amount total_drain_amount drain_du drain_delay drain_rate field_capacity_est FVI_1 FVO_1
2026-01-07 08:55:00+08:00 93 535 Ws_E44 0.478523 30 535.0 535.500000 535.57 537.833333 3586.177778 3696.833333 34 -0.066066 -0.073313 -0.068560 0.305250 0.650915 22.131111 True 30.0 135.8 23.46 0.000000 0.000000 0.000000 150.0 140.0 -0.022963 NaN NaN NaN
2026-01-07 10:30:00+08:00 93 630 Ws_E44 0.478523 30 630.0 630.583333 630.57 633.000000 3599.371429 3713.666667 34 -0.054168 -0.125770 -0.054168 0.292333 0.672325 22.859048 False 35.0 145.8 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2026-01-07 11:45:00+08:00 93 705 Ws_E44 0.478523 30 705.0 705.500000 705.57 707.833333 3616.520000 3724.875000 34 -0.114705 -0.151667 -0.124383 0.305476 0.637382 21.671000 True 30.0 135.8 23.46 1.067593 2.135186 3.202779 305.0 140.0 -0.107978 3714.199071 NaN NaN
2026-01-07 12:55:00+08:00 93 775 Ws_E44 0.478523 30 775.0 775.500000 775.57 778.083333 3618.100000 3728.833333 34 -0.117897 -0.150633 -0.110741 0.274833 0.651373 22.146667 True 30.0 150.8 23.46 1.057129 2.114259 3.171388 880.0 155.0 -0.059577 3718.262039 NaN NaN
2026-01-07 14:05:00+08:00 93 845 Ws_E44 0.478523 30 845.0 845.500000 845.57 847.666667 3631.000000 3744.000000 34 -0.110943 -0.115617 -0.058394 0.328095 0.664706 22.600000 True 30.0 125.8 23.46 0.758765 1.517530 2.276296 129.0 130.0 -0.057352 3736.412348 NaN NaN

Figures - Ws_E44

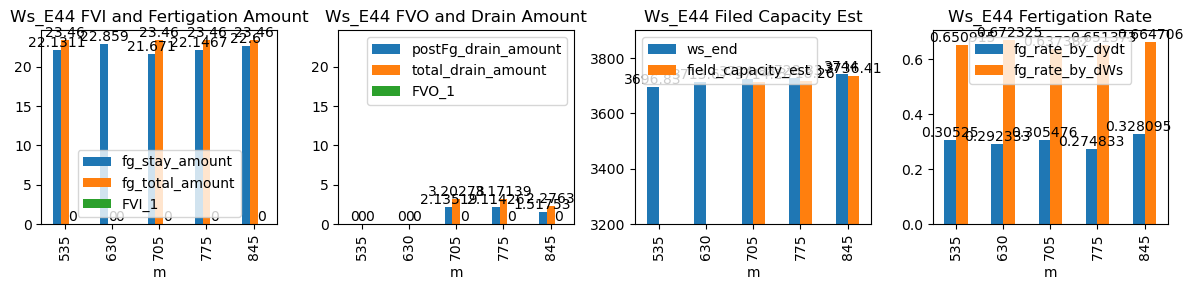

Figure figure_8.png

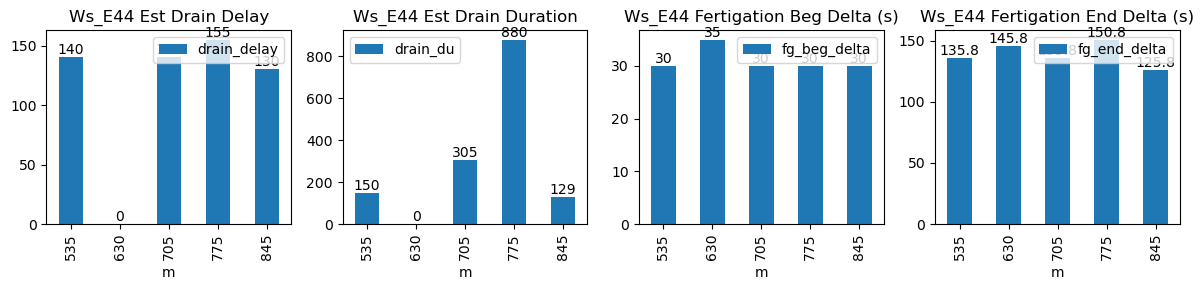

Figure figure_7.png

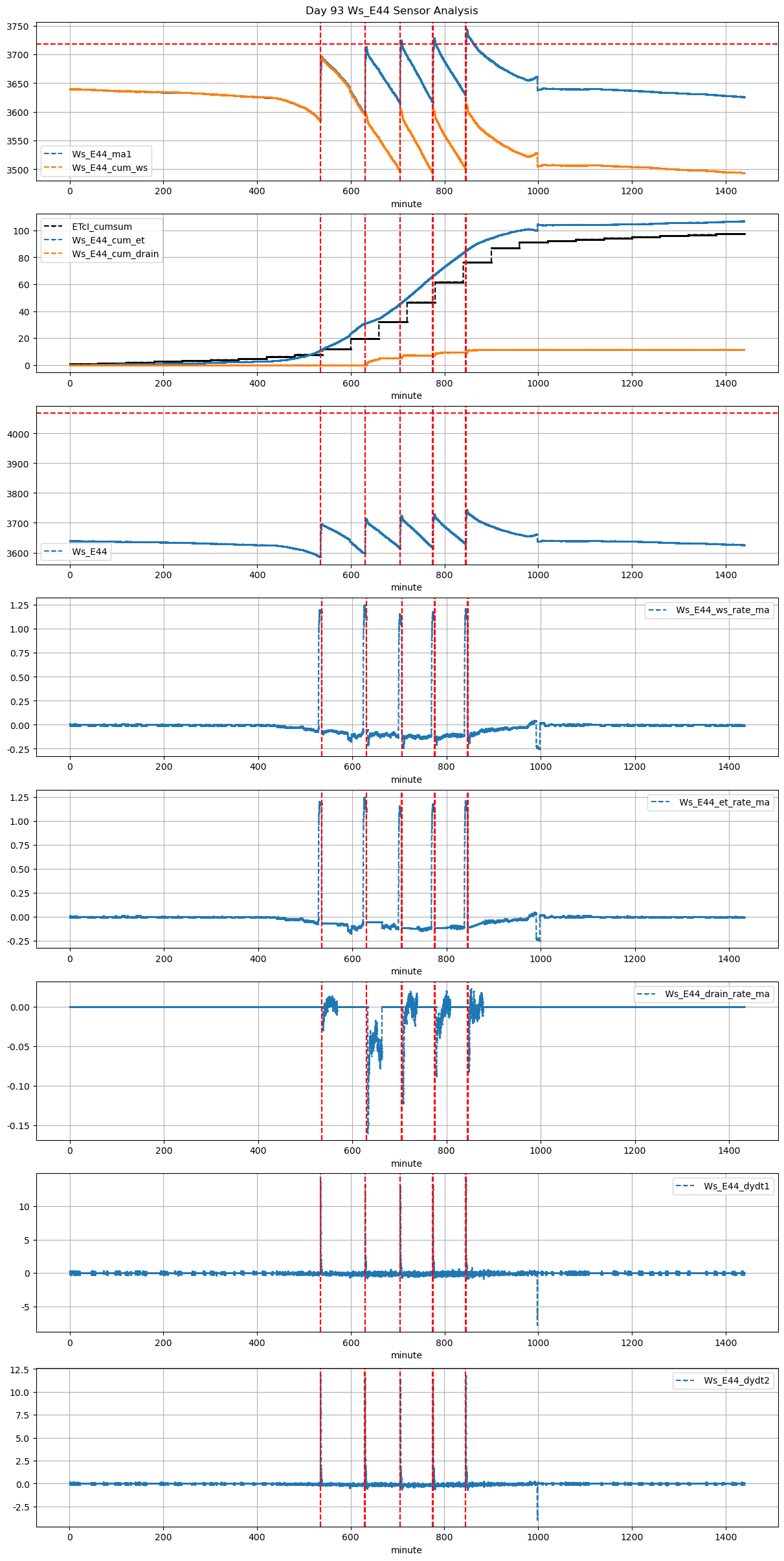

Figure figure_6.png

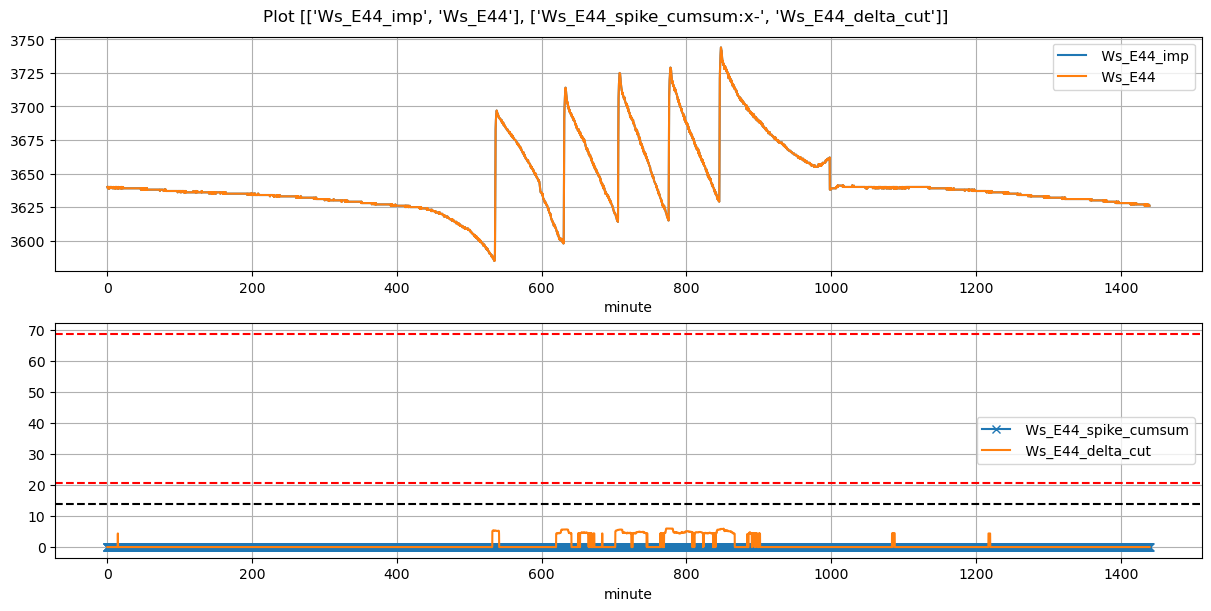

Figure figure_5.png
Figure figure_4.png
