Ws Sensor Analysis Report - Day 114

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 183.06 L
Avg Total Drain Amount: 127.81 L
Avg In-Fertigation Drain Amount: 29.83 L
Avg Post-Fertigation Drain Amount: 97.98 L
Avg Drainage Rate: 69.82%

Detail Section

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 183.06 L
Total Drain Amount: 127.81 L
In-Fertigation Drain Amount: 29.83 L
Post-Fertigation Drain Amount: 97.98 L
Drainage Rate: 69.82%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,266	14,290	79	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-01-28 08:55:00+08:00	114	535	Ws_W68	1.782915	30.000000	535.0	535.333333	535.82	537.083333	5215.825	5316.0	49	-0.030027	-0.019861	0.000000	0.260422	0.408878	20.035	True	20.0	75.8	22.883	0.000000	0.000000	0.000000	45	145	-0.231251	NaN
2026-01-28 09:30:00+08:00	114	570	Ws_W68	1.782915	30.000000	570.0	570.333333	570.82	571.333333	5308.000	5391.0	49	0.000000	-0.213351	-0.044861	0.291159	0.338776	16.600	True	20.0	30.8	22.883	5.731729	11.463458	17.195188	305	35	-1.311063	5333.682708
2026-01-28 10:35:00+08:00	114	635	Ws_W68	1.782915	30.000000	635.0	635.333333	635.82	636.250000	5306.000	5397.0	49	-0.038136	-0.236806	-0.065895	0.329222	0.371429	18.200	True	20.0	25.8	22.883	4.700000	10.586597	15.286597	65	35	-1.563675	5344.067014
2026-01-28 11:25:00+08:00	114	685	Ws_W68	1.782915	28.750000	685.0	685.333333	685.82	686.250000	5308.075	5406.0	49	-0.058298	-0.275046	0.000000	0.357222	0.399694	19.585	True	20.0	25.8	22.883	3.300000	15.492383	18.792383	225	35	-1.094210	5328.538083
2026-01-28 11:55:00+08:00	114	715	Ws_W68	1.782915	28.666667	715.0	715.416667	715.82	716.333333	5314.000	5407.0	49	-0.082486	-0.260833	0.000000	0.351889	0.379592	18.600	True	25.0	30.8	22.883	4.300000	15.745955	20.045955	215	35	-0.921242	5328.270227
2026-01-28 12:25:00+08:00	114	745	Ws_W68	1.782915	28.750000	745.0	745.333333	745.82	746.250000	5310.460	5406.0	49	-0.094539	-0.259134	0.000000	0.356667	0.389959	19.108	True	20.0	25.8	22.883	3.800000	14.927320	18.727320	249	30	-1.159075	5331.363401
2026-01-28 12:55:00+08:00	114	775	Ws_W68	1.782915	28.750000	775.0	775.333333	775.82	776.250000	5310.000	5403.0	49	-0.091047	-0.273056	0.000000	0.345333	0.379592	18.600	True	20.0	25.8	22.883	4.300000	16.608875	20.908875	390	30	-0.912566	5319.955624
2026-01-28 13:25:00+08:00	114	805	Ws_W68	1.782915	30.000000	805.0	805.333333	805.82	806.250000	5302.000	5398.0	49	-0.137288	-0.303889	-0.112847	0.363333	0.391837	19.200	True	20.0	25.8	22.883	3.700000	13.156053	16.856053	165	30	-0.894907	5332.219733

Figures - Ws_W68

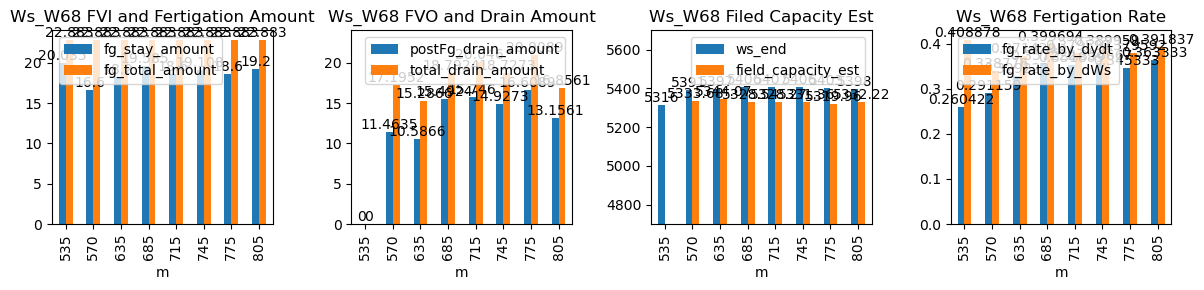

Figure figure_7.png

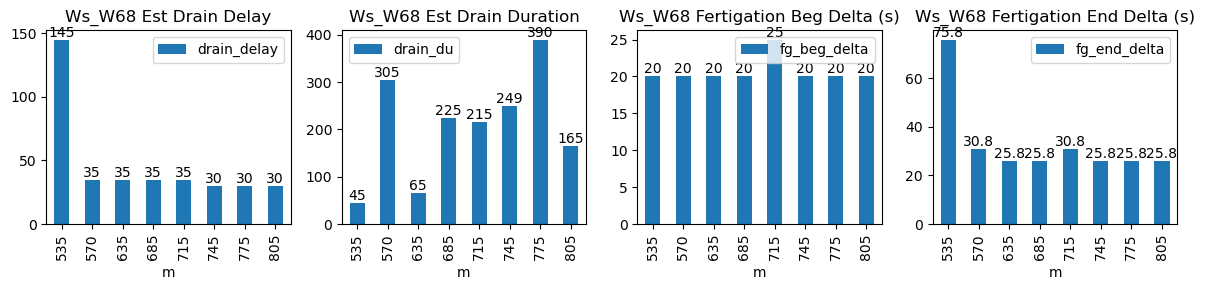

Figure figure_6.png

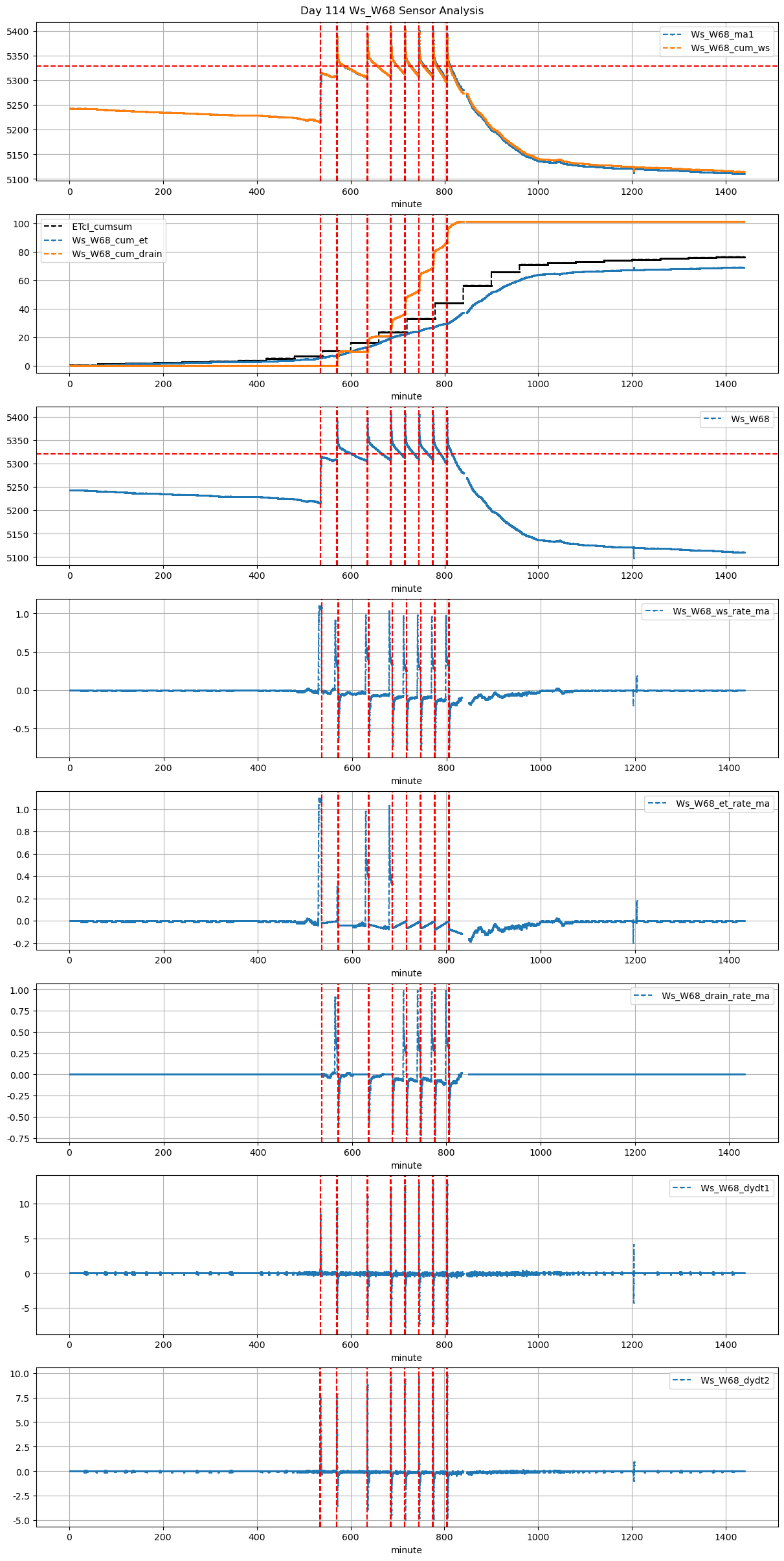

Figure figure_5.png

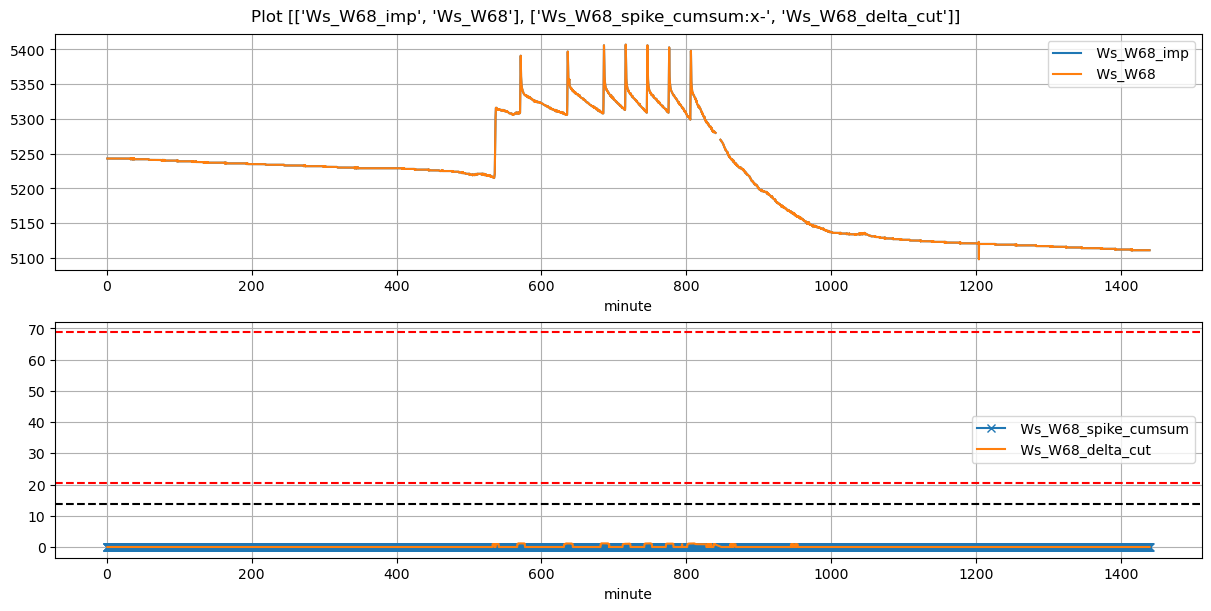

Figure figure_4.png
