Ws Sensor Analysis Report - Day 156

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 239.02 L
Avg Total Drain Amount: 24.86 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 24.86 L
Avg Drainage Rate: 10.40%

Detail Section

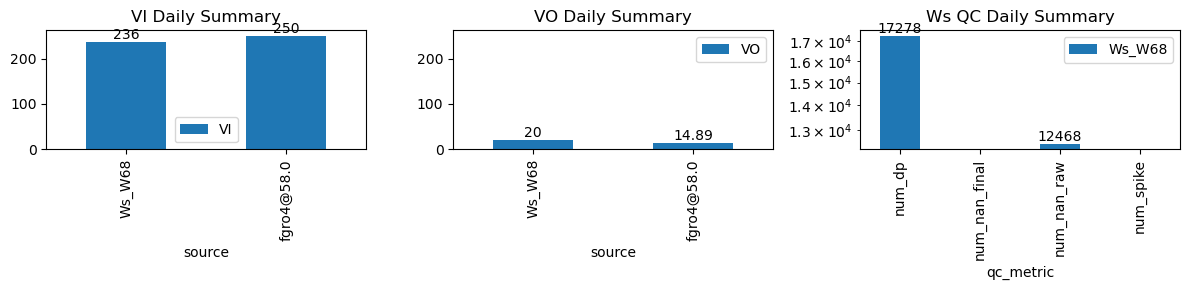

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 239.02 L
Total Drain Amount: 24.86 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 24.86 L
Drainage Rate: 10.40%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,278	12,468	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-11 07:50:00+08:00	156	470	Ws_W68	0.471554	30	470.0	470.083333	471.72	476.666667	4759.000000	4962.666667	103	-0.013527	0.000000	-0.078735	0.216550	0.395469	40.733333	True	5.0	296.8	40.733333	0.0	0.000000	0.000000	30	856	-0.141511	NaN
2026-03-11 10:25:00+08:00	156	625	Ws_W68	0.471554	30	625.0	625.083333	626.72	627.333333	4832.866667	5064.000000	103	-0.127631	-0.127350	-0.120475	0.373017	0.448803	46.226667	True	5.0	36.8	46.226667	0.0	4.859215	4.859215	140	46	-0.662892	NaN
2026-03-11 11:30:00+08:00	156	690	Ws_W68	0.471554	30	690.0	690.166667	691.72	692.166667	4923.557143	5062.000000	103	-0.171398	-0.279699	-0.222801	0.234150	0.268821	27.688571	True	10.0	26.8	30.762667	0.0	3.177289	3.177289	219	36	-1.082141	NaN
2026-03-11 12:30:00+08:00	156	750	Ws_W68	0.471554	30	750.0	750.166667	751.72	752.250000	4912.250000	5049.666667	103	-0.158016	-0.208750	-0.197610	0.228750	0.266828	27.483333	True	10.0	31.8	30.762667	0.0	3.372553	3.372553	170	41	-0.656861	NaN
2026-03-11 13:30:00+08:00	156	810	Ws_W68	0.471554	30	810.0	810.083333	811.72	812.250000	4906.000000	5134.333333	103	-0.136123	-0.188333	-0.179375	0.380750	0.443366	45.666667	True	5.0	31.8	45.666667	0.0	4.007523	4.007523	145	41	-1.002648	NaN
2026-03-11 14:45:00+08:00	156	885	Ws_W68	0.471554	30	885.0	885.083333	886.72	887.333333	4996.000000	5220.333333	103	-0.085087	-0.194815	-0.050139	0.370542	0.435599	44.866667	True	5.0	36.8	44.866667	0.0	9.438652	9.438652	100	41	-0.997647	5173.140074

Figures - Ws_W68

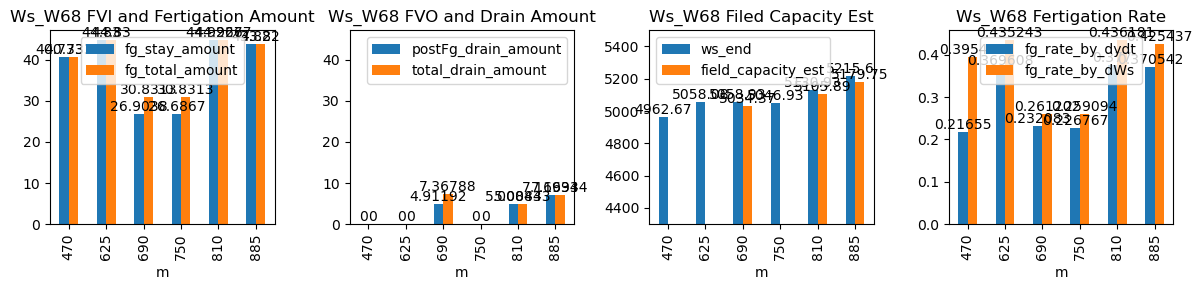

Figure figure_7.png

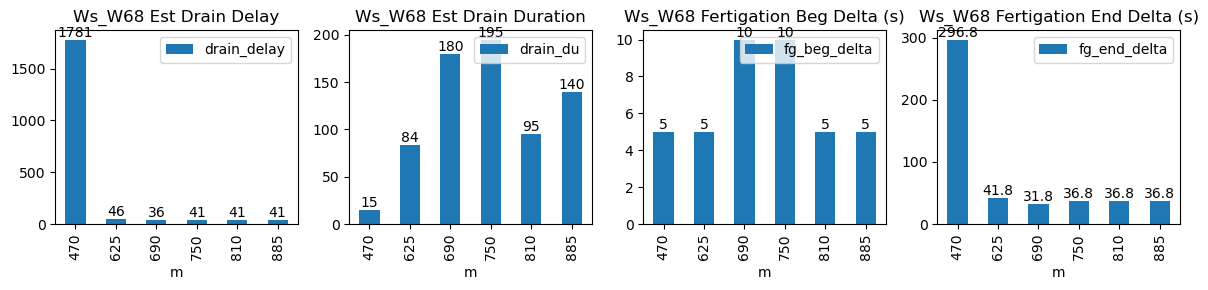

Figure figure_6.png

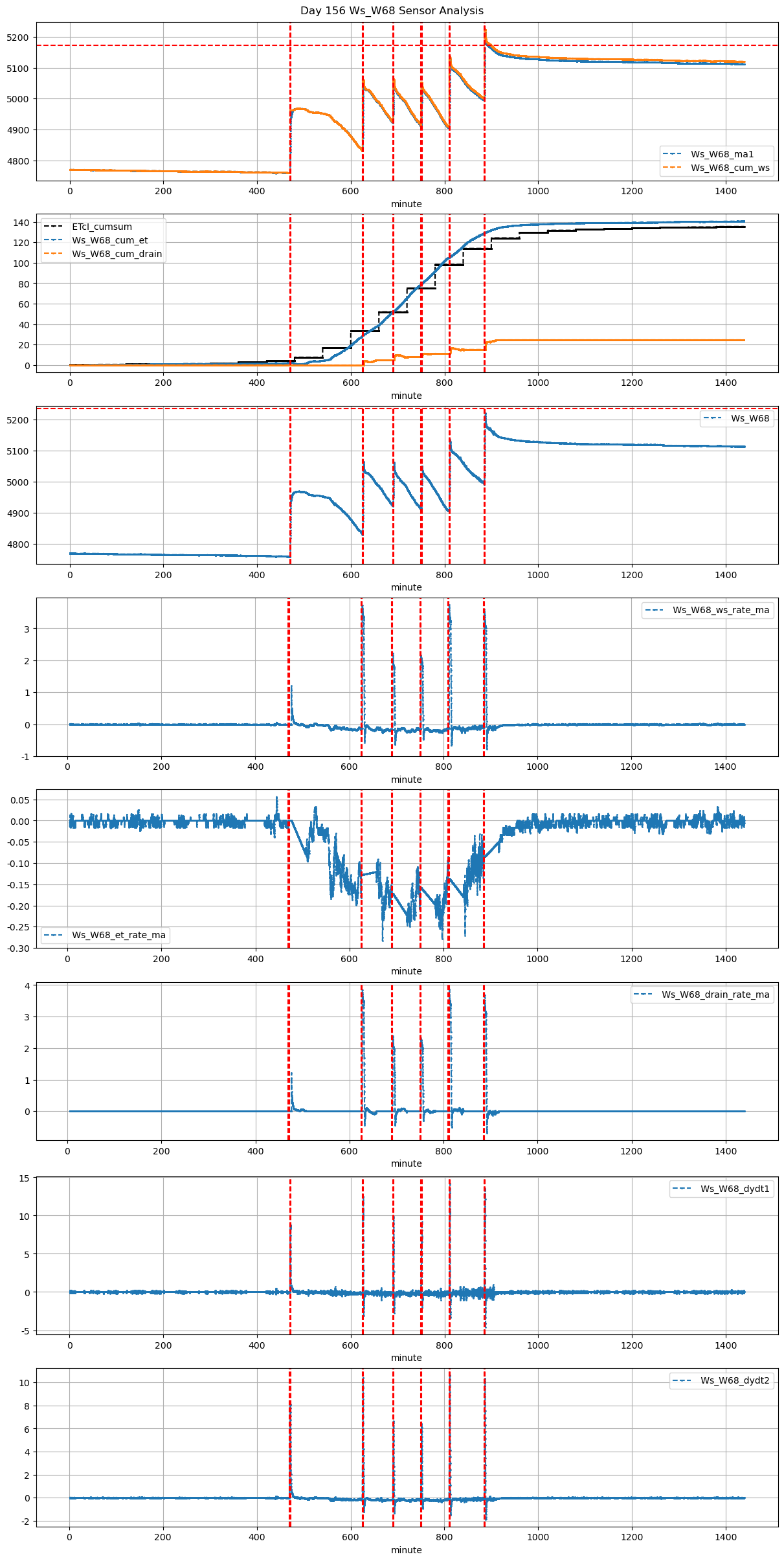

Figure figure_5.png

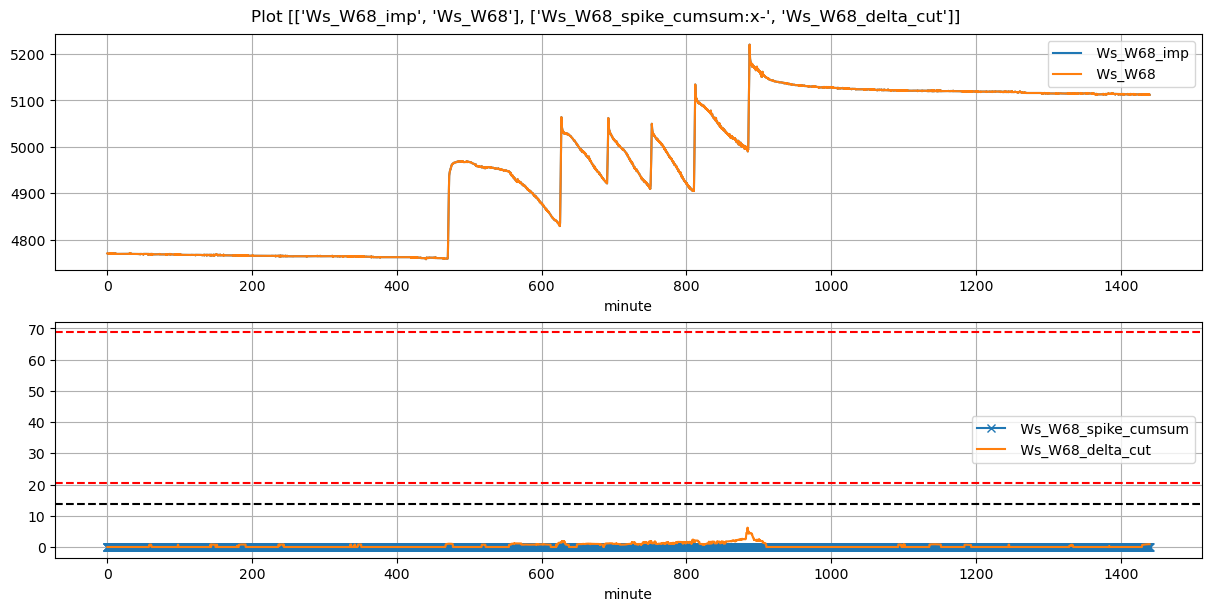

Figure figure_4.png
