Ws Sensor Analysis Report - Day 159

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 321.90 L
Avg Total Drain Amount: 34.12 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 34.12 L
Avg Drainage Rate: 10.60%

Detail Section

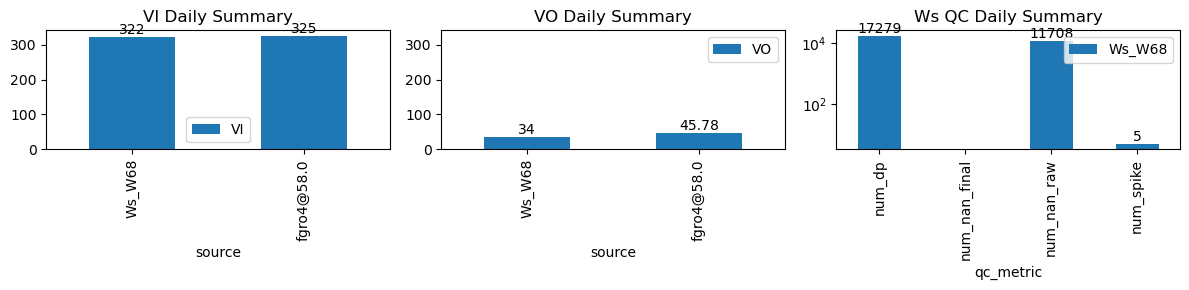

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 321.90 L
Total Drain Amount: 34.12 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 34.12 L
Drainage Rate: 10.60%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,279	11,708	0	5	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-14 07:50:00+08:00	159	470	Ws_W68	0.778377	30	470.0	470.083333	471.62	475.500000	4901.000000	5090.000000	97	-0.031786	-0.010432	-0.080085	0.231667	0.389691	37.800000	True	5.0	232.8	37.800000	0.0	0.000000	0.000000	150	1647	-0.022812	NaN
2026-03-14 09:45:00+08:00	159	585	Ws_W68	0.778377	30	585.0	585.083333	586.62	587.416667	4982.000000	5205.650000	97	-0.137141	-0.249016	-0.183755	0.384921	0.461134	44.730000	True	5.0	47.8	44.730000	0.0	0.000000	0.000000	885	52	-0.134204	NaN
2026-03-14 10:50:00+08:00	159	650	Ws_W68	0.778377	30	650.0	650.000000	651.62	652.250000	5017.900000	5248.133333	97	-0.208086	-0.296286	-0.210195	0.369582	0.474708	46.046667	True	0.0	37.8	46.046667	0.0	8.879151	8.879151	484	42	-0.160728	5203.737576
2026-03-14 11:40:00+08:00	159	700	Ws_W68	0.778377	30	700.0	700.166667	701.62	702.166667	5089.000000	5214.300000	97	-0.205637	-0.324603	-0.225545	0.237211	0.258351	25.060000	True	10.0	32.8	29.236083	0.0	0.000000	0.000000	540	37	-0.189669	NaN
2026-03-14 12:30:00+08:00	159	750	Ws_W68	0.778377	30	750.0	750.166667	751.62	752.250000	5041.533333	5178.066667	97	-0.244106	-0.271245	-0.224146	0.243377	0.281512	27.306667	True	10.0	37.8	29.236083	0.0	0.000000	0.000000	229	42	-0.113494	NaN
2026-03-14 13:20:00+08:00	159	800	Ws_W68	0.778377	30	800.0	800.083333	801.62	802.166667	5016.120000	5225.133333	97	-0.234753	-0.288436	-0.220021	0.377982	0.430955	41.802667	True	5.0	32.8	41.802667	0.0	7.227091	7.227091	369	37	-0.157405	5188.997881
2026-03-14 14:05:00+08:00	159	845	Ws_W68	0.778377	30	845.0	845.166667	846.62	847.083333	5080.866667	5281.000000	97	-0.213072	-0.273014	-0.214979	0.379474	0.412646	40.026667	True	10.0	27.8	40.026667	0.0	8.878875	8.878875	190	32	-0.116297	5236.605626
2026-03-14 14:50:00+08:00	159	890	Ws_W68	0.778377	30	890.0	890.166667	891.62	892.083333	5124.200000	5330.366667	97	-0.193097	-0.242809	-0.173868	0.387382	0.425086	41.233333	True	10.0	27.8	41.233333	0.0	9.138864	9.138864	190	32	-0.206098	5284.672344
2026-03-14 16:00:00+08:00	159	960	Ws_W68	0.778377	30	960.0	960.000000	960.48	961.666667	5156.000000	5214.950000	29	-0.114107	-0.096893	-0.081209	0.125614	0.406552	11.790000	True	0.0	71.2	11.790000	0.0	0.000000	0.000000	95	211	-0.024743	NaN

Figures - Ws_W68

Figure figure_7.png

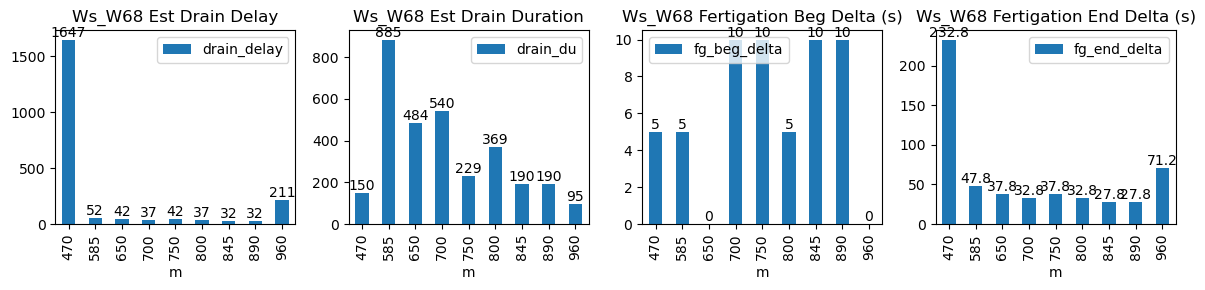

Figure figure_6.png

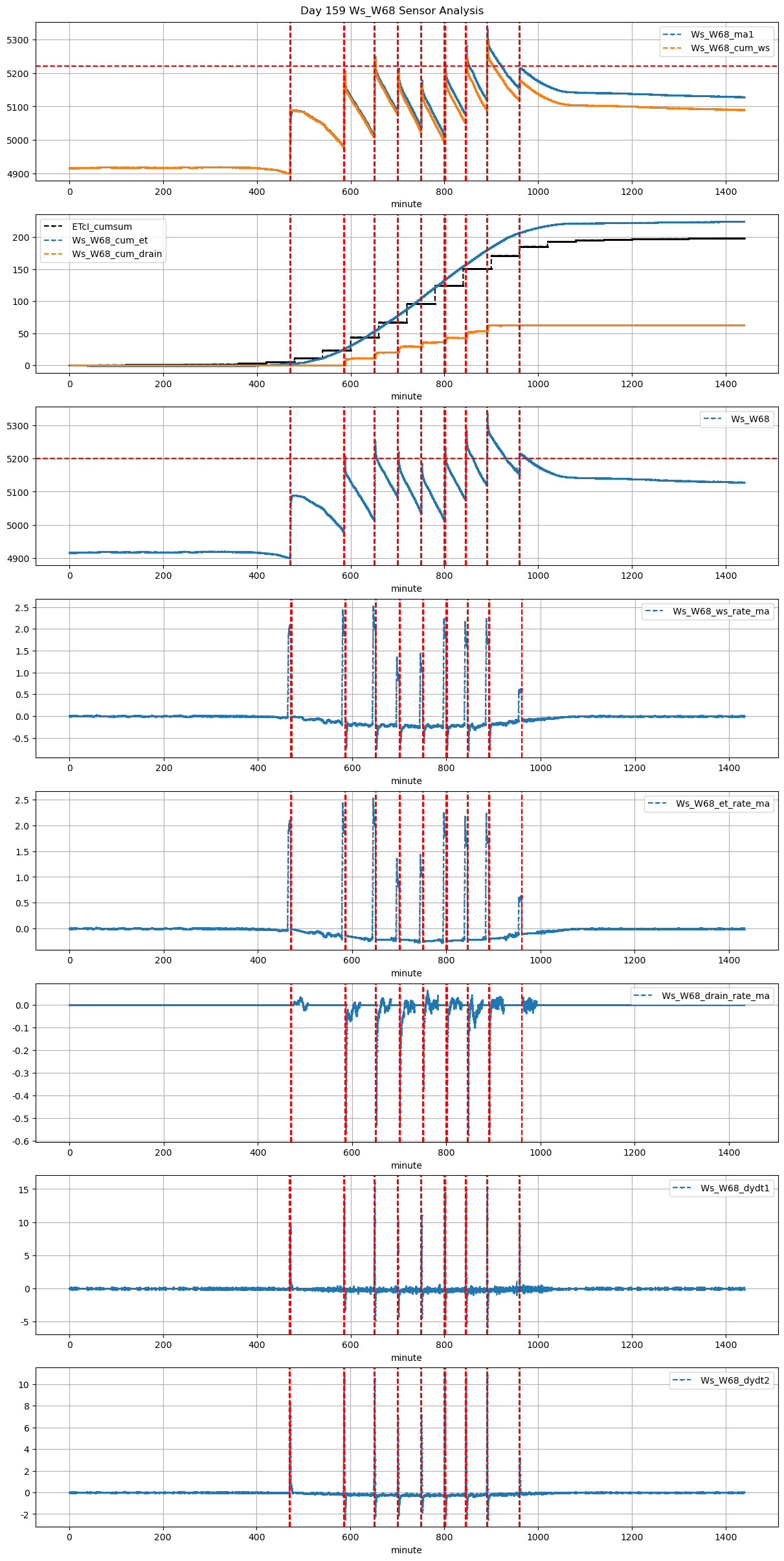

Figure figure_5.png

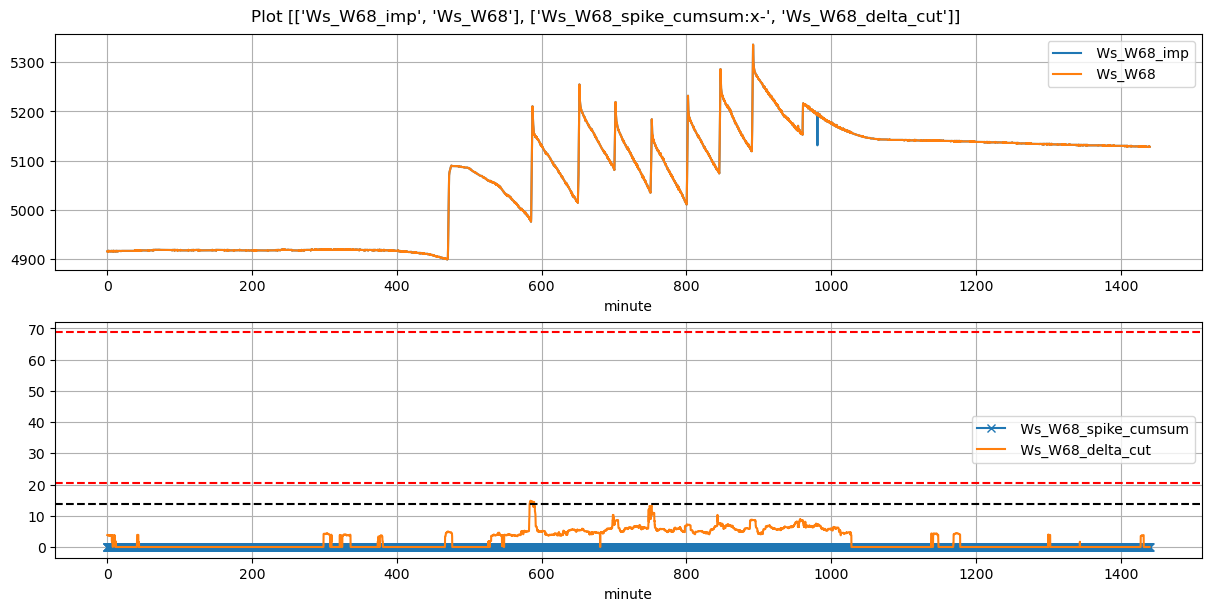

Figure figure_4.png
