Ws Sensor Analysis Report - Day 147

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 1.0
Avg Fertigation Amount: 30.31 L
Avg Total Drain Amount: 6.84 L
Avg In-Fertigation Drain Amount: 2.00 L
Avg Post-Fertigation Drain Amount: 4.84 L
Avg Drainage Rate: 22.58%

Detail Section

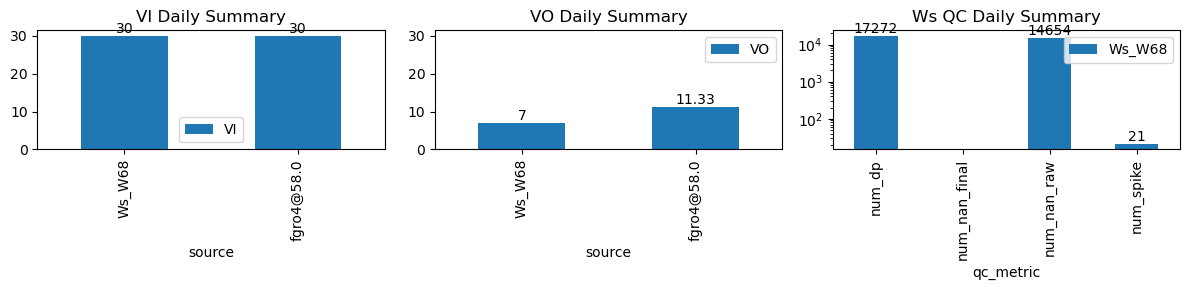

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 1
Number of Fertigation Events detected: 1
Total Fertigation Amount: 30.31 L
Total Drain Amount: 6.84 L
In-Fertigation Drain Amount: 2.00 L
Post-Fertigation Drain Amount: 4.84 L
Drainage Rate: 22.58%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,272	14,654	0	21	284.02

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-02 08:00:00+08:00	147	480	Ws_W68	0.26253	30	480.0	480.25	481.17	481.75	5744.0	5885.3	70	-0.006814	-0.051019	-0.009074	0.333286	0.403714	28.26	True	15.0	34.8	30.31	2.0	4.842493	6.842493	410	39	-0.110064	5861.087537

Figures - Ws_W68

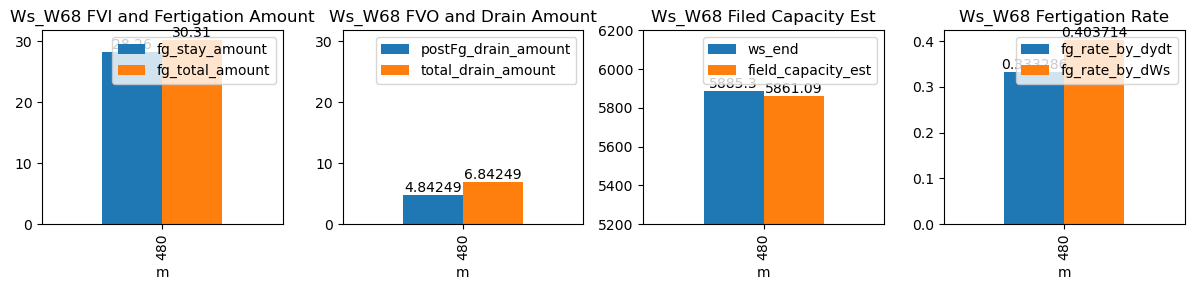

Figure figure_7.png

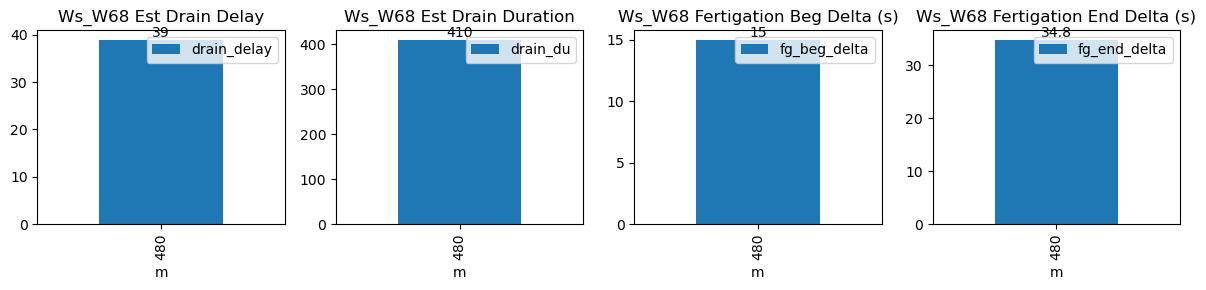

Figure figure_6.png

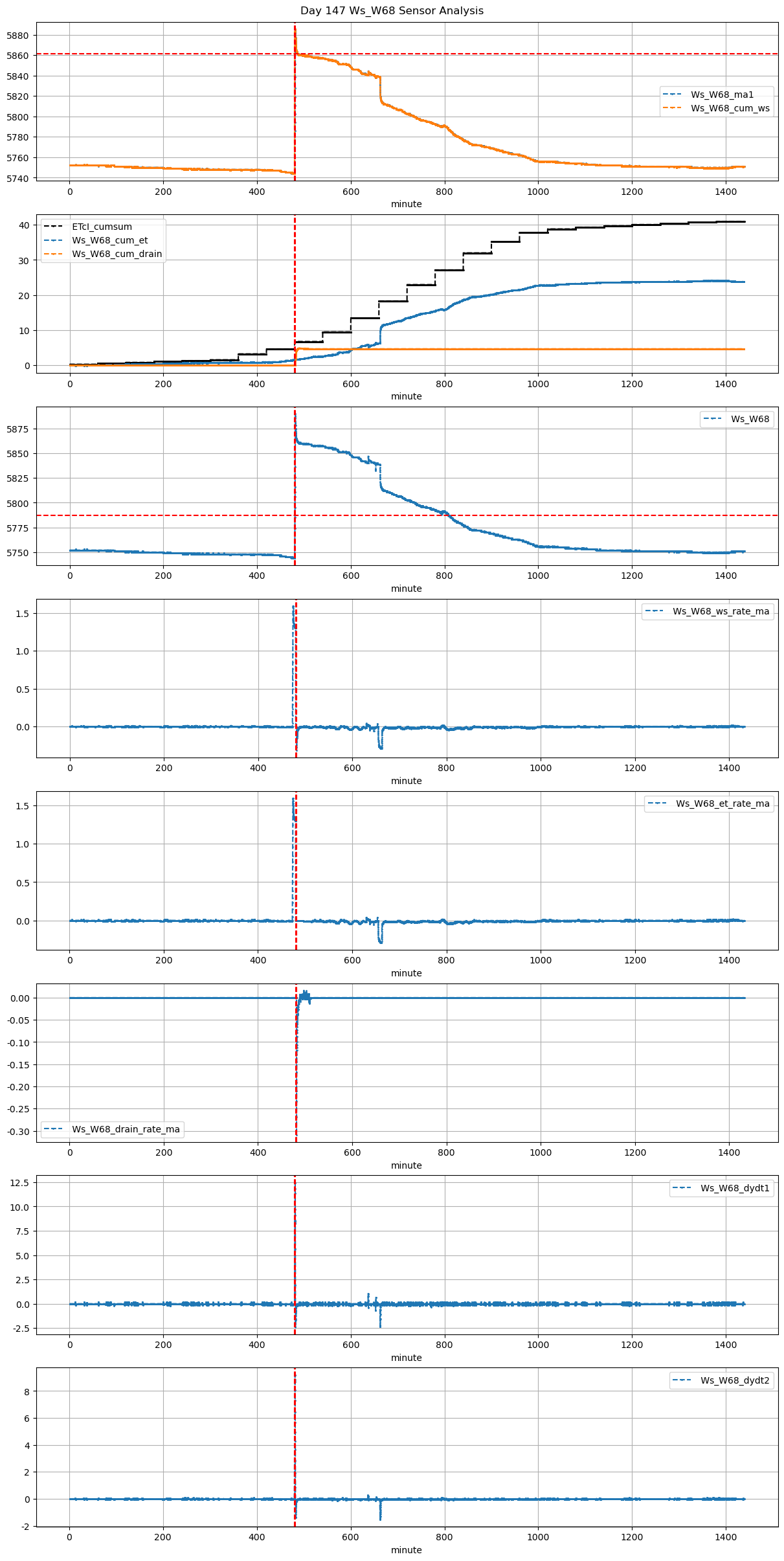

Figure figure_5.png

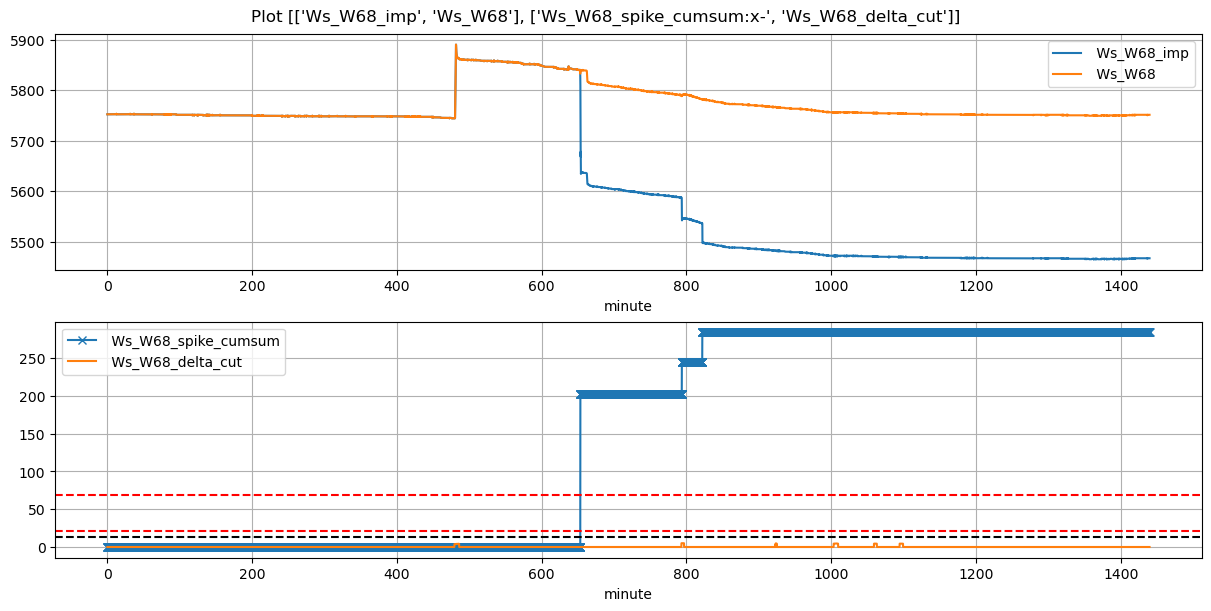

Figure figure_4.png
