Ws Sensor Analysis Report - Day 58

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 104.41 L
Avg Total Drain Amount: 10.26 L
Avg In-Fertigation Drain Amount: 0.50 L
Avg Post-Fertigation Drain Amount: 9.76 L
Avg Drainage Rate: 9.83%

Detail Section

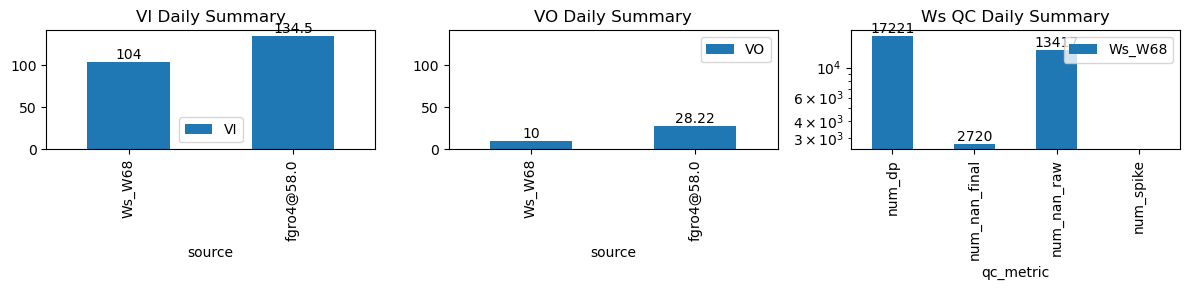

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 5
Total Fertigation Amount: 104.41 L
Total Drain Amount: 10.26 L
In-Fertigation Drain Amount: 0.50 L
Post-Fertigation Drain Amount: 9.76 L
Drainage Rate: 9.83%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,221	13,417	2,720	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2025-12-03 07:55:00+08:00	58	475	Ws_W68	0.56046	30	475.0	NaN	475.72	480.666667	4071.000000	4165.625000	43	-0.003420	-0.028311	-0.003420	NaN	0.440116	18.925000	False	NaN	296.8	NaN	0.0	0.00000	0.00000	NaN	NaN	NaN	NaN
2025-12-03 08:45:00+08:00	58	525	Ws_W68	0.56046	30	525.0	525.333333	525.72	526.583333	4153.266667	4257.500000	43	-0.039281	NaN	-0.102531	0.359063	0.484806	20.846667	True	20.0	51.8	20.846667	0.0	0.00000	0.00000	NaN	NaN	NaN	NaN
2025-12-03 09:35:00+08:00	58	575	Ws_W68	0.56046	30	575.0	575.416667	575.72	576.833333	4185.433333	4287.250000	43	-0.032999	-0.158091	-0.117140	0.341000	0.473566	20.363333	True	25.0	66.8	20.769000	0.0	0.00000	0.00000	NaN	NaN	NaN	NaN
2025-12-03 10:25:00+08:00	58	625	Ws_W68	0.56046	30	625.0	625.416667	625.72	626.750000	4205.000000	4306.250000	43	-0.109363	-0.174630	-0.145000	0.354875	0.470930	20.250000	True	25.0	61.8	20.769000	0.5	4.83792	5.33792	219.0	66.0	-0.148898	4282.060400
2025-12-03 11:15:00+08:00	58	675	Ws_W68	0.56046	30	675.0	675.416667	675.72	676.916667	4214.000000	4318.250000	43	-0.111423	-0.182667	-0.138117	0.340250	0.484884	20.850000	True	25.0	71.8	20.850000	0.0	4.92203	4.92203	270.0	76.0	-0.145559	4293.639851
2025-12-03 12:30:00+08:00	58	750	Ws_W68	0.56046	30	750.0	750.416667	750.72	752.666667	4178.000000	4283.875000	43	-0.120370	-0.144846	-0.119160	0.307250	0.492442	21.175000	True	25.0	116.8	21.175000	0.0	0.00000	0.00000	NaN	NaN	NaN	NaN
2025-12-03 14:00:00+08:00	58	840	Ws_W68	0.56046	30	840.0	NaN	840.72	843.083333	4170.000000	4263.766667	43	-0.019655	-0.096574	-0.019655	NaN	0.436124	18.753333	False	NaN	141.8	NaN	0.0	0.00000	0.00000	NaN	NaN	NaN	NaN

Figures - Ws_W68

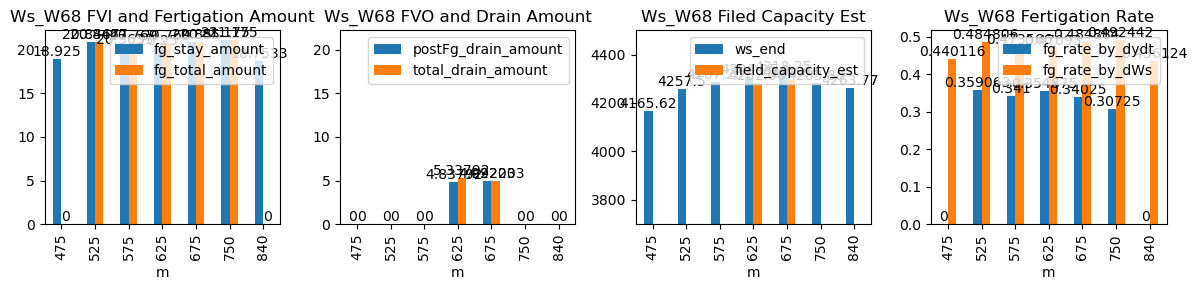

Figure figure_7.png

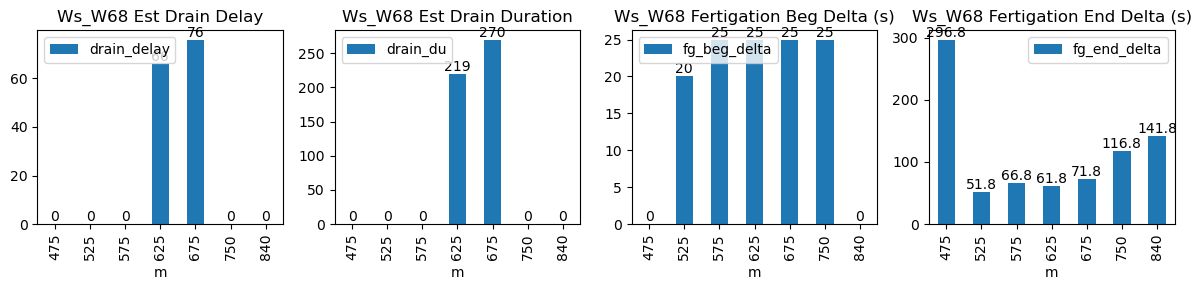

Figure figure_6.png

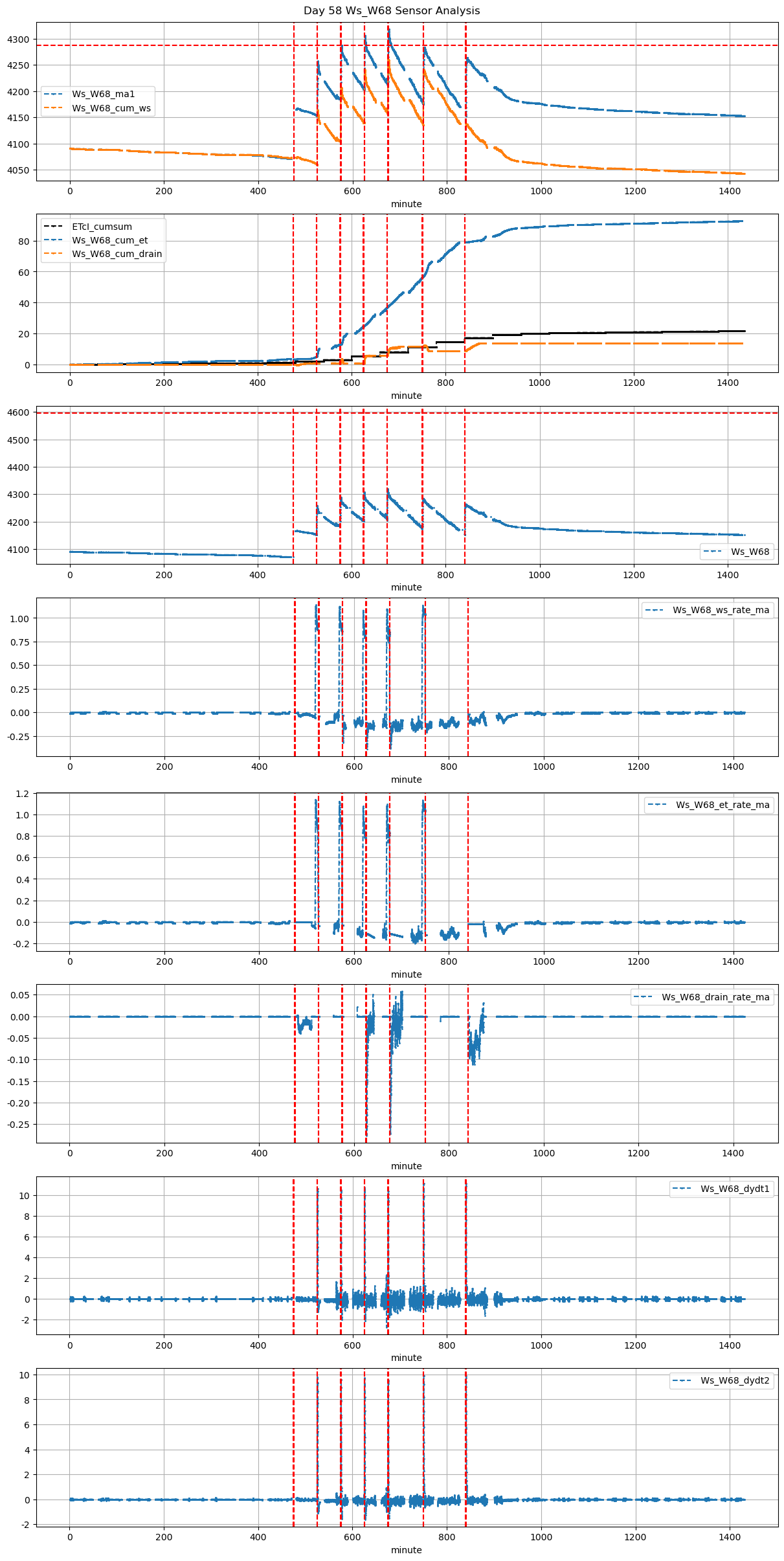

Figure figure_5.png

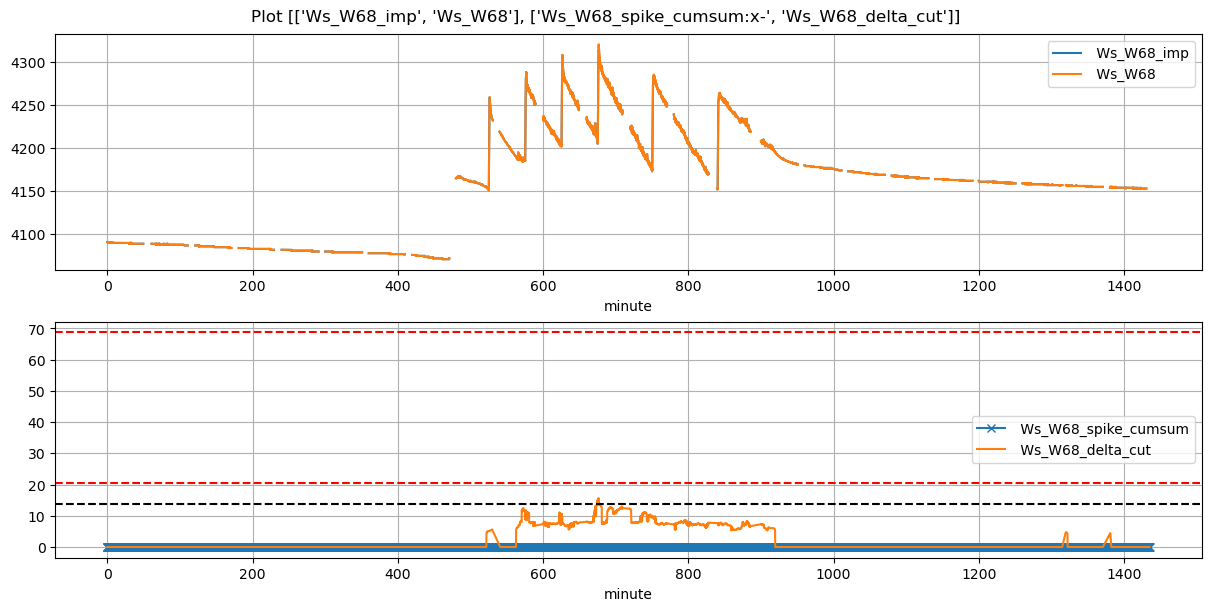

Figure figure_4.png
