Ws Sensor Analysis Report - Day 72

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 151.41 L
Avg Total Drain Amount: 30.42 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 30.42 L
Avg Drainage Rate: 20.09%

Detail Section

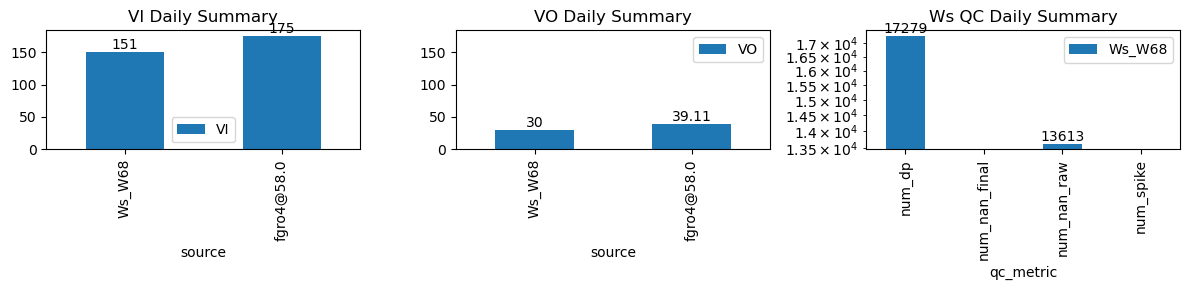

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 151.41 L
Total Drain Amount: 30.42 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 30.42 L
Drainage Rate: 20.09%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,279	13,613	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2025-12-17 09:45:00+08:00	72	585	Ws_W68	0.489989	26.500000	585.0	585.416667	585.62	588.500000	4074.00	4155.000000	37	-0.059613	-0.053951	0.000000	0.202600	0.437838	16.200000	True	25.0	172.8	18.537000	0.0	0.000000	0.000000	80	1262	-0.050640	NaN
2025-12-17 10:15:00+08:00	72	615	Ws_W68	0.489989	28.333333	615.0	615.333333	615.62	616.666667	4137.00	4231.500000	37	-0.040840	-0.108549	0.000000	0.337429	0.510811	18.900000	True	20.0	62.8	18.900000	0.0	4.082952	4.082952	1280	67	-0.087839	4211.085241
2025-12-17 10:45:00+08:00	72	645	Ws_W68	0.489989	30.000000	645.0	645.416667	645.62	646.250000	4199.92	4294.333333	37	-0.065657	-0.170638	-0.102397	0.407143	0.510342	18.882667	True	25.0	37.8	18.882667	0.0	6.136410	6.136410	889	42	-0.115913	4263.651285
2025-12-17 11:30:00+08:00	72	690	Ws_W68	0.489989	30.000000	690.0	690.333333	690.62	691.333333	4216.00	4311.666667	37	-0.098190	-0.152747	-0.121129	0.384857	0.517117	19.133333	True	20.0	42.8	19.133333	0.0	4.158588	4.158588	580	47	-0.073342	4290.873727
2025-12-17 12:15:00+08:00	72	735	Ws_W68	0.489989	30.000000	735.0	735.416667	735.62	736.333333	4234.56	4328.333333	37	-0.092980	-0.161944	-0.108638	0.382476	0.506883	18.754667	True	25.0	42.8	18.754667	0.0	5.302471	5.302471	1275	47	-0.090968	4301.820980
2025-12-17 12:55:00+08:00	72	775	Ws_W68	0.489989	30.000000	775.0	775.333333	775.62	776.333333	4256.00	4350.333333	37	-0.111236	-0.154525	-0.110977	0.378000	0.509910	18.866667	True	20.0	42.8	18.866667	0.0	3.121645	3.121645	120	47	-0.057533	4334.725109
2025-12-17 13:35:00+08:00	72	815	Ws_W68	0.489989	30.000000	815.0	815.416667	815.62	816.333333	4280.00	4377.333333	37	-0.108989	-0.143660	-0.080309	0.399048	0.526126	19.466667	True	25.0	42.8	19.466667	0.0	4.236470	4.236470	700	47	-0.050463	4356.150981
2025-12-17 14:20:00+08:00	72	860	Ws_W68	0.489989	30.000000	860.0	860.333333	860.62	861.250000	4307.00	4401.333333	37	-0.094349	-0.124704	-0.059154	0.385486	0.509910	18.866667	True	20.0	37.8	18.866667	0.0	3.380309	3.380309	249	42	-0.075746	4384.431789

Figures - Ws_W68

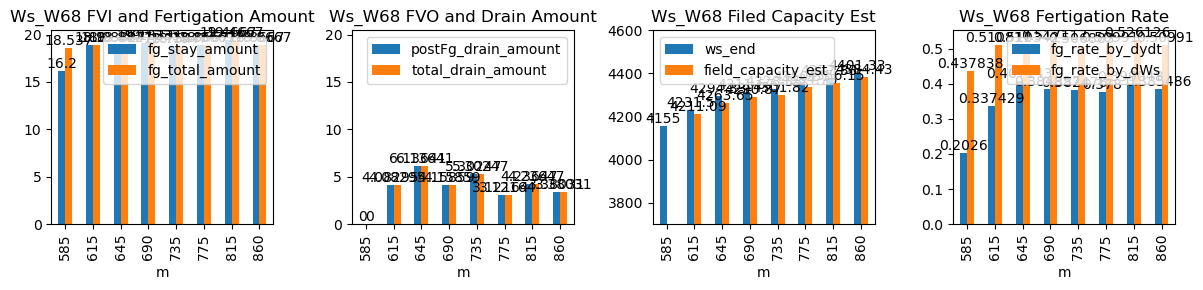

Figure figure_7.png

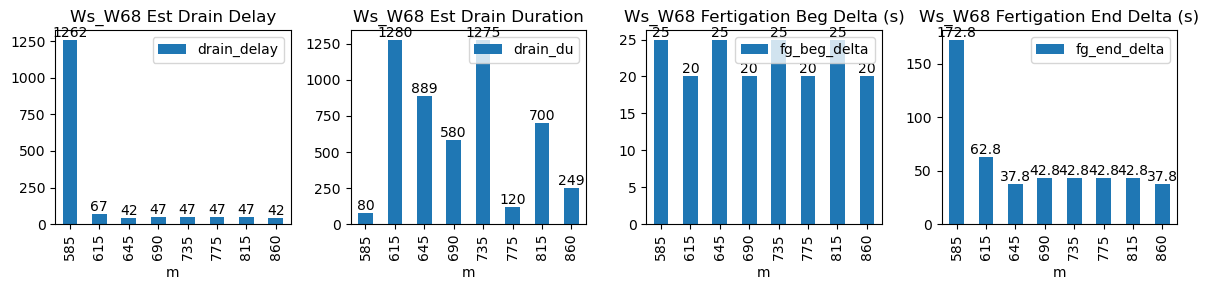

Figure figure_6.png

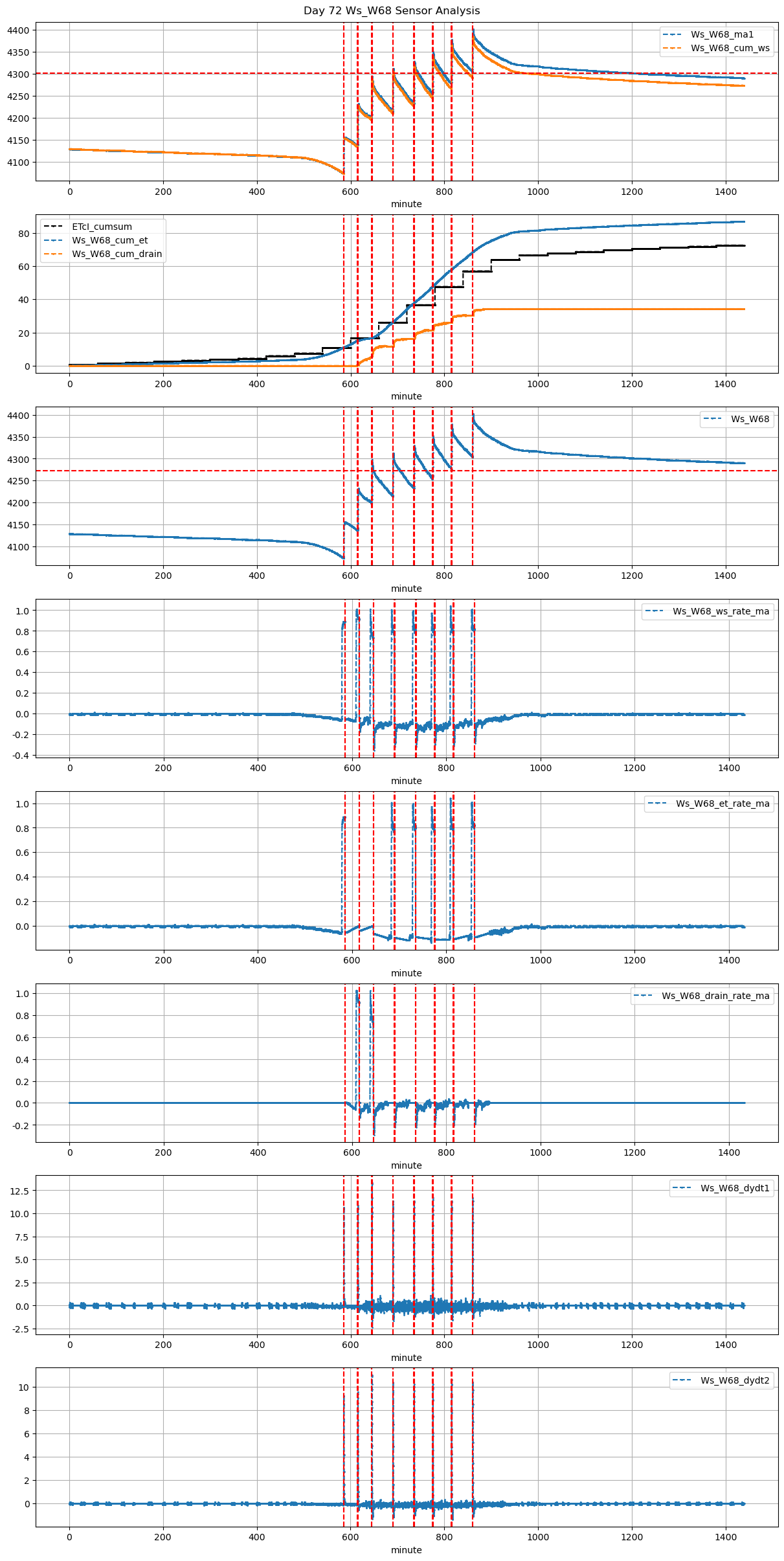

Figure figure_5.png

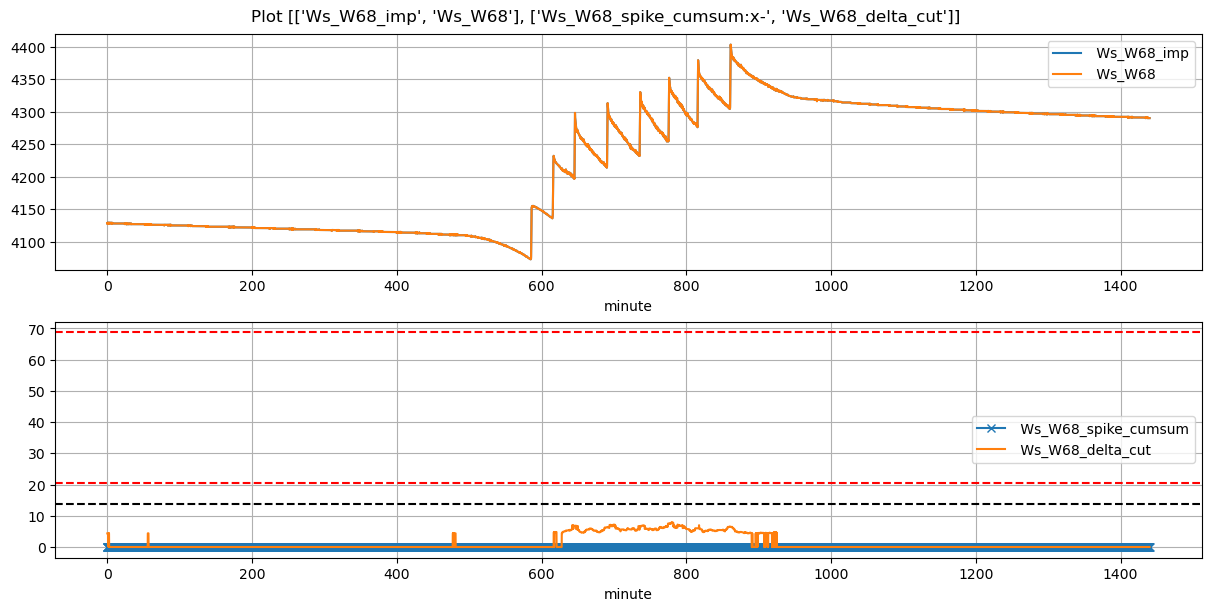

Figure figure_4.png
