Ws Sensor Analysis Report - Day 85

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 127.26 L
Avg Total Drain Amount: 32.18 L
Avg In-Fertigation Drain Amount: 5.80 L
Avg Post-Fertigation Drain Amount: 26.38 L
Avg Drainage Rate: 25.28%

Detail Section

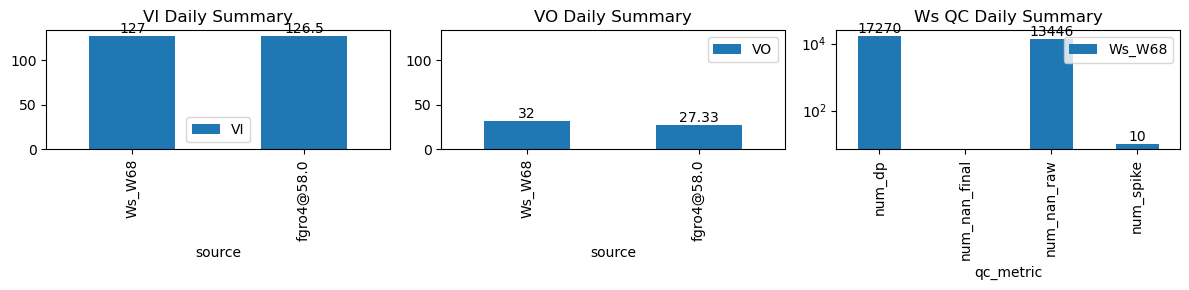

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 127.26 L
Total Drain Amount: 32.18 L
In-Fertigation Drain Amount: 5.80 L
Post-Fertigation Drain Amount: 26.38 L
Drainage Rate: 25.28%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,270	13,446	0	10	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2025-12-30 08:35:00+08:00	85	515	Ws_W68	0.589657	30	515.0	515.333333	515.6	519.416667	4711.766667	4783.000000	36	-0.017978	0.000000	-0.024660	0.116476	0.395741	14.246667	True	20.0	229.0	18.18	0.0	0.000000	0.000000	20	1533	-0.011576	NaN
2025-12-30 09:55:00+08:00	85	595	Ws_W68	0.589657	30	595.0	595.416667	595.6	596.500000	4759.000000	4849.666667	36	-0.052185	-0.111792	-0.022190	0.338571	0.503704	18.133333	True	25.0	54.0	18.18	0.0	3.908905	3.908905	1159	59	-0.082012	4830.122143
2025-12-30 10:40:00+08:00	85	640	Ws_W68	0.589657	30	640.0	640.416667	640.6	641.166667	4807.000000	4889.333333	36	-0.066667	-0.181638	-0.122358	0.378857	0.457407	16.466667	True	25.0	34.0	18.18	1.7	6.482618	8.182618	215	38	-0.207691	4856.920245
2025-12-30 11:40:00+08:00	85	700	Ws_W68	0.589657	30	700.0	700.333333	700.6	701.583333	4792.920000	4876.666667	36	-0.059293	-0.156802	-0.077099	0.312857	0.465259	16.749333	True	20.0	59.0	18.18	1.4	5.112166	6.512166	605	63	-0.155946	4851.105836
2025-12-30 12:40:00+08:00	85	760	Ws_W68	0.589657	30	760.0	760.333333	760.6	761.333333	4797.600000	4882.333333	36	-0.109366	-0.109753	-0.134799	0.342000	0.470741	16.946667	True	20.0	44.0	18.18	1.2	3.415230	4.615230	120	48	-0.105308	4865.257185
2025-12-30 13:45:00+08:00	85	825	Ws_W68	0.589657	30	825.0	825.416667	825.6	826.416667	4791.000000	4877.666667	36	-0.102081	-0.137840	-0.078796	0.350571	0.481481	17.333333	True	25.0	49.0	18.18	0.8	3.669662	4.469662	375	53	-0.097948	4859.318358
2025-12-30 14:40:00+08:00	85	880	Ws_W68	0.589657	30	880.0	880.333333	880.6	881.333333	4804.000000	4891.333333	36	-0.078933	-0.122760	-0.064276	0.352571	0.485185	17.466667	True	20.0	44.0	18.18	0.7	3.787343	4.487343	395	48	-0.109866	4872.396617

Figures - Ws_W68

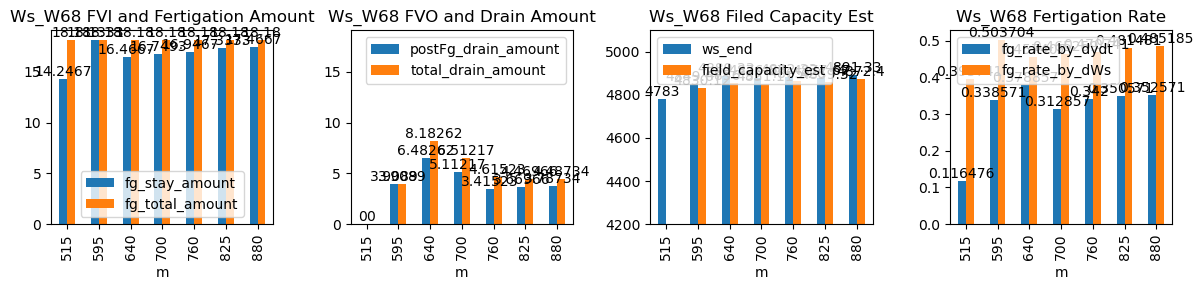

Figure figure_7.png

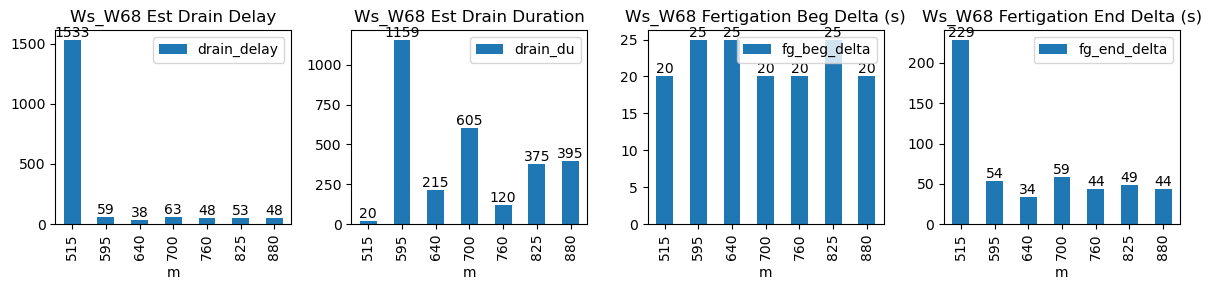

Figure figure_6.png

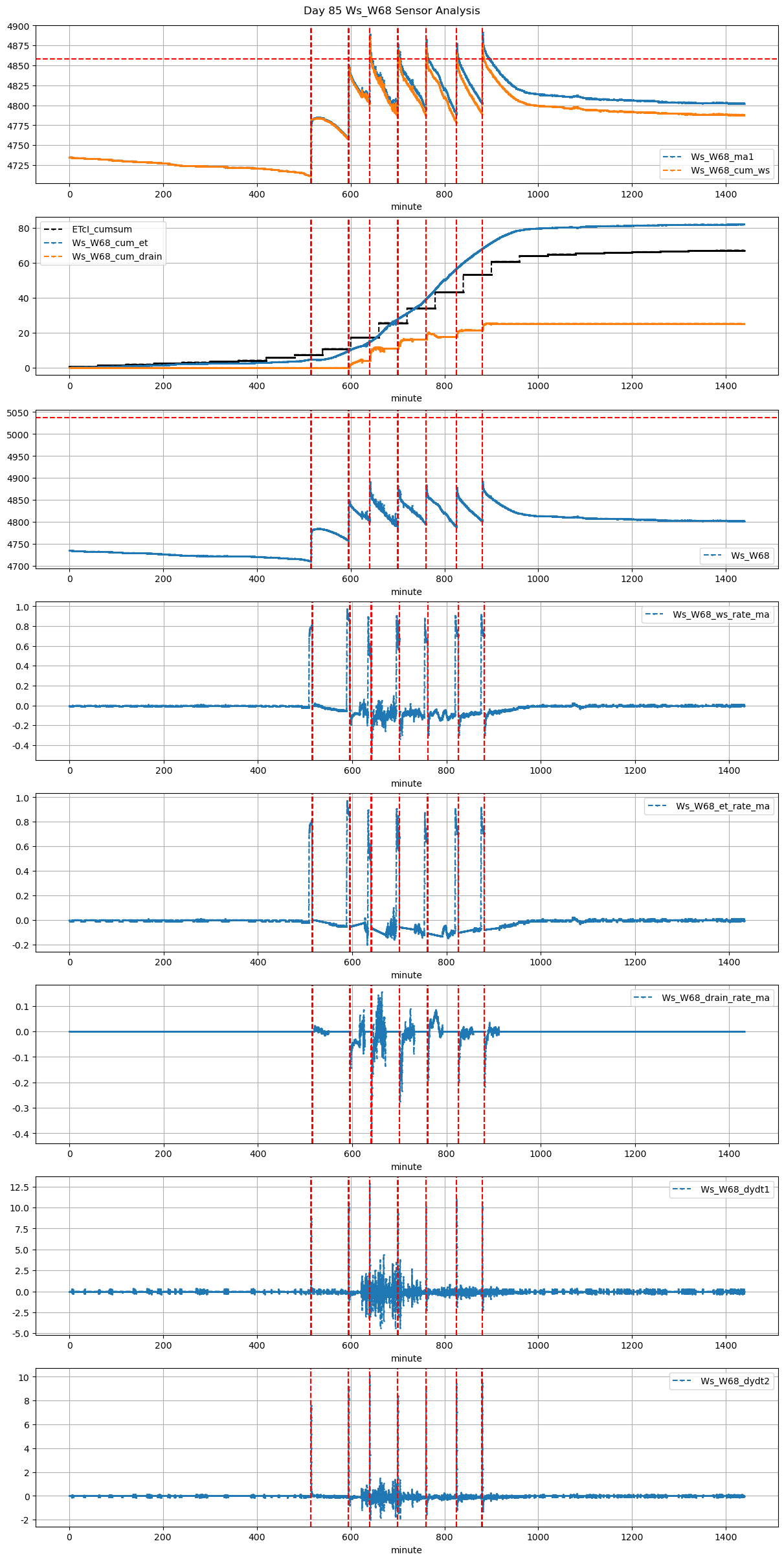

Figure figure_5.png

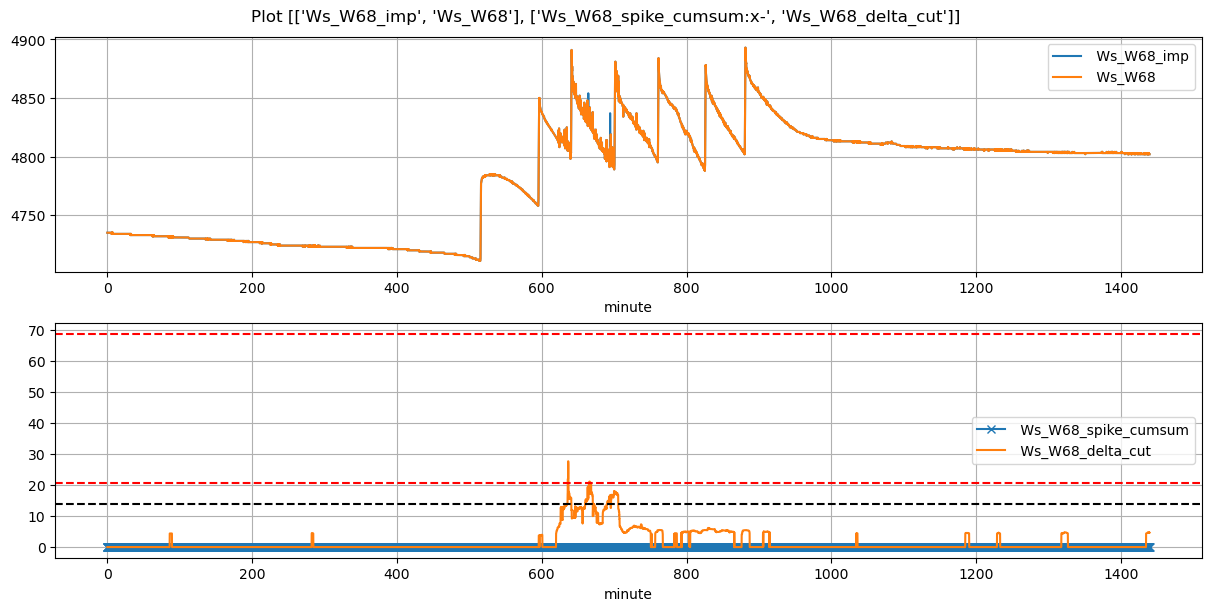

Figure figure_4.png
