Ws Sensor Analysis Report - Day 147

Summary Statistics - Ws_W75

Ws Cleaning Summary Table - Ws_W75

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W75	17,272	15,698	0	10	66.67

Fertigation Events Details Table - Ws_W75

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-02 07:51:07+08:00	147	471	Ws_W75	3.121622	28.416667	471.12	471.000000	472.34	472.583333	3490.000000	3650.000000	73	-0.054704	-0.156790	0.0	0.387500	0.438356	32.000000	True	-7.2	14.6	32.000000	0.0	0.000000	0.000000	39	109	-0.503868	NaN
2026-03-02 08:21:15+08:00	147	501	Ws_W75	3.121622	30.000000	501.25	501.333333	502.47	503.083333	3600.000000	3760.000000	73	-0.005745	-0.032716	0.0	0.411250	0.438356	32.000000	True	5.0	36.8	32.000000	0.0	0.000000	0.000000	55	106	-0.105576	NaN
2026-03-02 10:55:01+08:00	147	655	Ws_W75	3.121622	30.000000	655.02	655.000000	656.20	656.500000	3716.666667	3874.523810	71	0.000000	-0.042681	0.0	0.405000	0.444668	31.571429	True	-1.2	18.0	31.571429	0.0	3.428571	3.428571	135	22	-0.111111	3857.380952
2026-03-02 16:15:00+08:00	147	975	Ws_W75	3.121622	30.000000	975.00	974.916667	975.67	975.916667	3816.666667	3903.666667	40	0.000000	-0.019877	0.0	0.326536	0.435000	17.400000	True	-5.0	14.8	17.400000	0.0	1.950000	1.950000	439	414	-0.111111	3893.916667

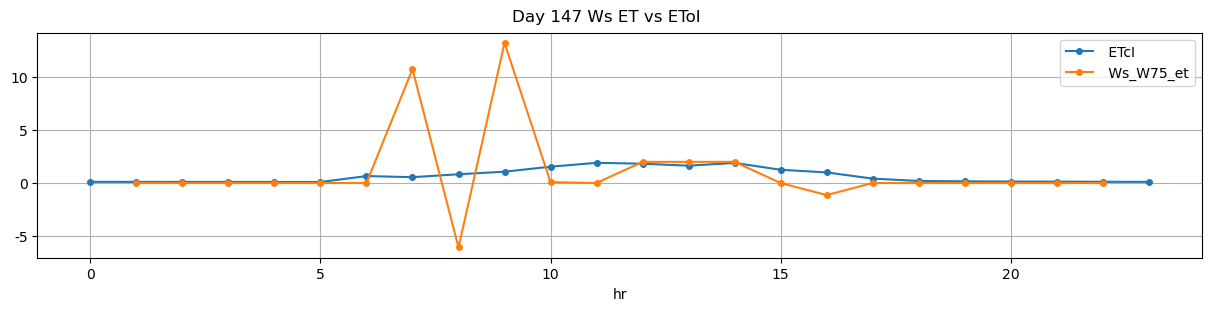

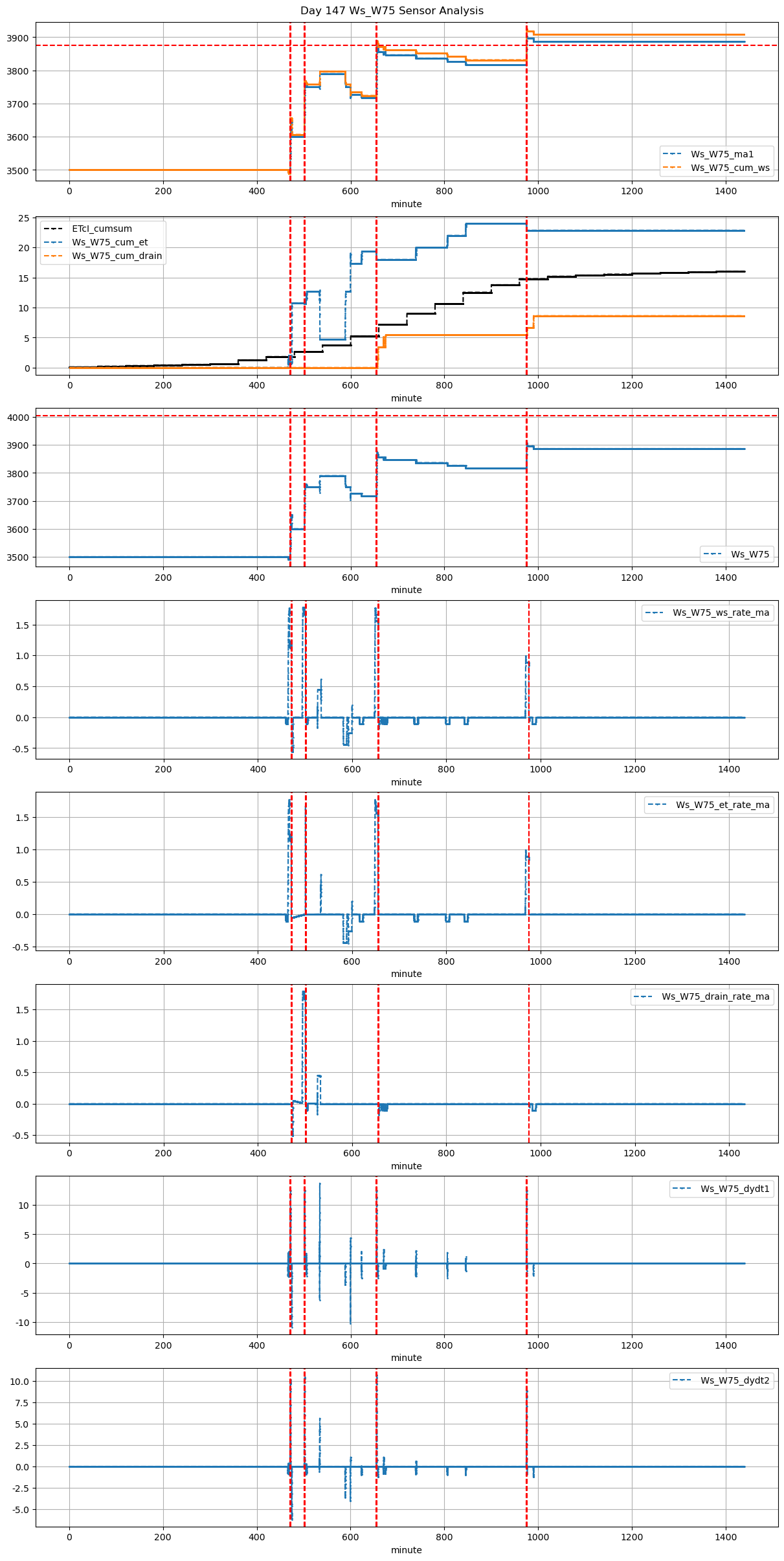

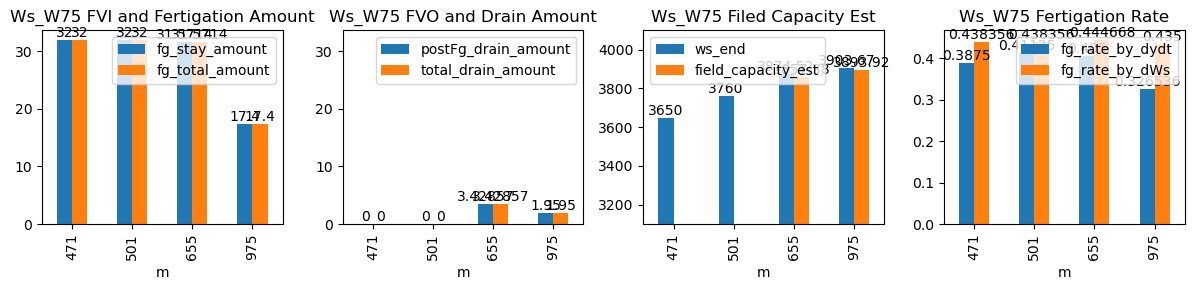

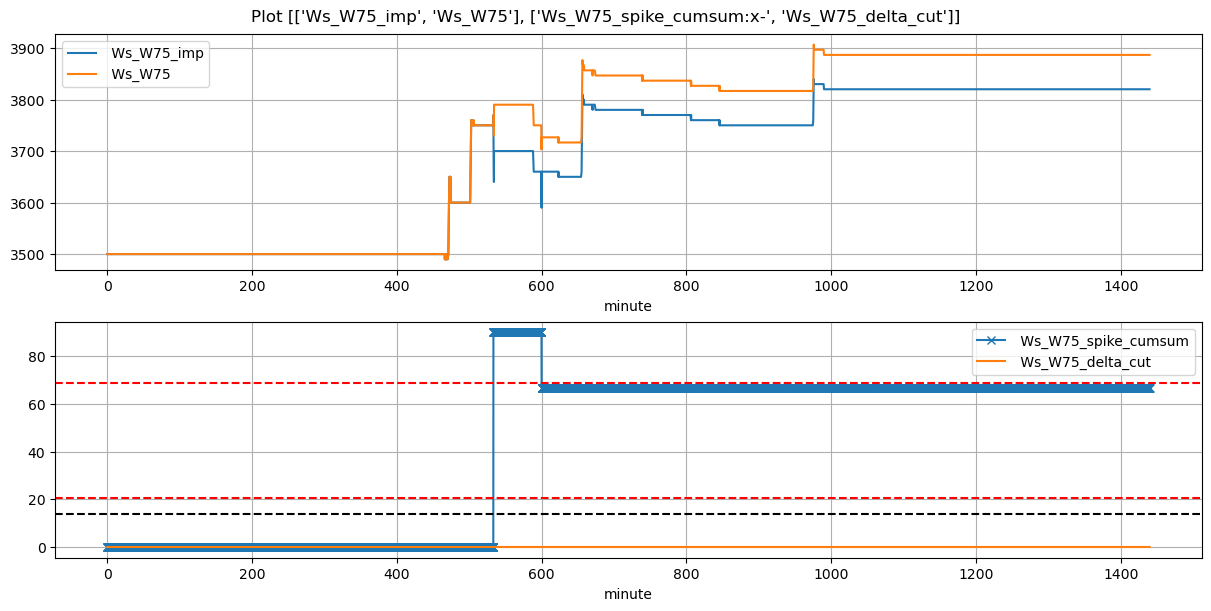

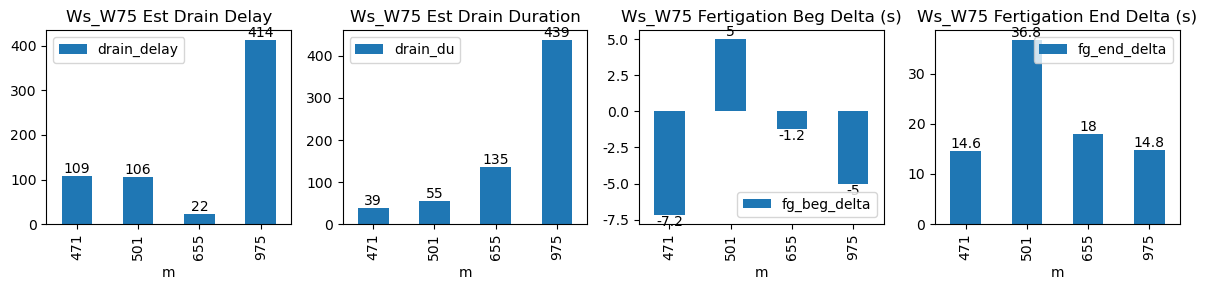

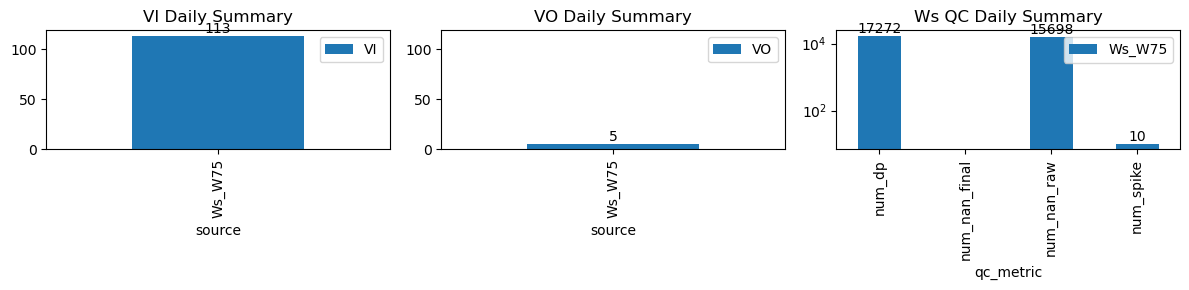

Figures - Ws_W75
