Ws Sensor Analysis Report - Day 181

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 10.0
Avg Fertigation Amount: 353.86 L
Avg Total Drain Amount: 102.64 L
Avg In-Fertigation Drain Amount: 23.80 L
Avg Post-Fertigation Drain Amount: 78.85 L
Avg Drainage Rate: 29.01%

Detail Section

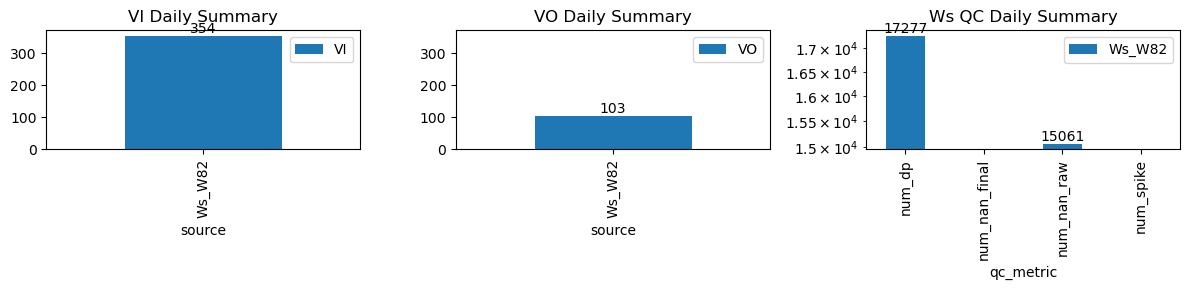

VI and VO Daily Summary

Summary Statistics - Ws_W82

Number of Fertigation Events: 10
Number of Fertigation Events detected: 10
Total Fertigation Amount: 353.86 L
Total Drain Amount: 102.64 L
In-Fertigation Drain Amount: 23.80 L
Post-Fertigation Drain Amount: 78.85 L
Drainage Rate: 29.01%

Ws Cleaning Summary Table - Ws_W82

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W82	17,277	15,061	0	0	0.00

Fertigation Events Details Table - Ws_W82

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-05 07:35:00+08:00	181	455	Ws_W82	1.761217	28.583333	455.00	454.750000	456.17	456.416667	5300.000000	5480.0	70	-0.013795	-0.103143	0.000000	0.442857	0.514286	36.000000	True	-15.0	14.8	36.000	0.000000	0.000000	0.000000	405	69	-0.095512	NaN
2026-04-05 08:05:00+08:00	181	485	Ws_W82	1.761217	30.000000	485.00	484.666667	486.18	486.250000	5460.000000	5625.0	71	-0.045156	-0.160597	-0.133951	0.380548	0.464789	33.000000	True	-20.0	4.2	35.571	2.600000	11.583780	14.183780	345	9	-0.130450	5567.081098
2026-04-05 09:15:00+08:00	181	555	Ws_W82	1.761217	30.000000	555.00	554.750000	556.18	556.250000	5466.150000	5625.0	71	-0.149610	-0.242901	-0.183025	0.391810	0.447465	31.770000	True	-15.0	4.2	35.571	3.800000	10.995741	14.795741	210	9	-0.127083	5570.021295
2026-04-05 10:22:12+08:00	181	622	Ws_W82	1.761217	26.500000	622.20	621.916667	623.37	623.500000	5423.000000	5591.0	70	-0.207278	-0.258025	0.000000	0.406905	0.480000	33.600000	True	-17.0	7.8	35.070	1.500000	5.331003	6.831003	264	12	-0.120221	5564.344983
2026-04-05 10:50:00+08:00	181	650	Ws_W82	1.761217	30.000000	650.00	649.750000	651.17	651.083333	5500.000000	5634.0	70	-0.133453	-0.307613	-0.226286	0.365714	0.382857	26.800000	True	-15.0	-5.2	35.070	6.607736	13.215472	19.823209	729	4	-0.227453	5567.922638
2026-04-05 11:52:12+08:00	181	712	Ws_W82	1.761217	26.416667	712.20	712.000000	713.38	713.583333	5410.000000	5586.0	71	-0.242913	-0.278189	0.000000	0.434583	0.495775	35.200000	True	-12.0	12.2	35.571	0.400000	4.302209	4.702209	170	17	-0.133431	5564.488954
2026-04-05 12:20:00+08:00	181	740	Ws_W82	1.761217	30.000000	740.00	739.750000	741.17	741.083333	5490.000000	5627.0	70	-0.153373	-0.285112	-0.243575	0.350920	0.391429	27.400000	True	-15.0	-5.2	35.070	5.588470	11.176941	16.765411	444	4	-0.169053	5571.115297
2026-04-05 13:05:00+08:00	181	785	Ws_W82	1.761217	30.000000	785.00	784.833333	786.17	786.166667	5460.000000	5619.5	70	-0.223713	-0.312791	-0.244365	0.417092	0.455714	31.900000	True	-10.0	-0.2	35.070	3.200000	8.010451	11.210451	204	4	-0.177728	5579.447745
2026-04-05 13:55:00+08:00	181	835	Ws_W82	1.761217	30.000000	835.00	834.750000	836.17	836.250000	5443.272727	5618.0	70	-0.213824	-0.283848	-0.247994	0.425909	0.499221	34.945455	True	-15.0	4.8	35.070	0.100000	7.598600	7.698600	240	9	-0.179000	5580.006999
2026-04-05 14:57:10+08:00	181	897	Ws_W82	1.761217	30.000000	897.17	897.000000	898.35	898.416667	5440.000000	5619.0	71	-0.095455	-0.137654	-0.048765	0.435476	0.504225	35.800000	True	-10.2	4.0	35.800	0.000000	6.634310	6.634310	615	8	-0.067322	5585.828451

Figures - Ws_W82

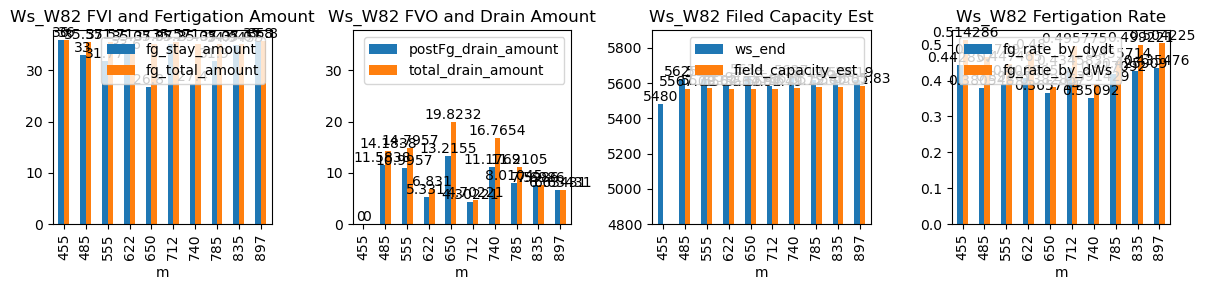

Figure figure_7.png

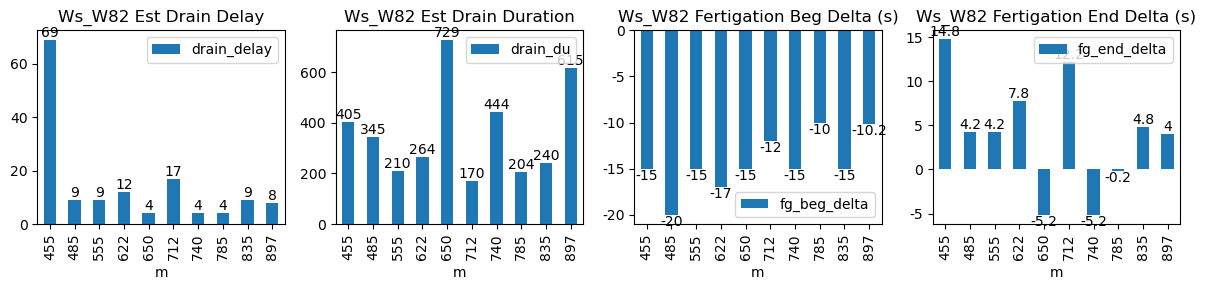

Figure figure_6.png

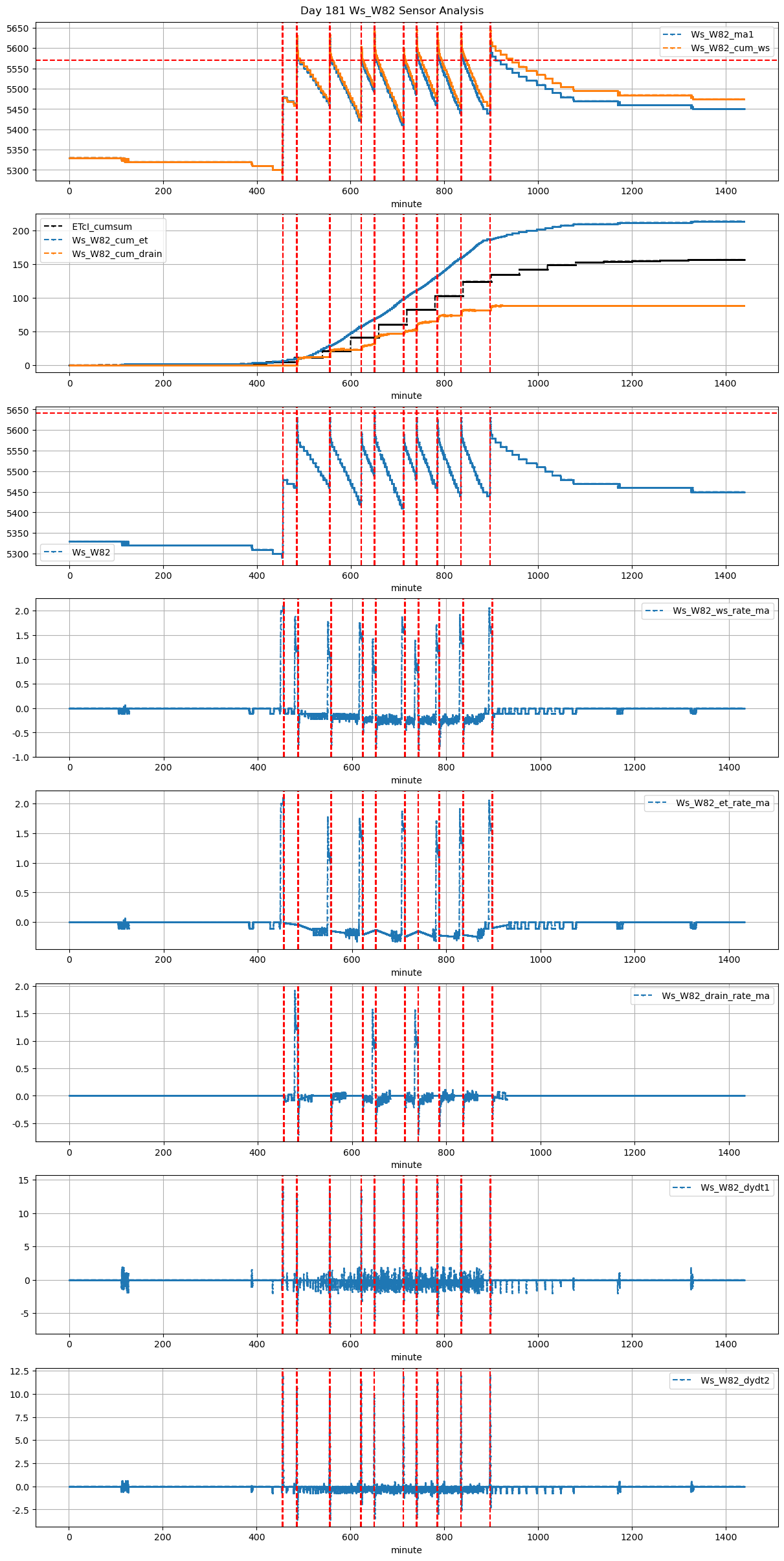

Figure figure_5.png

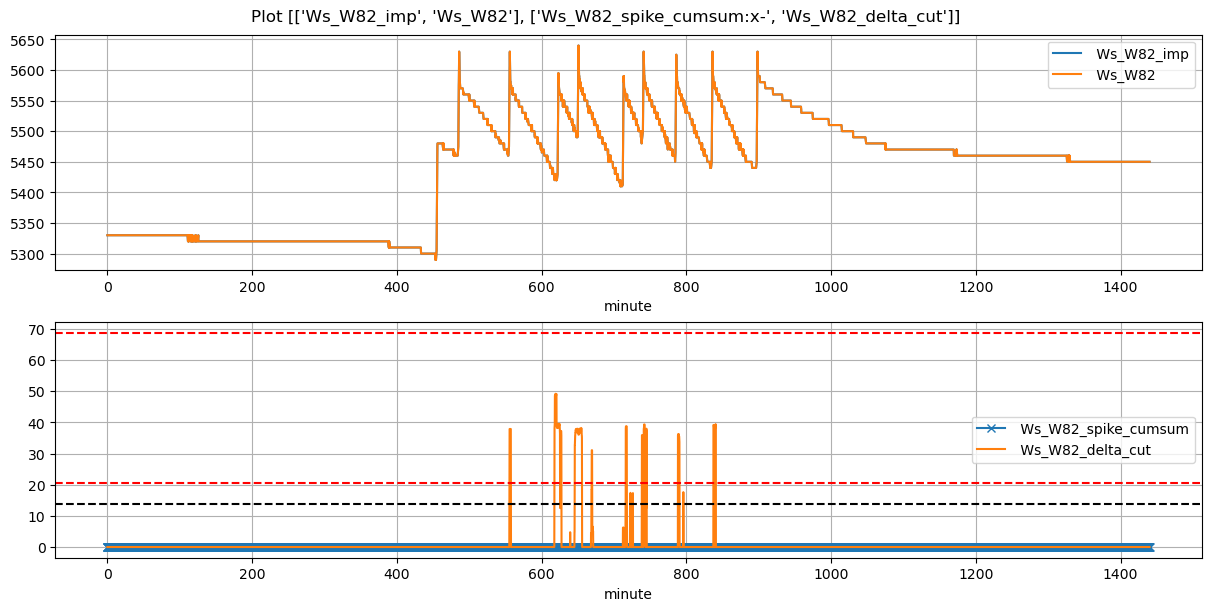

Figure figure_4.png
