Ws Sensor Analysis Report - Day 180

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 253.46 L
Avg Total Drain Amount: 76.24 L
Avg In-Fertigation Drain Amount: 23.74 L
Avg Post-Fertigation Drain Amount: 52.50 L
Avg Drainage Rate: 30.08%

Detail Section

VI and VO Daily Summary

Summary Statistics - Ws_W82

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 253.46 L
Total Drain Amount: 76.24 L
In-Fertigation Drain Amount: 23.74 L
Post-Fertigation Drain Amount: 52.50 L
Drainage Rate: 30.08%

Ws Cleaning Summary Table - Ws_W82

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W82	17,267	15,507	0	5	18.75

Fertigation Events Details Table - Ws_W82

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-04 07:40:00+08:00	180	460	Ws_W82	1.993319	30	460.0	459.750000	461.20	461.333333	5400.000000	5581.888889	72	0.000000	-0.017490	-0.090432	0.433611	0.505247	36.377778	True	-15.0	8.0	36.792	0.000000	0.000000	0.000000	90	13	-0.079359	NaN
2026-04-04 08:20:00+08:00	180	500	Ws_W82	1.993319	30	500.0	499.750000	501.20	501.083333	5550.000000	5679.000000	72	-0.030584	-0.174691	-0.092284	0.346607	0.358333	25.800000	True	-15.0	-7.0	36.792	6.856189	13.712378	20.568568	570	3	-0.185348	5610.438108
2026-04-04 09:15:00+08:00	180	555	Ws_W82	1.993319	30	555.0	554.750000	556.17	556.000000	5570.000000	5685.000000	70	-0.104907	-0.195370	-0.037037	0.308333	0.328571	23.000000	True	-15.0	-10.2	35.770	7.713166	15.426332	23.139498	1355	4	-0.151166	5607.868339
2026-04-04 11:05:00+08:00	180	665	Ws_W82	1.993319	30	665.0	664.750000	666.18	666.250000	5490.000000	5656.500000	71	-0.135040	-0.199074	-0.214815	0.409762	0.469014	33.300000	True	-15.0	4.2	36.281	3.000000	9.898145	12.898145	165	9	-0.181115	5607.009277
2026-04-04 11:50:00+08:00	180	710	Ws_W82	1.993319	30	710.0	709.750000	711.17	711.083333	5526.916667	5656.000000	70	-0.170412	-0.202778	-0.194444	0.355298	0.368810	25.816667	True	-15.0	-5.2	35.770	4.668412	9.336823	14.005235	150	4	-0.117816	5609.315883
2026-04-04 13:05:00+08:00	180	785	Ws_W82	1.993319	30	785.0	784.666667	786.17	786.333333	5450.000000	5621.333333	70	-0.173221	-0.200720	-0.130864	0.403571	0.489524	34.266667	True	-20.0	9.8	35.770	1.500000	4.125535	5.625535	160	14	-0.095241	5600.705658
2026-04-04 14:57:12+08:00	180	897	Ws_W82	1.993319	30	897.2	896.916667	898.38	898.500000	5400.000000	5575.000000	71	-0.155680	-0.186420	-0.103148	0.406905	0.492958	35.000000	True	-17.0	7.2	36.281	0.000000	0.000000	0.000000	124	12	-0.095281	NaN

Figures - Ws_W82

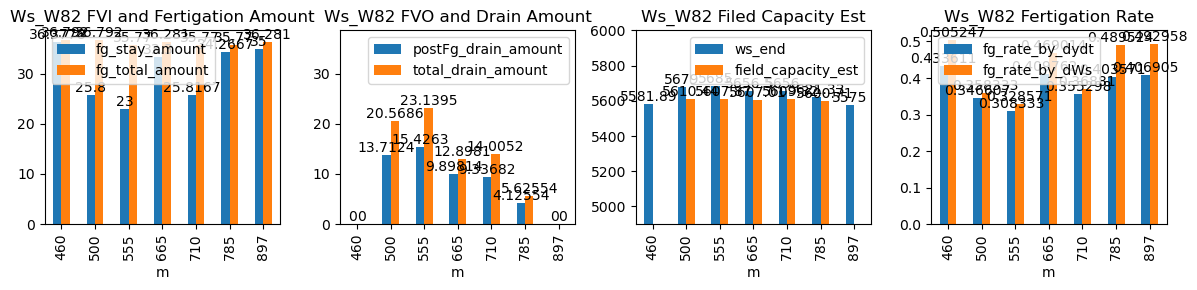

Figure figure_7.png

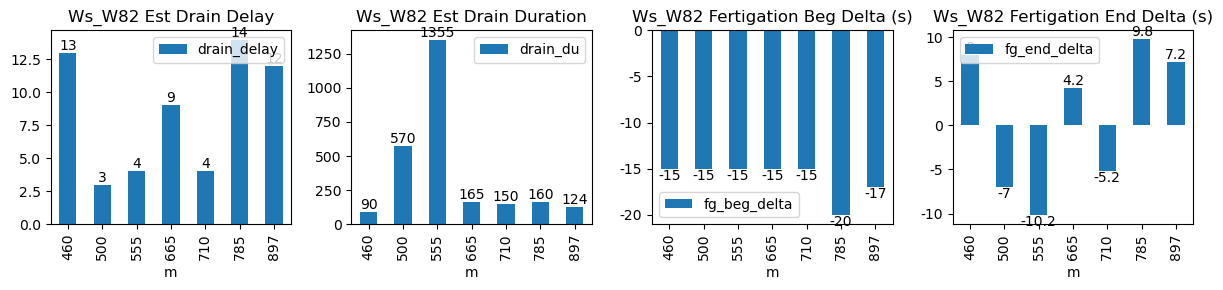

Figure figure_6.png

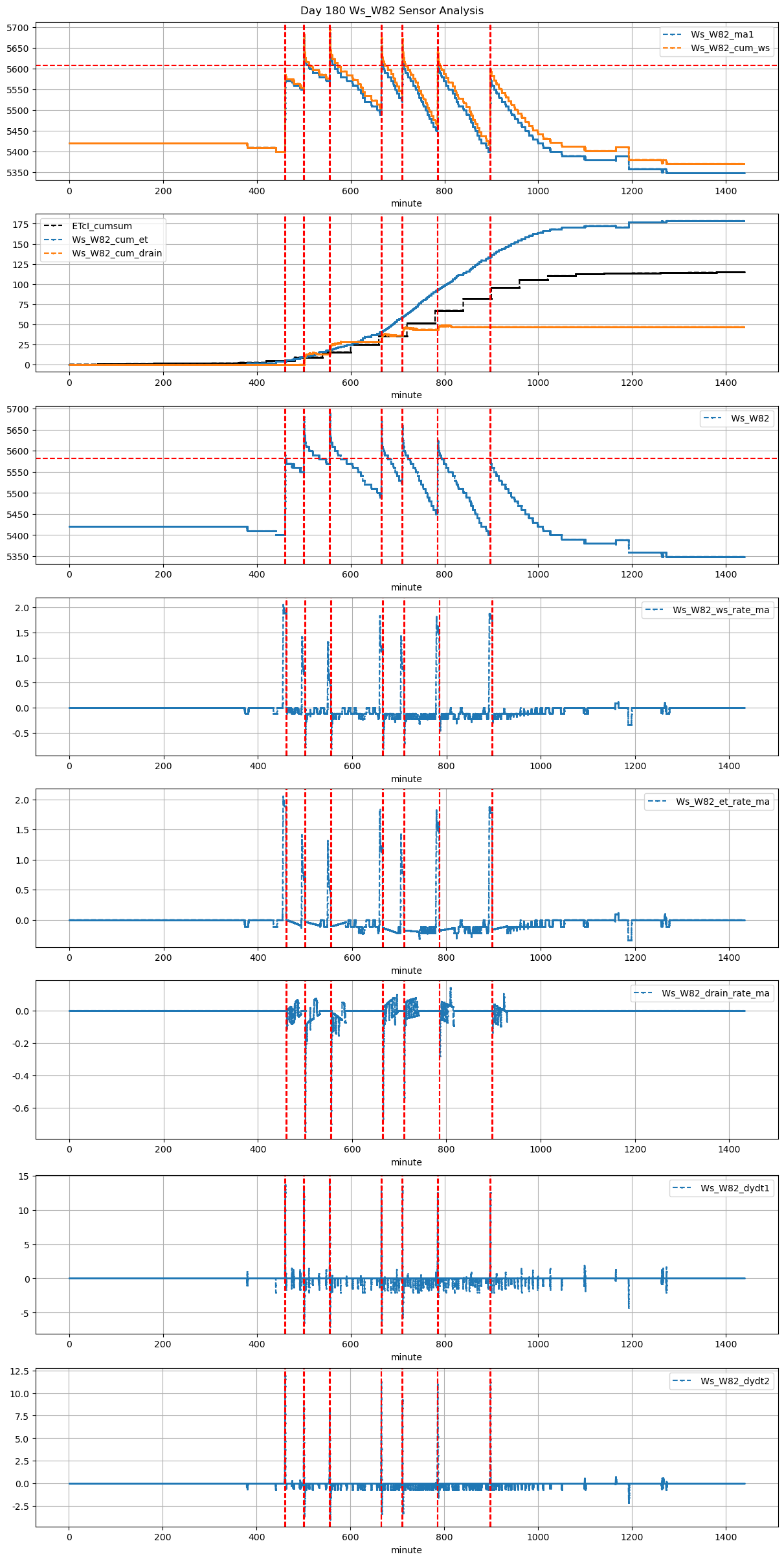

Figure figure_5.png

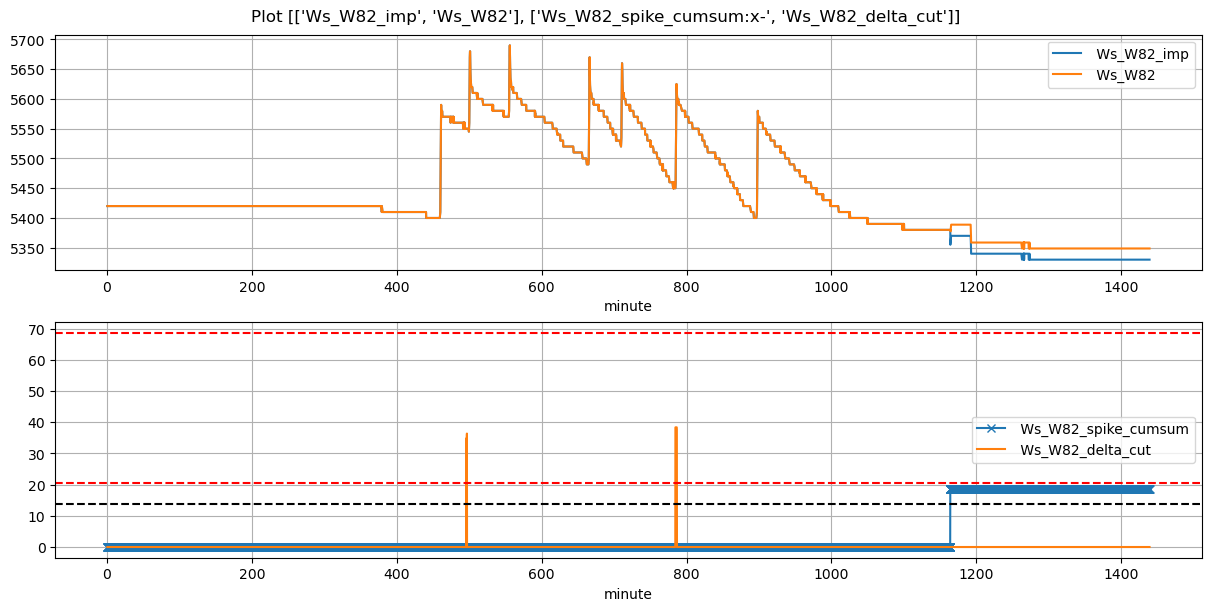

Figure figure_4.png
