Ws Sensor Analysis Report - Day 168

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 241.53 L
Avg Total Drain Amount: 21.06 L
Avg In-Fertigation Drain Amount: 7.02 L
Avg Post-Fertigation Drain Amount: 14.04 L
Avg Drainage Rate: 8.72%

Detail Section

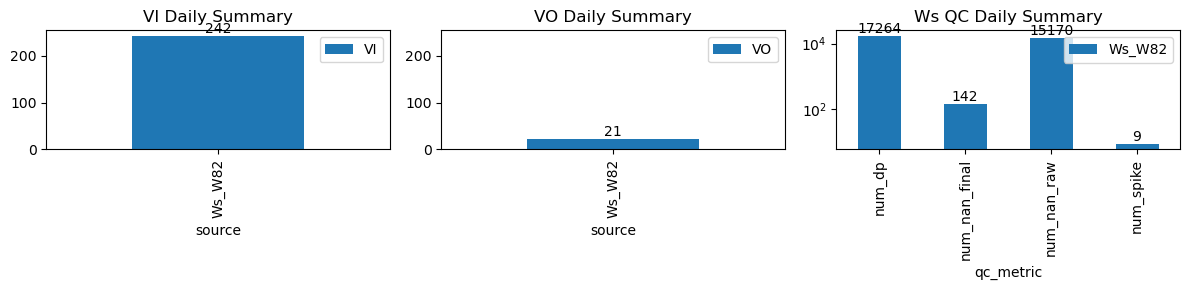

VI and VO Daily Summary

Summary Statistics - Ws_W82

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 241.53 L
Total Drain Amount: 21.06 L
In-Fertigation Drain Amount: 7.02 L
Post-Fertigation Drain Amount: 14.04 L
Drainage Rate: 8.72%

Ws Cleaning Summary Table - Ws_W82

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W82	17,264	15,170	142	9	24.63

Fertigation Events Details Table - Ws_W82

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-23 07:50:00+08:00	168	470	Ws_W82	3.186984	28.333333	470.00	470.000000	471.17	471.666667	5190.000000	5390.000000	70	0.000000	-0.013969	0.000000	0.472917	0.571429	40.000000	True	0.0	29.8	40.000000	0.000000	0.000000	0.000000	70.0	34.0	-0.111111	NaN
2026-03-23 08:20:45+08:00	168	500	Ws_W82	3.186984	28.250000	500.75	500.750000	501.52	501.750000	5370.000000	5485.833333	46	-0.020252	-0.065844	0.000000	0.451667	0.503623	23.166667	True	0.0	13.8	23.166667	0.000000	0.000000	0.000000	175.0	18.0	-0.180210	NaN
2026-03-23 08:50:00+08:00	168	530	Ws_W82	3.186984	30.000000	530.00	530.000000	531.18	531.083333	5430.000000	5527.250000	71	-0.040024	-0.150494	-0.049383	0.356667	0.273944	19.450000	True	0.0	-5.8	31.169000	7.021564	14.043127	21.064691	245.0	4.0	-0.172406	5457.034365
2026-03-23 09:55:00+08:00	168	595	Ws_W82	3.186984	29.250000	595.00	595.000000	595.68	595.750000	5390.000000	5485.000000	41	-0.149813	-0.143210	0.000000	0.425000	0.463415	19.000000	True	0.0	4.2	19.000000	0.000000	0.000000	0.000000	94.0	9.0	-0.128541	NaN
2026-03-23 10:25:00+08:00	168	625	Ws_W82	3.186984	30.000000	625.00	623.000000	626.20	626.000000	5410.000000	5507.187500	72	-0.060393	-0.161660	-0.091726	0.244410	0.269965	19.437500	True	-120.0	-12.0	31.608000	0.000000	0.000000	0.000000	285.0	2.0	-0.161777	NaN
2026-03-23 11:15:00+08:00	168	675	Ws_W82	3.186984	30.000000	675.00	675.000000	676.18	676.166667	5394.714286	5511.250000	71	-0.100187	-0.187098	-0.119016	0.397083	0.328270	23.307143	True	0.0	-0.8	31.169000	0.000000	0.000000	0.000000	60.0	4.0	-0.144059	NaN
2026-03-23 11:56:13+08:00	168	716	Ws_W82	3.186984	30.000000	716.22	716.083333	717.40	717.416667	5400.000000	5513.750000	71	-0.130573	-0.166701	-0.066299	0.381875	0.320423	22.750000	True	-8.2	1.0	31.169000	0.000000	0.000000	0.000000	129.0	6.0	-0.190195	NaN
2026-03-23 13:55:00+08:00	168	835	Ws_W82	3.186984	30.000000	835.00	834.916667	836.17	836.333333	5344.629630	5515.879630	70	NaN	-0.137654	-0.062757	0.482500	0.489286	34.250000	True	-5.0	9.8	34.250000	0.000000	0.000000	0.000000	NaN	NaN	NaN	NaN

Figures - Ws_W82

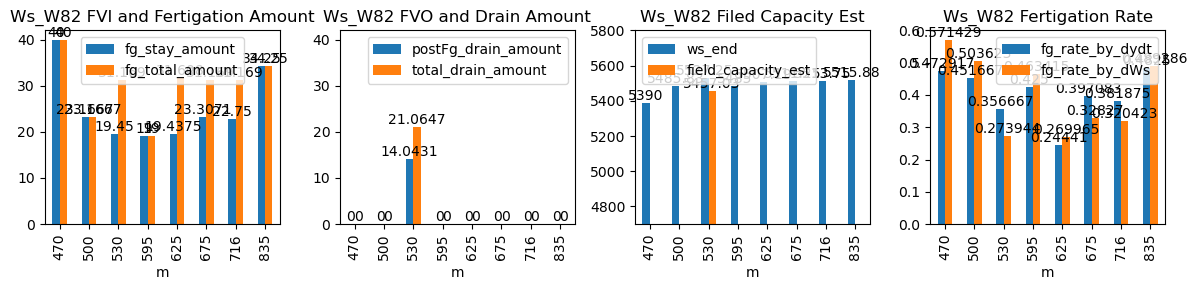

Figure figure_7.png

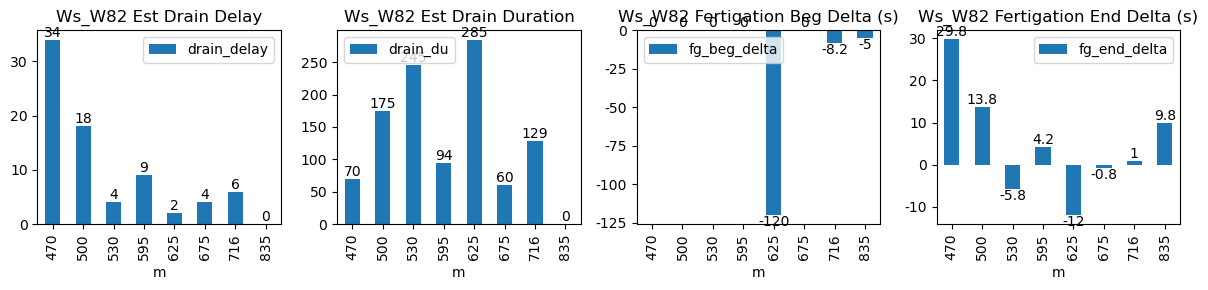

Figure figure_6.png

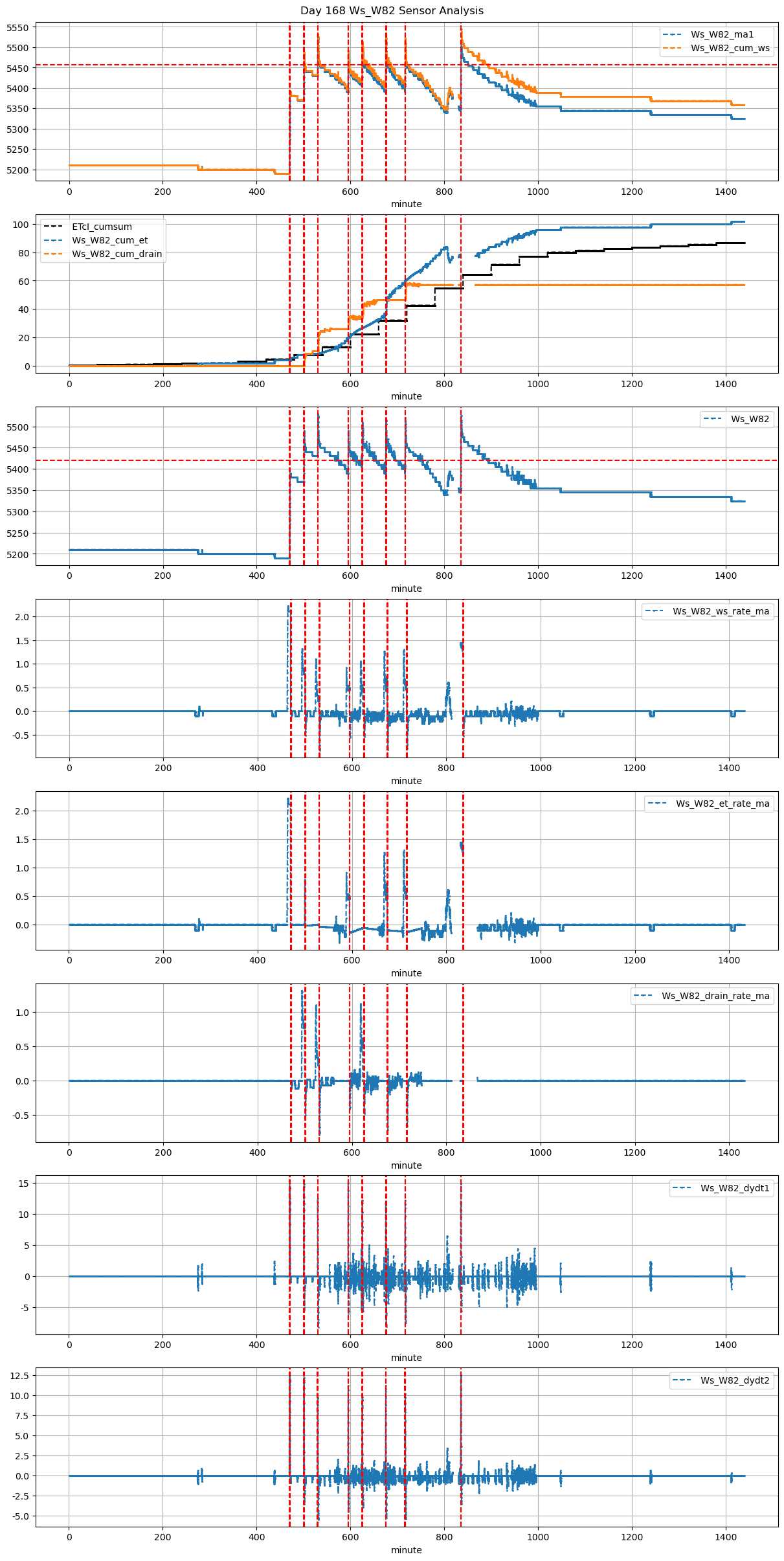

Figure figure_5.png

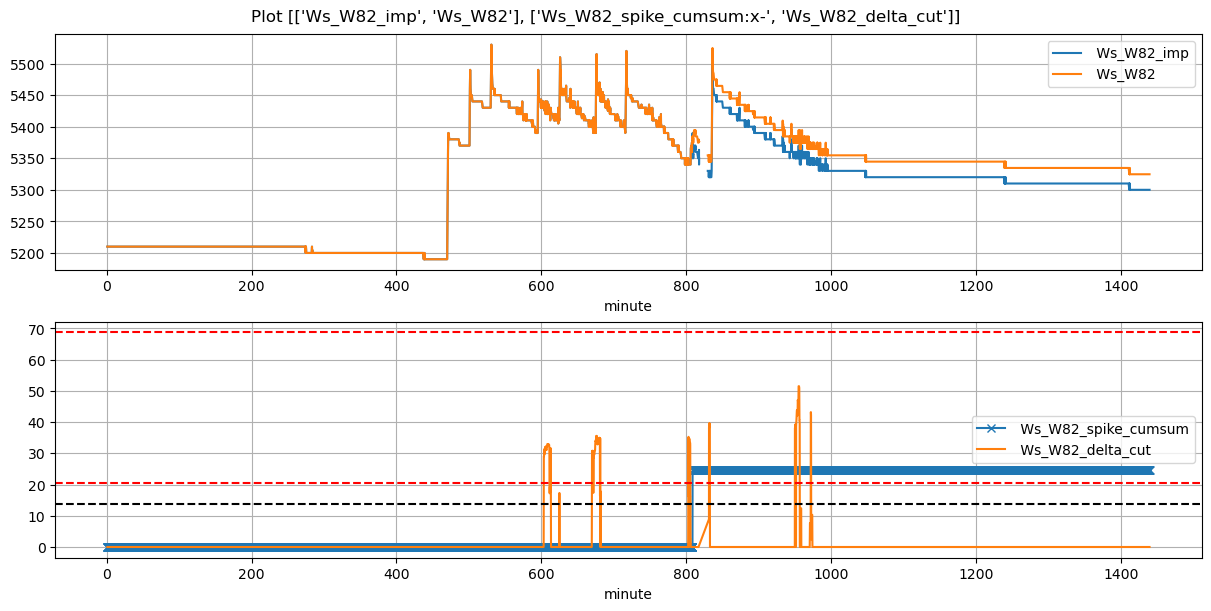

Figure figure_4.png
