Ws Sensor Analysis Report - Day 167

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 192.23 L
Avg Total Drain Amount: 69.69 L
Avg In-Fertigation Drain Amount: 6.90 L
Avg Post-Fertigation Drain Amount: 62.79 L
Avg Drainage Rate: 36.25%

Detail Section

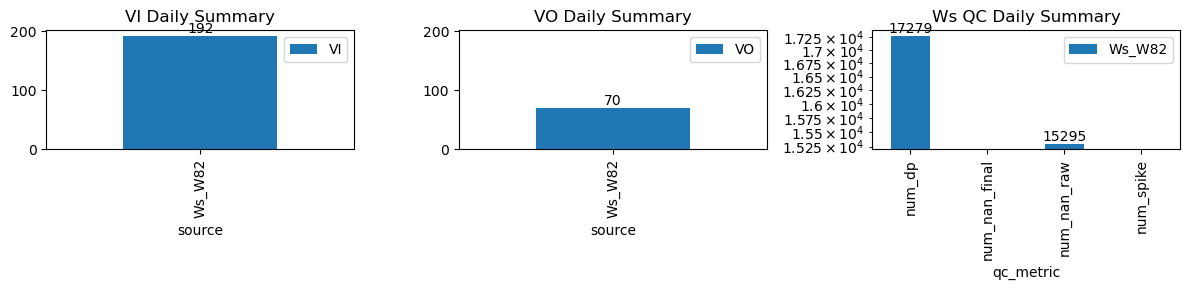

VI and VO Daily Summary

Summary Statistics - Ws_W82

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 192.23 L
Total Drain Amount: 69.69 L
In-Fertigation Drain Amount: 6.90 L
Post-Fertigation Drain Amount: 62.79 L
Drainage Rate: 36.25%

Ws Cleaning Summary Table - Ws_W82

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W82	17,279	15,295	0	0	0.00

Fertigation Events Details Table - Ws_W82

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-22 07:50:00+08:00	167	470	Ws_W82	2.211392	29.583333	470.00	469.833333	471.17	471.416667	5190.0	5379.944444	70	0.000000	-0.015226	0.000000	0.430816	0.542698	37.988889	True	-10.0	14.8	37.988889	0.0	0.000000	0.000000	70	19	-0.111111	NaN
2026-03-22 08:21:17+08:00	167	501	Ws_W82	2.211392	30.000000	501.28	501.000000	502.46	502.416667	5360.0	5496.000000	71	-0.023101	-0.127778	-0.096502	0.332121	0.383099	27.200000	True	-16.8	-2.6	27.200000	0.0	14.521336	14.521336	190	2	-0.231951	5423.393321
2026-03-22 09:00:00+08:00	167	540	Ws_W82	2.211392	30.000000	540.00	539.750000	541.17	541.083333	5400.0	5496.000000	70	-0.043218	-0.203292	-0.049177	0.257857	0.274286	19.200000	True	-15.0	-5.2	26.075000	6.9	14.866706	21.766706	474	4	-0.224338	5421.666469
2026-03-22 10:45:00+08:00	167	645	Ws_W82	2.211392	30.000000	645.00	644.833333	646.17	646.166667	5300.0	5462.500000	70	-0.142322	-0.232896	-0.095165	0.430942	0.464286	32.500000	True	-10.0	-0.2	32.500000	0.0	12.837243	12.837243	204	4	-0.321171	5398.313787
2026-03-22 11:55:00+08:00	167	715	Ws_W82	2.211392	30.000000	715.00	714.833333	716.17	716.166667	5310.0	5462.333333	70	-0.030587	-0.139403	-0.052984	0.433214	0.435238	30.466667	True	-10.0	-0.2	30.466667	0.0	13.222856	13.222856	309	4	-0.357730	5396.219055
2026-03-22 13:55:00+08:00	167	835	Ws_W82	2.211392	30.000000	835.00	834.833333	836.22	836.416667	5240.0	5430.000000	73	-0.144819	-0.045062	-0.099383	0.444286	0.520548	38.000000	True	-10.0	11.8	38.000000	0.0	7.337083	7.337083	99	16	-0.066403	5393.314583

Figures - Ws_W82

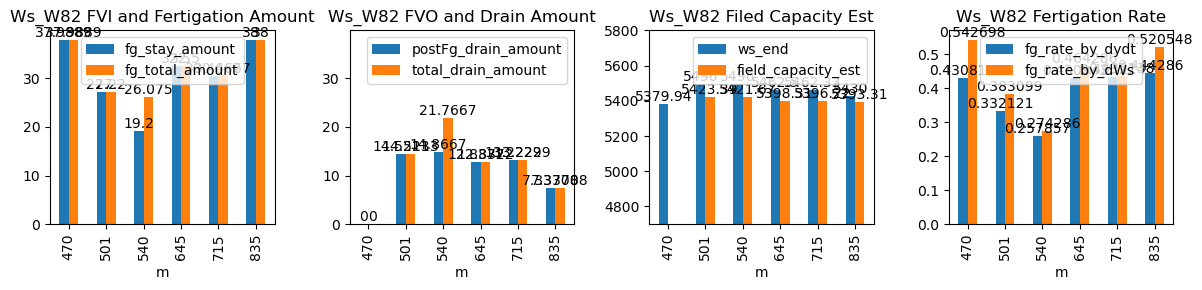

Figure figure_7.png

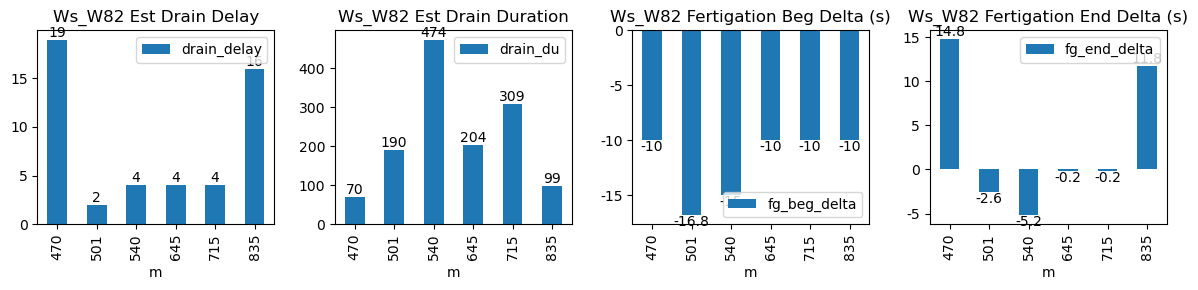

Figure figure_6.png

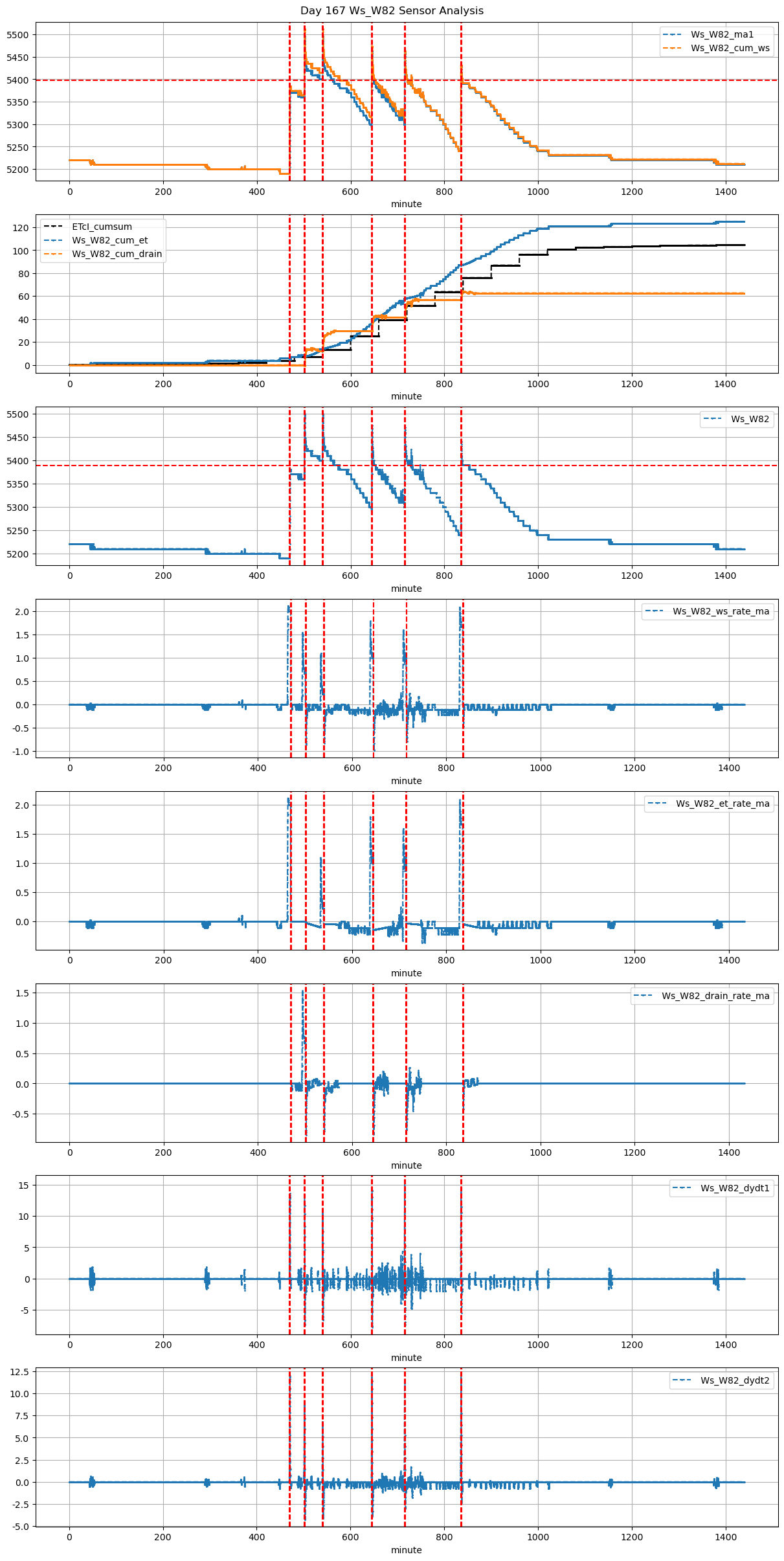

Figure figure_5.png

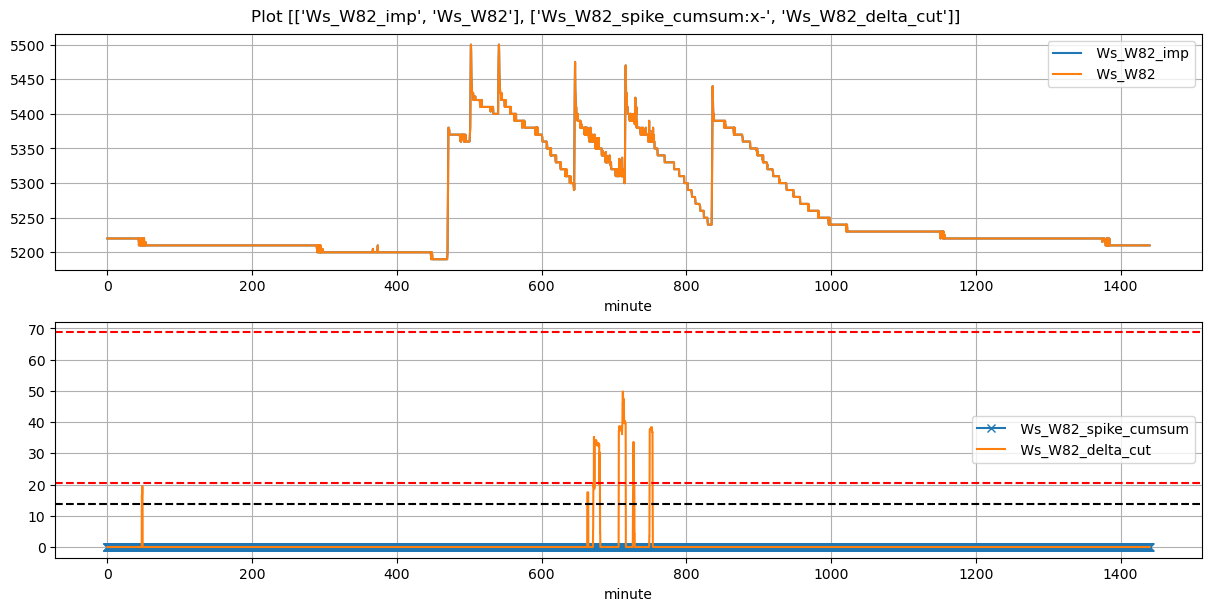

Figure figure_4.png
