Ws Sensor Analysis Report - Day 21

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 2
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 213.54 L
Avg Total Drain Amount: 14.37 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 14.37 L
Avg Drainage Rate: 6.73%

Detail Section

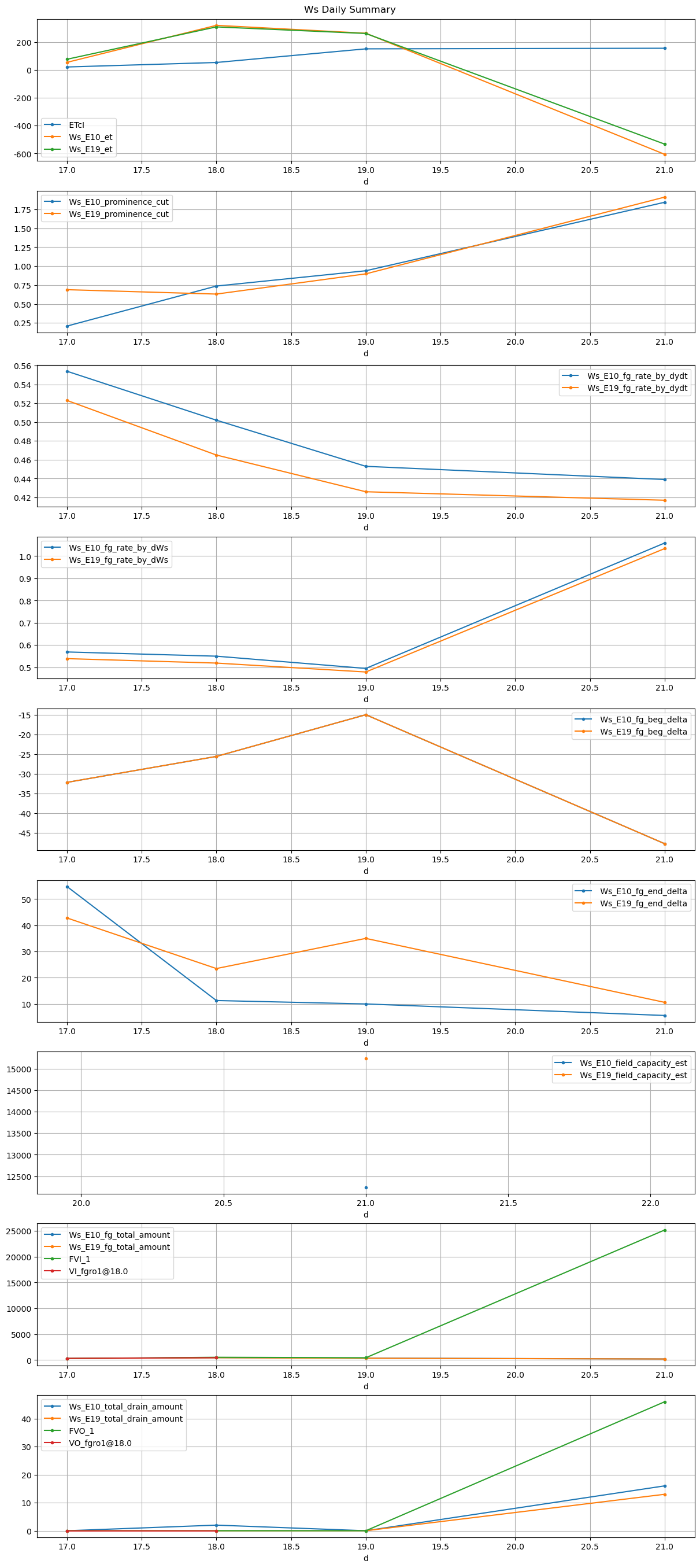

VI and VO Daily Summary

Summary Statistics - Ws_E10

Number of Fertigation Events: 6
Number of Fertigation Events detected: 5
Total Fertigation Amount: 218.00 L
Total Drain Amount: 15.96 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 15.96 L
Drainage Rate: 7.32%

Ws Cleaning Summary Table - Ws_E10

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E10	17,081	13,086	7,556	0	0.00

Fertigation Events Details Table - Ws_E10

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-13 10:46:31+08:00	21	646	Ws_E10	1.843718	20.00	646.52	NaN	647.52	NaN	8345.600000	NaN	60	NaN	NaN	NaN	NaN	NaN	NaN	False	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	67.0	0.0
2026-04-13 10:47:32+08:00	21	647	Ws_E10	1.843718	20.00	647.53	647.166667	648.55	NaN	8345.950000	NaN	61	NaN	NaN	-0.303287	NaN	NaN	NaN	True	-21.8	NaN	31.155750	NaN	0.000000	NaN	NaN	NaN	NaN	NaN	67.0	0.0
2026-04-13 10:48:34+08:00	21	648	Ws_E10	1.843718	20.00	648.57	647.166667	649.60	649.750000	8429.500000	8856.000000	62	NaN	-0.323929	-0.333690	0.551139	1.375806	85.300000	True	-84.2	9.0	85.300000	0.0	0.000000	0.000000	NaN	NaN	NaN	NaN	101.0	0.0
2026-04-13 11:55:00+08:00	21	715	Ws_E10	1.843718	20.00	715.00	714.916667	717.30	717.416667	8621.787500	9006.000000	138	-0.239595	-0.289514	-0.492940	0.547083	0.556830	76.842500	True	-5.0	7.0	76.842500	0.0	0.000000	0.000000	30.0	1132.0	-1.168089	NaN	8093.0	38.0
2026-04-13 18:28:34+08:00	21	1108	Ws_E10	1.843718	15.36	1108.57	1107.666667	1108.64	1108.166667	12221.159091	12236.000000	4	-0.056990	-0.048454	0.000000	0.043847	0.742045	2.968182	True	-54.2	-28.4	2.968182	0.0	0.816695	0.816695	60.0	1.0	-0.456068	12231.916523	8413.0	0.0
2026-04-13 18:44:08+08:00	21	1124	Ws_E10	1.843718	20.00	1124.13	1123.333333	1124.18	1124.250000	12224.477778	12333.166667	3	-0.000294	-0.461065	-0.012697	0.330894	7.245926	21.737778	True	-47.8	4.2	21.737778	0.0	15.147163	15.147163	670.0	19.0	-3.413952	12257.430850	8413.0	7.6

Figures - Ws_E10

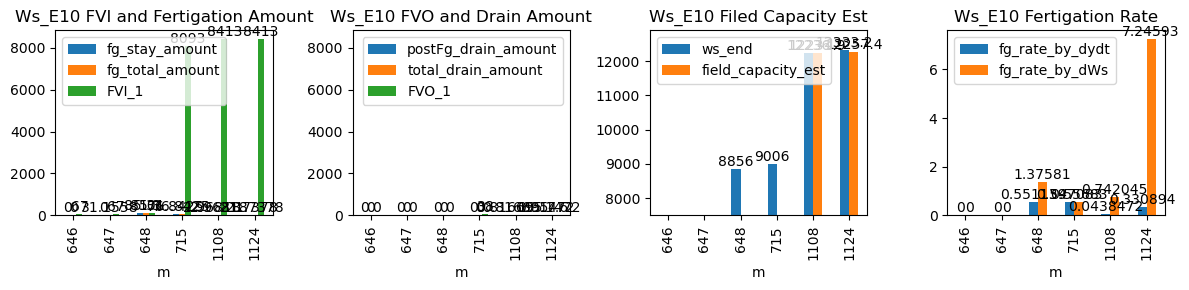

Figure figure_10.png

Figure figure_9.png

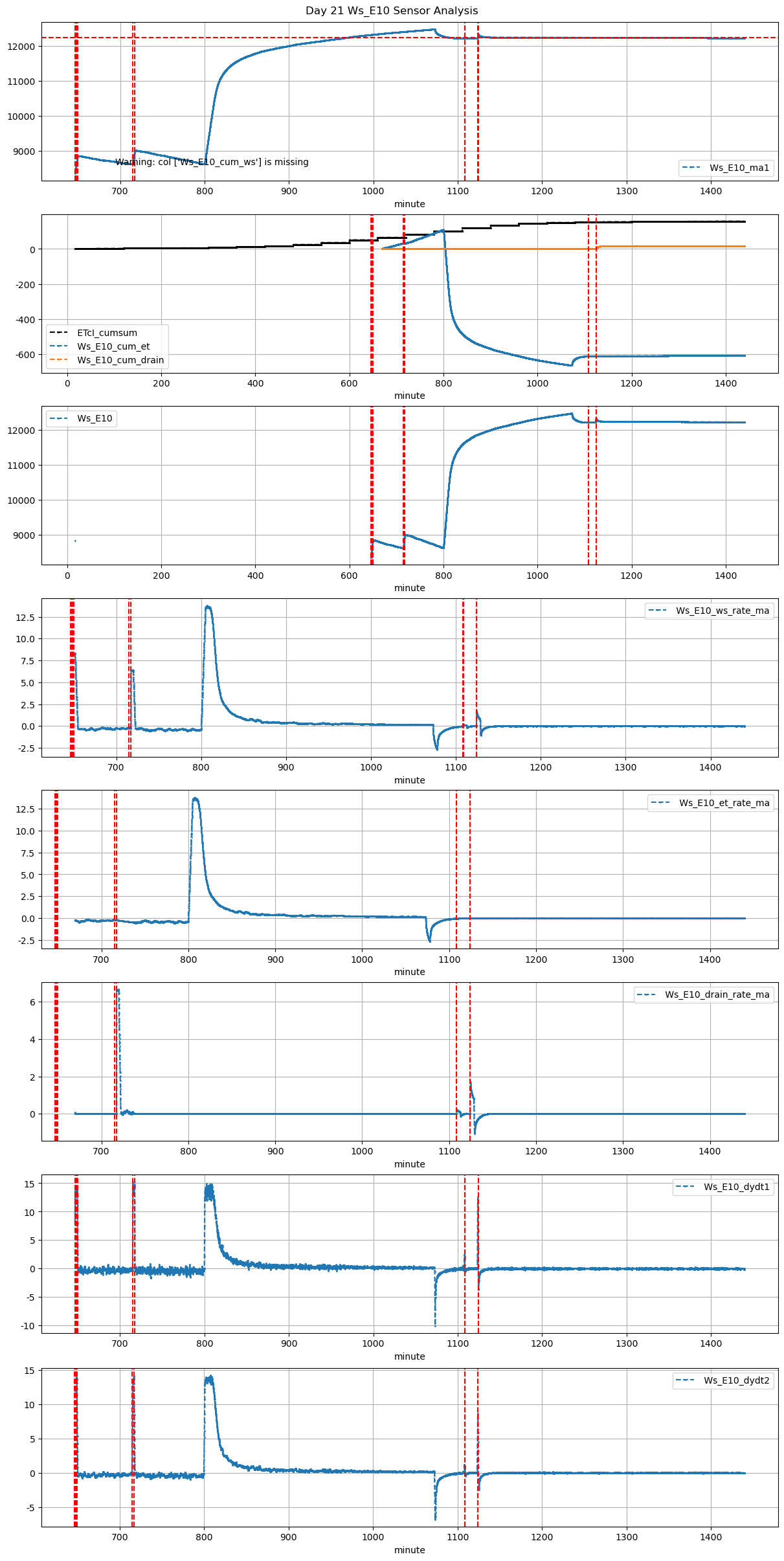

Figure figure_8.png

Figure figure_6.png

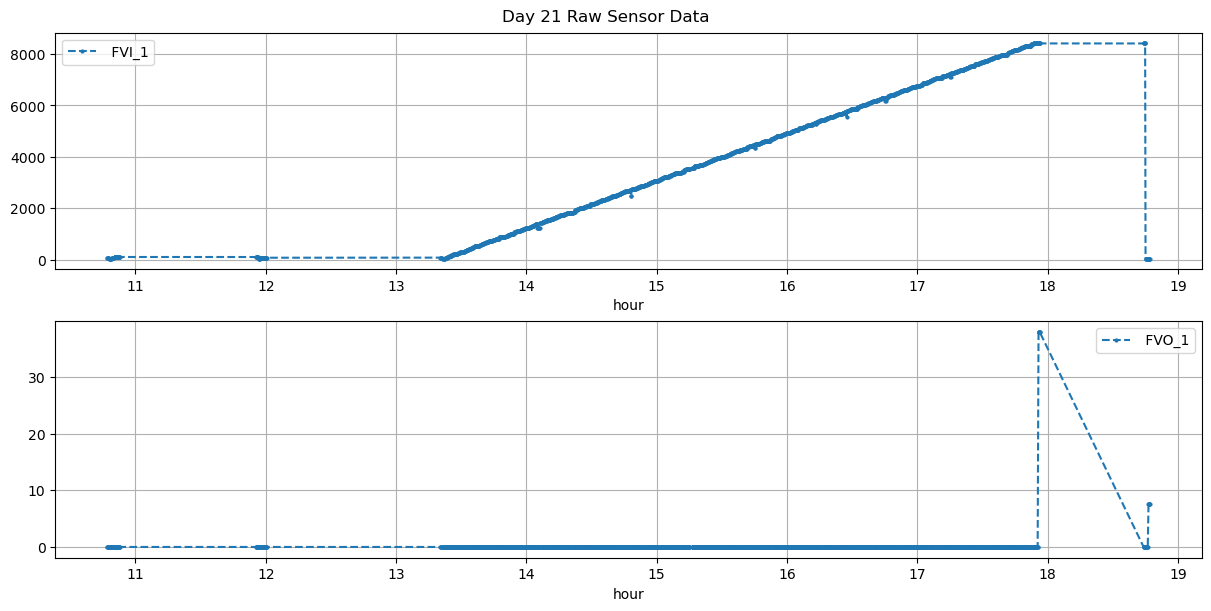

Figure figure_5.png

Summary Statistics - Ws_E19

Number of Fertigation Events: 6
Number of Fertigation Events detected: 5
Total Fertigation Amount: 209.07 L
Total Drain Amount: 12.77 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 12.77 L
Drainage Rate: 6.11%

Ws Cleaning Summary Table - Ws_E19

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E19	17,081	12,840	7,557	0	0.00

Fertigation Events Details Table - Ws_E19

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-13 10:46:31+08:00	21	646	Ws_E19	1.9118	20.00	646.52	NaN	647.52	NaN	11694.100000	NaN	60	NaN	NaN	NaN	NaN	NaN	NaN	False	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	67.0	0.0
2026-04-13 10:47:32+08:00	21	647	Ws_E19	1.9118	20.00	647.53	647.166667	648.55	NaN	11694.450000	NaN	61	NaN	NaN	-0.371042	NaN	NaN	NaN	True	-21.8	NaN	31.155750	NaN	0.000000	NaN	NaN	NaN	NaN	NaN	67.0	0.0
2026-04-13 10:48:34+08:00	21	648	Ws_E19	1.9118	20.00	648.57	647.166667	649.60	650.166667	11773.000000	12178.000000	62	NaN	-0.319562	-0.344711	0.514917	1.306452	81.000000	True	-84.2	34.0	81.000000	0.0	0.000000	0.000000	NaN	NaN	NaN	NaN	101.0	0.0
2026-04-13 11:55:00+08:00	21	715	Ws_E19	1.9118	20.00	715.00	714.916667	717.30	717.583333	11935.000000	12301.500000	138	-0.238077	-0.277847	-0.485069	0.520222	0.531159	73.300000	True	-5.0	17.0	73.300000	0.0	0.000000	0.000000	40.0	772.0	-1.199520	NaN	8093.0	38.0
2026-04-13 18:28:34+08:00	21	1108	Ws_E19	1.9118	15.36	1108.57	1107.750000	1108.64	1108.166667	15222.272727	15237.500000	4	-0.196916	-0.163241	0.000000	0.049167	0.761364	3.045455	True	-49.2	-28.4	3.045455	0.0	0.340567	0.340567	219.0	1.0	-0.227611	15235.797165	8413.0	0.0
2026-04-13 18:44:08+08:00	21	1124	Ws_E19	1.9118	20.00	1124.13	1123.333333	1124.18	1124.250000	15210.000000	15312.833333	3	-0.106874	-0.474838	-0.093681	0.319306	6.855556	20.566667	True	-47.8	4.2	20.566667	0.0	12.431403	12.431403	510.0	19.0	-2.310408	15250.676318	8413.0	7.6

Figures - Ws_E19

Figure figure_13.png

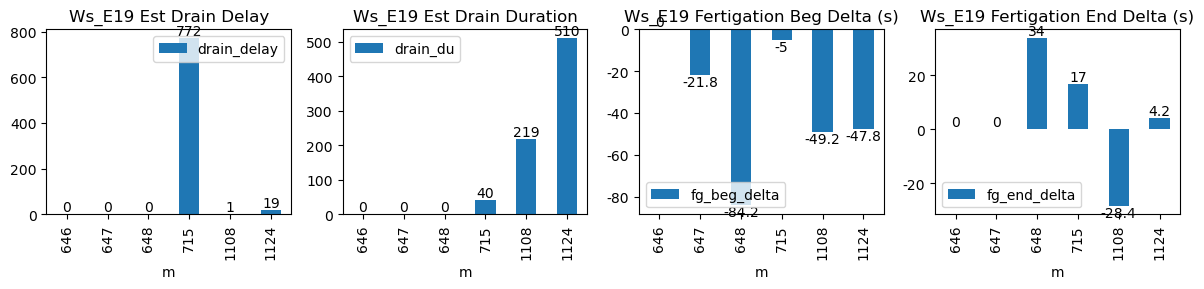

Figure figure_12.png

Figure figure_11.png

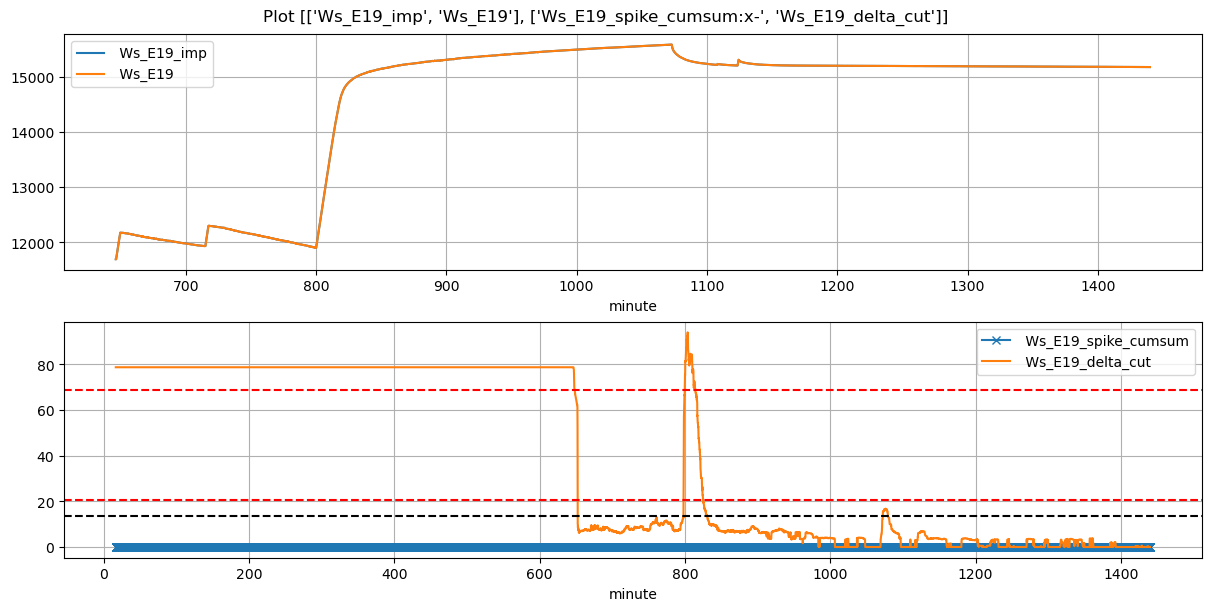

Figure figure_7.png

Figure figure_5.png
