Ws Sensor Analysis Report - Day 109

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 183.68 L
Avg Total Drain Amount: 86.05 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 86.05 L
Avg Drainage Rate: 46.85%

Detail Section

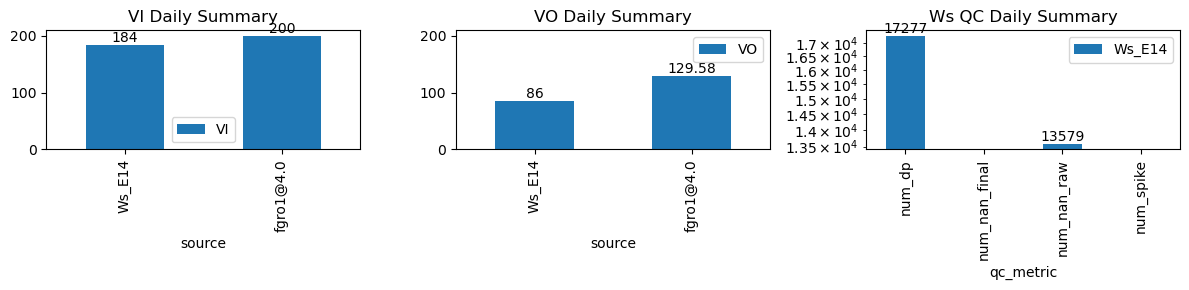

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 183.68 L
Total Drain Amount: 86.05 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 86.05 L
Drainage Rate: 46.85%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,277	13,579	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-01-23 10:02:18+08:00	109	602	Ws_E14	0.889479	27.25	602.30	602.333333	602.90	603.750000	14340.000000	14504.0	36	-0.054167	-0.065926	0.000000	0.503714	0.911111	32.800000	True	2.0	51.0	32.800000	0.0	0.000000	0.000000	54	231	-0.279448	NaN	NaN	NaN
2026-01-23 10:31:17+08:00	109	631	Ws_E14	0.889479	30.00	631.28	631.250000	631.88	632.416667	14483.825000	14645.0	36	-0.057042	-0.595069	-0.059028	0.504857	0.895417	32.235000	True	-1.8	32.2	32.235000	0.0	16.303714	16.303714	540	42	-1.276205	14563.481429	NaN	NaN
2026-01-23 11:21:01+08:00	109	681	Ws_E14	0.889479	30.00	681.02	681.000000	681.62	682.166667	14526.720000	14670.0	36	-0.081773	-0.693444	-0.065606	0.470857	0.796000	28.656000	True	-1.2	32.8	28.656000	0.0	19.606237	19.606237	555	37	-1.594006	14571.968814	NaN	NaN
2026-01-23 12:21:17+08:00	109	741	Ws_E14	0.889479	30.00	741.28	741.250000	741.88	742.416667	14513.266667	14661.0	36	-0.077966	-0.666319	-0.096944	0.488571	0.820741	29.546667	True	-1.8	32.2	29.546667	0.0	17.684988	17.684988	549	37	-1.504569	14572.575059	NaN	NaN
2026-01-23 13:21:17+08:00	109	801	Ws_E14	0.889479	30.00	801.28	801.333333	801.88	802.416667	14508.800000	14659.0	36	-0.092917	-0.625861	-0.100417	0.497714	0.834444	30.040000	True	3.2	32.2	30.040000	0.0	15.720687	15.720687	225	42	-1.573516	14580.396563	NaN	NaN
2026-01-23 14:26:17+08:00	109	866	Ws_E14	0.889479	30.00	866.28	866.333333	866.88	867.416667	14505.000000	14657.0	36	-0.080573	-0.625417	-0.076059	0.489429	0.844444	30.400000	True	3.2	32.2	30.400000	0.0	16.735330	16.735330	135	42	-1.498974	14573.323350	NaN	NaN

Figures - Ws_E14

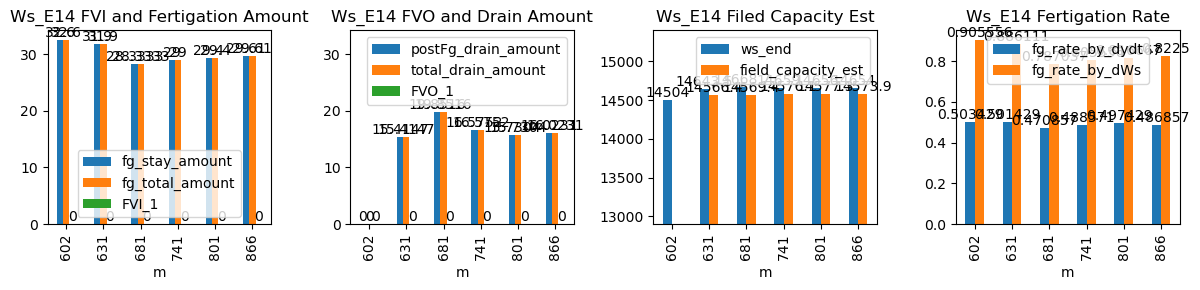

Figure figure_8.png

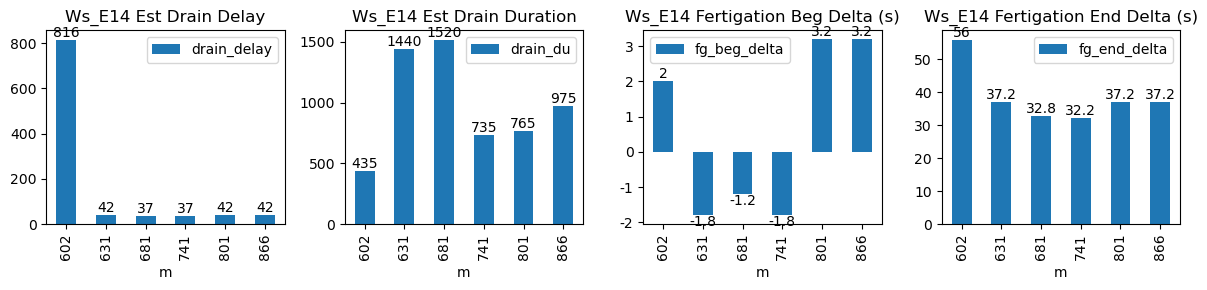

Figure figure_7.png

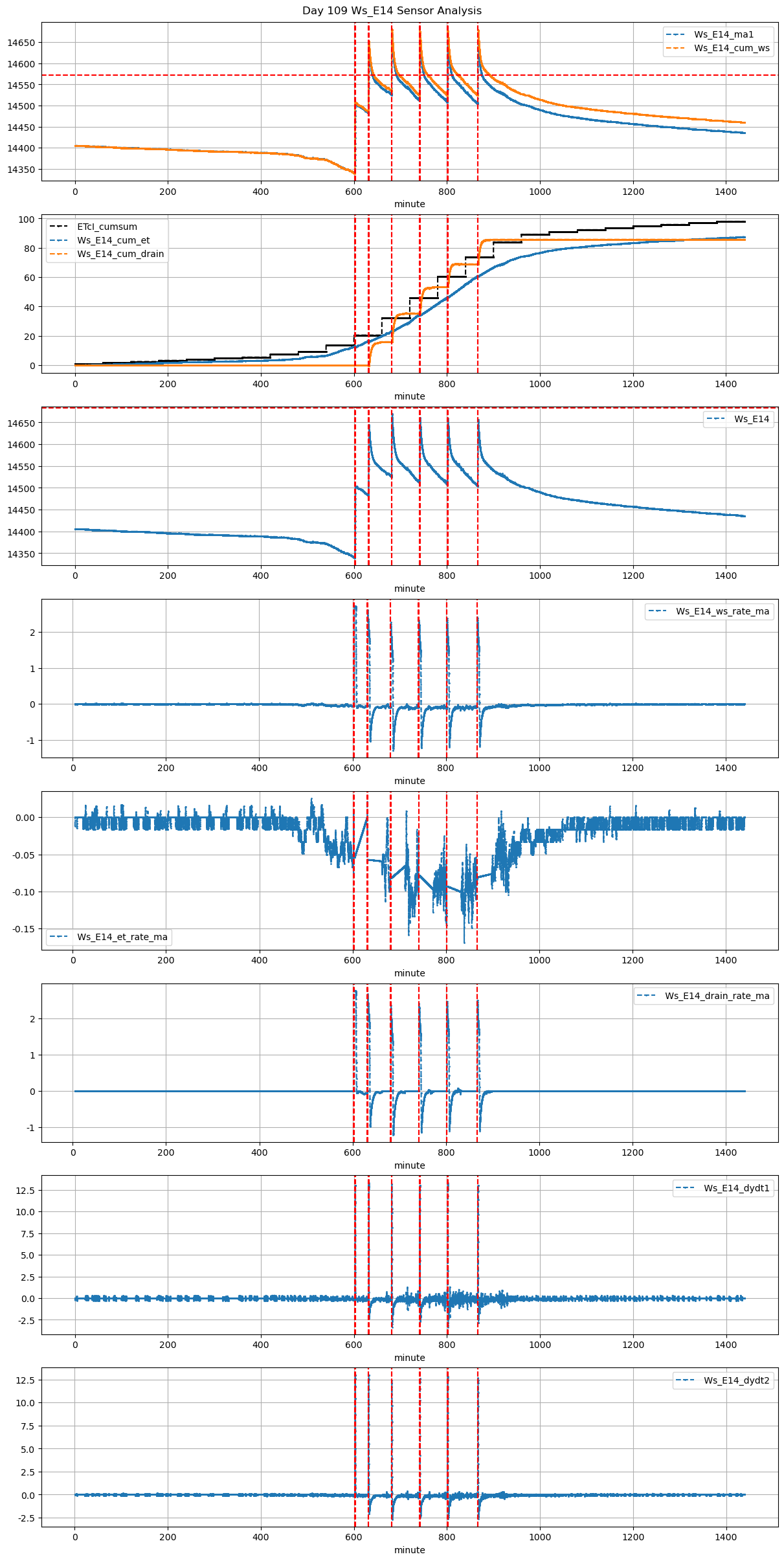

Figure figure_6.png

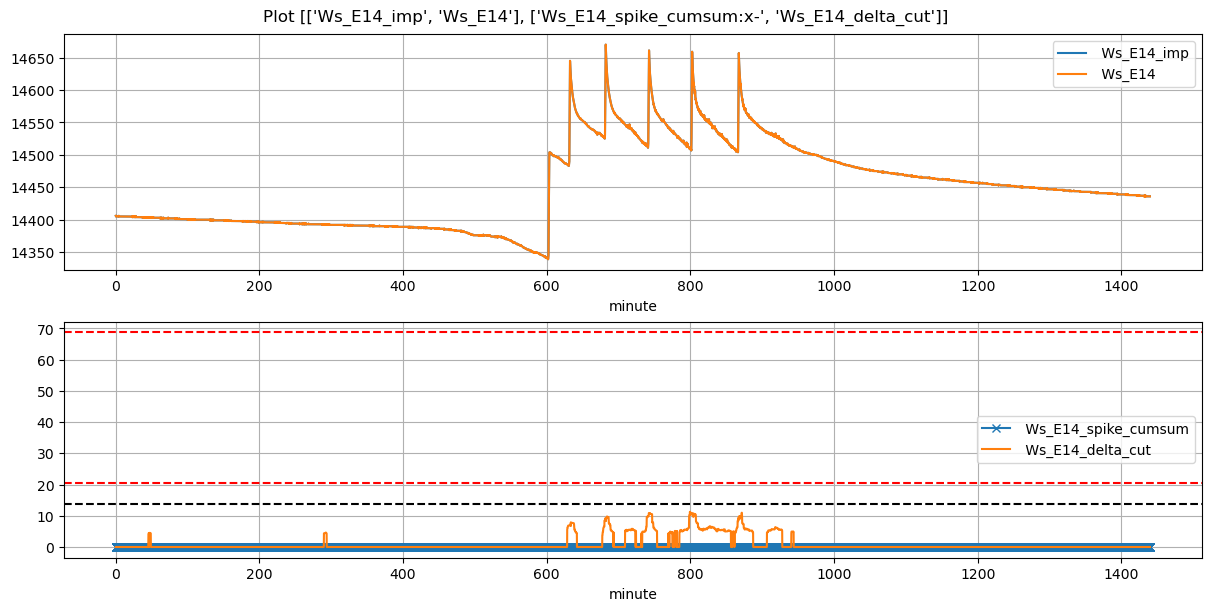

Figure figure_5.png

Figure figure_4.png
