Ws Sensor Analysis Report - Day 186

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 266.40 L
Avg Total Drain Amount: 158.20 L
Avg In-Fertigation Drain Amount: 13.90 L
Avg Post-Fertigation Drain Amount: 144.30 L
Avg Drainage Rate: 59.39%

Detail Section

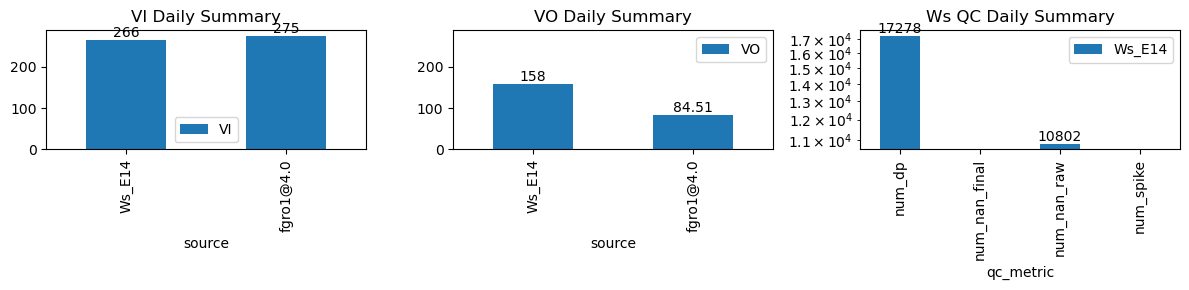

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 266.40 L
Total Drain Amount: 158.20 L
In-Fertigation Drain Amount: 13.90 L
Post-Fertigation Drain Amount: 144.30 L
Drainage Rate: 59.39%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,278	10,802	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-10 07:48:38+08:00	186	468	Ws_E14	1.261253	30	468.63	468.750000	469.96	470.500000	14256.0	14478.000000	80	0.000000	-0.072847	-0.066337	0.467782	0.555000	44.400000	True	7.2	32.4	44.4	0.0	1.032569	1.032569	154	47	-0.303137	NaN	NaN	NaN
2026-04-10 08:35:00+08:00	186	515	Ws_E14	1.261253	30	515.00	515.083333	516.33	516.833333	14446.6	14665.000000	80	-0.093454	-1.052222	-0.190389	0.456333	0.546000	43.680000	True	5.0	30.2	44.4	0.7	28.264654	28.964654	540	45	-2.973525	14523.676728	NaN	NaN
2026-04-10 09:20:00+08:00	186	560	Ws_E14	1.261253	30	560.00	560.083333	561.33	561.833333	14443.3	14651.500000	80	-0.151135	-1.118414	-0.037731	0.438208	0.520500	41.640000	True	5.0	30.2	44.4	2.8	32.930605	35.730605	399	70	-2.793787	14486.846975	NaN	NaN
2026-04-10 10:05:00+08:00	186	605	Ws_E14	1.261253	30	605.00	605.166667	606.33	606.833333	14437.3	14642.333333	80	-0.060452	-1.080000	-0.287708	0.437083	0.512583	41.006667	True	10.0	30.2	44.4	3.4	28.702670	32.102670	240	45	-2.939108	14498.819983	NaN	NaN
2026-04-10 10:50:00+08:00	186	650	Ws_E14	1.261253	30	650.00	650.166667	651.33	651.833333	14405.9	14609.500000	80	-0.097928	-0.995023	-0.067500	0.429688	0.509000	40.720000	True	10.0	30.2	44.4	3.7	33.002083	36.702083	630	45	-2.599650	14444.489585	NaN	NaN
2026-04-10 11:35:00+08:00	186	695	Ws_E14	1.261253	30	695.00	695.166667	696.33	696.916667	14384.6	14590.000000	80	-0.270386	-0.942552	-0.170741	0.435630	0.513500	41.080000	True	10.0	35.2	44.4	3.3	20.370382	23.670382	275	50	-2.391379	14488.148091	NaN	NaN

Figures - Ws_E14

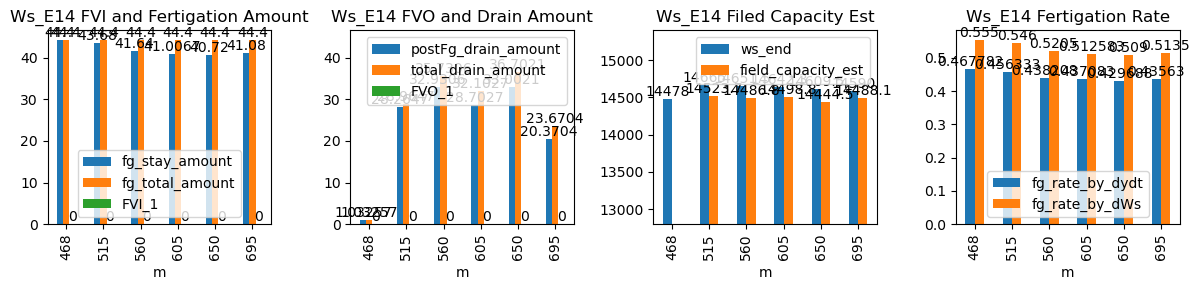

Figure figure_8.png

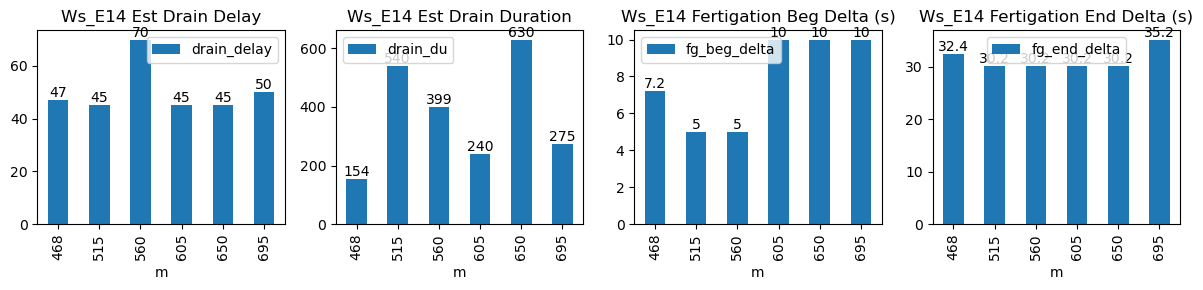

Figure figure_7.png

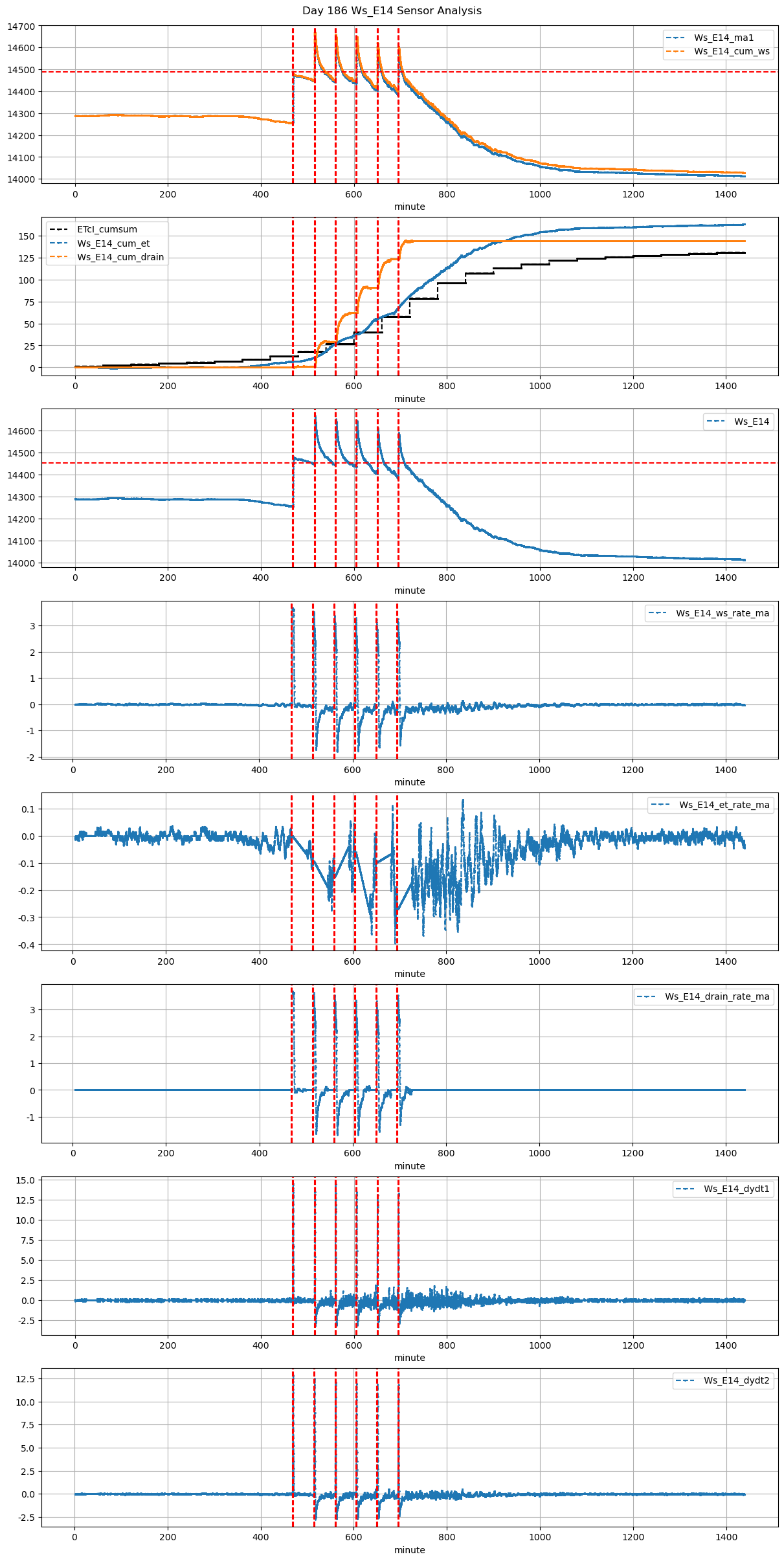

Figure figure_6.png

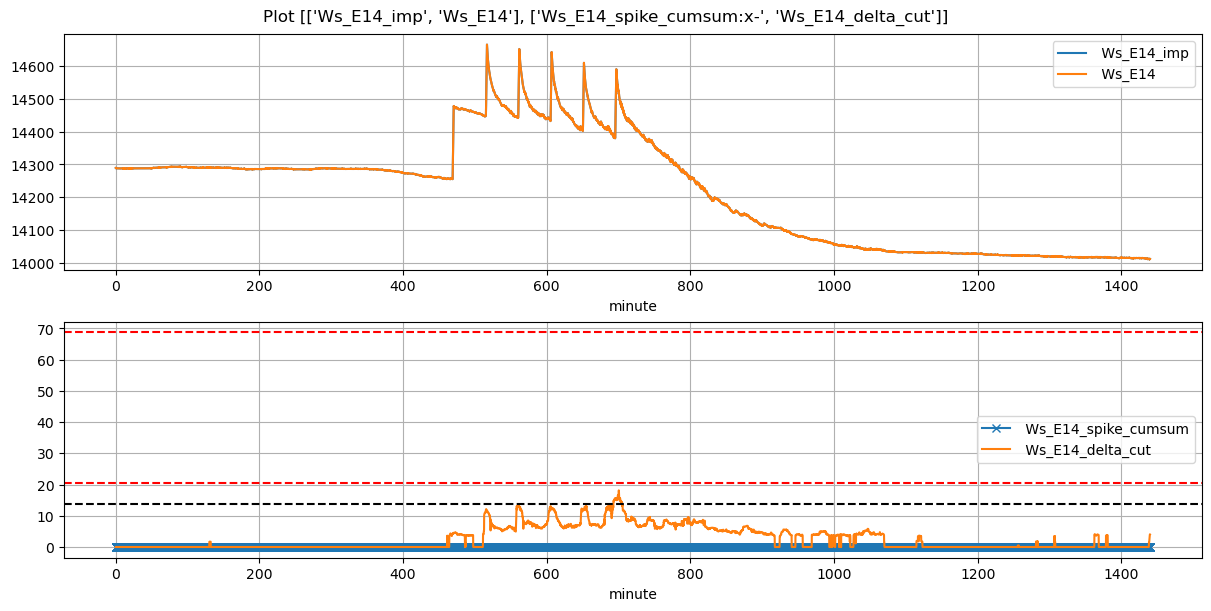

Figure figure_5.png

Figure figure_4.png
