Ws Sensor Analysis Report - Day 97

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 162.15 L
Avg Total Drain Amount: 4.29 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 4.29 L
Avg Drainage Rate: 2.64%

Detail Section

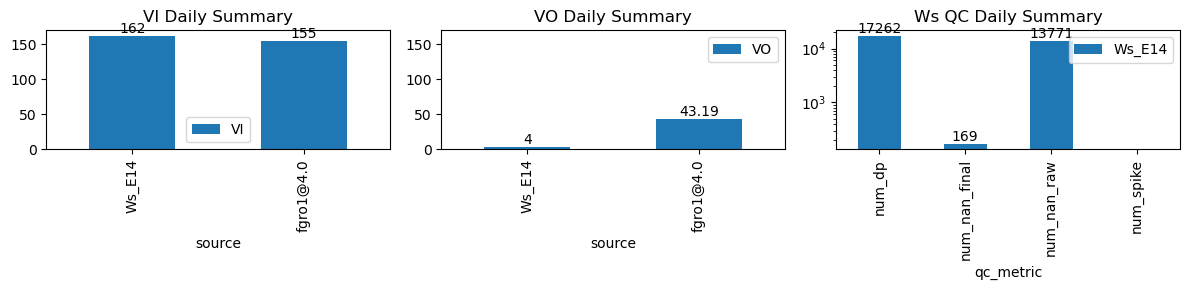

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 162.15 L
Total Drain Amount: 4.29 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 4.29 L
Drainage Rate: 2.64%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,262	13,771	169	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-01-11 08:54:18+08:00	97	534	Ws_E14	0.320858	29.416667	534.30	534.666667	534.88	535.583333	13954.000000	14050.0	35	-0.036587	-0.056620	0.000000	0.424914	0.548571	19.200000	True	22.0	42.2	20.195000	0.0	0.000000	0.000000	20	347	-0.254173	NaN	NaN	NaN
2026-01-11 09:25:00+08:00	97	565	Ws_E14	0.320858	30.000000	565.00	565.333333	565.58	566.833333	14035.000000	14133.0	35	-0.033077	-0.053264	-0.049861	0.381286	0.560000	19.600000	True	20.0	75.2	20.195000	0.0	0.000000	0.000000	39	175	-0.213520	NaN	NaN	NaN
2026-01-11 10:50:00+08:00	97	650	Ws_E14	0.320858	30.000000	650.00	650.333333	650.58	652.583333	14076.966667	14174.0	35	-0.041855	-0.092569	-0.100658	0.310429	0.554476	19.406667	True	20.0	120.2	20.195000	0.0	0.000000	0.000000	10	140	-0.410820	NaN	NaN	NaN
2026-01-11 11:45:00+08:00	97	705	Ws_E14	0.320858	30.000000	705.00	705.333333	705.58	706.916667	14118.000000	14218.0	35	-0.075177	-0.076520	-0.093426	0.370000	0.571429	20.000000	True	20.0	80.2	20.195000	0.0	0.000000	0.000000	20	230	-0.506619	NaN	NaN	NaN
2026-01-11 12:35:00+08:00	97	755	Ws_E14	0.320858	30.000000	755.00	755.333333	755.58	757.416667	14164.000000	14265.5	35	-0.073870	-0.085833	-0.091389	0.327857	0.580000	20.300000	True	20.0	110.2	20.300000	0.0	0.000000	0.000000	15	570	-0.571416	NaN	NaN	NaN
2026-01-11 13:26:01+08:00	97	806	Ws_E14	0.320858	30.000000	806.02	806.416667	806.60	808.750000	14210.666667	14314.0	35	-0.088606	-0.089648	-0.062454	0.310571	0.590476	20.666667	True	23.8	129.0	20.666667	0.0	0.000000	0.000000	9	134	-0.375184	NaN	NaN	NaN
2026-01-11 14:20:00+08:00	97	860	Ws_E14	0.320858	30.000000	860.00	860.333333	860.58	862.250000	14261.933333	14363.0	35	-0.068866	-0.084451	-0.073036	0.352000	0.577524	20.213333	True	20.0	100.2	20.213333	0.0	0.000000	0.000000	15	130	-0.346473	NaN	NaN	NaN
2026-01-11 15:37:24+08:00	97	937	Ws_E14	0.320858	30.000000	937.40	937.750000	937.98	939.083333	14299.225000	14400.0	35	-0.043889	-0.211458	-0.021771	0.398429	0.575857	20.155000	True	21.0	66.2	20.195000	0.0	4.285926	4.285926	205	101	-0.573468	14378.570368	NaN	NaN

Figures - Ws_E14

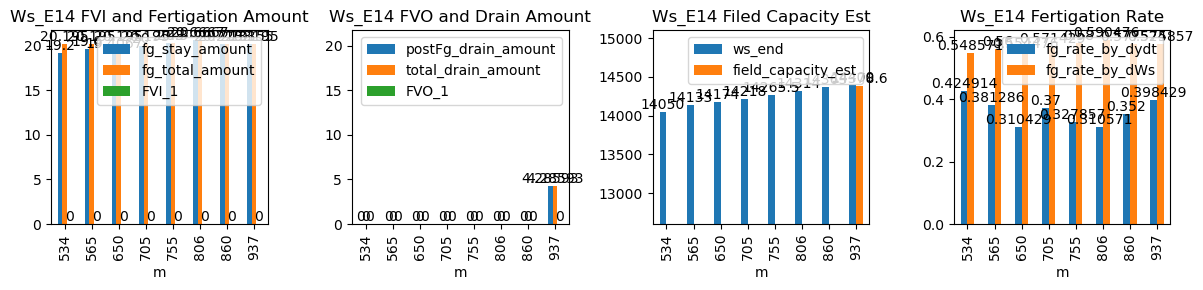

Figure figure_8.png

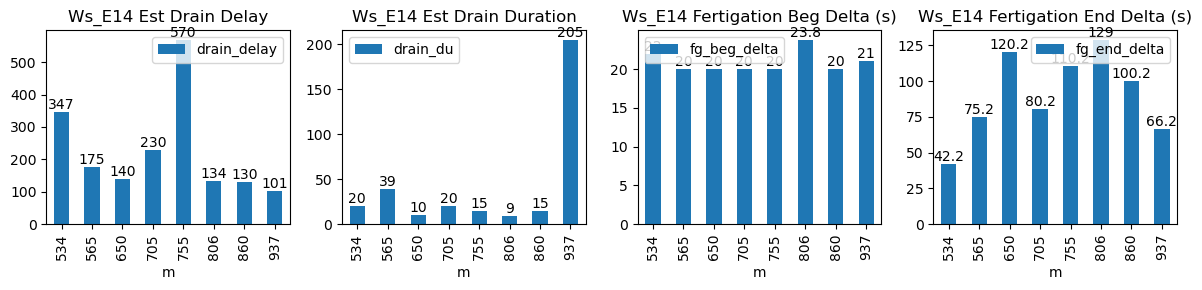

Figure figure_7.png

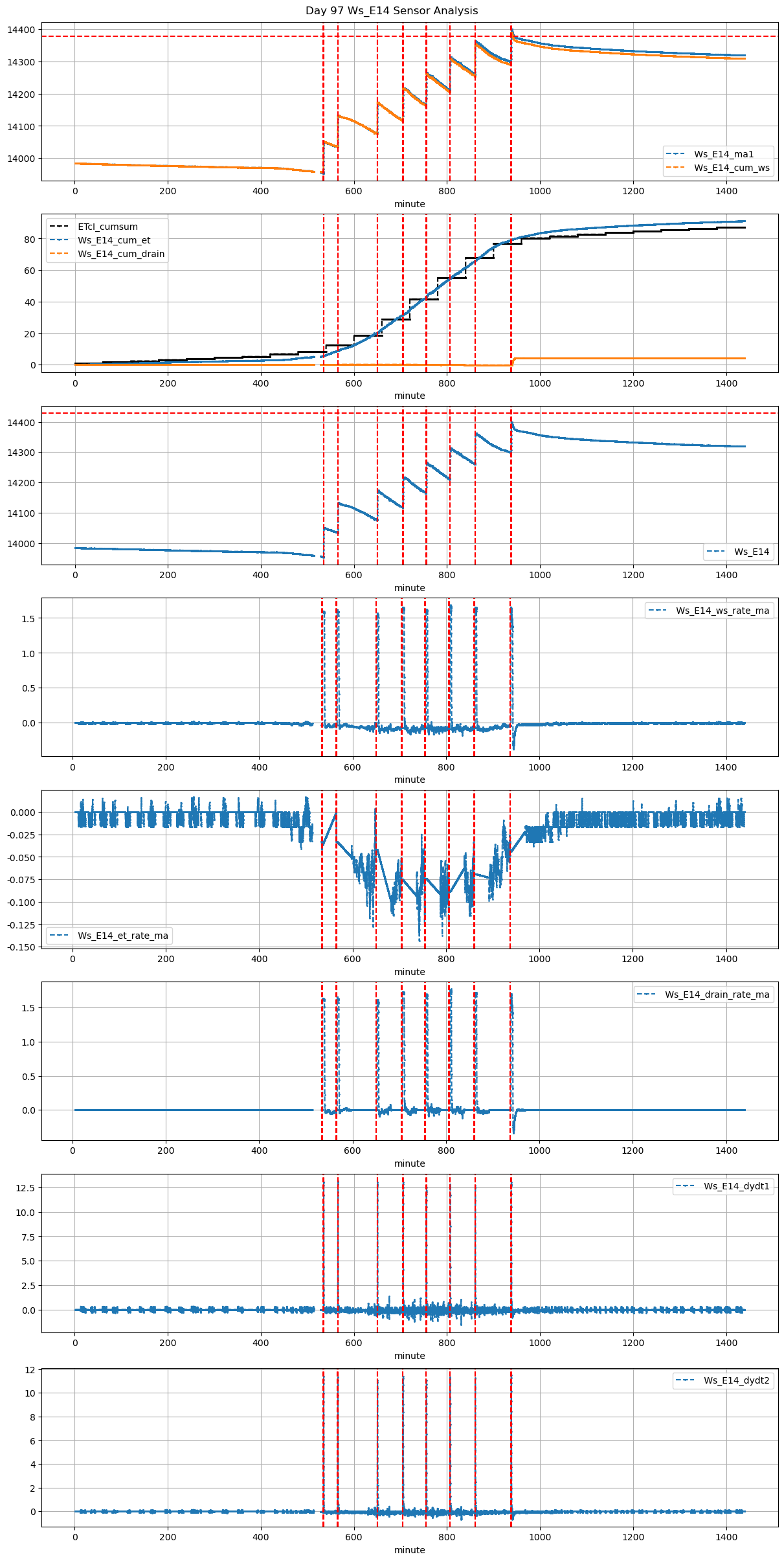

Figure figure_6.png

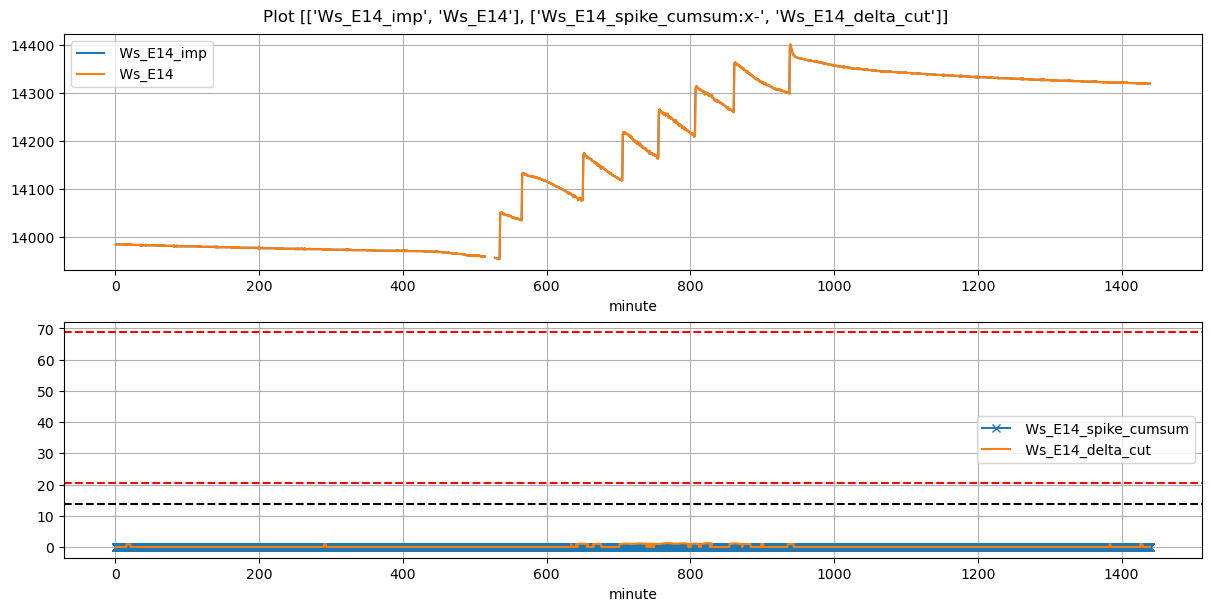

Figure figure_5.png

Figure figure_4.png
