Ws Sensor Analysis Report - Day 139

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 10.0
Avg Fertigation Amount: 299.70 L
Avg Total Drain Amount: 96.51 L
Avg In-Fertigation Drain Amount: 31.00 L
Avg Post-Fertigation Drain Amount: 65.50 L
Avg Drainage Rate: 32.20%

Detail Section

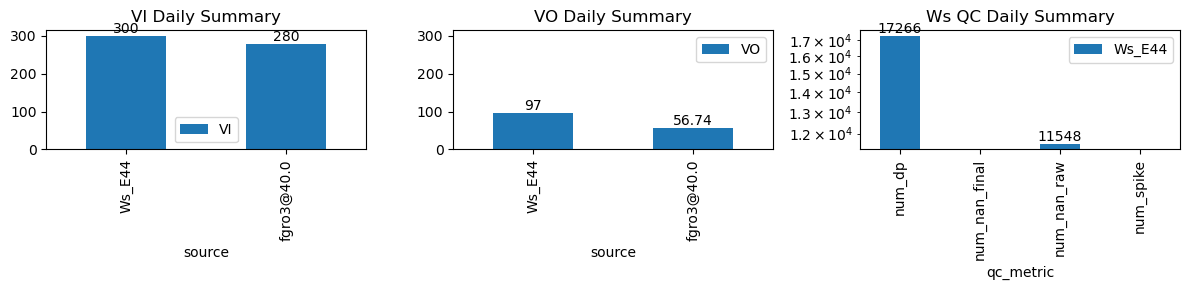

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 10
Number of Fertigation Events detected: 10
Total Fertigation Amount: 299.70 L
Total Drain Amount: 96.51 L
In-Fertigation Drain Amount: 31.00 L
Post-Fertigation Drain Amount: 65.50 L
Drainage Rate: 32.20%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,266	11,548	0	0	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-22 08:20:00+08:00	139	500	Ws_E44	0.673256	26.750000	500.00	500.333333	500.75	503.250000	4518.000000	4657.750	45	-0.069154	-0.093179	0.000000	0.305556	0.621111	27.950000	True	20.0	150.0	29.97	0.000000	0.000000	0.000000	230	1110	-0.072142	NaN	NaN	NaN
2026-02-22 08:50:00+08:00	139	530	Ws_E44	0.673256	27.583333	530.00	530.333333	530.75	532.416667	4629.622222	4763.750	45	-0.070774	-0.133683	0.000000	0.375556	0.596123	26.825556	True	20.0	100.0	29.97	0.000000	0.000000	0.000000	1235	105	-0.109780	NaN	NaN	NaN
2026-02-22 09:20:00+08:00	139	560	Ws_E44	0.673256	29.000000	560.00	560.333333	560.75	562.000000	4719.800000	4847.625	45	-0.070774	-0.189198	0.000000	0.409778	0.568111	25.565000	True	20.0	75.0	29.97	4.400000	9.176933	13.576933	1354	80	-0.204406	4801.740336	NaN	NaN
2026-02-22 09:51:33+08:00	139	591	Ws_E44	0.673256	26.166667	591.55	591.916667	592.30	593.833333	4781.400000	4904.375	45	-0.113928	-0.218632	0.000000	0.378889	0.546556	24.595000	True	22.0	92.0	29.97	4.278160	8.556321	12.834481	1155	97	-0.198493	4861.593396	NaN	NaN
2026-02-22 10:20:00+08:00	139	620	Ws_E44	0.673256	28.916667	620.00	620.416667	620.75	622.083333	4834.000000	4955.700	45	-0.113928	-0.296185	0.000000	0.390556	0.540889	24.340000	True	25.0	80.0	29.97	5.600000	12.864681	18.464681	1345	84	-0.279439	4891.376595	NaN	NaN
2026-02-22 10:51:21+08:00	139	651	Ws_E44	0.673256	27.416667	651.35	651.750000	652.10	653.583333	4856.000000	4971.750	45	-0.156190	-0.287623	0.000000	0.367222	0.514444	23.150000	True	24.0	89.0	29.97	5.712408	11.424816	17.137224	1265	93	-0.240101	4914.625920	NaN	NaN
2026-02-22 11:21:33+08:00	139	681	Ws_E44	0.673256	30.000000	681.55	681.916667	682.30	683.500000	4874.400000	4992.500	45	-0.156190	-0.303817	0.000000	0.385611	0.524889	23.620000	True	22.0	72.0	29.97	6.300000	14.053327	20.353327	1474	77	-0.253780	4922.233366	NaN	NaN
2026-02-22 11:55:00+08:00	139	715	Ws_E44	0.673256	30.000000	715.00	715.333333	715.75	717.083333	4880.150000	5004.250	45	-0.174879	-0.336461	-0.269074	0.387222	0.551556	24.820000	True	20.0	80.0	29.97	3.882040	7.764080	11.646119	945	84	-0.252299	4965.429602	NaN	NaN
2026-02-22 13:35:00+08:00	139	815	Ws_E44	0.673256	30.000000	815.00	815.333333	815.75	819.333333	4687.075000	4830.375	45	-0.234254	-0.220794	-0.222654	0.239222	0.636889	28.660000	True	20.0	215.0	29.97	0.000000	0.000000	0.000000	20	375	-0.032348	NaN	NaN	NaN
2026-02-22 14:31:21+08:00	139	871	Ws_E44	0.673256	30.000000	871.35	871.666667	872.10	874.583333	4704.000000	4845.375	45	-0.172160	-0.201914	-0.149393	0.327222	0.628333	28.275000	True	19.0	149.0	29.97	0.831634	1.663268	2.494902	270	153	-0.060101	4837.058662	NaN	NaN

Figures - Ws_E44

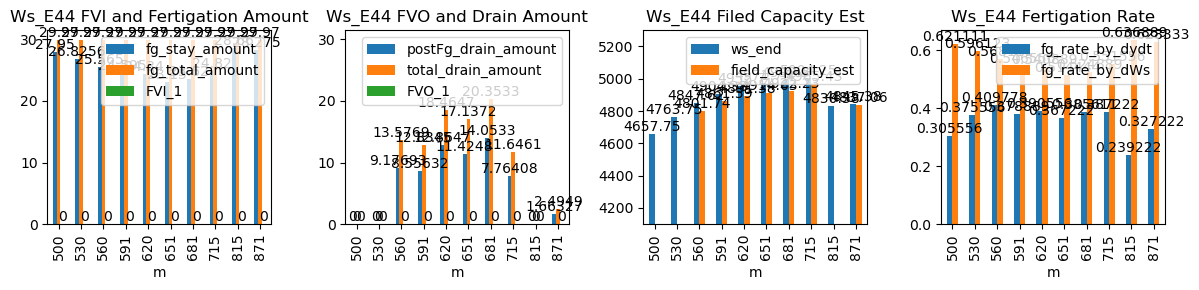

Figure figure_8.png

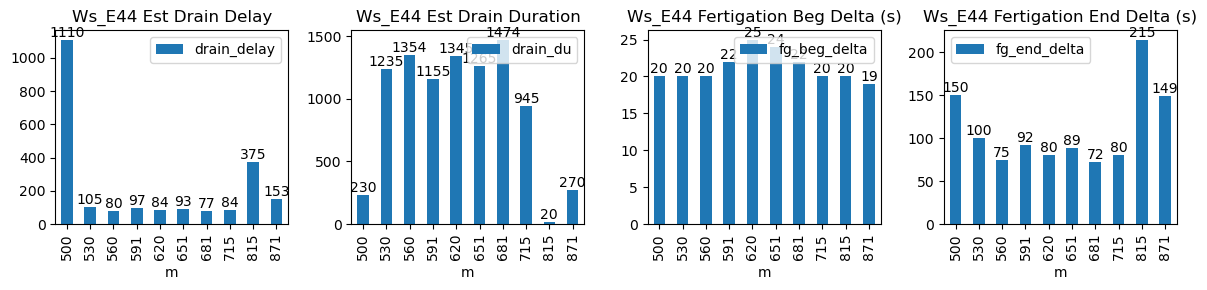

Figure figure_7.png

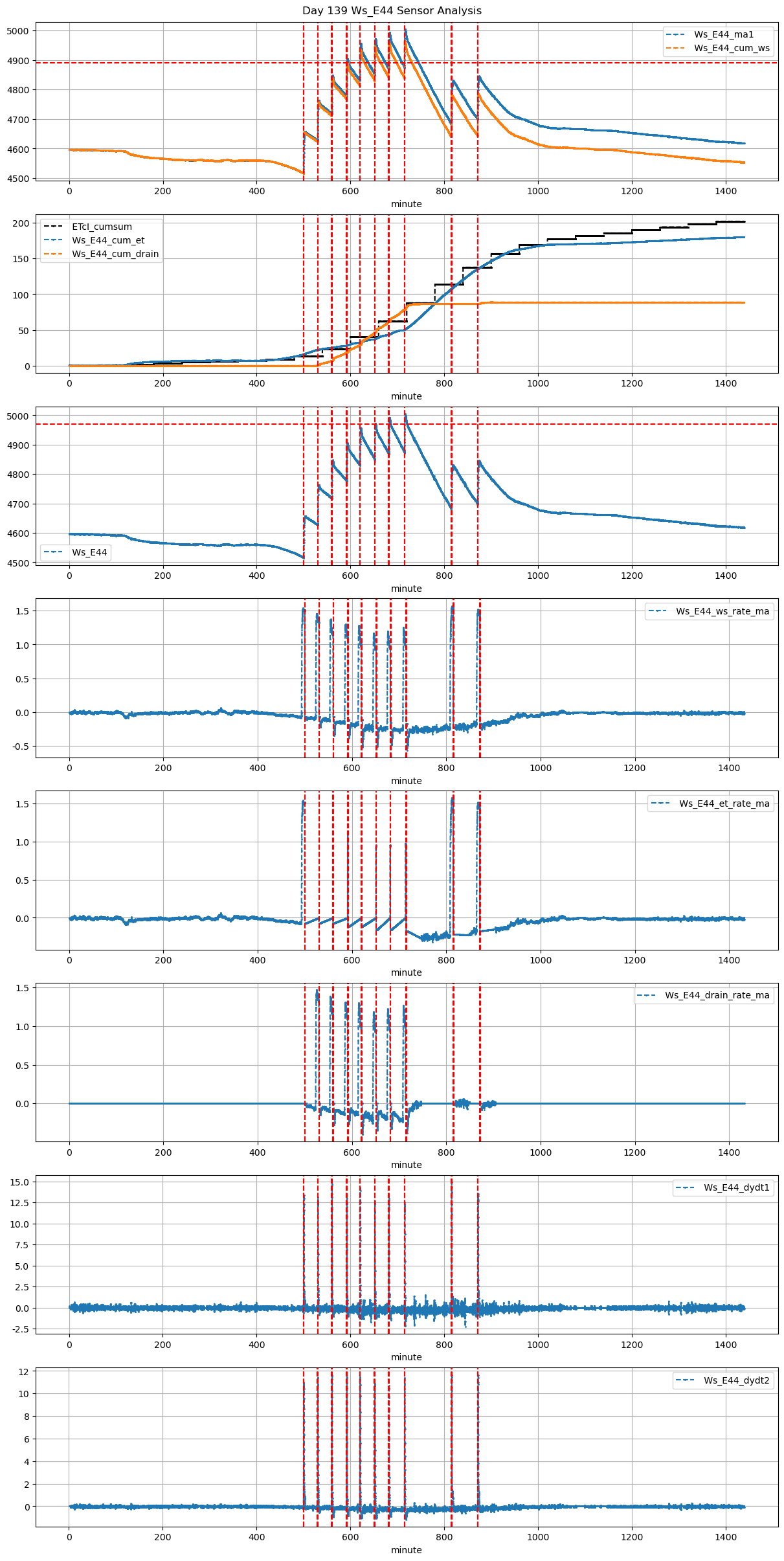

Figure figure_6.png

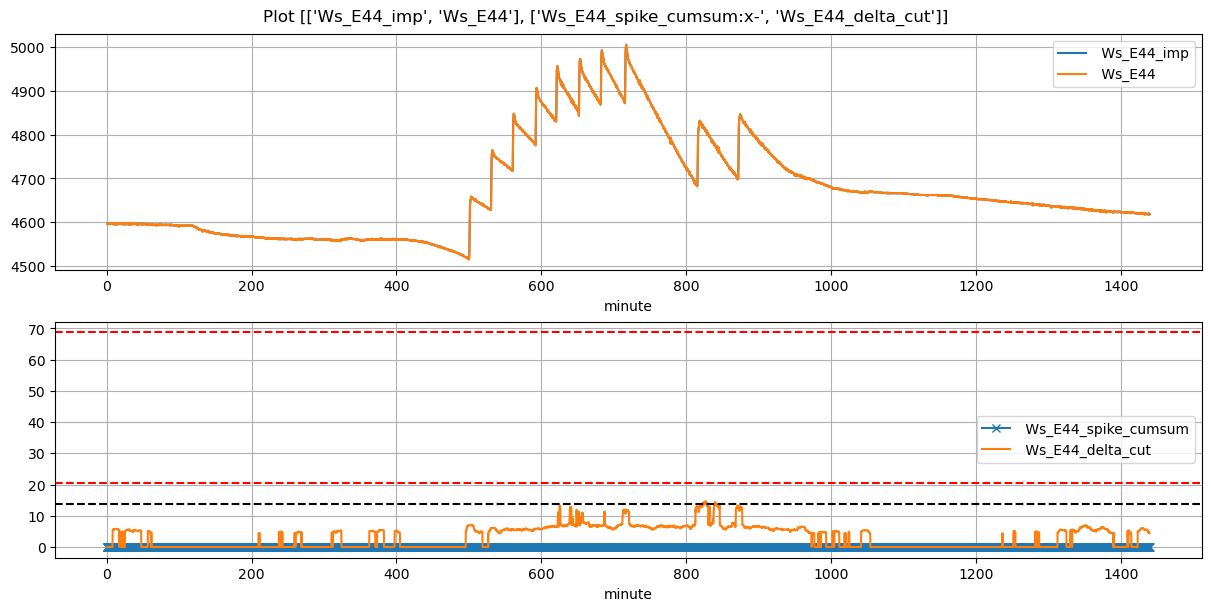

Figure figure_5.png

Figure figure_4.png
