Ws Sensor Analysis Report - Day 178

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 247.37 L
Avg Total Drain Amount: 37.08 L
Avg In-Fertigation Drain Amount: 7.30 L
Avg Post-Fertigation Drain Amount: 29.78 L
Avg Drainage Rate: 14.99%

Detail Section

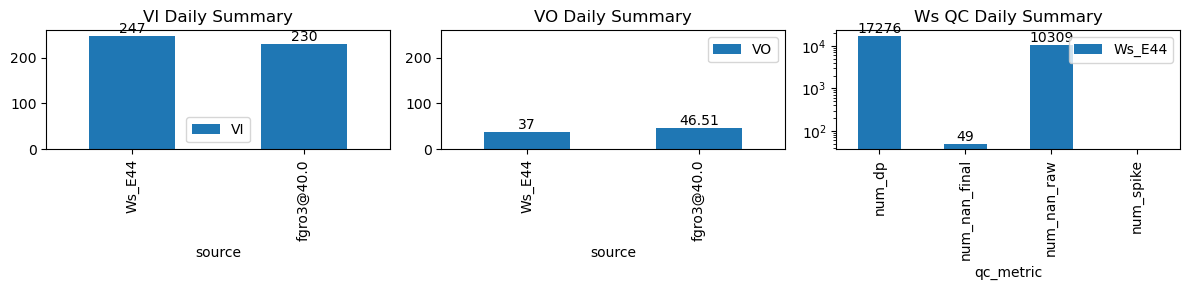

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 247.37 L
Total Drain Amount: 37.08 L
In-Fertigation Drain Amount: 7.30 L
Post-Fertigation Drain Amount: 29.78 L
Drainage Rate: 14.99%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,276	10,309	49	0	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-02 07:26:29+08:00	178	446	Ws_E44	0.787308	30	446.48	446.750000	447.48	449.250000	4894.56	5074.300000	60	-0.040343	-0.185967	-0.080820	0.405093	0.599133	35.948000	True	16.2	106.2	35.948	0.0	5.862483	5.862483	840	111	-0.205013	5044.987587	NaN	NaN
2026-04-02 08:10:00+08:00	178	490	Ws_E44	0.787308	30	490.00	490.250000	491.00	491.500000	5016.34	5160.883333	60	-0.077275	-0.219861	-0.154544	0.431736	0.481811	28.908667	True	15.0	30.0	35.040	6.1	16.479836	22.579836	195	34	-0.475322	5078.484155	NaN	NaN
2026-04-02 11:00:00+08:00	178	660	Ws_E44	0.787308	30	660.00	660.333333	661.00	663.083333	4758.50	4930.900000	60	-0.182225	-0.224619	-0.205356	0.376000	0.574667	34.480000	True	20.0	125.0	35.040	0.0	0.000000	0.000000	259	170	-0.082327	NaN	NaN	NaN
2026-04-02 12:15:00+08:00	178	735	Ws_E44	0.787308	30	735.00	735.333333	736.00	738.750000	4769.60	4932.400000	60	-0.147227	-0.257767	-0.244522	0.333083	0.542667	32.560000	True	20.0	165.0	35.040	0.0	0.000000	0.000000	420	645	-0.176347	NaN	NaN	NaN
2026-04-02 13:05:00+08:00	178	785	Ws_E44	0.787308	30	785.00	785.333333	786.00	787.416667	4795.00	4967.500000	60	-0.231497	-0.287603	-0.147346	0.429722	0.575000	34.500000	True	20.0	85.0	35.040	0.0	0.000000	0.000000	350	90	-0.114555	NaN	NaN	NaN
2026-04-02 14:00:00+08:00	178	840	Ws_E44	0.787308	30	840.00	840.333333	841.00	842.083333	4838.60	5007.700000	60	-0.140782	-0.190010	-0.105082	0.437250	0.563667	33.820000	True	20.0	65.0	35.040	1.2	4.350392	5.550392	250	69	-0.202684	4985.948039	NaN	NaN
2026-04-02 15:40:00+08:00	178	940	Ws_E44	0.787308	30	940.00	940.250000	941.00	943.000000	4853.00	5034.100000	60	-0.074133	-0.134907	-0.024442	0.394236	0.603667	36.220000	True	15.0	120.0	36.220	0.0	3.082722	3.082722	429	125	-0.125066	5018.686391	NaN	NaN

Figures - Ws_E44

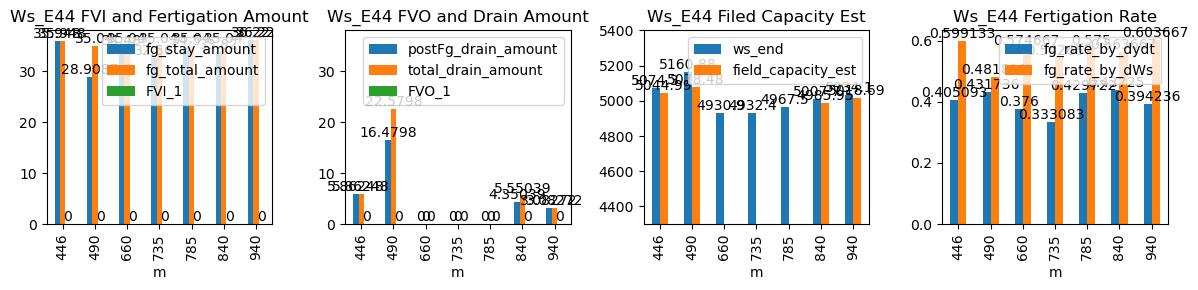

Figure figure_8.png

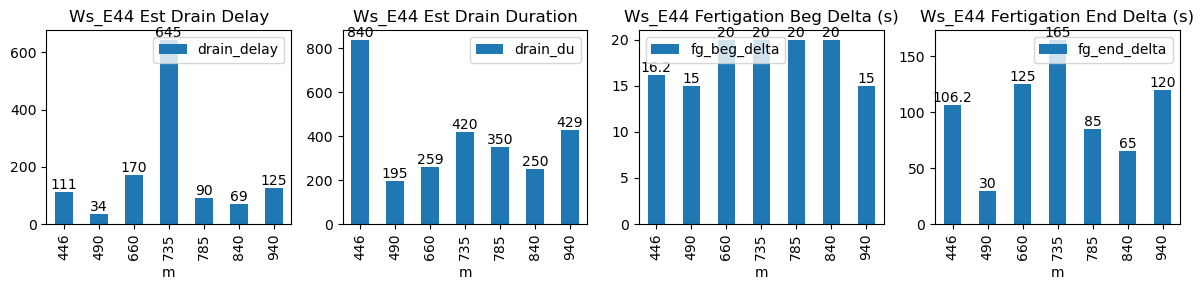

Figure figure_7.png

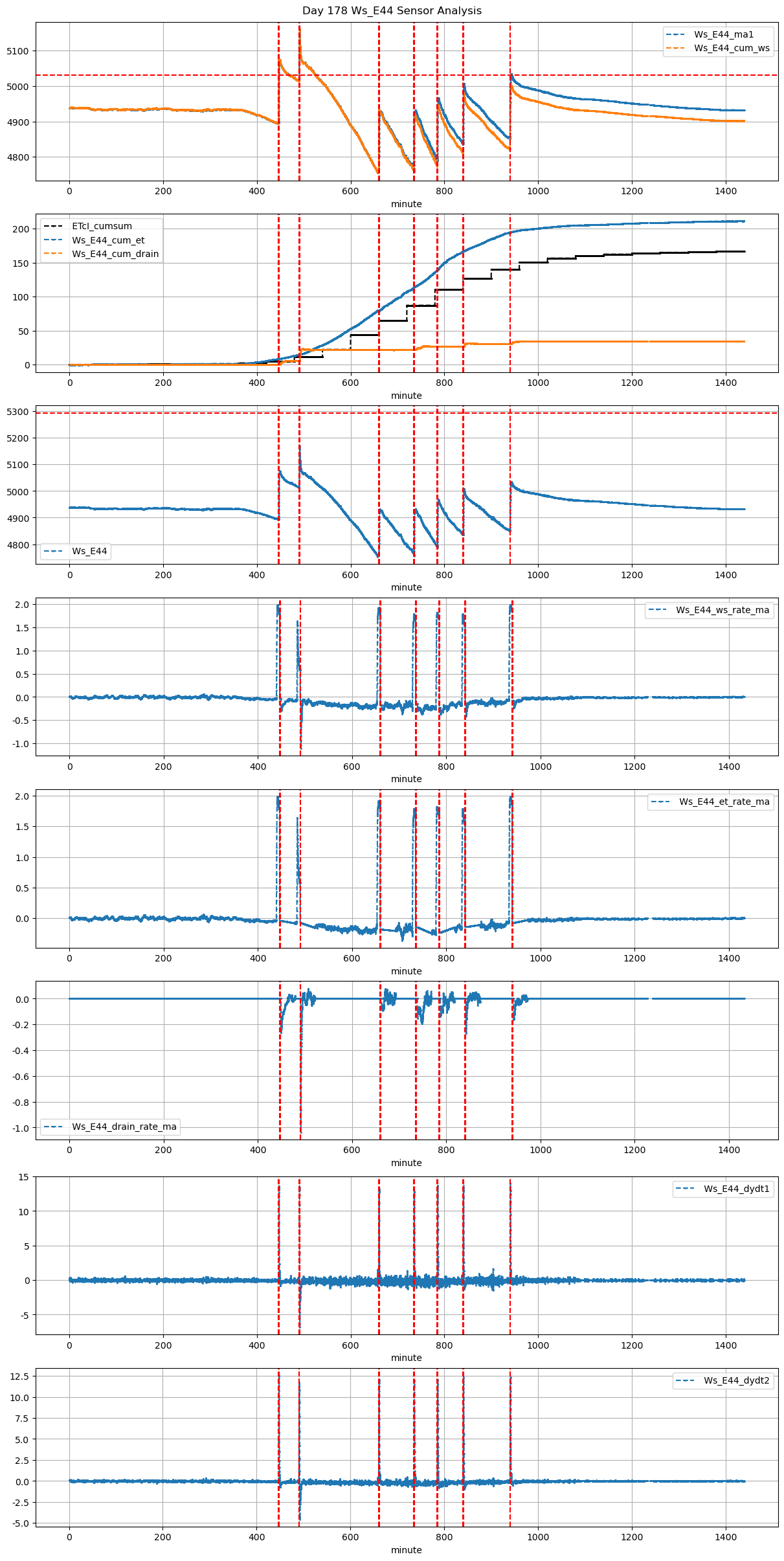

Figure figure_6.png

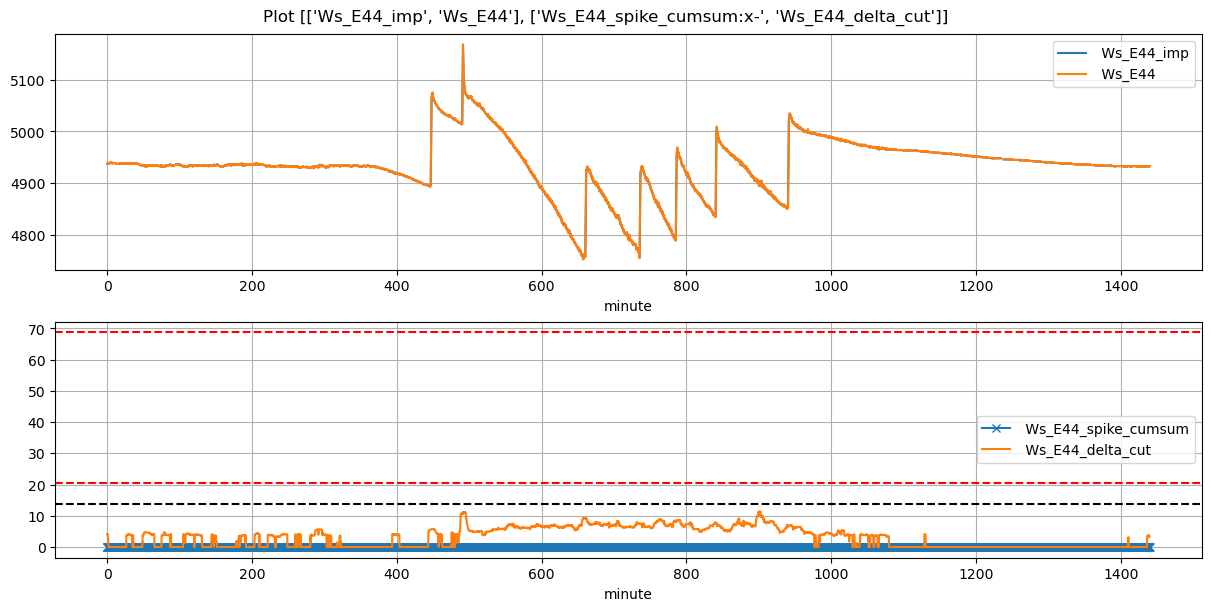

Figure figure_5.png

Figure figure_4.png
