Ws Sensor Analysis Report - Day 177

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 282.67 L
Avg Total Drain Amount: 92.36 L
Avg In-Fertigation Drain Amount: 8.30 L
Avg Post-Fertigation Drain Amount: 84.06 L
Avg Drainage Rate: 32.68%

Detail Section

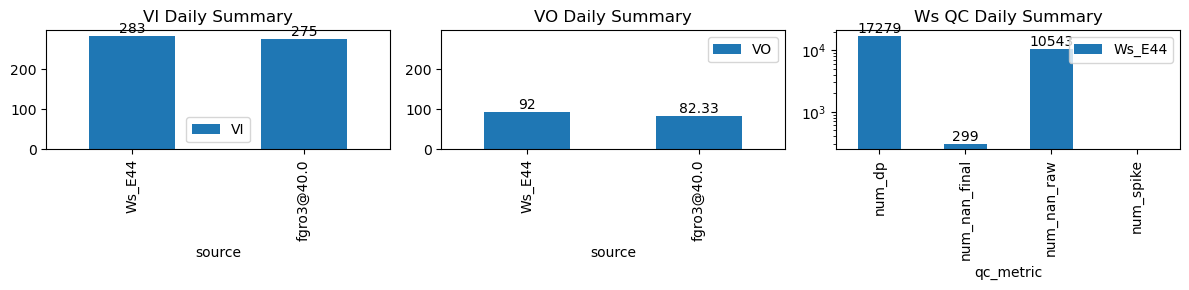

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 282.67 L
Total Drain Amount: 92.36 L
In-Fertigation Drain Amount: 8.30 L
Post-Fertigation Drain Amount: 84.06 L
Drainage Rate: 32.68%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,279	10,543	299	0	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-01 07:30:00+08:00	177	450	Ws_E44	2.668479	30	450.0	450.250000	451.0	453.666667	4923.000000	5106.400000	60	-0.015200	-0.049187	-0.039043	0.372167	0.611333	36.680000	True	15.0	160.0	36.680000	0.0	0.000000	0.000000	720	300	-0.038126	NaN	NaN	NaN
2026-04-01 08:15:00+08:00	177	495	Ws_E44	2.668479	30	495.0	495.250000	496.0	496.583333	5085.218182	5246.666667	60	-0.047369	-0.230525	-0.025880	0.457111	0.538162	32.289697	True	15.0	35.0	35.040000	2.8	15.379793	18.179793	1489	40	-0.260596	5169.767699	NaN	NaN
2026-04-01 09:00:00+08:00	177	540	Ws_E44	2.668479	30	540.0	540.250000	541.0	541.500000	5150.400000	5300.933333	60	-0.029911	-0.246722	-0.090969	0.440694	0.501778	30.106667	True	15.0	30.0	35.040000	4.9	18.949589	23.849589	735	35	-0.451590	5206.185390	NaN	NaN
2026-04-01 12:10:00+08:00	177	730	Ws_E44	2.668479	30	730.0	730.250000	731.0	732.250000	4903.200000	5081.933333	60	-0.205930	-0.259928	-0.135041	0.422625	0.595778	35.746667	True	15.0	75.0	35.746667	0.0	0.000000	0.000000	384	290	-0.172863	NaN	NaN	NaN
2026-04-01 13:20:00+08:00	177	800	Ws_E44	2.668479	30	800.0	800.333333	801.0	802.750000	4928.000000	5102.250000	60	-0.118321	-0.195442	-0.126317	0.408736	0.580833	34.850000	True	20.0	105.0	35.040000	0.0	0.000000	0.000000	444	1185	-0.226837	NaN	NaN	NaN
2026-04-01 14:20:00+08:00	177	860	Ws_E44	2.668479	30	860.0	860.333333	861.0	862.333333	4976.333333	5148.500000	60	-0.162849	-0.290715	-0.785664	0.441931	0.573889	34.433333	True	20.0	80.0	35.040000	0.6	49.734982	50.334982	240	1290	-2.819218	4899.825088	NaN	NaN
2026-04-01 15:10:00+08:00	177	910	Ws_E44	2.668479	30	910.0	910.250000	911.0	911.833333	4785.150000	4956.283333	60	-0.201144	-0.174444	-0.148755	0.447556	0.570444	34.226667	True	15.0	50.0	35.040000	0.0	0.000000	0.000000	175	54	-0.214069	NaN	NaN	NaN
2026-04-01 15:55:00+08:00	177	955	Ws_E44	2.668479	30	955.0	955.250000	956.0	956.666667	4864.811111	5037.133333	60	-0.093955	-0.133597	-0.047865	0.462403	0.574407	34.464444	True	15.0	40.0	35.040000	0.0	0.000000	0.000000	200	45	-0.319305	NaN	NaN	NaN

Figures - Ws_E44

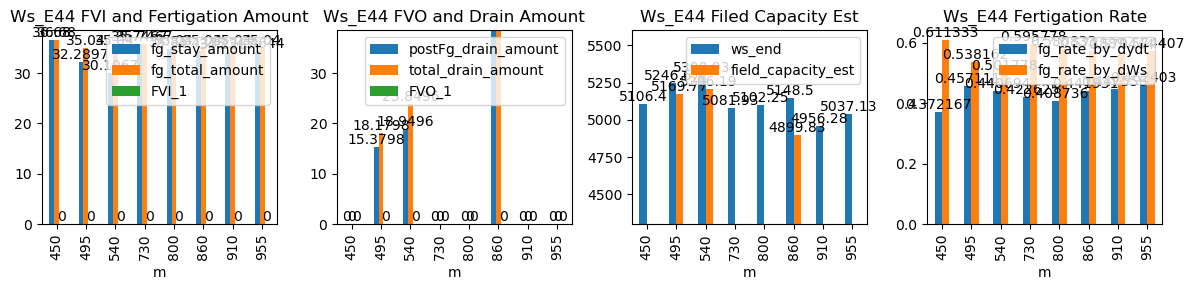

Figure figure_8.png

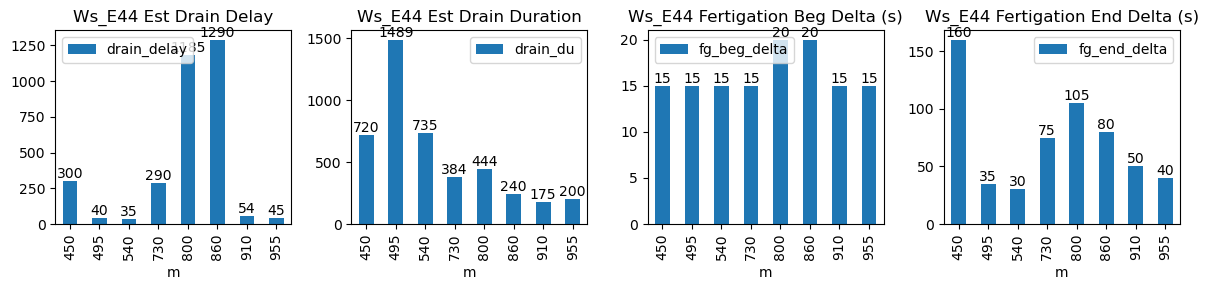

Figure figure_7.png

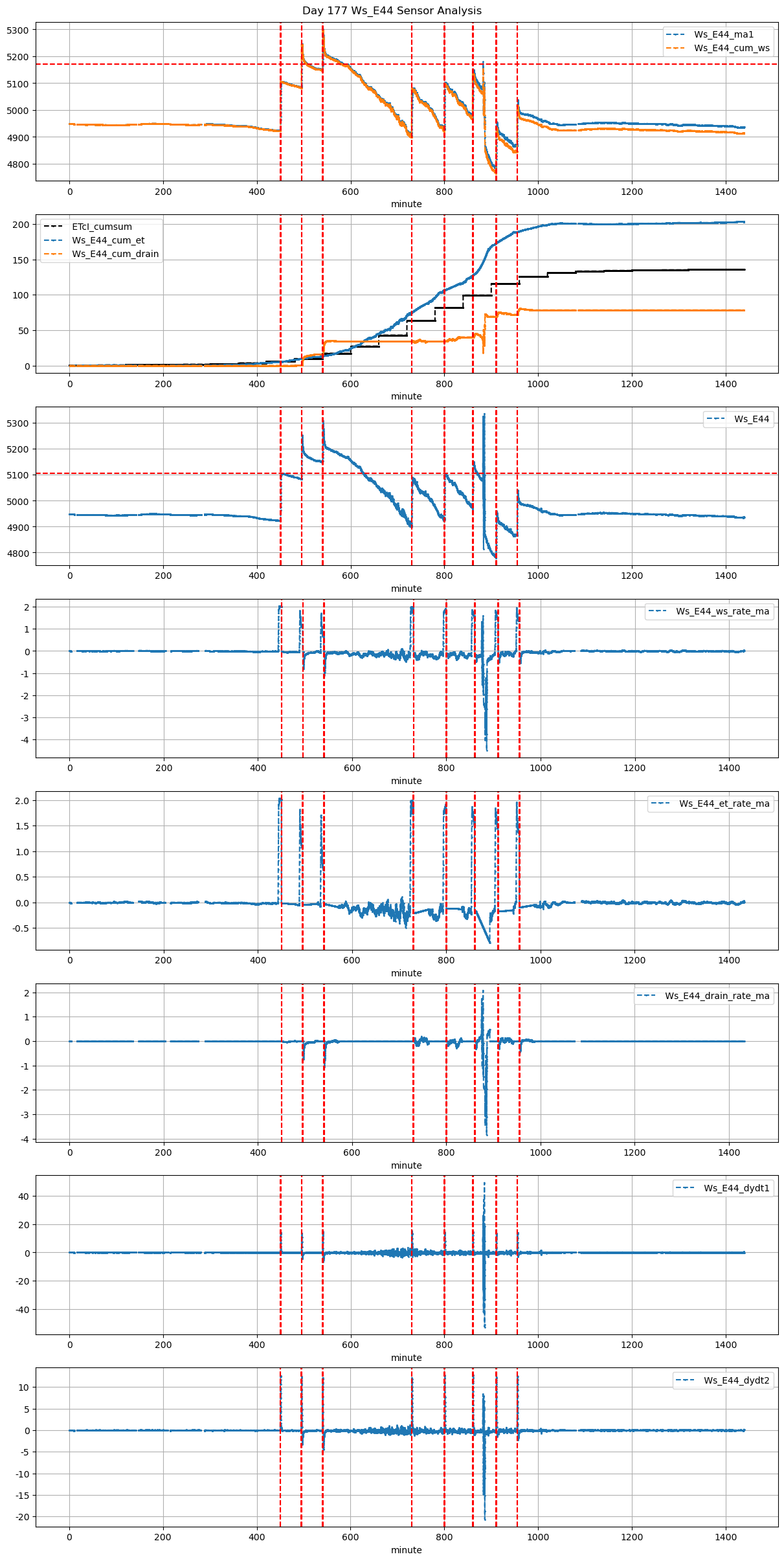

Figure figure_6.png

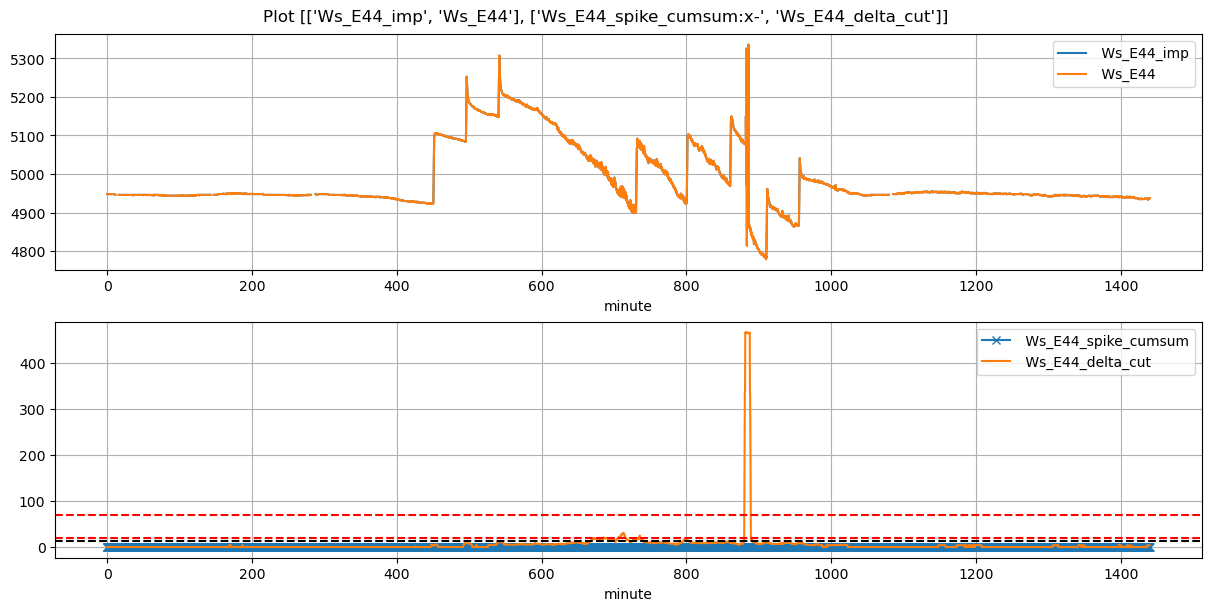

Figure figure_5.png

Figure figure_4.png
