Ws Sensor Analysis Report - Day 186

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 382.37 L
Avg Total Drain Amount: 112.46 L
Avg In-Fertigation Drain Amount: 37.49 L
Avg Post-Fertigation Drain Amount: 74.97 L
Avg Drainage Rate: 29.41%

Detail Section

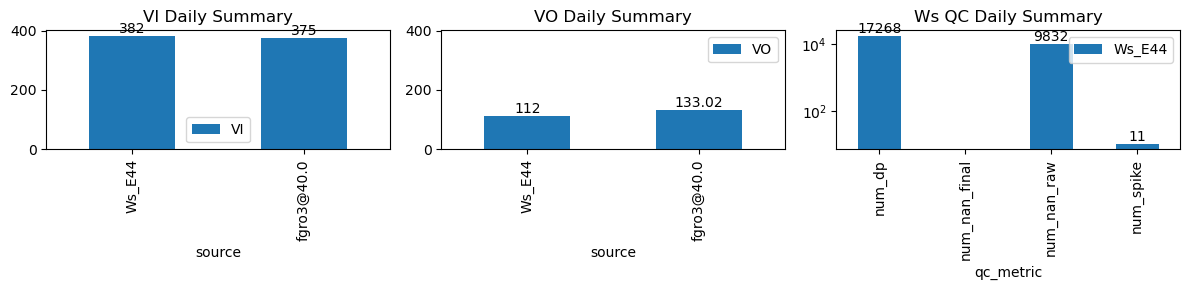

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 382.37 L
Total Drain Amount: 112.46 L
In-Fertigation Drain Amount: 37.49 L
Post-Fertigation Drain Amount: 74.97 L
Drainage Rate: 29.41%

Ws Cleaning Summary Table - Ws_E44

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E44	17,268	9,832	0	11	0.00

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-04-10 07:46:49+08:00	186	466	Ws_E44	1.234226	30	466.82	467.000000	468.15	469.833333	4938.316667	5174.000000	80	-0.068734	-0.026039	-0.053101	0.427431	0.589208	47.136667	True	10.8	101.0	47.680000	0.000000	0.000000	0.000000	214	1186	-0.060881	NaN	NaN	NaN
2026-04-10 08:31:49+08:00	186	511	Ws_E44	1.234226	30	511.82	512.000000	513.15	513.666667	5151.655556	5341.033333	80	-0.070541	-0.285523	-0.152587	0.436042	0.473444	37.875556	True	10.8	31.0	47.680000	8.903203	17.806406	26.709609	465	36	-0.348671	5252.001305	NaN	NaN
2026-04-10 09:16:49+08:00	186	556	Ws_E44	1.234226	30	556.82	557.000000	558.15	558.500000	5181.266667	5345.700000	80	-0.203593	-0.431986	-0.224630	0.407687	0.411083	32.886667	True	10.8	21.0	47.680000	8.089890	16.179780	24.269669	474	26	-0.436072	5264.801102	NaN	NaN
2026-04-10 10:01:49+08:00	186	601	Ws_E44	1.234226	30	601.82	602.083333	603.15	603.666667	5162.800000	5335.366667	80	-0.221811	-0.423920	-0.280720	0.424323	0.431417	34.513333	True	15.8	31.0	47.680000	7.939633	15.879266	23.818899	420	36	-0.352036	5255.970337	NaN	NaN
2026-04-10 10:46:49+08:00	186	646	Ws_E44	1.234226	30	646.82	647.000000	648.15	648.750000	5117.900000	5311.366667	80	-0.316368	-0.464311	-0.221276	0.430458	0.483667	38.693333	True	10.8	36.0	47.680000	6.269396	12.538791	18.808187	369	41	-0.326208	5248.672710	NaN	NaN
2026-04-10 11:31:49+08:00	186	691	Ws_E44	1.234226	30	691.82	692.000000	693.15	693.833333	5109.000000	5312.500000	80	-0.225278	-0.405062	-0.286204	0.443167	0.508750	40.700000	True	10.8	41.0	47.680000	6.284777	12.569553	18.854330	420	45	-0.290007	5249.652235	NaN	NaN
2026-04-10 13:05:00+08:00	186	785	Ws_E44	1.234226	30	785.00	785.166667	786.33	789.166667	4925.000000	5154.933333	80	-0.337464	-0.294660	-0.351790	0.366562	0.574833	45.986667	True	10.0	170.2	47.680000	0.000000	0.000000	0.000000	70	260	-0.089512	NaN	NaN	NaN
2026-04-10 14:35:00+08:00	186	875	Ws_E44	1.234226	30	875.00	875.083333	876.33	879.833333	4931.766667	5174.800000	80	-0.093519	-0.144789	-0.095390	0.359781	0.607583	48.606667	True	5.0	210.2	48.606667	0.000000	0.000000	0.000000	950	215	-0.065709	NaN	NaN	NaN

Figures - Ws_E44

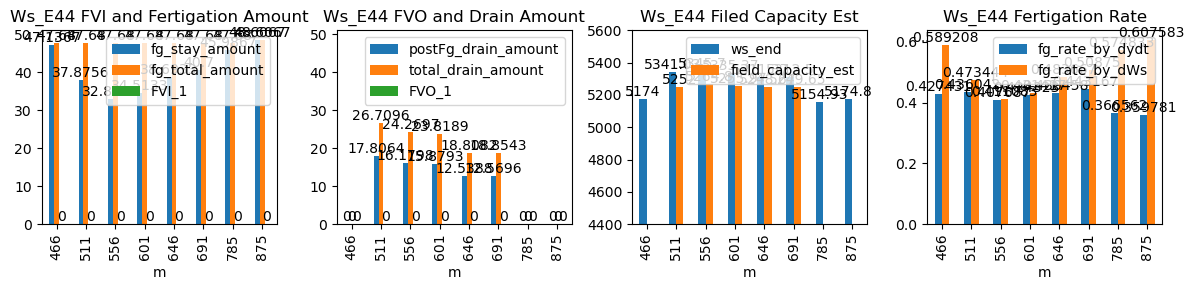

Figure figure_8.png

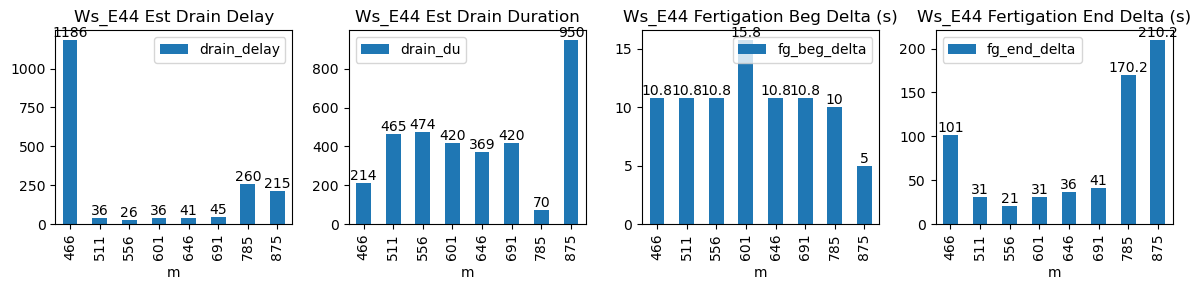

Figure figure_7.png

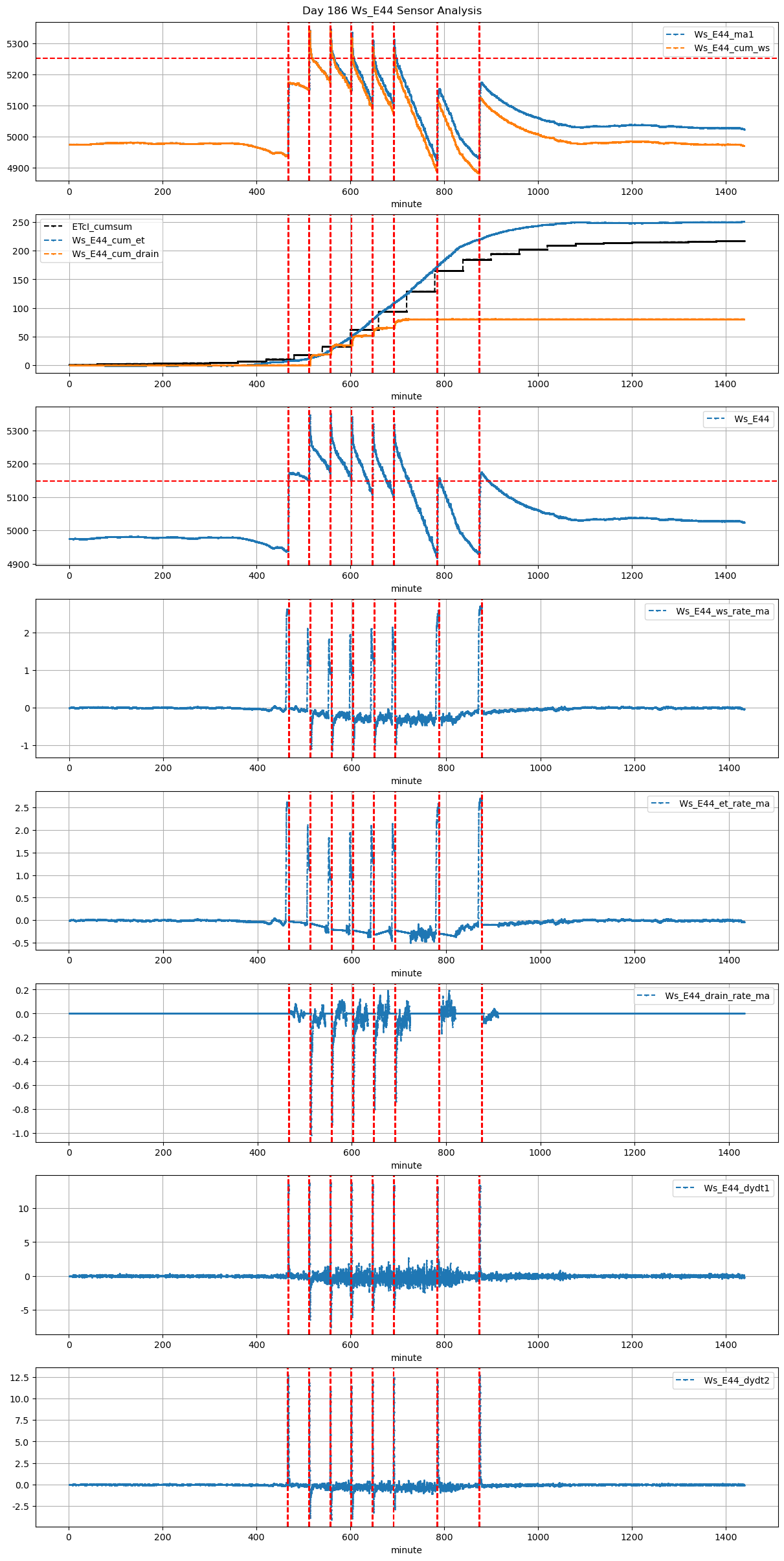

Figure figure_6.png

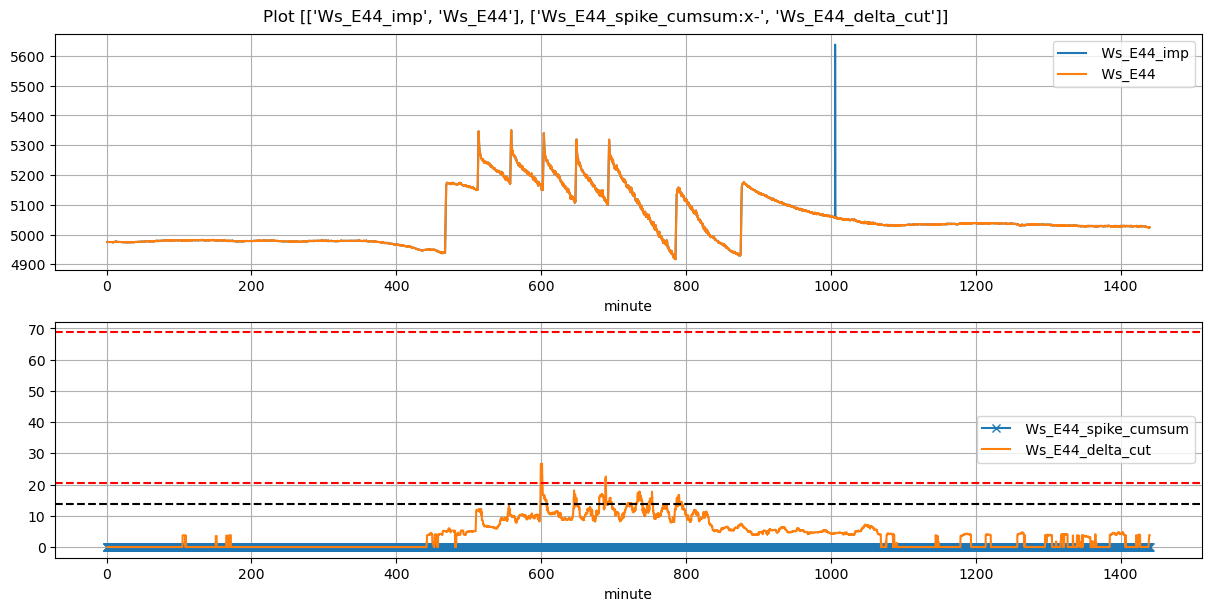

Figure figure_5.png

Figure figure_4.png
