Ws Sensor Analysis Report - Day 81

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 153.40 L
Avg Total Drain Amount: 26.64 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 26.64 L
Avg Drainage Rate: 17.37%

Detail Section

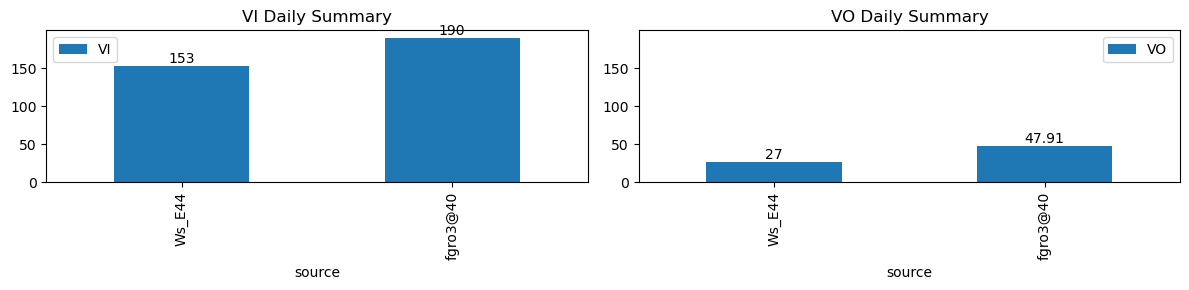

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 153.40 L
Total Drain Amount: 26.64 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 26.64 L
Drainage Rate: 17.37%

Ws Cleaning Summary Table - Ws_E44

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E44	17269	0	14021	0	2

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-26 09:12:33+08:00	81	552	Ws_E44	1.12829	25.666667	552.55	552.916667	553.10	554.333333	NaN	NaN	NaN	3793.0	3900.0	33	-0.061042	-0.091667	0.000000	0.400667	0.648485	21.4	22.0	74.0	21.4	0.0	-0.249653	NaN	-0.249653
2025-12-26 09:40:00+08:00	81	580	Ws_E44	1.12829	30.000000	580.00	580.416667	580.55	581.666667	NaN	NaN	NaN	3878.0	3970.0	33	-0.065960	-0.199167	-0.114972	0.411667	0.557576	18.4	25.0	67.0	18.4	0.0	4.360261	3948.198693	4.360261
2025-12-26 10:45:00+08:00	81	645	Ws_E44	1.12829	30.000000	645.00	645.500000	645.55	646.833333	NaN	NaN	NaN	3867.0	3960.0	33	-0.120561	-0.192083	-0.102183	0.400667	0.563636	18.6	30.0	77.0	18.6	0.0	0.635082	NaN	0.635082
2025-12-26 11:30:00+08:00	81	690	Ws_E44	1.12829	30.000000	690.00	690.416667	690.55	691.833333	NaN	NaN	NaN	3904.0	4000.0	33	-0.095551	-0.244861	-0.124859	0.384000	0.581818	19.2	25.0	77.0	19.2	0.0	4.513131	3977.434347	4.513131
2025-12-26 12:15:00+08:00	81	735	Ws_E44	1.12829	30.000000	735.00	735.416667	735.55	737.000000	NaN	NaN	NaN	3921.0	4014.0	33	-0.124576	-0.232778	-0.130417	0.343000	0.563636	18.6	25.0	87.0	18.6	0.0	4.287148	3992.564262	4.287148
2025-12-26 12:55:00+08:00	81	775	Ws_E44	1.12829	30.000000	775.00	775.416667	775.55	776.750000	NaN	NaN	NaN	3939.5	4032.0	33	-0.109403	-0.252639	-0.109410	0.398333	0.560606	18.5	25.0	72.0	18.5	0.0	4.713883	4008.430586	4.713883
2025-12-26 13:41:05+08:00	81	821	Ws_E44	1.12829	30.000000	821.08	821.500000	821.63	822.833333	NaN	NaN	NaN	3952.0	4048.0	33	-0.119398	-0.248333	-0.085417	0.400667	0.581818	19.2	25.2	72.2	19.2	0.0	3.987963	4028.060184	3.987963
2025-12-26 14:25:00+08:00	81	865	Ws_E44	1.12829	30.000000	865.00	865.416667	865.55	866.750000	NaN	NaN	NaN	3982.5	4080.0	33	-0.072646	-0.202639	-0.068025	0.394333	0.590909	19.5	25.0	72.0	19.5	0.0	4.394772	4058.026139	4.394772

Figures - Ws_E44

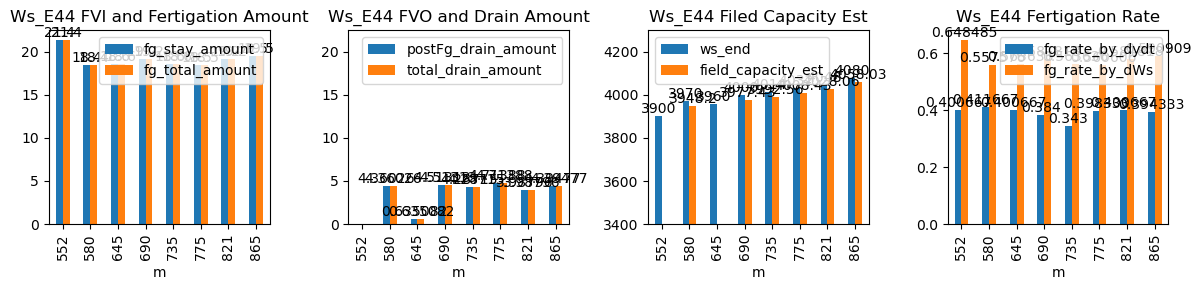

Figure figure_9.png

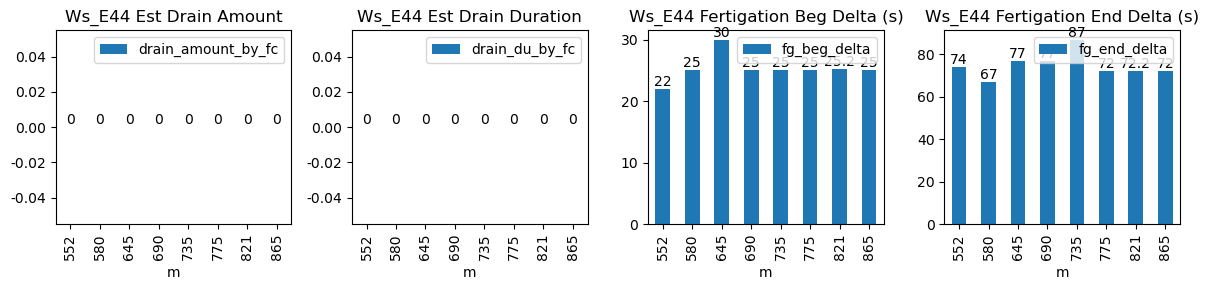

Figure figure_8.png

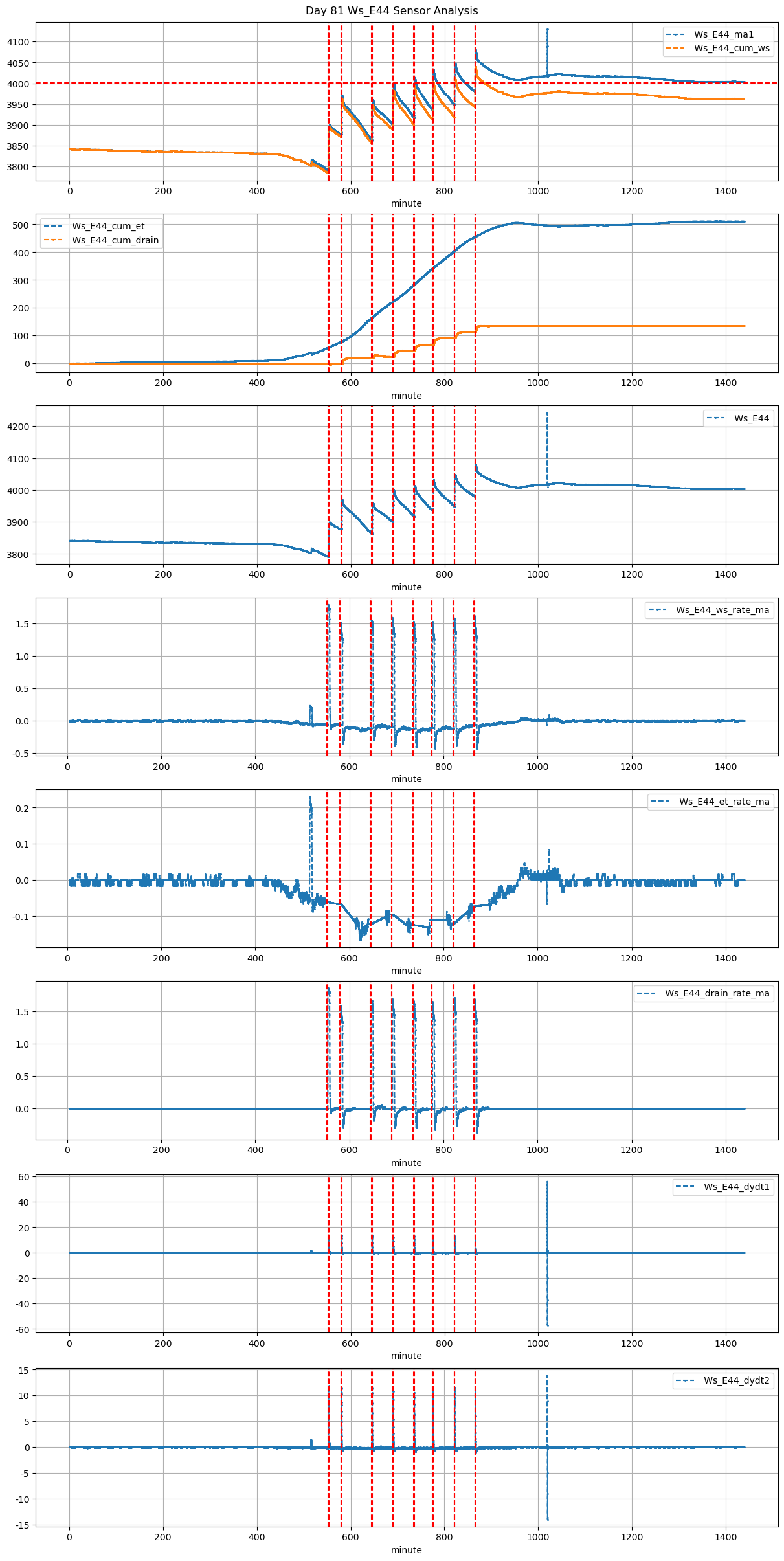

Figure figure_7.png

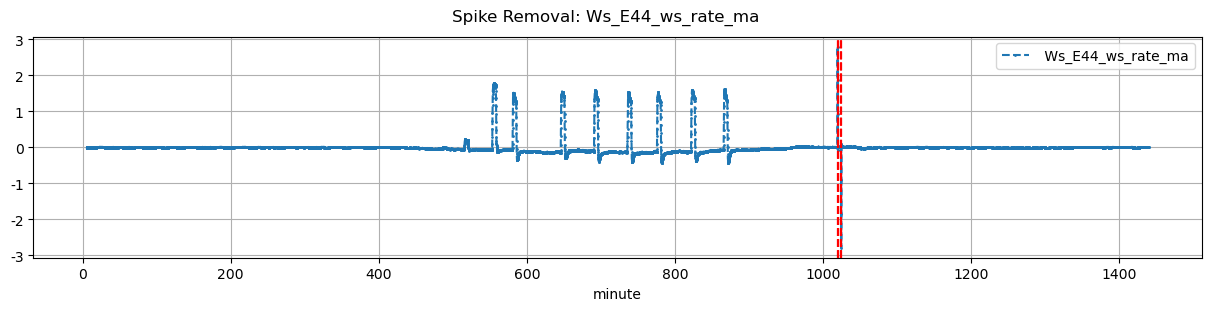

Figure figure_6.png

Figure figure_5.png

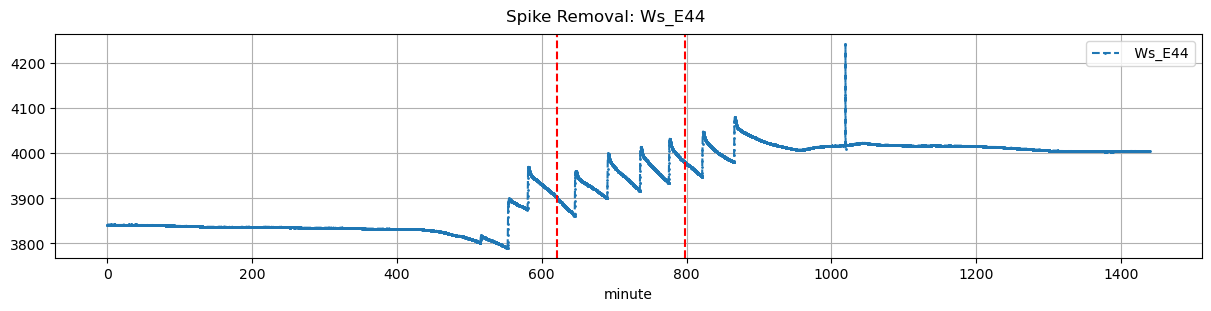

Figure figure_4.png
