Ws Sensor Analysis Report - Day 121

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 182.37 L
Avg Total Drain Amount: 0.41 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 0.41 L
Avg Drainage Rate: 0.23%

Detail Section

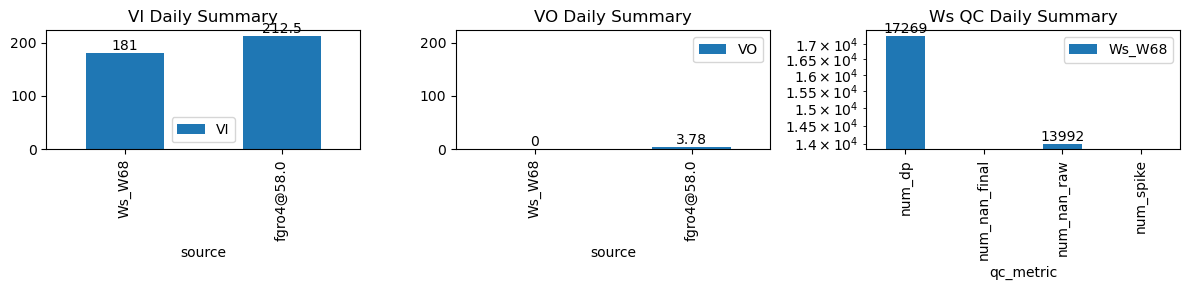

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 182.37 L
Total Drain Amount: 0.41 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.41 L
Drainage Rate: 0.23%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,269	13,992	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-02-04 08:00:00+08:00	121	480	Ws_W68	0.361786	30	480.0	480.250000	480.75	485.166667	4667.000000	4755.0	45	-0.013693	0.000000	-0.001528	0.127012	0.391111	17.600000	True	15.0	265.0	19.755000	0.0	0.000000	0.000000	19	915	-0.166104	NaN
2026-02-04 10:00:00+08:00	121	600	Ws_W68	0.361786	30	600.0	600.333333	600.75	601.916667	4692.514286	4787.0	45	-0.133763	-0.111579	-0.155063	0.312444	0.419937	18.897143	True	20.0	70.0	19.755000	0.0	0.412981	0.412981	65	705	-0.192538	NaN
2026-02-04 10:45:00+08:00	121	645	Ws_W68	0.361786	30	645.0	645.333333	645.75	646.833333	4712.720000	4809.0	45	-0.172357	-0.107500	-0.171528	0.322778	0.427911	19.256000	True	20.0	65.0	19.755000	0.0	0.000000	0.000000	10	159	-0.219042	NaN
2026-02-04 11:30:00+08:00	121	690	Ws_W68	0.361786	30	690.0	690.333333	690.75	692.166667	4730.866667	4834.0	45	-0.173964	-0.164647	-0.196736	0.309511	0.458370	20.626667	True	20.0	85.0	20.626667	0.0	0.000000	0.000000	20	369	-0.320631	NaN
2026-02-04 12:10:00+08:00	121	730	Ws_W68	0.361786	30	730.0	730.333333	730.75	732.000000	4751.650000	4856.0	45	-0.198729	-0.197014	-0.192593	0.320370	0.463778	20.870000	True	20.0	75.0	20.870000	0.0	0.000000	0.000000	30	294	-0.202522	NaN
2026-02-04 12:50:00+08:00	121	770	Ws_W68	0.361786	30	770.0	770.333333	770.75	771.583333	4771.000000	4872.0	45	-0.190305	-0.166296	-0.182431	0.336667	0.448889	20.200000	True	20.0	50.0	20.200000	0.0	0.000000	0.000000	30	65	-0.283813	NaN
2026-02-04 13:35:00+08:00	121	815	Ws_W68	0.361786	30	815.0	815.333333	815.75	816.666667	4774.746667	4877.0	45	-0.186827	-0.153806	-0.184352	0.340000	0.454459	20.450667	True	20.0	55.0	20.450667	0.0	0.000000	0.000000	35	69	-0.250332	NaN
2026-02-04 14:25:00+08:00	121	865	Ws_W68	0.361786	30	865.0	865.416667	865.75	866.750000	4778.280000	4880.0	45	-0.159310	-0.153958	-0.126667	0.335867	0.452089	20.344000	True	25.0	60.0	20.344000	0.0	0.000000	0.000000	9	120	-0.229222	NaN
2026-02-04 15:25:00+08:00	121	925	Ws_W68	0.361786	30	925.0	925.333333	925.75	927.000000	4791.950000	4895.0	45	-0.096788	-0.095704	-0.064138	0.312222	0.458000	20.610000	True	20.0	75.0	20.610000	0.0	0.000000	0.000000	45	99	-0.176079	NaN

Figures - Ws_W68

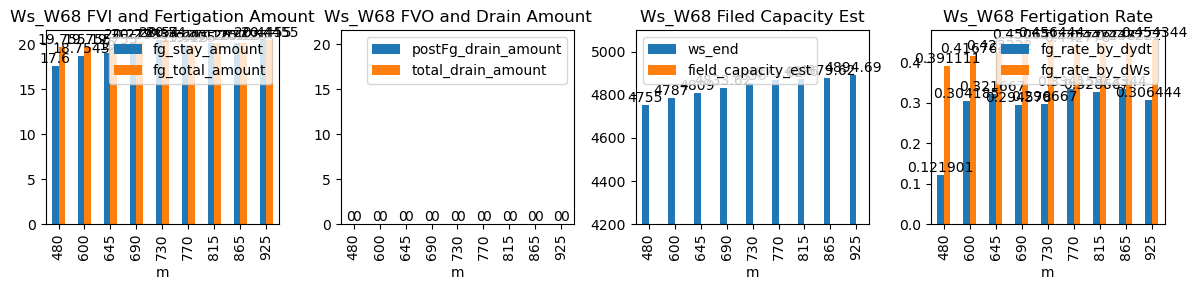

Figure figure_7.png

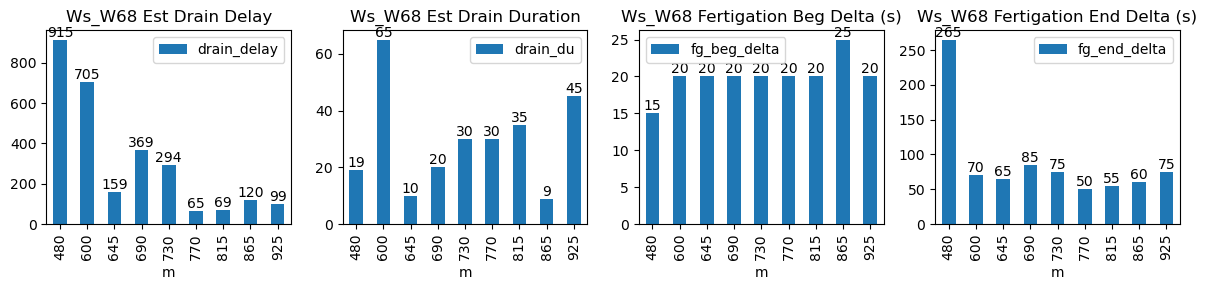

Figure figure_6.png

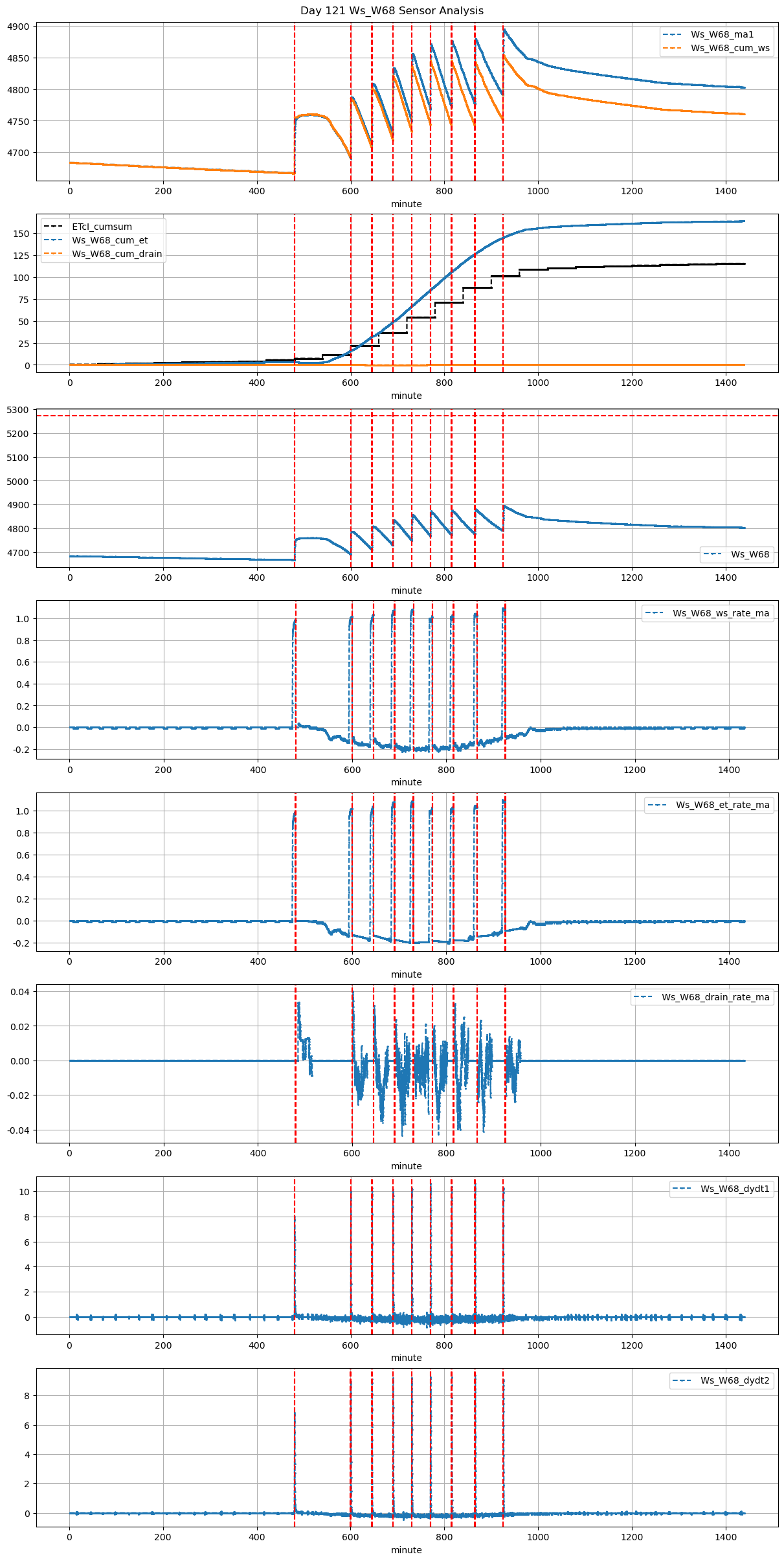

Figure figure_5.png

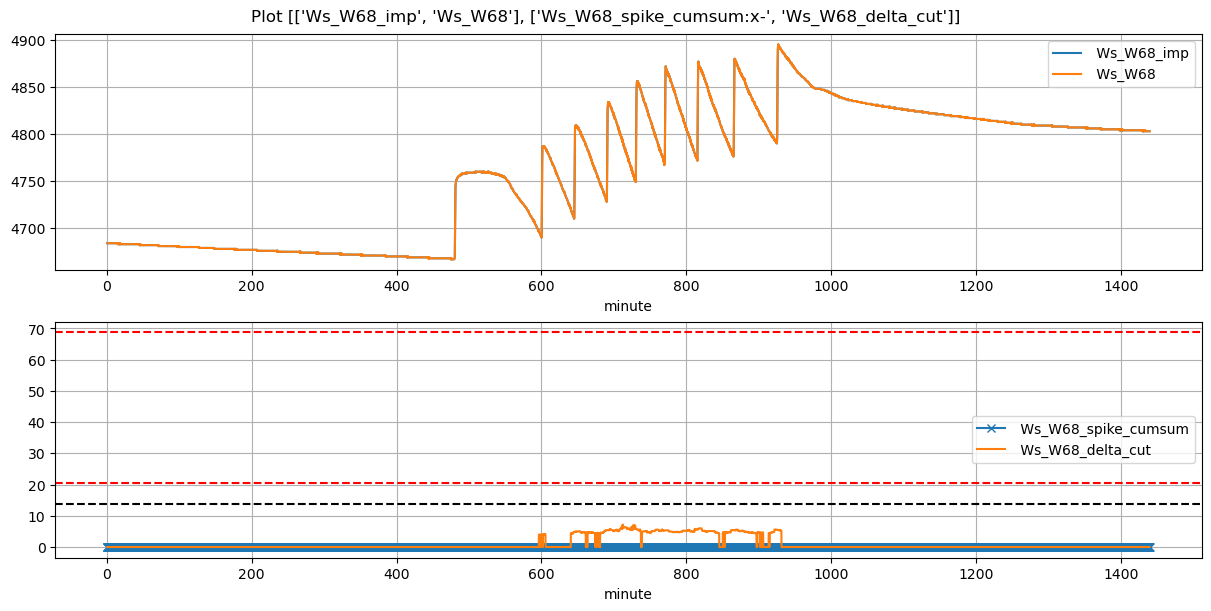

Figure figure_4.png
