Ws Sensor Analysis Report - Day 130

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 10.0
Avg Fertigation Amount: 226.58 L
Avg Total Drain Amount: 13.92 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 13.92 L
Avg Drainage Rate: 6.14%

Detail Section

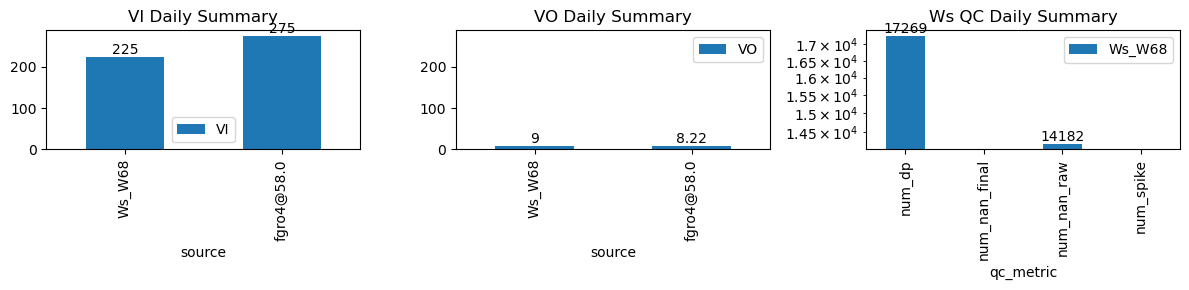

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 10
Number of Fertigation Events detected: 10
Total Fertigation Amount: 226.58 L
Total Drain Amount: 13.92 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 13.92 L
Drainage Rate: 6.14%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,269	14,182	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-02-13 08:20:00+08:00	130	500	Ws_W68	0.424504	30.000000	500.0	500.333333	500.82	505.083333	4071.000000	4167.0	49	-0.027966	0.000000	-0.040139	0.145556	0.391837	19.200000	True	20.0	255.8	20.580000	0.0	0.000000	0.000000	15	875	-0.223828	NaN
2026-02-13 10:15:00+08:00	130	615	Ws_W68	0.424504	30.000000	615.0	615.333333	615.82	617.916667	4053.000000	4158.0	49	-0.166631	-0.140482	-0.168507	0.283429	0.428571	21.000000	True	20.0	125.8	21.000000	0.0	0.000000	0.000000	5	1015	-0.204210	NaN
2026-02-13 11:30:00+08:00	130	690	Ws_W68	0.424504	30.000000	690.0	690.333333	690.82	691.750000	4054.800000	4158.0	49	-0.235169	-0.149147	-0.200130	0.342500	0.421224	20.640000	True	20.0	55.8	20.640000	0.0	0.000000	0.000000	15	225	-0.274483	NaN
2026-02-13 12:40:00+08:00	130	760	Ws_W68	0.424504	30.000000	760.0	760.333333	760.82	761.750000	4007.866667	4114.0	49	-0.166996	-0.076250	-0.187194	0.353111	0.433197	21.226667	True	20.0	55.8	21.226667	0.0	0.000000	0.000000	15	435	-0.237622	NaN
2026-02-13 13:20:00+08:00	130	800	Ws_W68	0.424504	27.833333	800.0	800.333333	800.82	802.166667	4052.320000	4167.0	49	-0.201412	-0.196389	0.000000	0.336556	0.468082	22.936000	True	20.0	80.8	22.936000	0.0	0.000000	0.000000	15	255	-0.294832	NaN
2026-02-13 13:50:00+08:00	130	830	Ws_W68	0.424504	28.000000	830.0	830.333333	830.82	832.000000	4106.000000	4226.0	49	-0.199297	-0.143420	0.000000	0.383056	0.489796	24.000000	True	20.0	70.8	24.000000	0.0	3.072559	3.072559	139	525	-0.395315	NaN
2026-02-13 14:20:00+08:00	130	860	Ws_W68	0.424504	28.250000	860.0	860.333333	860.82	861.750000	4186.000000	4306.0	49	-0.097246	-0.110833	0.000000	0.368889	0.489796	24.000000	True	20.0	55.8	24.000000	0.0	0.000000	0.000000	34	60	-0.251952	NaN
2026-02-13 14:50:00+08:00	130	890	Ws_W68	0.424504	28.416667	890.0	890.333333	890.82	891.583333	4269.000000	4389.0	49	-0.097175	-0.111565	0.000000	0.381111	0.489796	24.000000	True	20.0	45.8	24.000000	0.0	3.782821	3.782821	90	55	-0.309176	NaN
2026-02-13 15:20:00+08:00	130	920	Ws_W68	0.424504	28.416667	920.0	920.333333	920.82	921.583333	4353.000000	4473.0	49	-0.063512	-0.130868	0.000000	0.401111	0.489796	24.000000	True	20.0	45.8	24.000000	0.0	5.498280	5.498280	130	50	-0.365036	NaN
2026-02-13 15:50:00+08:00	130	950	Ws_W68	0.424504	30.000000	950.0	950.333333	950.82	951.500000	4434.000000	4555.0	49	-0.077401	-0.080556	-0.040125	0.387156	0.493878	24.200000	True	20.0	40.8	24.200000	0.0	1.561826	1.561826	130	50	-0.317450	NaN

Figures - Ws_W68

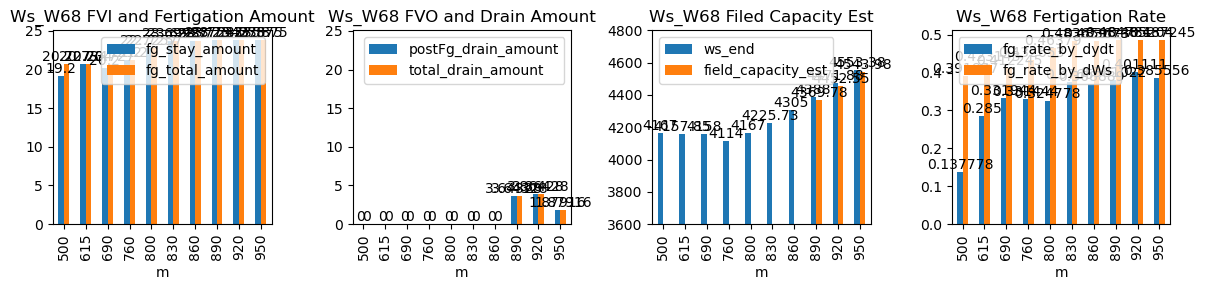

Figure figure_7.png

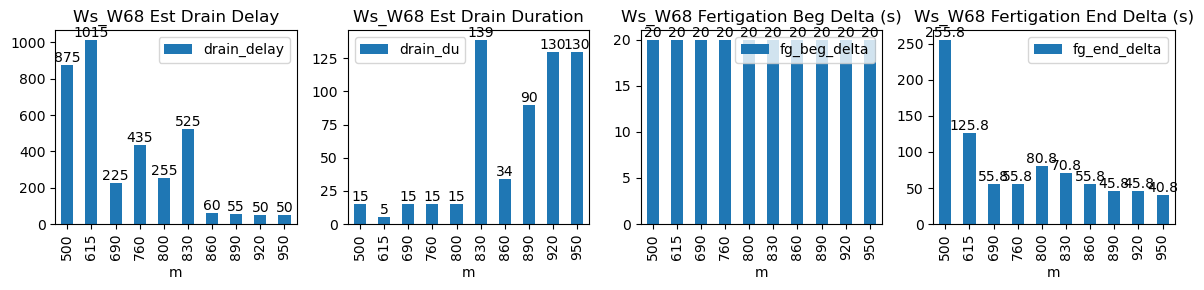

Figure figure_6.png

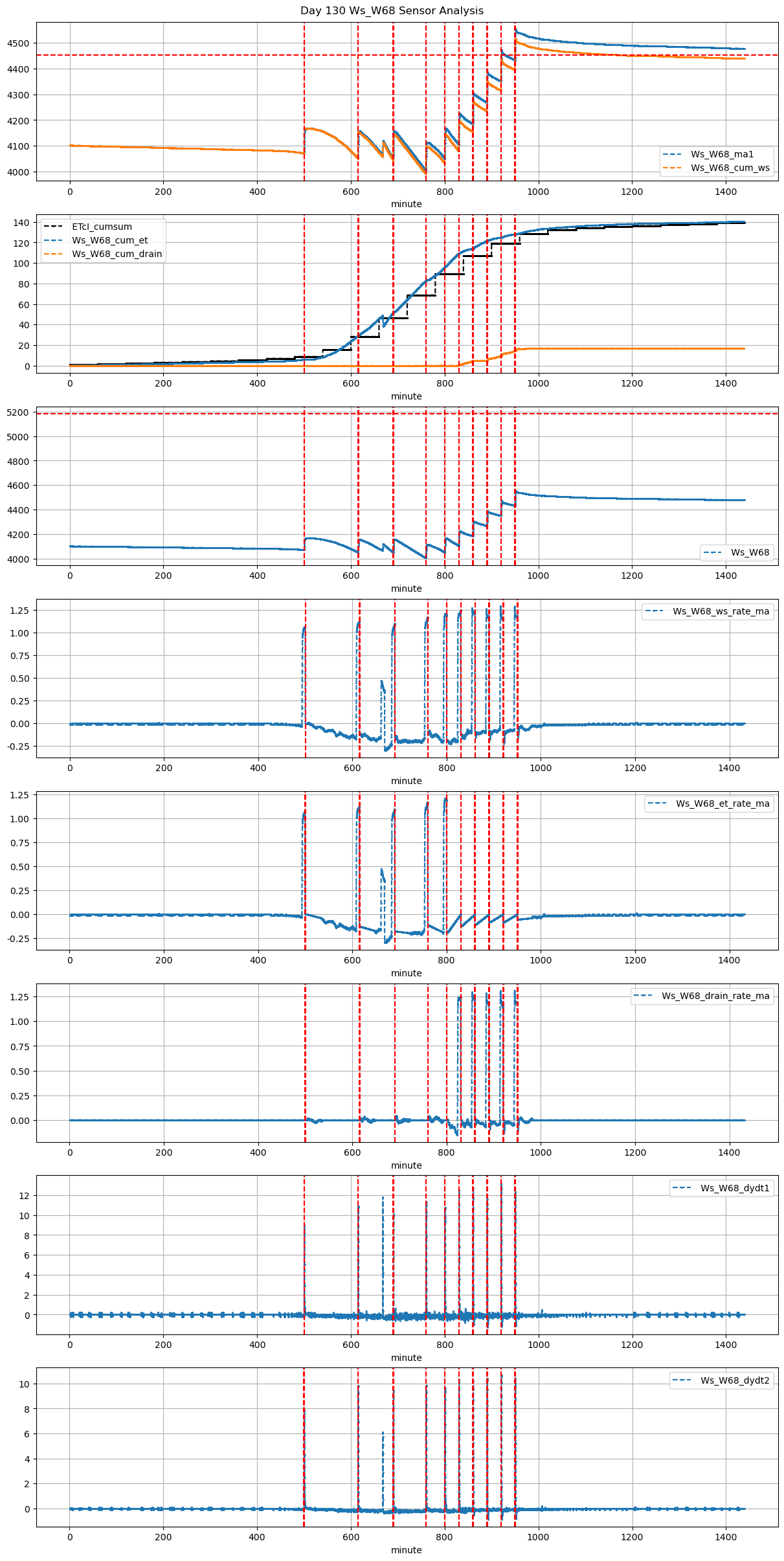

Figure figure_5.png

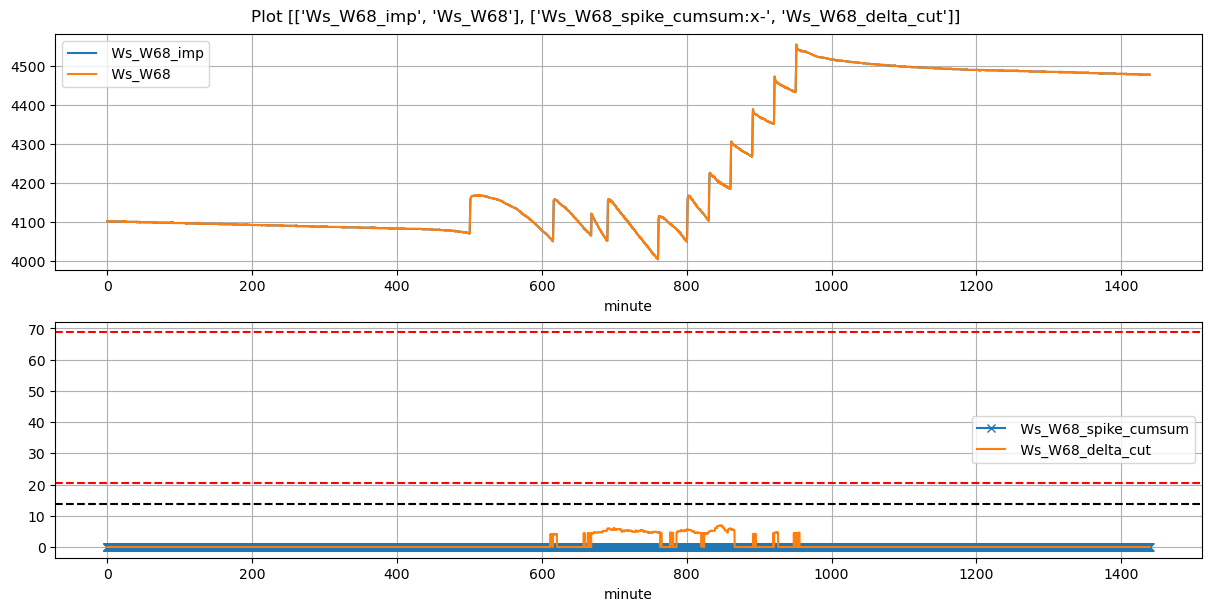

Figure figure_4.png
