Ws Sensor Analysis Report - Day 74

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 119.00 L
Avg Total Drain Amount: 29.06 L
Avg In-Fertigation Drain Amount: 8.60 L
Avg Post-Fertigation Drain Amount: 20.46 L
Avg Drainage Rate: 24.42%

Detail Section

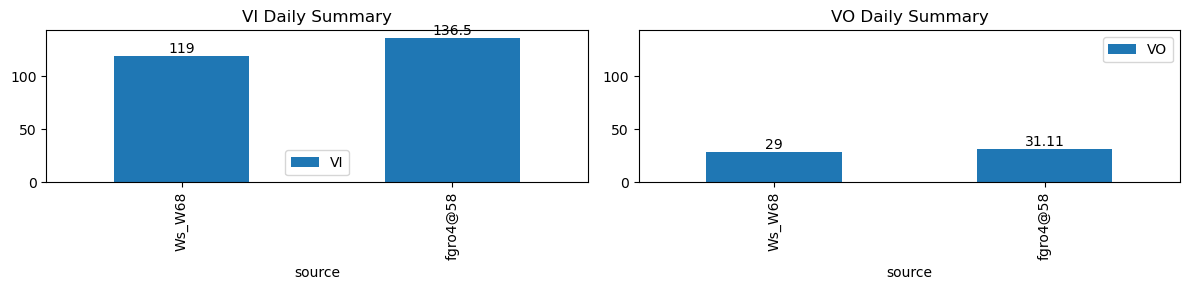

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 119.00 L
Total Drain Amount: 29.06 L
In-Fertigation Drain Amount: 8.60 L
Post-Fertigation Drain Amount: 20.46 L
Drainage Rate: 24.42%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17270	101	14674	101	4

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-19 09:45:00+08:00	74	585	Ws_W68	0.694405	28.416667	585.0	585.333333	585.57	586.583333	NaN	NaN	NaN	4339.0	4419.0	34	-0.064972	-0.096389	0.000000	0.343333	0.470588	16.0	20.0	60.8	17.0	1.0	0.866691	NaN	1.866691
2025-12-19 10:15:00+08:00	74	615	Ws_W68	0.694405	28.333333	615.0	615.333333	615.57	616.666667	NaN	NaN	NaN	4384.0	4468.0	34	-0.105846	-0.148194	0.000000	0.337333	0.494118	16.8	20.0	65.8	17.0	0.2	0.951965	NaN	1.151965
2025-12-19 10:45:00+08:00	74	645	Ws_W68	0.694405	28.416667	645.0	645.416667	645.57	646.583333	NaN	NaN	NaN	4421.0	4500.0	34	-0.156822	-0.187500	0.000000	0.375000	0.464706	15.8	25.0	60.8	17.0	1.2	1.130934	NaN	2.330934
2025-12-19 11:15:00+08:00	74	675	Ws_W68	0.694405	30.000000	675.0	675.333333	675.57	676.500000	NaN	NaN	NaN	4459.0	4538.0	34	-0.083180	-0.146250	-0.072677	0.387000	0.464706	15.8	20.0	55.8	17.0	1.2	3.998128	4518.009361	5.198128
2025-12-19 12:10:00+08:00	74	730	Ws_W68	0.694405	30.000000	730.0	730.333333	730.57	731.500000	NaN	NaN	NaN	4472.0	4550.0	34	-0.072740	-0.155972	-0.057639	0.375000	0.458824	15.6	20.0	55.8	17.0	1.4	4.417927	4527.910364	5.817927
2025-12-19 13:05:00+08:00	74	785	Ws_W68	0.694405	30.000000	785.0	785.333333	785.57	786.416667	NaN	NaN	NaN	4490.0	4567.0	34	-0.054802	-0.130278	-0.049280	0.380000	0.452941	15.4	20.0	50.8	17.0	1.6	4.475203	4544.623984	6.075203
2025-12-19 14:15:00+08:00	74	855	Ws_W68	0.694405	30.000000	855.0	855.333333	855.57	856.500000	NaN	NaN	NaN	4511.0	4586.0	34	-0.034746	-0.114722	-0.030278	0.375333	0.441176	15.0	20.0	55.8	17.0	2.0	4.619844	4562.900779	6.619844

Figures - Ws_W68

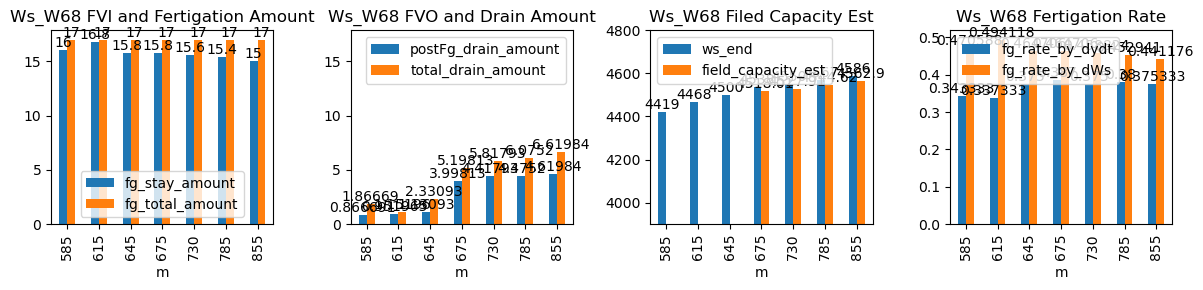

Figure figure_9.png

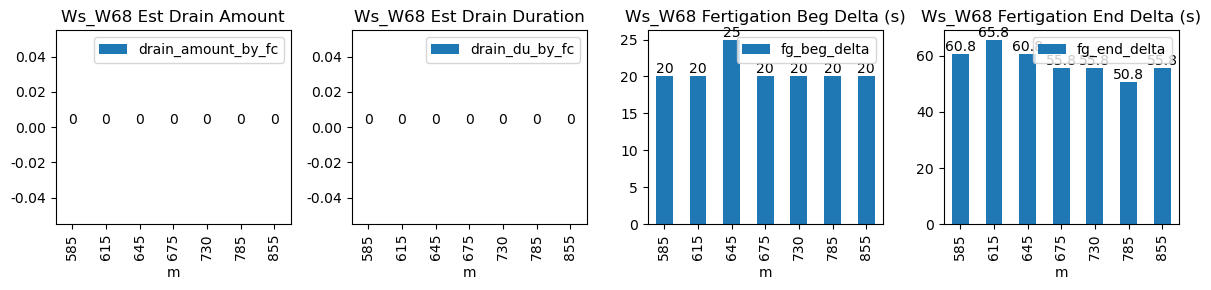

Figure figure_8.png

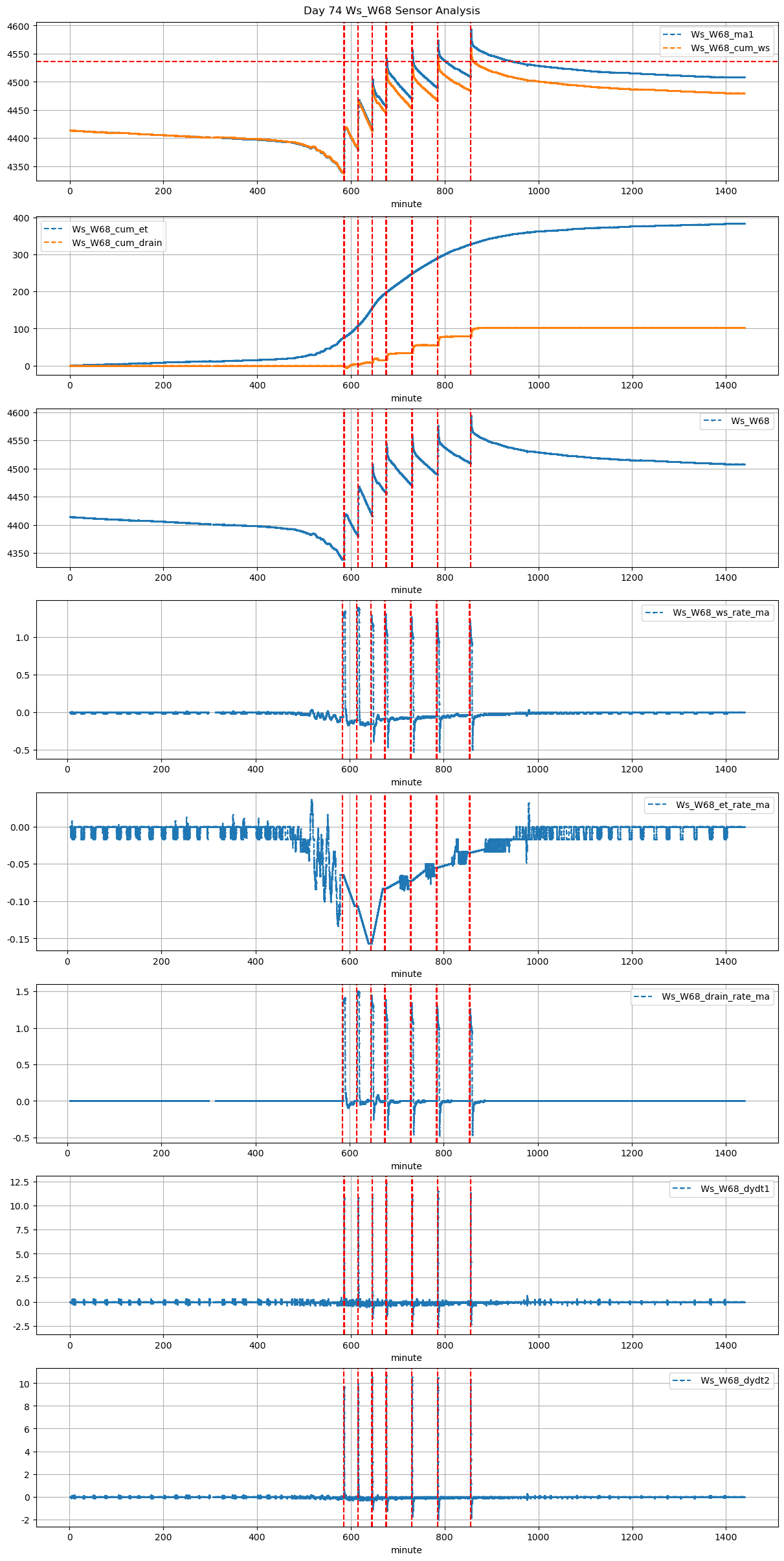

Figure figure_7.png

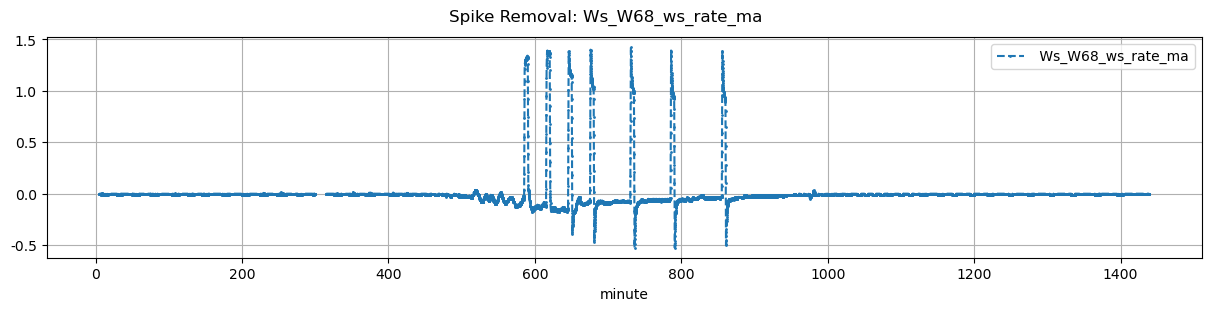

Figure figure_6.png

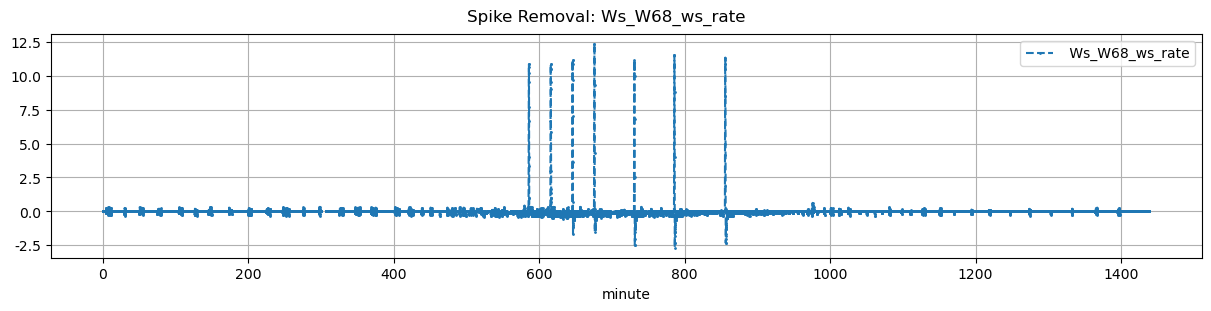

Figure figure_5.png

Figure figure_4.png
