Ws Sensor Analysis Report - Day 80

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 154.77 L
Avg Total Drain Amount: 17.62 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 17.62 L
Avg Drainage Rate: 11.38%

Detail Section

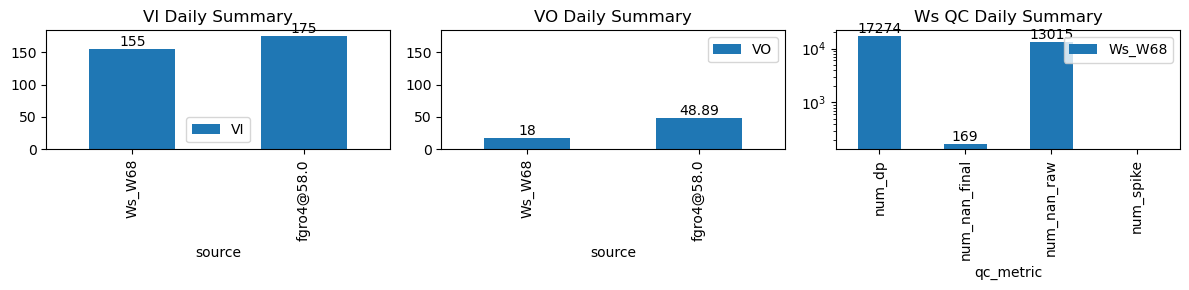

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 154.77 L
Total Drain Amount: 17.62 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 17.62 L
Drainage Rate: 11.38%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,274	13,015	169	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2025-12-25 10:05:00+08:00	80	605	Ws_W68	0.781827	30	605.0	605.500000	605.58	606.500000	4739.000000	4821.666667	35	-0.080787	-0.114559	0.000000	0.359143	0.472381	16.533333	True	30.0	55.2	16.765000	0.0	0.000000	0.000000	735.0	60.0	-0.064798	NaN
2025-12-25 10:40:00+08:00	80	640	Ws_W68	0.781827	30	640.0	640.416667	640.58	641.166667	4782.333333	4867.000000	35	-0.068506	-0.187957	-0.113534	0.380429	0.483810	16.933333	True	25.0	35.2	16.933333	0.0	0.000000	0.000000	1085.0	40.0	-0.164172	NaN
2025-12-25 11:20:00+08:00	80	680	Ws_W68	0.781827	30	680.0	680.416667	680.58	681.250000	4774.500000	4857.333333	35	-0.106169	-0.161173	-0.134969	0.355714	0.473333	16.566667	True	25.0	40.2	16.765000	0.0	0.000000	0.000000	154.0	45.0	-0.076121	NaN
2025-12-25 12:00:00+08:00	80	720	Ws_W68	0.781827	30	720.0	720.416667	720.58	721.250000	4768.600000	4852.333333	35	-0.132228	-0.164329	0.000000	0.370000	0.478476	16.746667	True	25.0	40.2	16.765000	0.0	0.000000	0.000000	219.0	45.0	-0.120876	NaN
2025-12-25 12:35:00+08:00	80	755	Ws_W68	0.781827	30	755.0	755.333333	755.58	756.166667	4774.305882	4858.666667	35	-0.083129	NaN	0.000000	0.362143	0.482062	16.872157	True	20.0	35.2	16.872157	0.0	0.000000	0.000000	NaN	NaN	NaN	NaN
2025-12-25 13:10:00+08:00	80	790	Ws_W68	0.781827	30	790.0	790.416667	790.58	791.750000	4777.000000	4874.666667	35	-0.083129	-0.206883	0.000000	0.341429	0.558095	19.533333	True	25.0	70.2	19.533333	0.0	11.632469	11.632469	1575.0	75.0	-0.178946	4816.504322
2025-12-25 13:45:00+08:00	80	825	Ws_W68	0.781827	30	825.0	825.416667	825.58	826.166667	4794.000000	4873.666667	35	-0.080388	-0.195684	-0.112881	0.358571	0.455238	15.933333	True	25.0	35.2	16.765000	0.0	0.000000	0.000000	NaN	NaN	NaN	NaN
2025-12-25 14:25:00+08:00	80	865	Ws_W68	0.781827	30	865.0	865.416667	865.58	866.250000	4780.666667	4866.333333	35	-0.103813	-0.142809	-0.092603	0.380000	0.489524	17.133333	True	25.0	40.2	17.133333	0.0	0.000000	0.000000	214.0	45.0	-0.096819	NaN
2025-12-25 15:10:00+08:00	80	910	Ws_W68	0.781827	30	910.0	910.333333	910.58	911.250000	4789.500000	4875.666667	35	-0.075983	-0.110905	-0.056193	0.356000	0.492381	17.233333	True	20.0	40.2	17.233333	0.0	5.984373	5.984373	150.0	45.0	-0.079621	4845.744802

Figures - Ws_W68

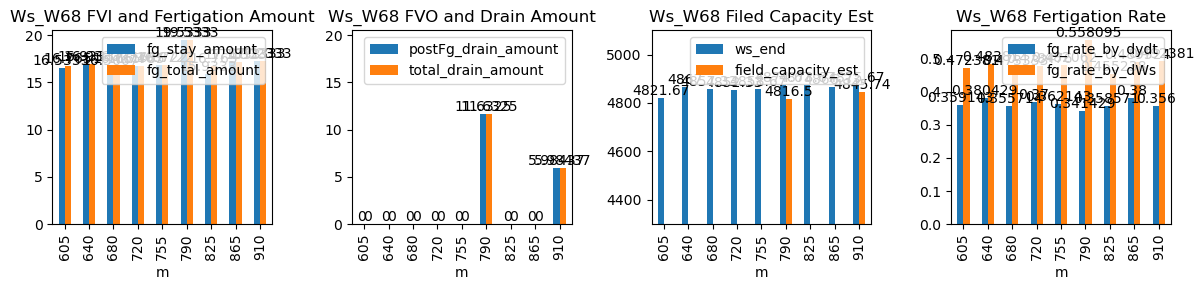

Figure figure_7.png

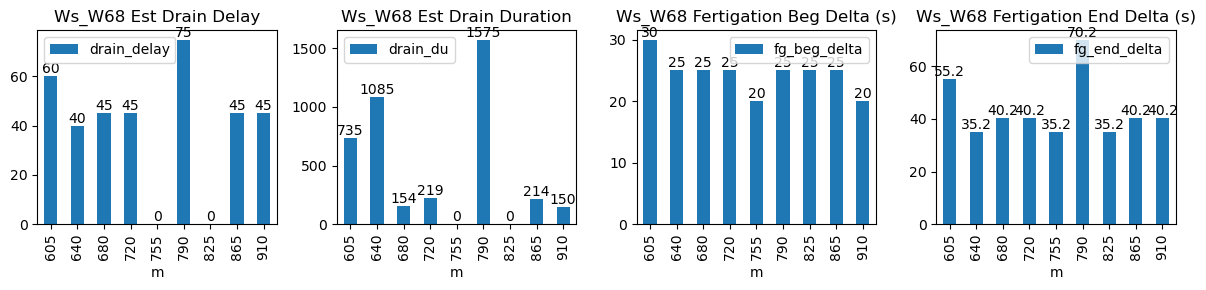

Figure figure_6.png

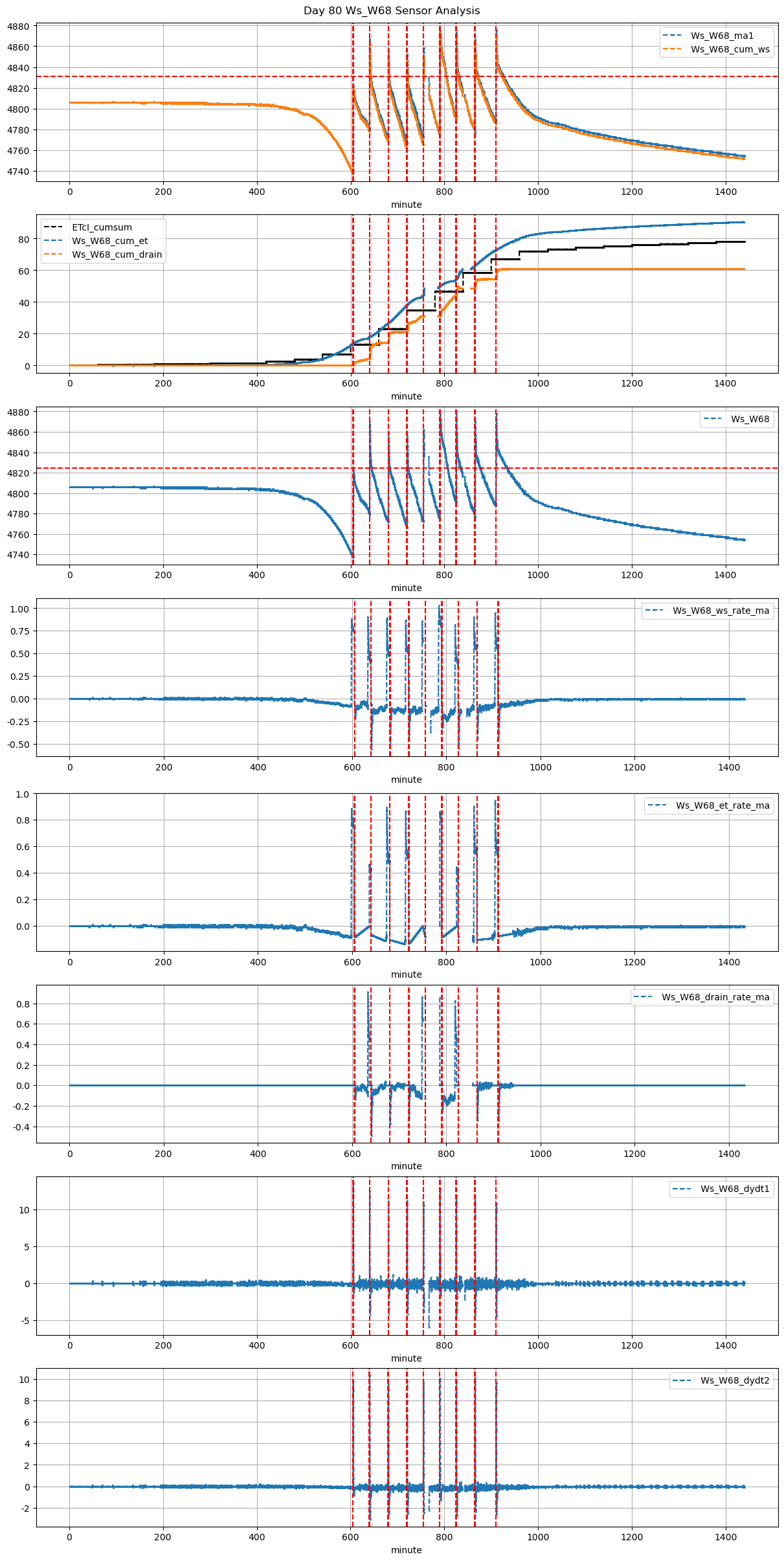

Figure figure_5.png

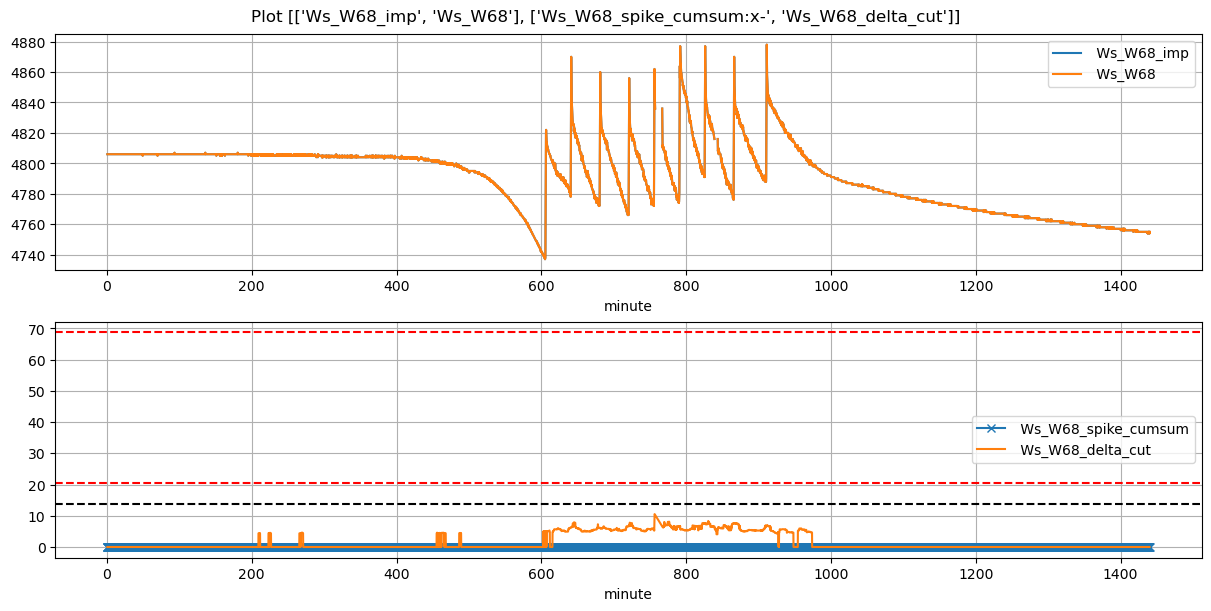

Figure figure_4.png
