Ws Sensor Analysis Report - Day 93

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 140.00 L
Avg Total Drain Amount: 20.74 L
Avg In-Fertigation Drain Amount: 15.40 L
Avg Post-Fertigation Drain Amount: 5.34 L
Avg Drainage Rate: 14.81%

Detail Section

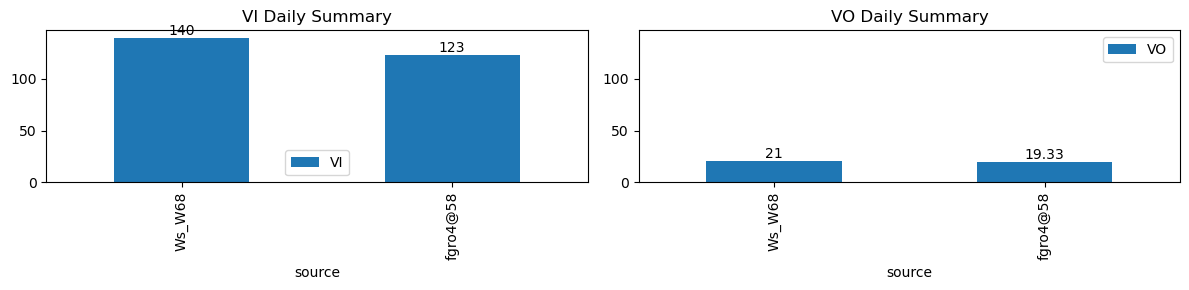

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 140.00 L
Total Drain Amount: 20.74 L
In-Fertigation Drain Amount: 15.40 L
Post-Fertigation Drain Amount: 5.34 L
Drainage Rate: 14.81%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17269	0	13734	0	1

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-07 08:05:00+08:00	93	485	Ws_W68	0.403822	30	485.0	485.333333	485.67	486.750000	NaN	NaN	NaN	4586.0	4659.0	40	-0.003785	0.000000	-0.022847	0.22825	0.365	14.6	20.0	64.8	20.0	5.4	-3.023072	NaN	2.376928
2026-01-07 09:05:00+08:00	93	545	Ws_W68	0.403822	30	545.0	545.333333	545.67	546.916667	NaN	NaN	NaN	4648.0	4745.0	40	-0.041090	-0.150000	-0.097528	0.32475	0.485	19.4	20.0	74.8	20.0	0.6	3.735767	NaN	4.335767
2026-01-07 10:50:00+08:00	93	650	Ws_W68	0.403822	30	650.0	650.250000	650.67	651.833333	NaN	NaN	NaN	4618.0	4712.0	40	-0.146817	-0.135139	-0.135000	0.31175	0.470	18.8	15.0	69.8	20.0	1.2	0.886506	NaN	2.086506
2026-01-07 11:55:00+08:00	93	715	Ws_W68	0.403822	30	715.0	715.250000	715.67	716.916667	NaN	NaN	NaN	4609.0	4699.0	40	-0.149600	-0.167083	-0.141574	0.30125	0.450	18.0	15.0	74.8	20.0	2.0	0.898737	NaN	2.898737
2026-01-07 12:50:00+08:00	93	770	Ws_W68	0.403822	30	770.0	770.250000	770.67	771.833333	NaN	NaN	NaN	4605.0	4692.0	40	-0.155353	-0.145278	-0.144479	0.31175	0.435	17.4	15.0	69.8	20.0	2.6	0.778035	NaN	3.378035
2026-01-07 13:45:00+08:00	93	825	Ws_W68	0.403822	30	825.0	825.250000	825.67	826.833333	NaN	NaN	NaN	4601.0	4691.0	40	-0.133416	-0.134167	-0.131458	0.31225	0.450	18.0	15.0	69.8	20.0	2.0	0.217618	NaN	2.217618
2026-01-07 14:45:00+08:00	93	885	Ws_W68	0.403822	30	885.0	885.333333	885.67	886.916667	NaN	NaN	NaN	4607.0	4699.0	40	-0.078919	-0.064028	-0.069740	0.30875	0.460	18.4	20.0	74.8	20.0	1.6	1.845410	NaN	3.445410

Figures - Ws_W68

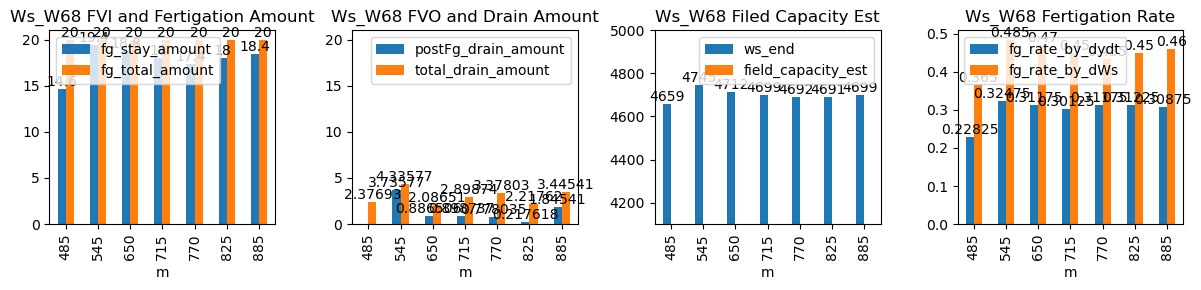

Figure figure_9.png

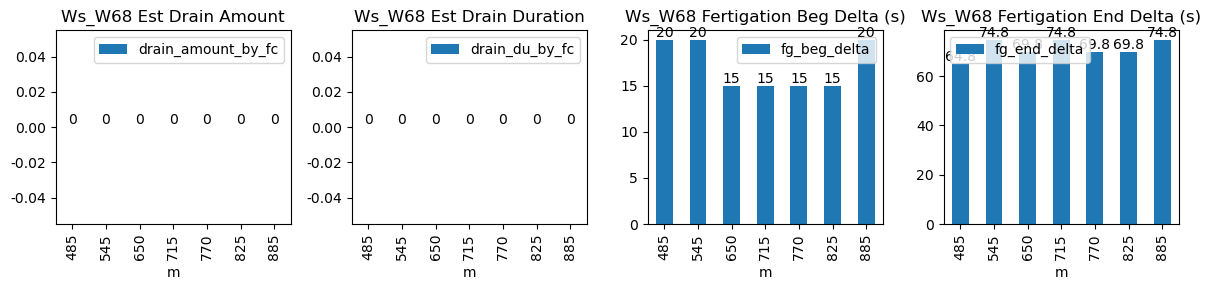

Figure figure_8.png

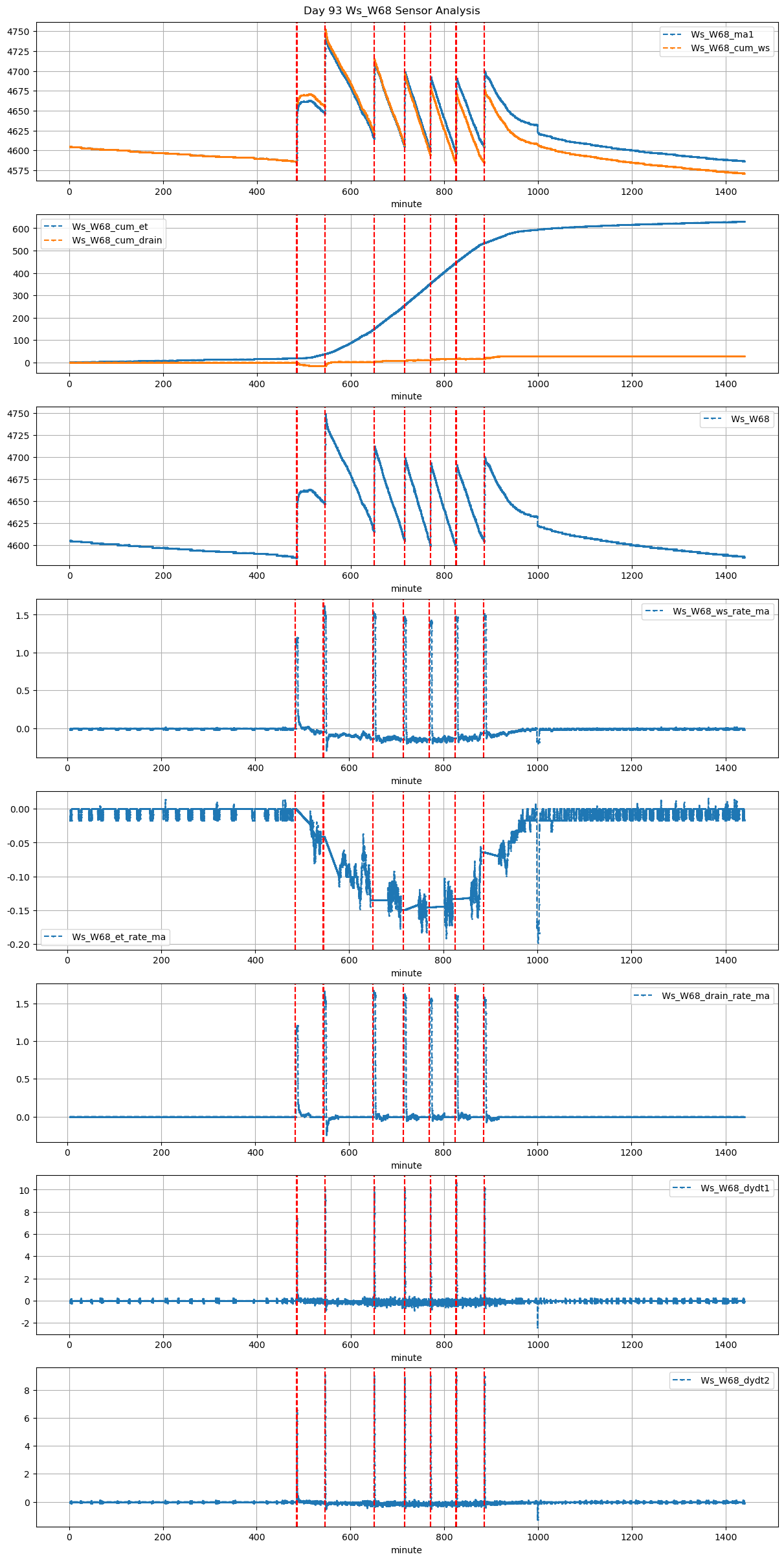

Figure figure_7.png

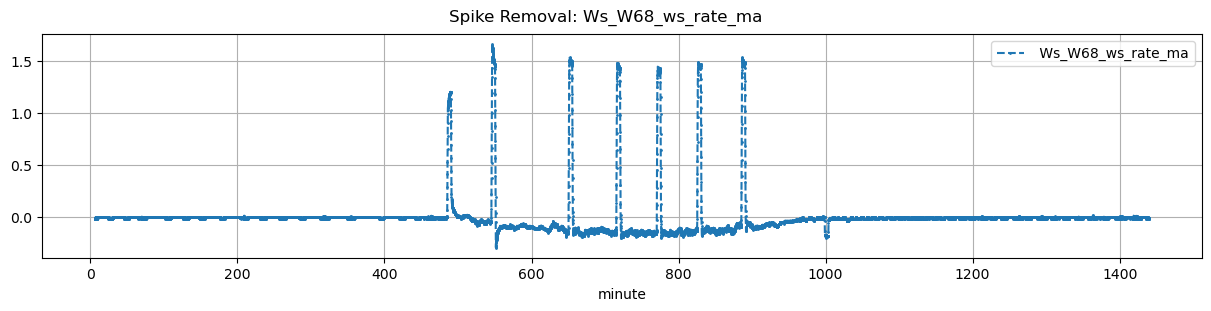

Figure figure_6.png

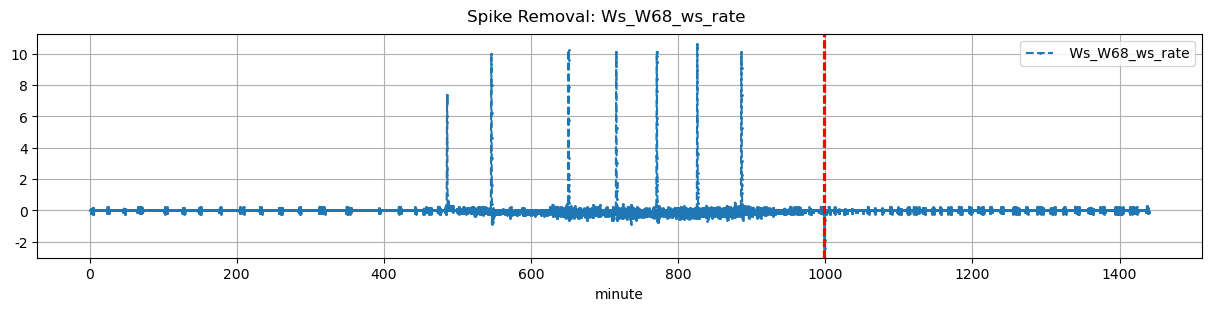

Figure figure_5.png

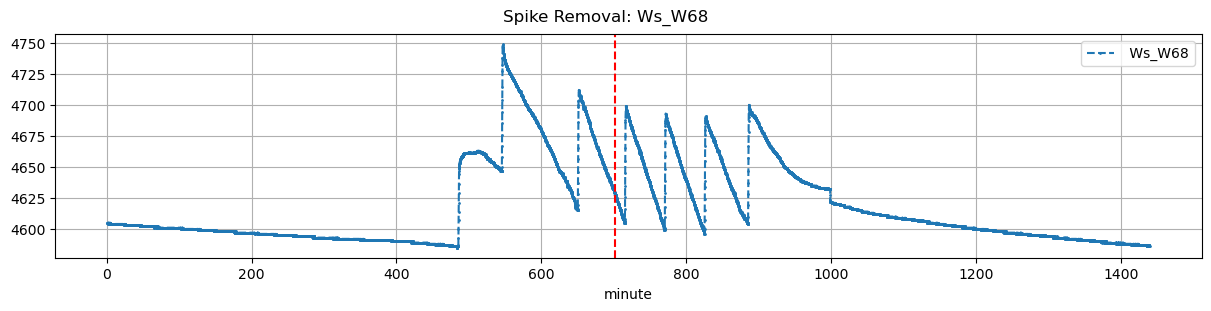

Figure figure_4.png
