Ws Sensor Analysis Report - Day 166

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 165.95 L
Avg Total Drain Amount: 9.10 L
Avg In-Fertigation Drain Amount: 3.03 L
Avg Post-Fertigation Drain Amount: 6.06 L
Avg Drainage Rate: 5.48%

Detail Section

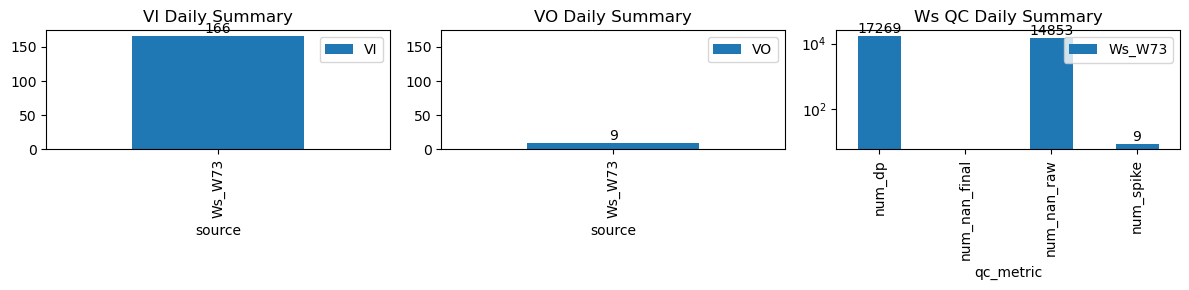

VI and VO Daily Summary

Summary Statistics - Ws_W73

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 165.95 L
Total Drain Amount: 9.10 L
In-Fertigation Drain Amount: 3.03 L
Post-Fertigation Drain Amount: 6.06 L
Drainage Rate: 5.48%

Ws Cleaning Summary Table - Ws_W73

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W73	17,269	14,853	0	9	-183.83

Fertigation Events Details Table - Ws_W73

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-21 08:05:00+08:00	166	485	Ws_W73	1.882272	28.8	485.00	484.666667	486.20	486.000000	4080.000000	4166.000000	72	-0.012128	-0.092078	0.000000	0.222041	0.238889	17.200000	True	-20.0	-12.0	27.59400	0.000000	0.000000	0.000000	75	3	-0.164733	NaN
2026-03-21 08:35:00+08:00	166	515	Ws_W73	1.882272	30.0	515.00	514.250000	516.18	515.833333	4116.791667	4167.777778	71	-0.043720	-0.121914	0.000000	0.115615	0.143623	10.197222	True	-45.0	-20.8	27.21075	3.032191	6.064381	9.096572	165	4	-0.181329	4137.455871
2026-03-21 09:10:00+08:00	166	550	Ws_W73	1.882272	30.0	550.00	549.416667	551.20	551.083333	4108.454545	4166.000000	72	-0.043720	-0.137663	-0.093690	0.140000	0.159848	11.509091	True	-35.0	-7.0	27.59400	0.000000	0.000000	0.000000	489	2	-0.119053	NaN
2026-03-21 10:26:16+08:00	166	626	Ws_W73	1.882272	30.0	626.27	625.750000	627.47	627.416667	4050.000000	4126.600000	72	-0.113452	-0.119012	-0.164594	0.183571	0.212778	15.320000	True	-31.2	-3.2	27.59400	0.000000	0.000000	0.000000	30	1	-0.185389	NaN
2026-03-21 11:56:15+08:00	166	716	Ws_W73	1.882272	30.0	716.25	716.250000	717.47	717.416667	3970.000000	4076.100000	73	-0.103398	-0.132889	-0.124794	0.307929	0.290685	21.220000	True	0.0	-3.2	27.97725	0.000000	0.000000	0.000000	120	1	-0.094615	NaN
2026-03-21 13:25:01+08:00	166	805	Ws_W73	1.882272	30.0	805.02	804.833333	806.24	806.250000	3786.168831	3910.835498	73	-0.122035	-0.147840	-0.092387	0.323571	0.341553	24.933333	True	-11.2	0.6	27.97725	0.000000	0.000000	0.000000	204	5	-0.083754	NaN

Figures - Ws_W73

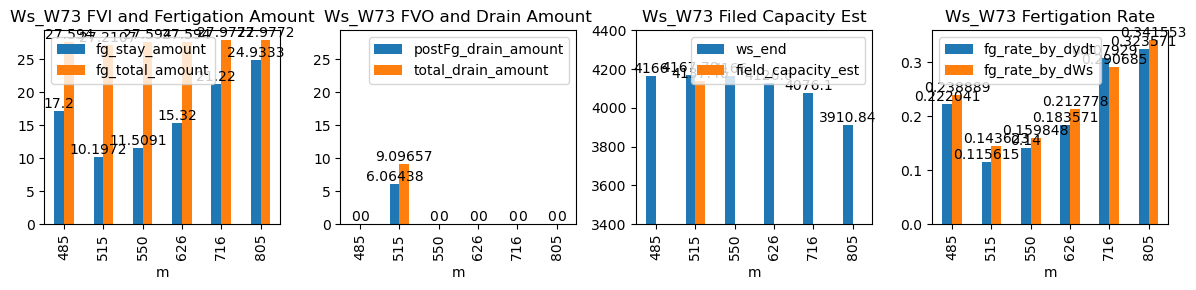

Figure figure_7.png

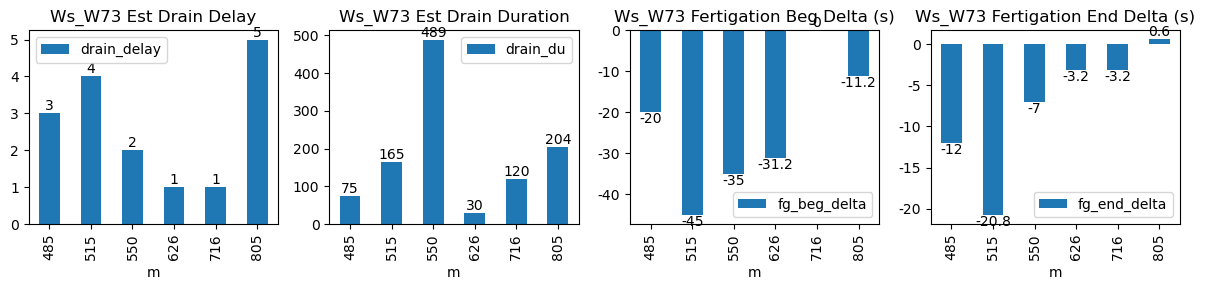

Figure figure_6.png

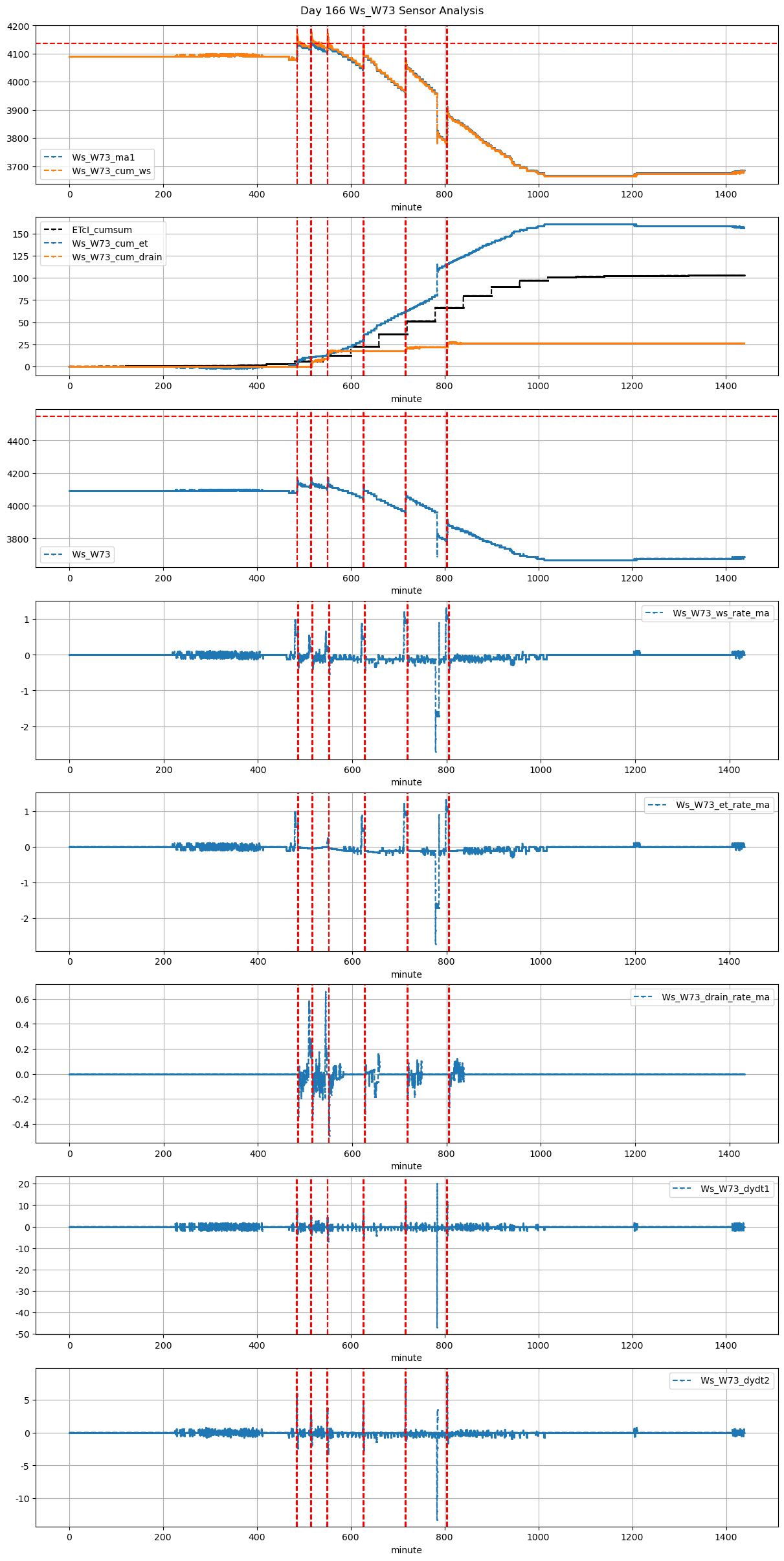

Figure figure_5.png

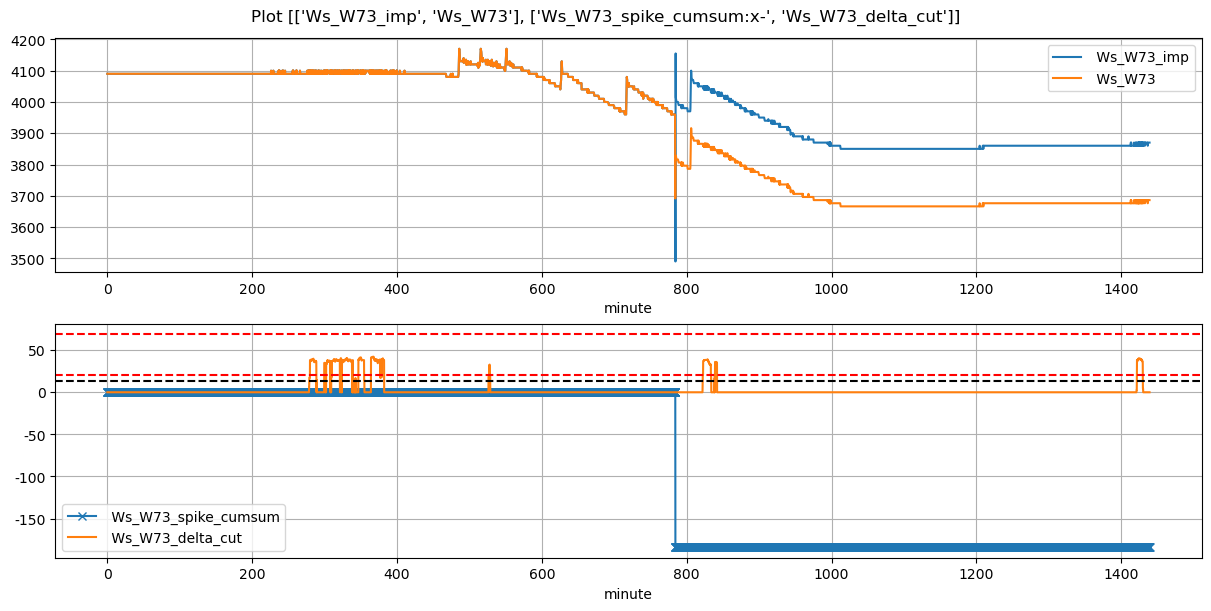

Figure figure_4.png
