Ws Sensor Analysis Report - Day 181

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 15.0
Avg Fertigation Amount: 290.98 L
Avg Total Drain Amount: 0.00 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 0.00 L
Avg Drainage Rate: 0.00%

Detail Section

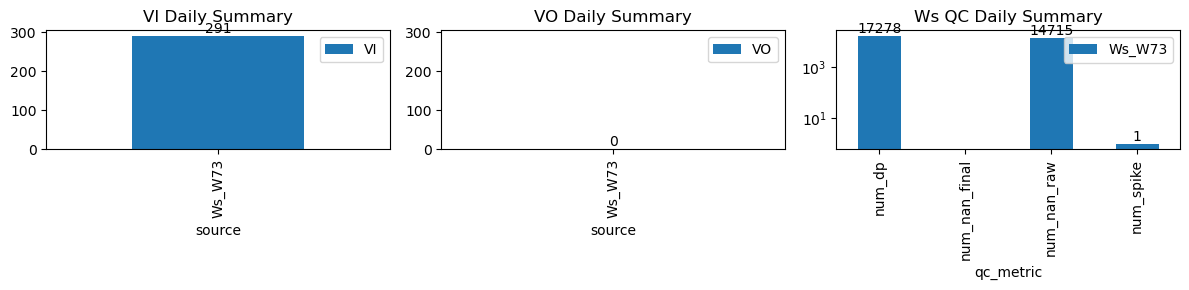

VI and VO Daily Summary

Summary Statistics - Ws_W73

Number of Fertigation Events: 15
Number of Fertigation Events detected: 15
Total Fertigation Amount: 290.98 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_W73

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W73	17,278	14,715	0	1	0.00

Fertigation Events Details Table - Ws_W73

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-05 07:40:00+08:00	181	460	Ws_W73	2.606355	28.666667	460.00	460.000000	461.17	461.333333	4020.000000	4140.000000	70	-0.069686	-0.072531	0.000000	0.358977	0.342857	24.000000	True	0.0	9.8	24.000000	0.0	0.0	0.0	60	1169	-0.056473	NaN
2026-04-05 08:10:00+08:00	181	490	Ws_W73	2.606355	30.000000	490.00	489.916667	491.20	491.250000	4120.000000	4243.750000	72	-0.047381	-0.115175	-0.103498	0.382750	0.343750	24.750000	True	-5.0	3.0	24.750000	0.0	0.0	0.0	325	7	-0.087931	NaN
2026-04-05 08:50:00+08:00	181	530	Ws_W73	2.606355	30.000000	530.00	529.916667	530.70	530.666667	4180.000000	4245.000000	42	-0.073746	-0.139660	0.000000	0.300000	0.309524	13.000000	True	-5.0	-2.0	13.000000	0.0	0.0	0.0	420	2	-0.158636	NaN
2026-04-05 09:24:24+08:00	181	564	Ws_W73	2.606355	24.833333	564.40	564.333333	565.08	565.166667	4180.000000	4253.750000	41	-0.073746	-0.152787	0.000000	0.312500	0.359756	14.750000	True	-4.0	5.2	14.750000	0.0	0.0	0.0	90	10	-0.149961	NaN
2026-04-05 09:50:00+08:00	181	590	Ws_W73	2.606355	28.830000	590.00	589.916667	591.17	591.166667	4185.000000	4258.500000	70	-0.140435	-0.198395	0.000000	0.277639	0.210000	14.700000	True	-5.0	-0.2	17.185000	0.0	0.0	0.0	129	4	-0.136973	NaN
2026-04-05 10:20:00+08:00	181	620	Ws_W73	2.606355	30.000000	620.00	619.916667	621.18	621.083333	4170.545455	4257.500000	71	-0.140435	-0.190123	-0.183393	0.301083	0.244942	17.390909	True	-5.0	-5.8	17.430500	0.0	0.0	0.0	65	4	-0.100600	NaN
2026-04-05 11:00:00+08:00	181	660	Ws_W73	2.606355	28.820000	660.00	659.916667	661.18	661.166667	4144.000000	4249.166667	71	-0.140030	-0.204012	0.000000	0.365625	0.296244	21.033333	True	-5.0	-0.8	21.033333	0.0	0.0	0.0	129	4	-0.156081	NaN
2026-04-05 11:30:00+08:00	181	690	Ws_W73	2.606355	30.000000	690.00	689.916667	691.18	691.166667	4160.000000	4246.875000	71	-0.140030	-0.182330	-0.181687	0.334375	0.244718	17.375000	True	-5.0	-0.8	17.430500	0.0	0.0	0.0	39	4	-0.256663	NaN
2026-04-05 12:26:38+08:00	181	746	Ws_W73	2.606355	30.000000	746.63	746.500000	747.80	747.833333	4091.866667	4223.750000	70	-0.162231	-0.214581	-0.169007	0.395417	0.376810	26.376667	True	-7.8	2.0	26.376667	0.0	0.0	0.0	30	7	-0.106461	NaN
2026-04-05 13:20:00+08:00	181	800	Ws_W73	2.606355	28.830000	800.00	798.416667	801.17	801.166667	4094.129630	4217.500000	70	-0.209738	-0.197222	0.000000	0.325750	0.352487	24.674074	True	-95.0	-0.2	24.674074	0.0	0.0	0.0	75	4	-0.137341	NaN
2026-04-05 13:50:00+08:00	181	830	Ws_W73	2.606355	30.000000	830.00	829.916667	831.17	831.000000	4136.000000	4230.000000	70	-0.154324	-0.211934	0.000000	0.340341	0.268571	18.800000	True	-5.0	-10.2	18.800000	0.0	0.0	0.0	75	4	-0.194597	NaN
2026-04-05 14:25:00+08:00	181	865	Ws_W73	2.606355	28.800000	865.00	863.500000	866.20	866.000000	4130.000000	4228.750000	72	-0.154324	-0.205350	0.000000	0.268750	0.274306	19.750000	True	-90.0	-12.0	19.750000	0.0	0.0	0.0	80	2	-0.164003	NaN
2026-04-05 14:55:00+08:00	181	895	Ws_W73	2.606355	28.830000	895.00	894.916667	896.17	895.916667	4152.888889	4237.500000	70	-0.071794	-0.109053	0.000000	0.324931	0.241746	16.922222	True	-5.0	-15.2	17.185000	0.0	0.0	0.0	30	4	-0.047817	NaN
2026-04-05 15:25:00+08:00	181	925	Ws_W73	2.606355	30.000000	925.00	924.833333	926.17	926.083333	4190.000000	4258.125000	70	-0.071794	-0.059877	-0.099074	0.235937	0.194643	13.625000	True	-10.0	-5.2	17.185000	0.0	0.0	0.0	75	4	-0.050173	NaN
2026-04-05 16:25:00+08:00	181	985	Ws_W73	2.606355	30.000000	985.00	984.833333	986.18	986.166667	4190.000000	4264.062500	71	-0.073580	-0.027431	-0.024074	0.266875	0.208627	14.812500	True	-10.0	-0.8	17.430500	0.0	0.0	0.0	84	4	-0.086261	NaN

Figures - Ws_W73

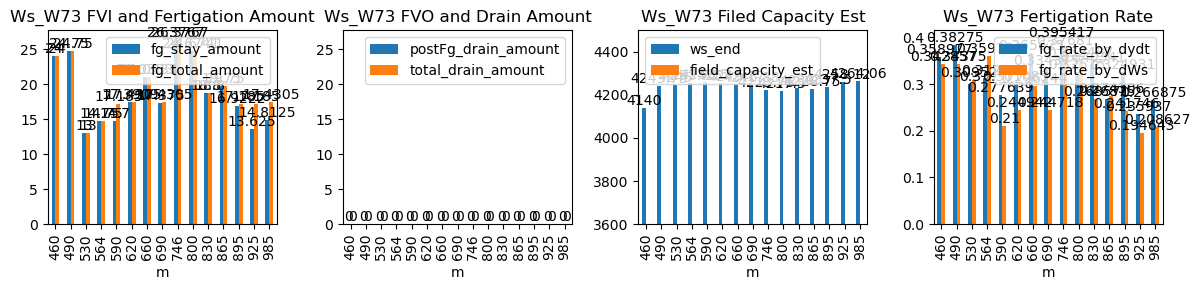

Figure figure_7.png

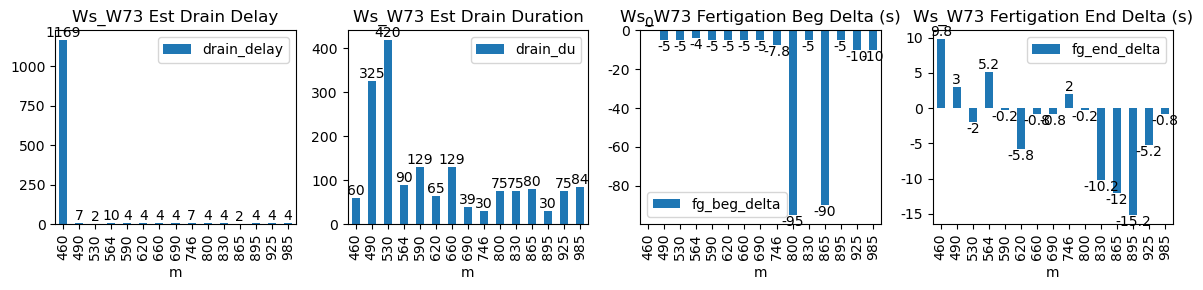

Figure figure_6.png

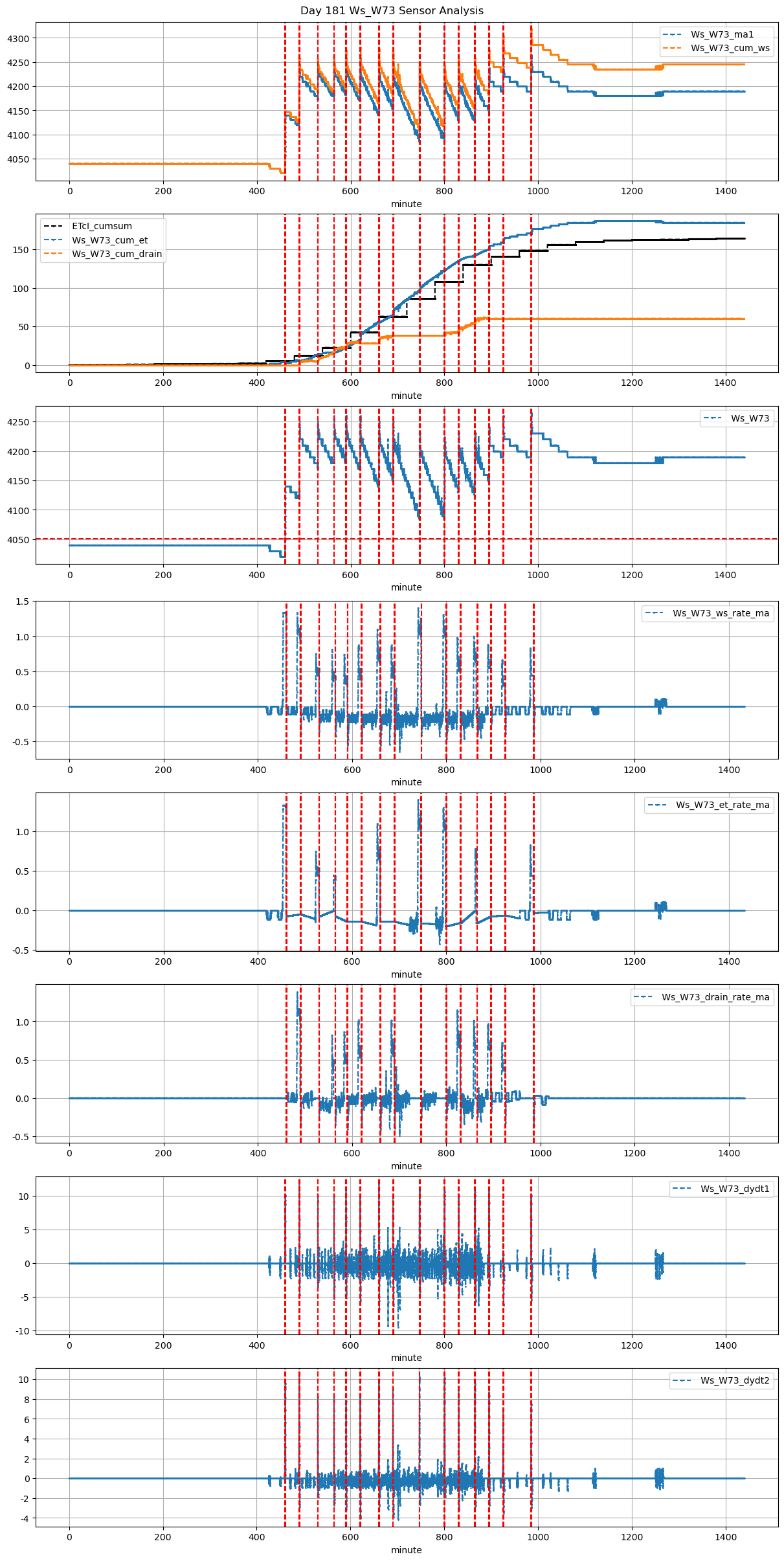

Figure figure_5.png

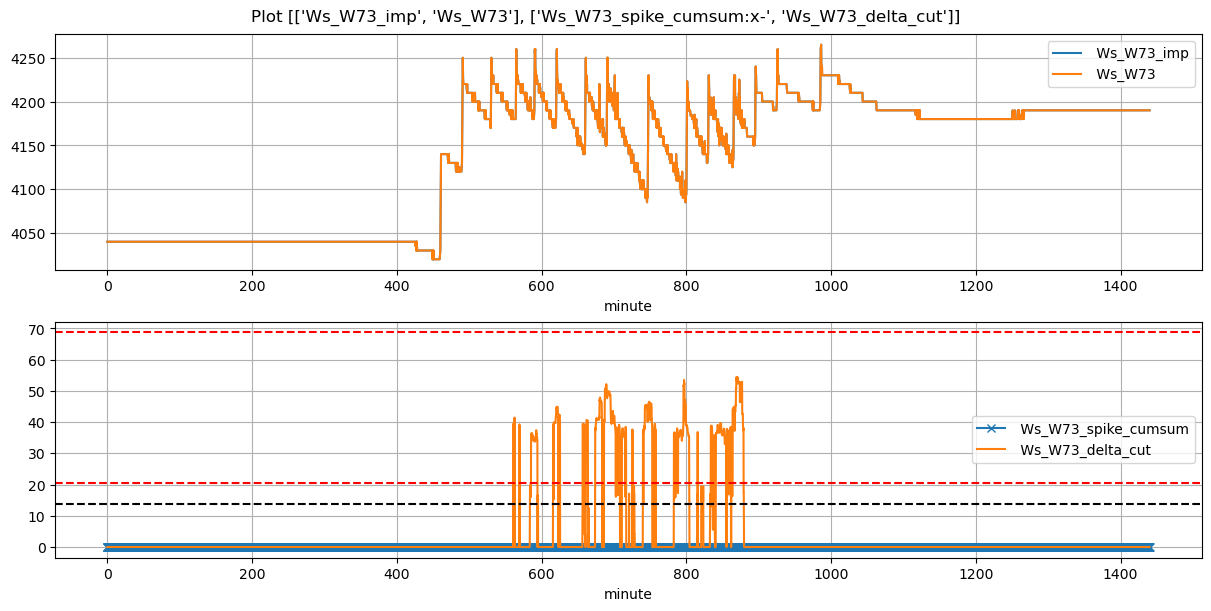

Figure figure_4.png
