Ws Sensor Analysis Report - Day 180

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 158.93 L
Avg Total Drain Amount: 9.66 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 9.66 L
Avg Drainage Rate: 6.08%

Detail Section

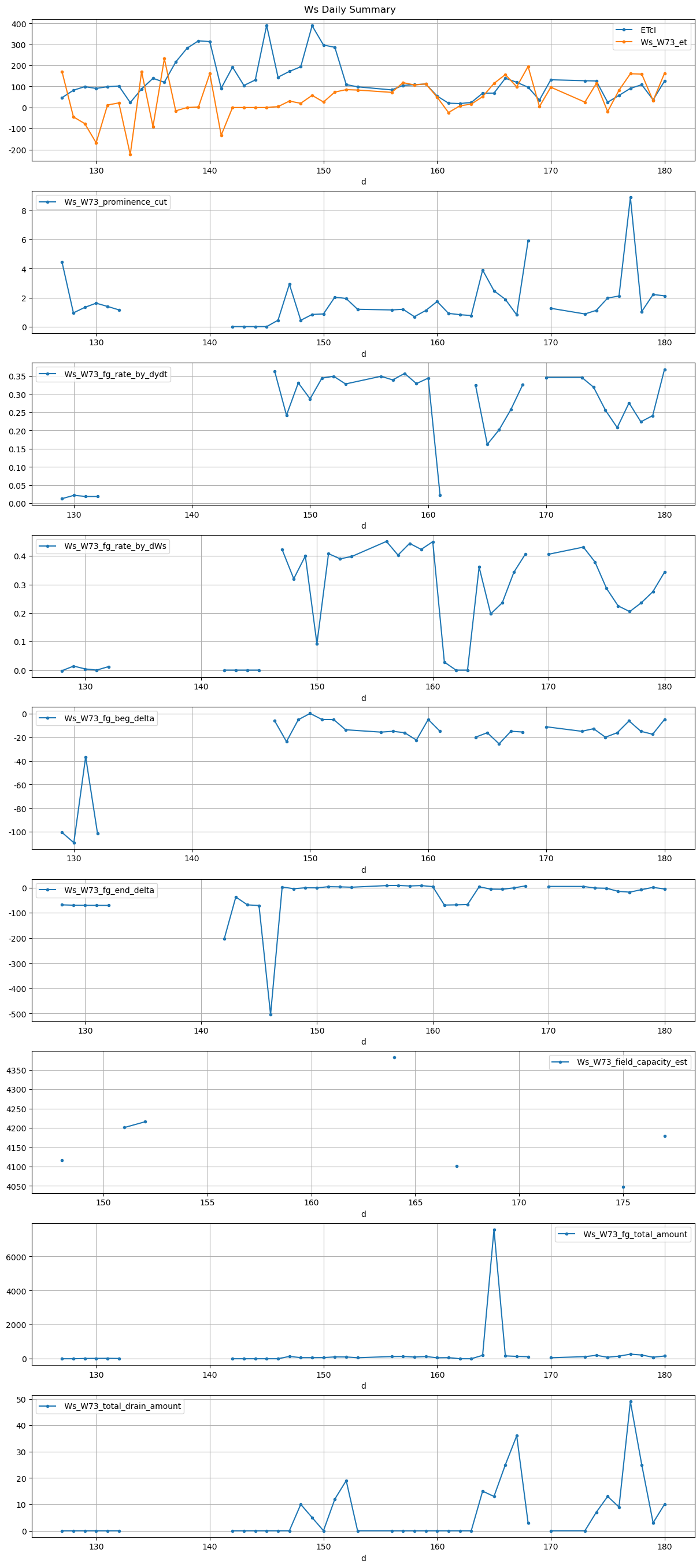

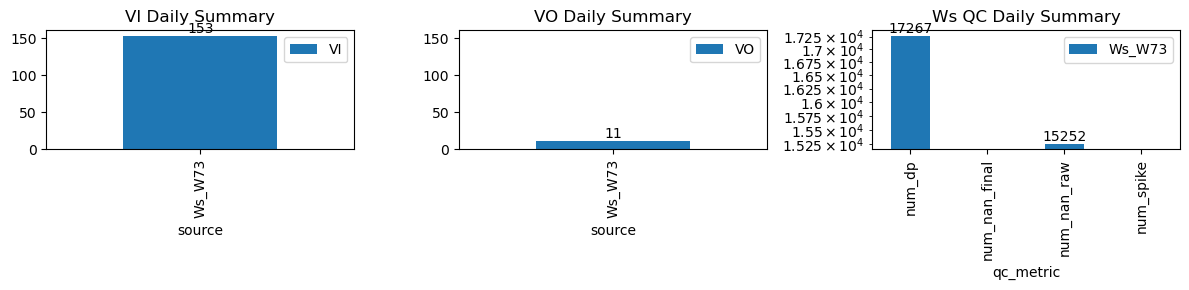

VI and VO Daily Summary

Summary Statistics - Ws_W73

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 158.93 L
Total Drain Amount: 9.66 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 9.66 L
Drainage Rate: 6.08%

Ws Cleaning Summary Table - Ws_W73

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W73	16,942	14,954	0	0	0.00

Fertigation Events Details Table - Ws_W73

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-04 07:46:38+08:00	180	466	Ws_W73	2.121489	22.166667	466.63	466.000000	467.80	467.833333	4153.000000	4300.0	70	-0.043785	-0.054028	0.000000	0.365625	0.420000	29.400000	True	-37.8	2.0	29.400000	0.0	0.00000	0.00000	34	7	-2.217702	NaN
2026-04-04 08:10:00+08:00	180	490	Ws_W73	2.121489	30.000000	490.00	489.333333	490.68	490.500000	4254.818182	4310.0	41	-0.075651	-0.095949	0.000000	0.167083	0.269180	11.036364	True	-40.0	-10.8	11.036364	0.0	0.00000	0.00000	55	9	-3.189970	NaN
2026-04-04 08:50:00+08:00	180	530	Ws_W73	2.121489	30.000000	530.00	529.833333	531.20	531.083333	4248.041667	4310.0	72	-0.014036	-0.127778	-0.087222	0.224107	0.172106	12.391667	True	-10.0	-7.0	17.496000	0.0	9.66167	9.66167	65	2	-3.078382	NaN
2026-04-04 11:20:00+08:00	180	680	Ws_W73	2.121489	30.000000	680.00	679.916667	681.18	681.083333	4120.000000	4250.0	71	-0.136339	-0.154861	-0.158333	0.382917	0.366197	26.000000	True	-5.0	-5.8	26.000000	0.0	0.00000	0.00000	19	24	-2.350153	NaN
2026-04-04 12:25:00+08:00	180	745	Ws_W73	2.121489	30.000000	745.00	744.916667	746.17	746.083333	4120.000000	4240.0	70	-0.145378	-0.199074	-0.163889	0.367750	0.342857	24.000000	True	-5.0	-5.2	24.000000	0.0	0.00000	0.00000	50	4	-2.354319	NaN
2026-04-04 13:20:00+08:00	180	800	Ws_W73	2.121489	30.000000	800.00	799.916667	801.18	801.166667	4120.000000	4240.0	71	-0.154708	-0.138194	-0.054167	0.370000	0.338028	24.000000	True	-5.0	-0.8	24.000000	0.0	0.00000	0.00000	39	4	-3.257052	NaN
2026-04-04 14:55:00+08:00	180	895	Ws_W73	2.121489	30.000000	895.00	895.000000	896.18	896.166667	4070.000000	4205.0	71	-0.167785	-0.167708	-0.126894	0.382500	0.380282	27.000000	True	0.0	-0.8	27.000000	0.0	0.00000	0.00000	25	29	-1.807983	NaN

Figures - Ws_W73

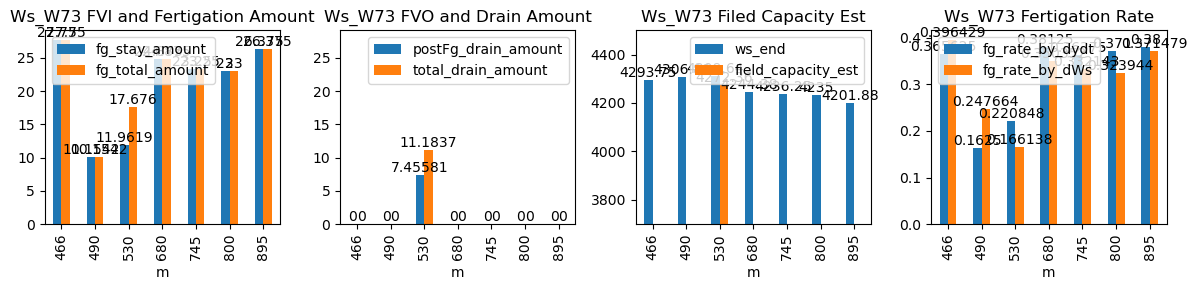

Figure figure_7.png

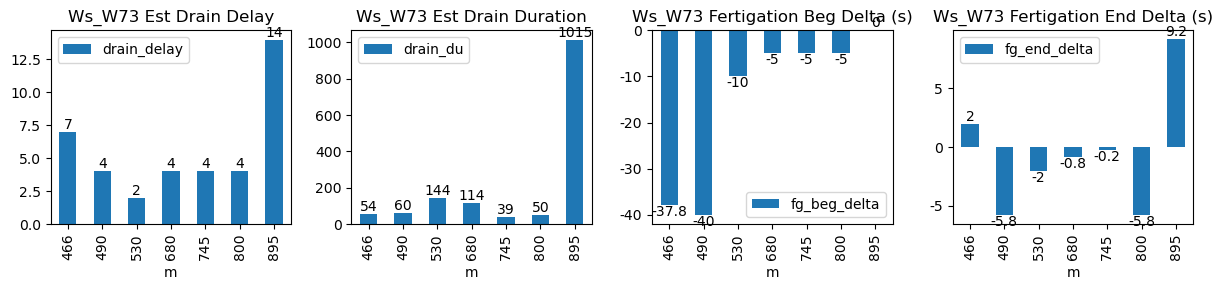

Figure figure_6.png

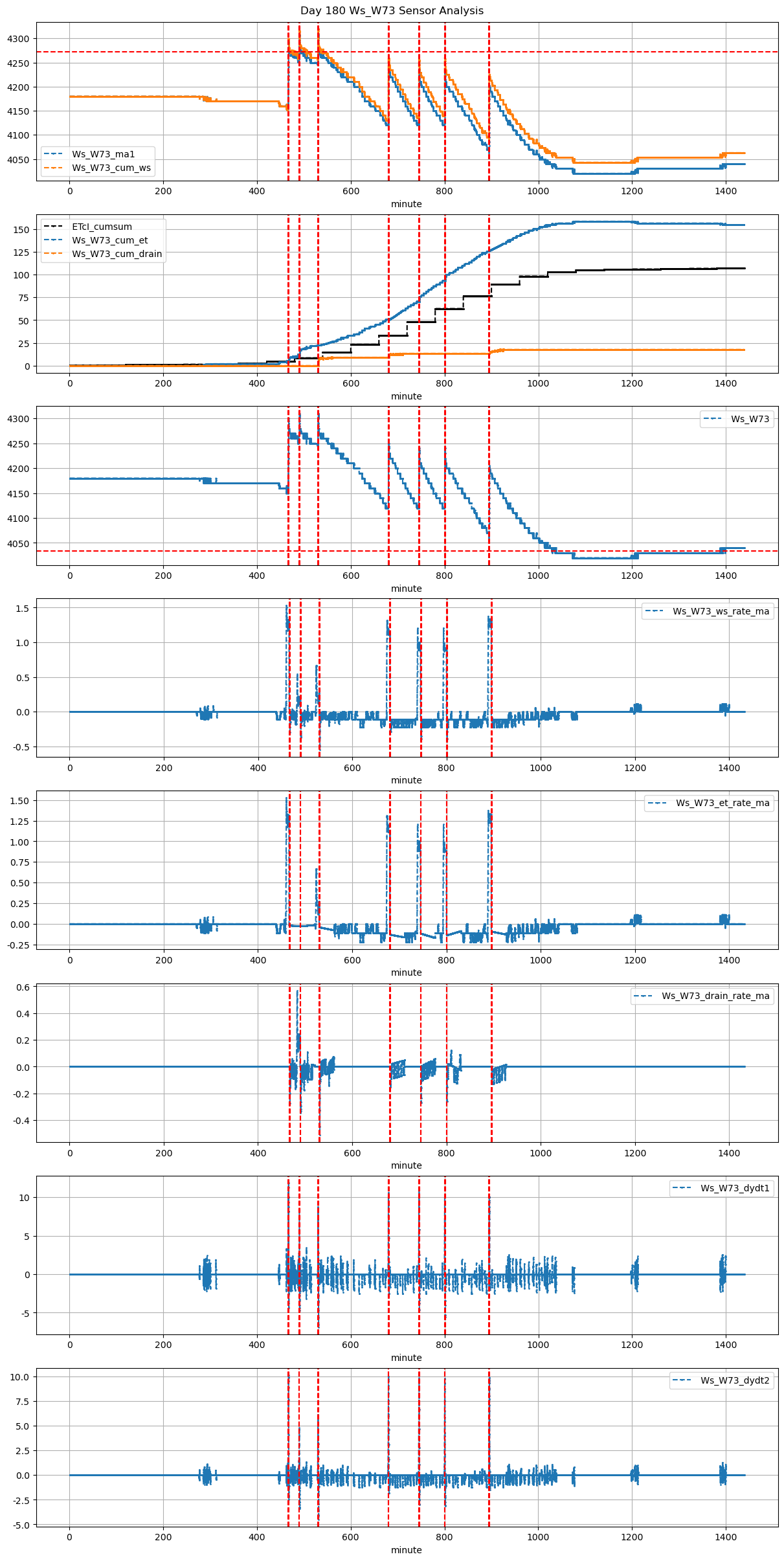

Figure figure_5.png

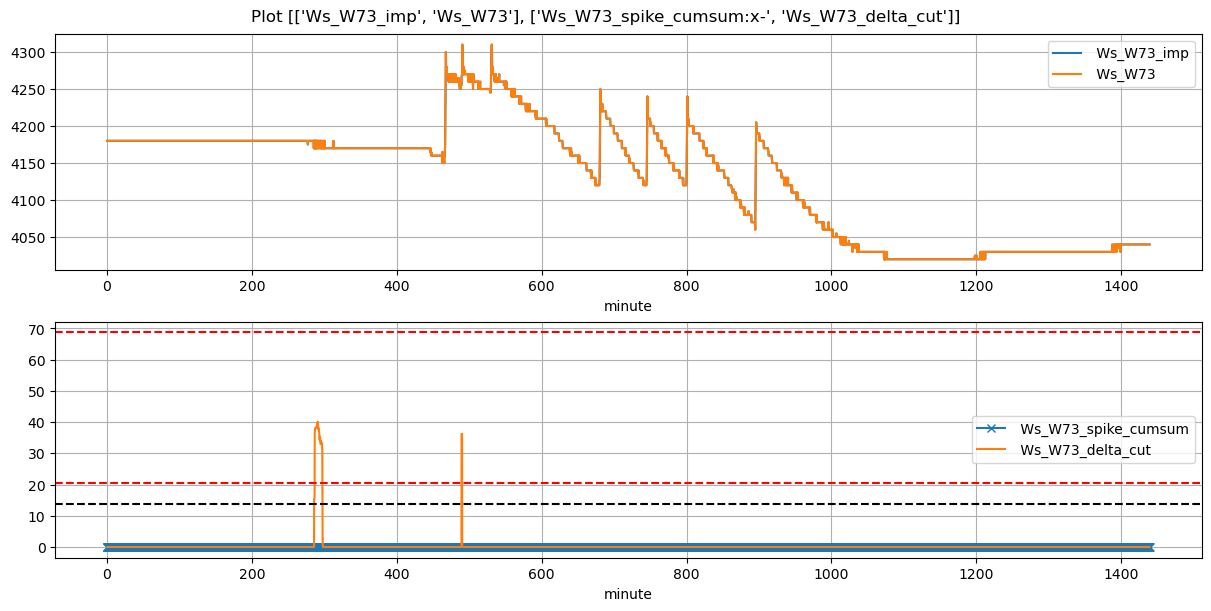

Figure figure_4.png
