Ws Sensor Analysis Report - Day 186

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 181.14 L
Avg Total Drain Amount: 61.62 L
Avg In-Fertigation Drain Amount: 19.98 L
Avg Post-Fertigation Drain Amount: 41.63 L
Avg Drainage Rate: 34.02%

Detail Section

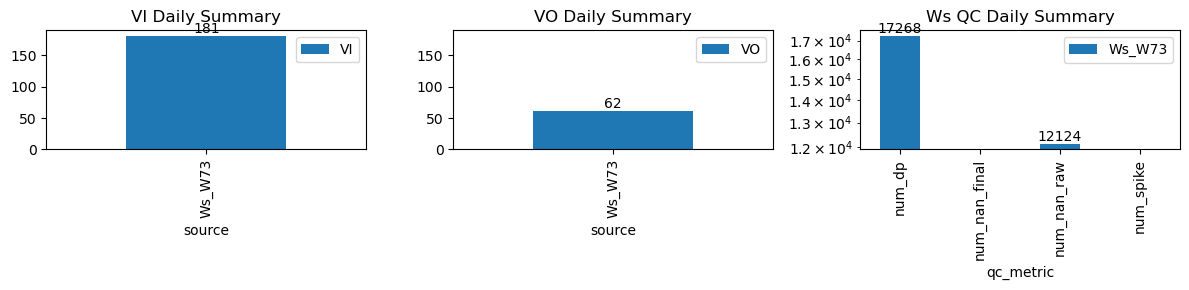

VI and VO Daily Summary

Summary Statistics - Ws_W73

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 181.14 L
Total Drain Amount: 61.62 L
In-Fertigation Drain Amount: 19.98 L
Post-Fertigation Drain Amount: 41.63 L
Drainage Rate: 34.02%

Ws Cleaning Summary Table - Ws_W73

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W73	17,268	12,124	0	0	0.00

Fertigation Events Details Table - Ws_W73

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-10 07:41:37+08:00	186	461	Ws_W73	0.676261	30.00	461.62	461.416667	462.80	463.333333	4028.000000	4175.666667	71	-0.019265	-0.026049	0.000000	0.331250	0.415962	29.533333	True	-12.2	32.0	29.533333	0.000000	0.000000	0.000000	600	1181	-0.024144	NaN
2026-04-10 08:20:00+08:00	186	500	Ws_W73	0.676261	28.83	500.00	499.750000	501.17	501.166667	4166.000000	4280.566667	70	-0.032439	-0.066805	0.000000	0.290976	0.327333	22.913333	True	-15.0	-0.2	24.360000	1.400000	4.470806	5.870806	300	4	-0.058299	4258.212638
2026-04-10 08:50:00+08:00	186	530	Ws_W73	0.676261	21.83	530.00	529.750000	531.17	531.166667	4243.000000	4324.466667	70	-0.062764	-0.126562	0.000000	0.213857	0.232762	16.293333	True	-15.0	-0.2	24.360000	4.430801	8.861602	13.292403	924	4	-0.116028	4280.158656
2026-04-10 09:13:57+08:00	186	553	Ws_W73	0.676261	30.00	553.95	553.750000	555.13	555.000000	4263.866667	4328.066667	71	-0.062764	-0.122870	0.000000	0.178095	0.180845	12.840000	True	-12.0	-7.8	24.708000	6.575466	13.150933	19.726399	1650	2	-0.117629	4262.312002
2026-04-10 09:50:01+08:00	186	590	Ws_W73	0.676261	30.00	590.02	589.833333	591.22	591.083333	4241.460000	4319.800000	72	-0.129060	-0.174023	-0.160561	0.216429	0.217611	15.668000	True	-11.2	-8.2	25.056000	3.742775	7.485551	11.228326	354	1	-0.080338	4282.372246
2026-04-10 10:30:01+08:00	186	630	Ws_W73	0.676261	30.00	630.02	629.833333	631.20	631.083333	4216.500000	4308.600000	71	-0.129060	-0.189547	-0.148566	0.255119	0.259437	18.420000	True	-11.2	-7.0	24.708000	3.832512	7.665023	11.497535	755	2	-0.059752	4270.274883
2026-04-10 12:15:01+08:00	186	735	Ws_W73	0.676261	30.00	735.02	734.833333	736.19	736.500000	4065.720000	4207.770000	70	-0.185346	-0.178040	-0.190576	0.346607	0.405857	28.410000	True	-11.2	18.6	28.410000	0.000000	0.000000	0.000000	9	1448	-0.020210	NaN

Figures - Ws_W73

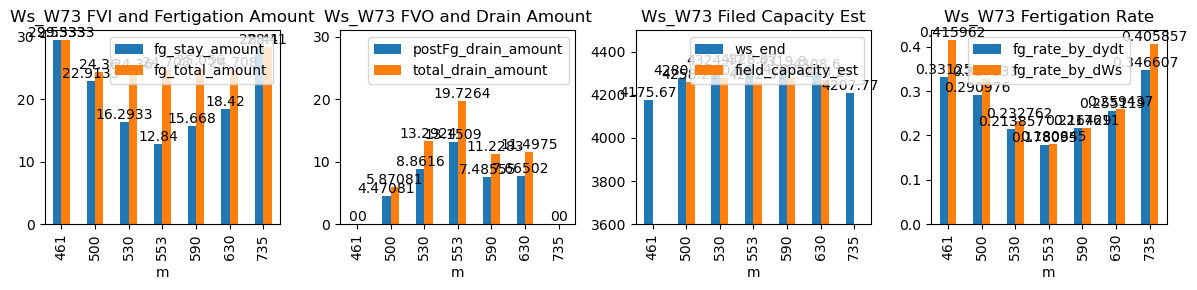

Figure figure_7.png

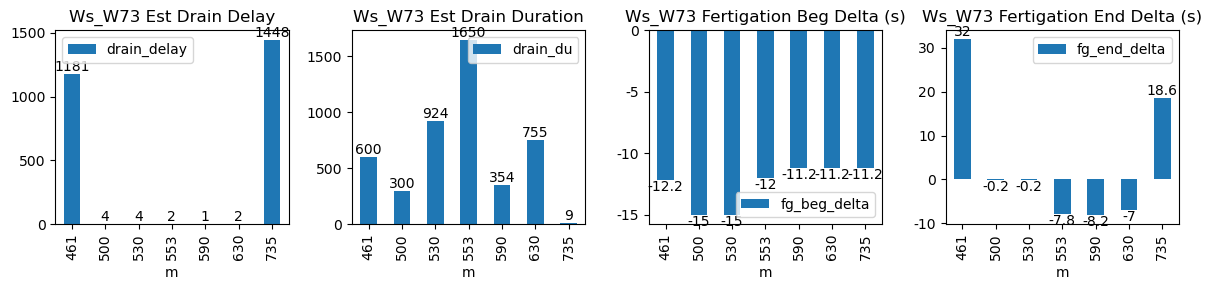

Figure figure_6.png

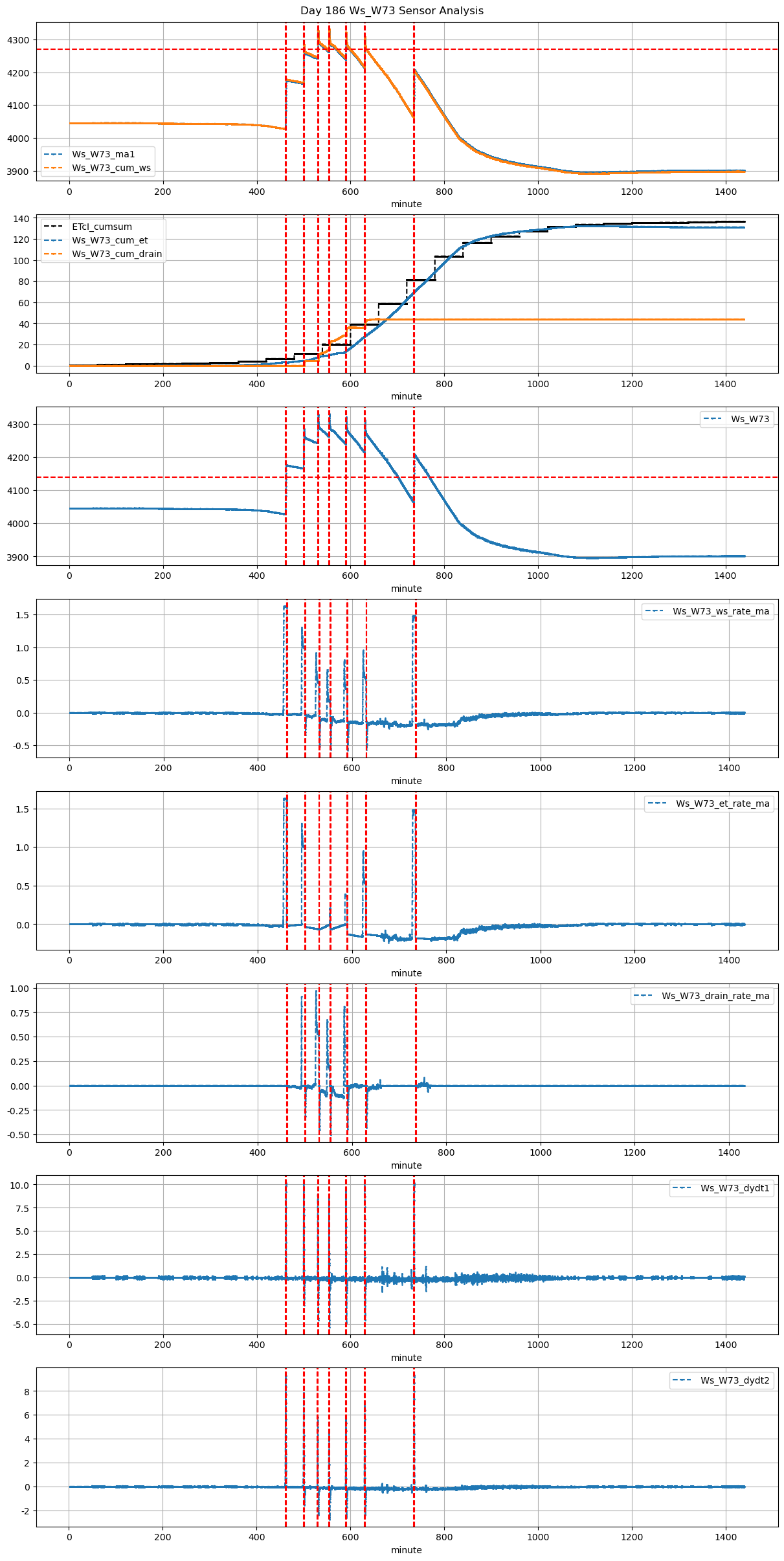

Figure figure_5.png

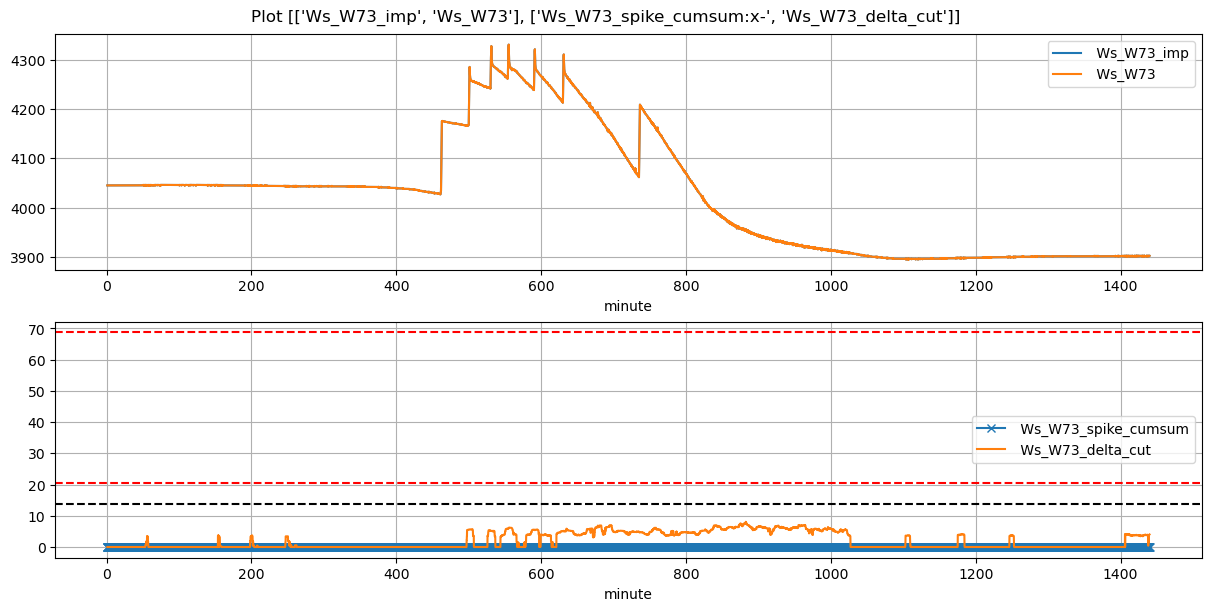

Figure figure_4.png
