Ws Sensor Analysis Report - Day 181

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 250.47 L
Avg Total Drain Amount: 67.74 L
Avg In-Fertigation Drain Amount: 17.66 L
Avg Post-Fertigation Drain Amount: 50.08 L
Avg Drainage Rate: 27.04%

Detail Section

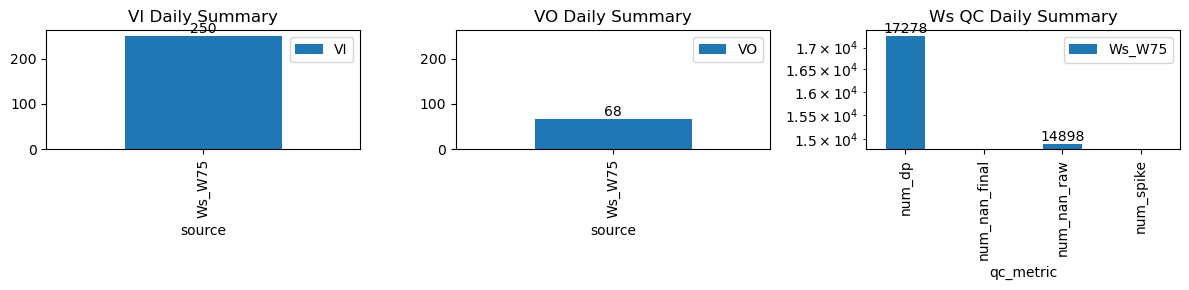

VI and VO Daily Summary

Summary Statistics - Ws_W75

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 250.47 L
Total Drain Amount: 67.74 L
In-Fertigation Drain Amount: 17.66 L
Post-Fertigation Drain Amount: 50.08 L
Drainage Rate: 27.04%

Ws Cleaning Summary Table - Ws_W75

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W75	17,278	14,898	0	0	0.00

Fertigation Events Details Table - Ws_W75

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-05 07:42:12+08:00	181	462	Ws_W75	2.133234	29.416667	462.20	462.083333	463.37	463.583333	3800.000000	3950.00	70	0.000000	-0.076852	0.000000	0.393125	0.428571	30.000000	True	-7.0	12.8	30.000000	0.000000	0.000000	0.000000	420	222	-0.111111	NaN
2026-04-05 08:13:56+08:00	181	493	Ws_W75	2.133234	30.000000	493.93	493.916667	494.61	494.750000	3933.583333	4025.00	41	-0.036285	-0.063889	-0.053241	0.380556	0.445935	18.283333	True	-0.8	8.4	18.283333	0.000000	2.408005	2.408005	125	13	-0.074239	4012.959977
2026-04-05 09:22:12+08:00	181	562	Ws_W75	2.133234	30.000000	562.20	562.083333	563.37	563.500000	3954.000000	4076.25	70	-0.102008	-0.233693	-0.126066	0.367500	0.349286	24.450000	True	-7.0	7.8	28.630000	4.050261	8.100523	12.150784	675	12	-0.209760	4035.747385
2026-04-05 10:26:34+08:00	181	626	Ws_W75	2.133234	27.166667	626.57	626.250000	627.75	627.833333	3940.000000	4073.75	71	-0.118290	-0.209494	0.000000	0.384875	0.376761	26.750000	True	-19.2	5.0	29.039000	2.300000	8.922368	11.222368	325	9	-0.158784	4029.138159
2026-04-05 10:55:00+08:00	181	655	Ws_W75	2.133234	30.000000	655.00	654.916667	656.17	656.166667	3984.777778	4098.75	70	-0.107235	-0.205607	-0.177486	0.371875	0.325635	22.794444	True	-5.0	-0.2	28.630000	5.432257	10.864513	16.296770	129	4	-0.151801	4044.427435
2026-04-05 11:54:24+08:00	181	714	Ws_W75	2.133234	30.000000	714.40	714.333333	715.57	715.666667	3934.666667	4071.25	70	-0.192156	-0.213272	-0.156662	0.398750	0.390238	27.316667	True	-4.0	5.8	28.630000	1.300000	5.997514	7.297514	99	10	-0.128942	4041.262430
2026-04-05 12:45:00+08:00	181	765	Ws_W75	2.133234	30.000000	765.00	765.000000	766.17	766.250000	3945.888889	4076.25	70	-0.169881	-0.226852	-0.172942	0.400694	0.372460	26.072222	True	0.0	4.8	28.630000	2.600000	7.559058	10.159058	114	9	-0.198081	4038.454711
2026-04-05 13:35:00+08:00	181	815	Ws_W75	2.133234	30.000000	815.00	815.000000	816.17	816.250000	3939.125000	4067.50	70	-0.166875	-0.197840	-0.204321	0.406250	0.366786	25.675000	True	0.0	4.8	28.630000	1.976946	3.953891	5.930837	109	9	-0.154032	4047.730544
2026-04-05 14:59:22+08:00	181	899	Ws_W75	2.133234	30.000000	899.37	899.333333	900.54	900.666667	3890.000000	4040.00	70	-0.063959	-0.122840	-0.069753	0.424375	0.428571	30.000000	True	-2.2	7.6	30.000000	0.000000	2.270514	2.270514	354	12	-0.158079	4028.647431

Figures - Ws_W75

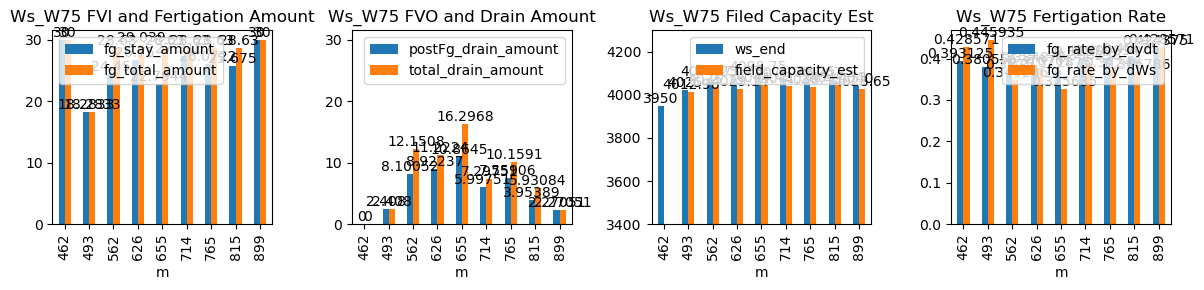

Figure figure_7.png

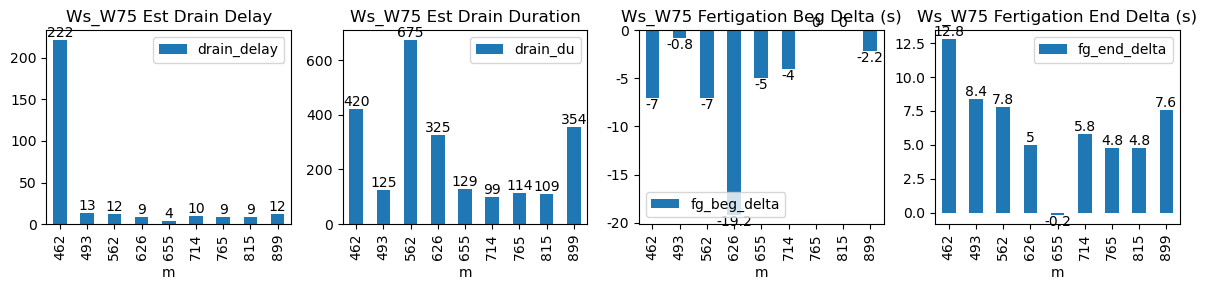

Figure figure_6.png

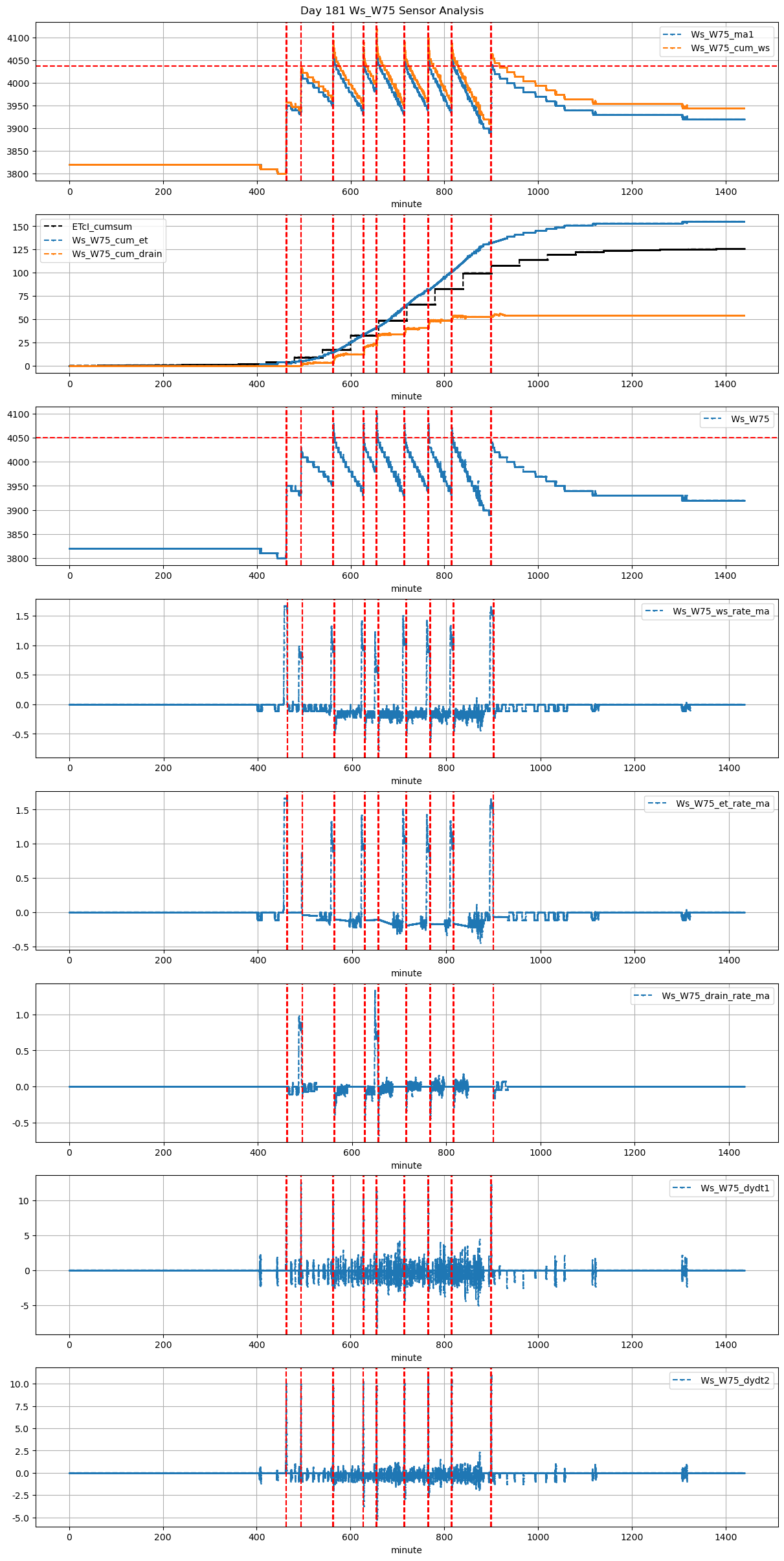

Figure figure_5.png

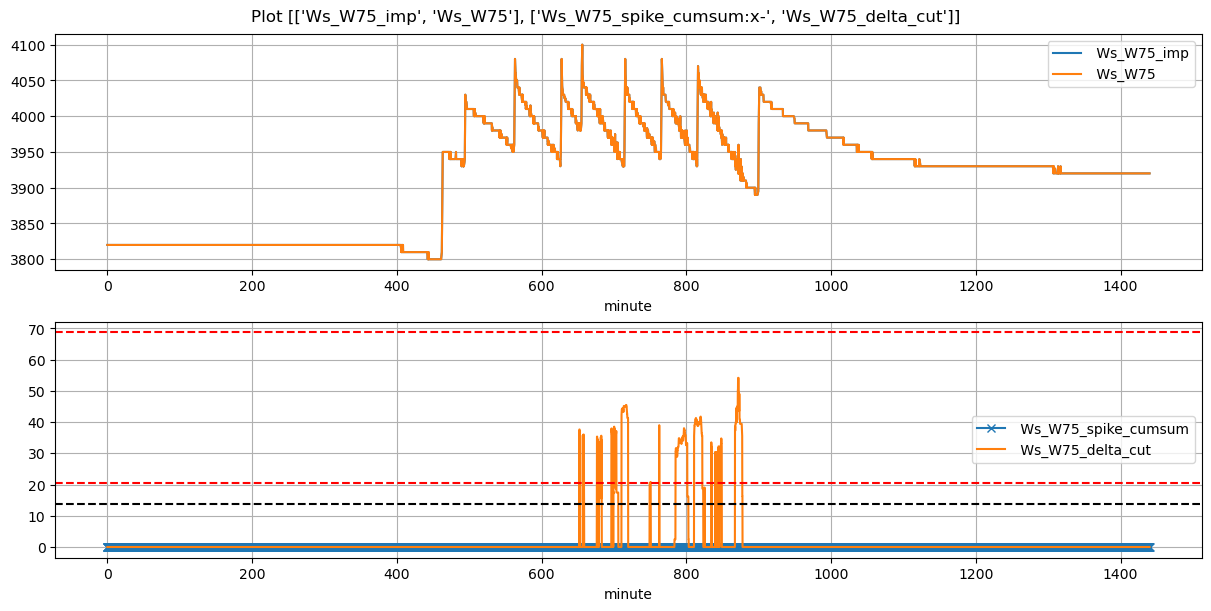

Figure figure_4.png
