Ws Sensor Analysis Report - Day 186

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 173.32 L
Avg Total Drain Amount: 40.62 L
Avg In-Fertigation Drain Amount: 13.54 L
Avg Post-Fertigation Drain Amount: 27.08 L
Avg Drainage Rate: 23.44%

Detail Section

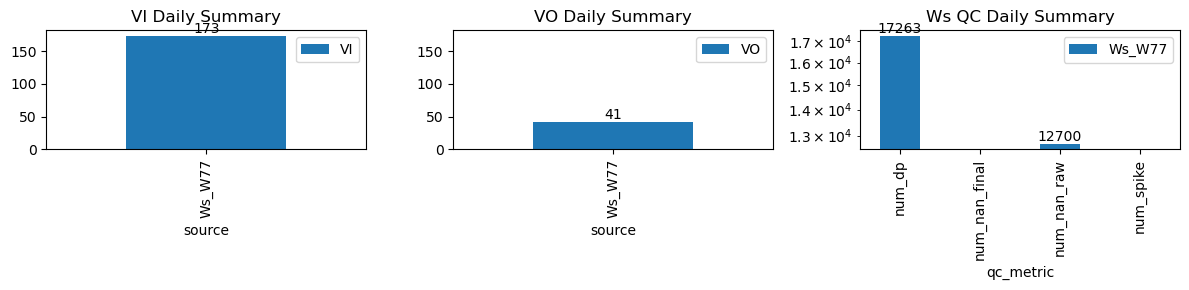

VI and VO Daily Summary

Summary Statistics - Ws_W77

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 173.32 L
Total Drain Amount: 40.62 L
In-Fertigation Drain Amount: 13.54 L
Post-Fertigation Drain Amount: 27.08 L
Drainage Rate: 23.44%

Ws Cleaning Summary Table - Ws_W77

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W77	17,263	12,700	0	0	0.00

Fertigation Events Details Table - Ws_W77

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-10 07:39:25+08:00	186	459	Ws_W77	0.592146	30	459.42	459.166667	460.60	461.166667	4313.000000	4468.000000	71	-0.016332	-0.019259	-0.023323	0.343419	0.436620	31.000000	True	-15.2	34.0	31.00	0.000000	0.000000	0.000000	244	573	-0.012862	NaN
2026-04-10 08:22:12+08:00	186	502	Ws_W77	0.592146	30	502.20	502.000000	503.38	503.416667	4458.000000	4578.700000	71	-0.020204	-0.081327	-0.059321	0.309167	0.340000	24.140000	True	-12.0	2.2	28.40	3.226386	6.452772	9.679158	855	7	-0.078242	4546.436139
2026-04-10 09:05:01+08:00	186	545	Ws_W77	0.592146	30	545.02	544.750000	546.20	546.166667	4524.085714	4615.250000	71	-0.070537	-0.159599	-0.133889	0.237964	0.256801	18.232857	True	-16.2	-2.0	28.40	4.548149	9.096298	13.644446	330	2	-0.134820	4569.768512
2026-04-10 10:20:01+08:00	186	620	Ws_W77	0.592146	30	620.02	619.833333	621.20	621.250000	4466.120000	4585.866667	71	-0.141188	-0.179691	-0.164141	0.313798	0.337315	23.949333	True	-11.2	3.0	28.40	3.043414	6.086829	9.130243	184	7	-0.052921	4555.432524
2026-04-10 11:10:01+08:00	186	670	Ws_W77	0.592146	30	670.02	669.833333	671.19	671.166667	4464.300000	4580.200000	70	-0.168932	-0.203913	-0.197609	0.308083	0.331143	23.180000	True	-11.2	-1.4	28.00	2.723414	5.446829	8.170243	120	3	-0.111385	4552.965857
2026-04-10 14:15:00+08:00	186	855	Ws_W77	0.592146	30	855.00	854.750000	856.17	856.416667	4172.800000	4318.400000	70	-0.117509	-0.084475	-0.067449	0.350476	0.416000	29.120000	True	-15.0	14.8	29.12	0.000000	0.000000	0.000000	25	314	-0.012863	NaN

Figures - Ws_W77

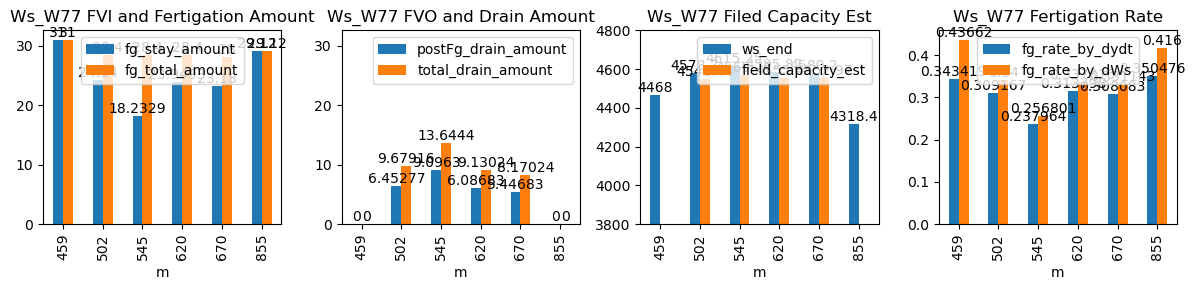

Figure figure_7.png

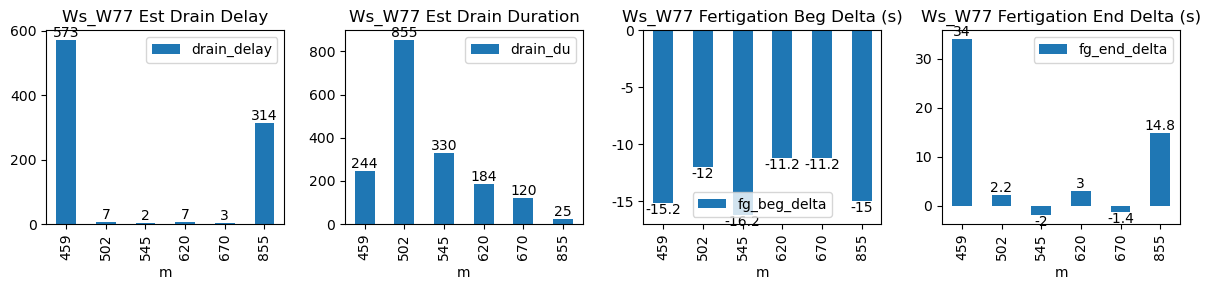

Figure figure_6.png

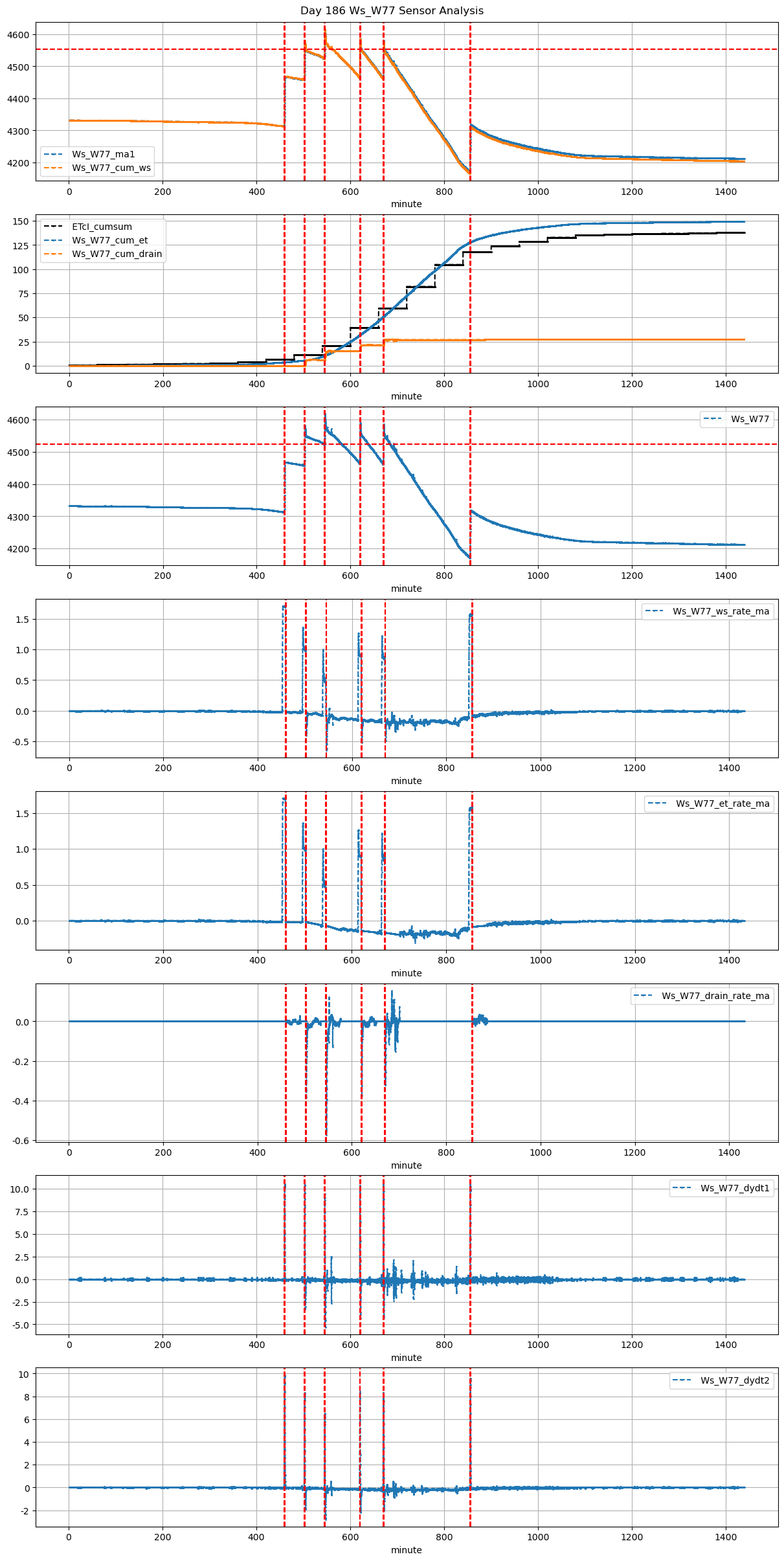

Figure figure_5.png

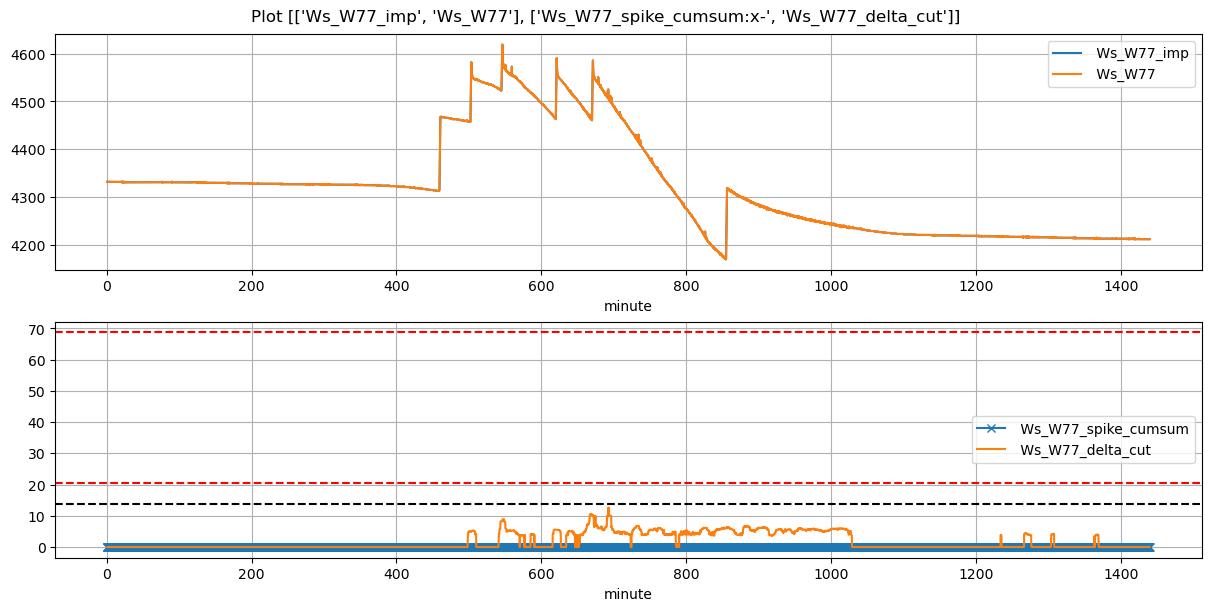

Figure figure_4.png
