Ws Sensor Analysis Report - Day 164

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 150.31 L
Avg Total Drain Amount: 52.75 L
Avg In-Fertigation Drain Amount: 10.20 L
Avg Post-Fertigation Drain Amount: 42.55 L
Avg Drainage Rate: 35.09%

Detail Section

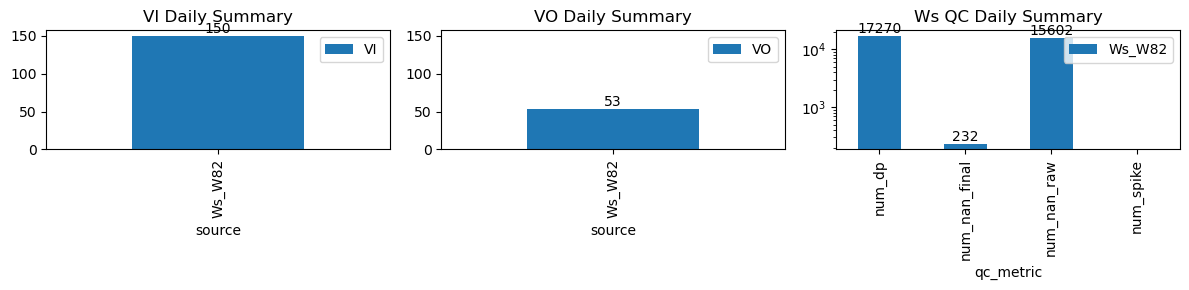

VI and VO Daily Summary

Summary Statistics - Ws_W82

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 150.31 L
Total Drain Amount: 52.75 L
In-Fertigation Drain Amount: 10.20 L
Post-Fertigation Drain Amount: 42.55 L
Drainage Rate: 35.09%

Ws Cleaning Summary Table - Ws_W82

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W82	17,270	15,602	232	0	0.00

Fertigation Events Details Table - Ws_W82

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-03-19 08:20:00+08:00	164	500	Ws_W82	2.995058	29.833333	500.00	499.750000	500.67	501.166667	4090.0	4190.000	40	0.000000	-0.001852	0.000000	0.329554	0.500000	20.000	True	-15.0	29.8	20.00000	0.0	0.000000	0.000000	450.0	489.0	-0.105469	NaN
2026-03-19 08:51:13+08:00	164	531	Ws_W82	2.995058	27.583333	531.22	530.916667	531.95	532.416667	4180.0	4290.000	44	-0.020809	-0.085185	0.000000	0.342500	0.500000	22.000	True	-18.2	28.0	22.00000	0.0	3.447932	3.447932	315.0	32.0	-0.137921	4272.760339
2026-03-19 09:20:00+08:00	164	560	Ws_W82	2.995058	29.583333	560.00	559.916667	561.17	561.416667	4263.0	4402.500	70	-0.020809	-0.137654	0.000000	0.357500	0.398571	27.900	True	-5.0	14.8	27.90000	0.0	5.164129	5.164129	495.0	19.0	-0.186656	4376.679355
2026-03-19 09:51:14+08:00	164	591	Ws_W82	2.995058	27.500000	591.23	590.416667	592.41	592.500000	4360.0	4475.000	71	-0.053436	-0.166975	0.000000	0.278846	0.323944	23.000	True	-48.8	5.4	26.67825	3.7	11.605658	15.305658	379.0	10.0	-0.279897	4416.971712
2026-03-19 10:20:01+08:00	164	620	Ws_W82	2.995058	30.000000	620.02	619.916667	621.19	621.166667	4390.0	4496.875	70	-0.053436	-0.354885	-0.053436	0.335417	0.305357	21.375	False	-6.2	-1.4	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2026-03-19 11:26:14+08:00	164	686	Ws_W82	2.995058	27.500000	686.23	686.166667	687.41	687.500000	4360.0	4483.750	71	-0.124345	-0.263333	0.000000	0.401250	0.348592	24.750	True	-3.8	5.4	26.67825	1.9	11.286698	13.186698	259.0	10.0	-0.321790	4427.316508
2026-03-19 11:55:01+08:00	164	715	Ws_W82	2.995058	30.000000	715.02	714.916667	716.22	716.250000	4390.0	4502.500	72	-0.075775	-0.163683	-0.098560	0.334643	0.312500	22.500	True	-6.2	1.8	27.05400	4.6	11.043751	15.643751	279.0	6.0	-0.138012	4447.281243

Figures - Ws_W82

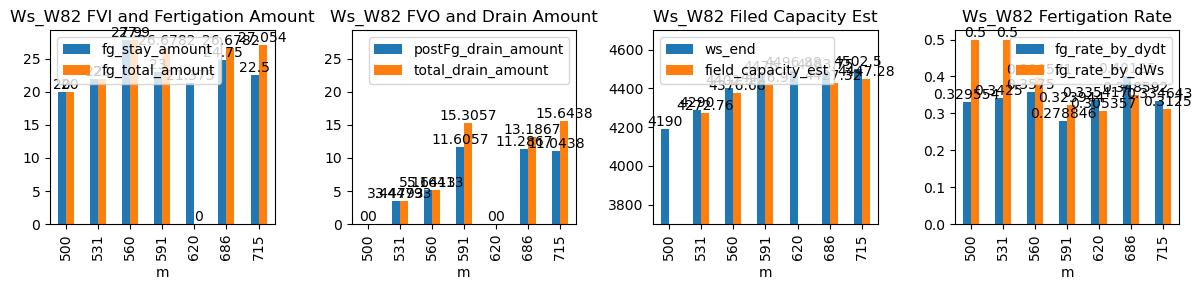

Figure figure_7.png

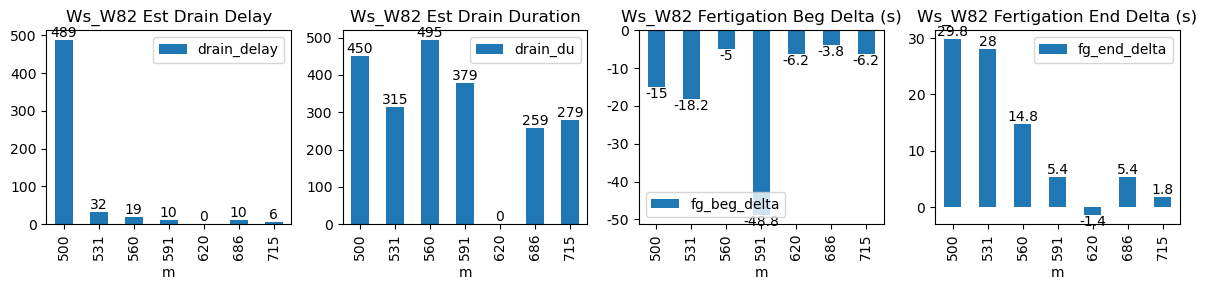

Figure figure_6.png

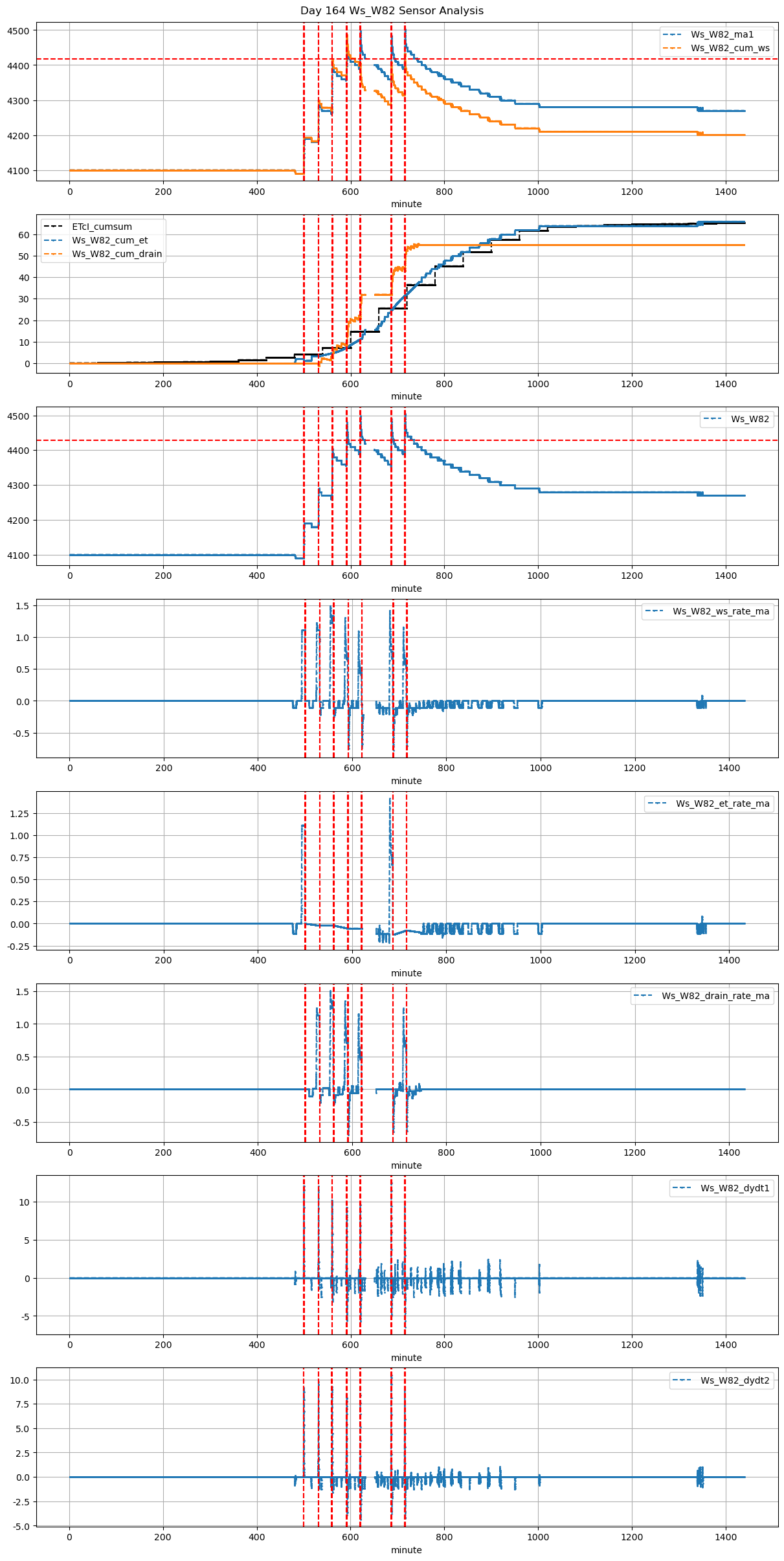

Figure figure_5.png

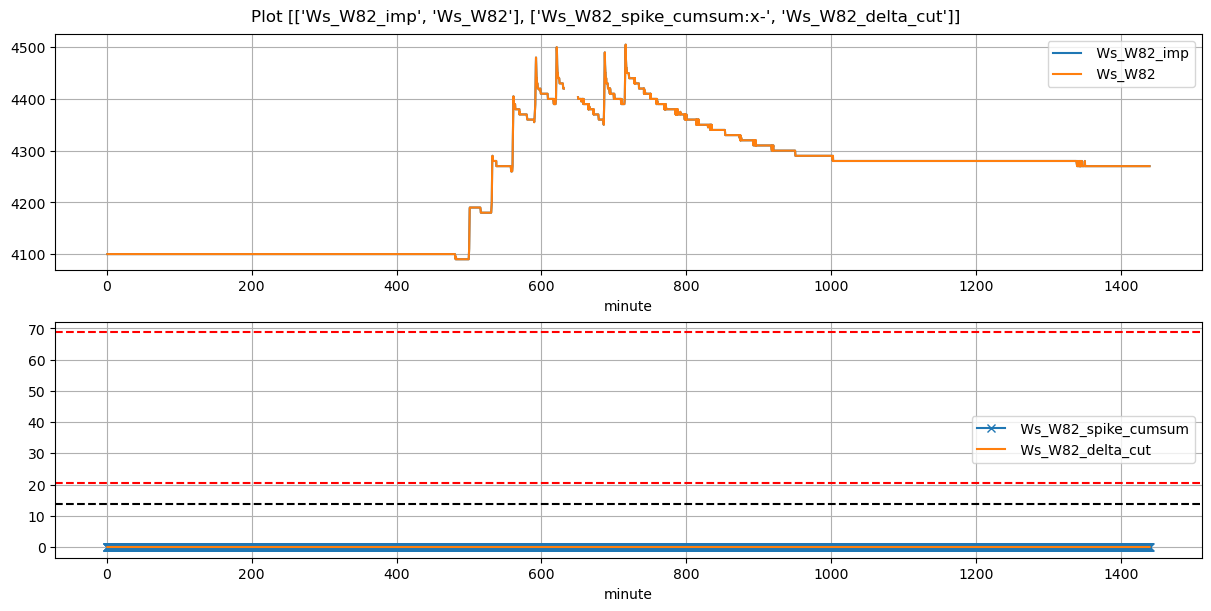

Figure figure_4.png
