Ws Sensor Analysis Report - Day 177

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 216.37 L
Avg Total Drain Amount: 63.61 L
Avg In-Fertigation Drain Amount: 21.03 L
Avg Post-Fertigation Drain Amount: 42.58 L
Avg Drainage Rate: 29.40%

Detail Section

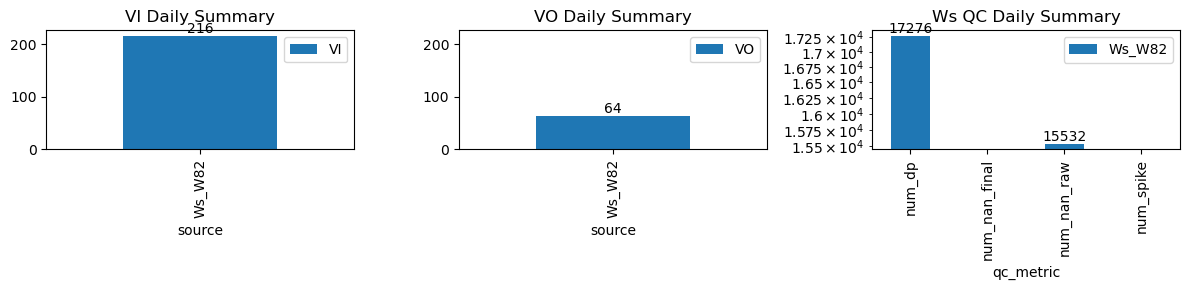

VI and VO Daily Summary

Summary Statistics - Ws_W82

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 216.37 L
Total Drain Amount: 63.61 L
In-Fertigation Drain Amount: 21.03 L
Post-Fertigation Drain Amount: 42.58 L
Drainage Rate: 29.40%

Ws Cleaning Summary Table - Ws_W82

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W82	17,276	15,532	0	0	0.00

Fertigation Events Details Table - Ws_W82

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-01 07:45:00+08:00	177	465	Ws_W82	1.84891	29.666667	465.00	464.750000	466.17	466.333333	5220.000000	5402.5	70	-0.104401	-0.081970	0.000000	0.416905	0.521429	36.500000	True	-15.0	9.8	36.500	0.000000	0.000000	0.000000	45	514	-0.047066	NaN
2026-04-01 08:16:10+08:00	177	496	Ws_W82	1.84891	30.000000	496.17	495.916667	497.34	497.250000	5390.000000	5511.0	70	-0.018873	-0.098765	-0.014506	0.317143	0.345714	24.200000	True	-15.2	-5.4	35.770	5.777183	11.554367	17.331550	244	4	-0.269199	5453.228166
2026-04-01 09:15:00+08:00	177	555	Ws_W82	1.84891	30.000000	555.00	554.666667	556.17	556.000000	5420.545455	5533.0	70	-0.042787	-0.129475	-0.014815	0.290325	0.321299	22.490909	True	-20.0	-10.2	35.770	5.608840	11.217679	16.826519	129	4	-0.158153	5476.911604
2026-04-01 11:15:00+08:00	177	675	Ws_W82	1.84891	30.000000	675.00	674.750000	676.17	676.166667	5340.000000	5498.5	70	-0.161725	-0.220062	-0.170679	0.399643	0.452857	31.700000	True	-15.0	-0.2	35.770	4.100000	8.706425	12.806425	120	4	-0.080895	5454.967873
2026-04-01 12:27:14+08:00	177	747	Ws_W82	1.84891	30.000000	747.23	747.000000	748.40	748.500000	5310.000000	5472.0	70	-0.170225	-0.172531	-0.137757	0.397571	0.462857	32.400000	True	-13.8	6.0	35.770	2.387474	4.774949	7.162423	99	11	-0.154560	5448.125256
2026-04-01 13:32:11+08:00	177	812	Ws_W82	1.84891	30.000000	812.18	811.916667	813.38	813.416667	5330.000000	5498.0	72	-0.163679	-0.164815	-0.149383	0.409796	0.466667	33.600000	True	-15.8	2.2	36.792	3.160978	6.321955	9.482933	95	7	-0.072336	5466.390224

Figures - Ws_W82

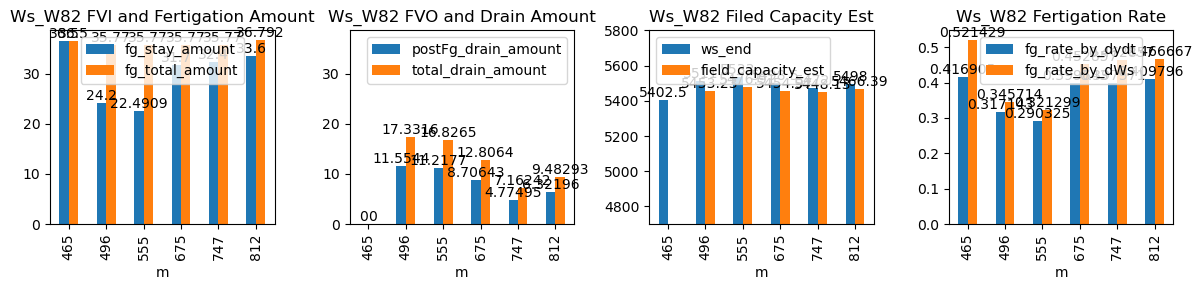

Figure figure_7.png

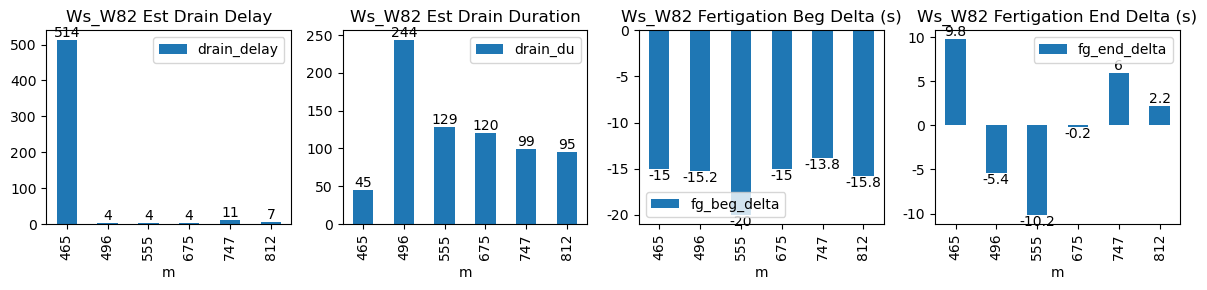

Figure figure_6.png

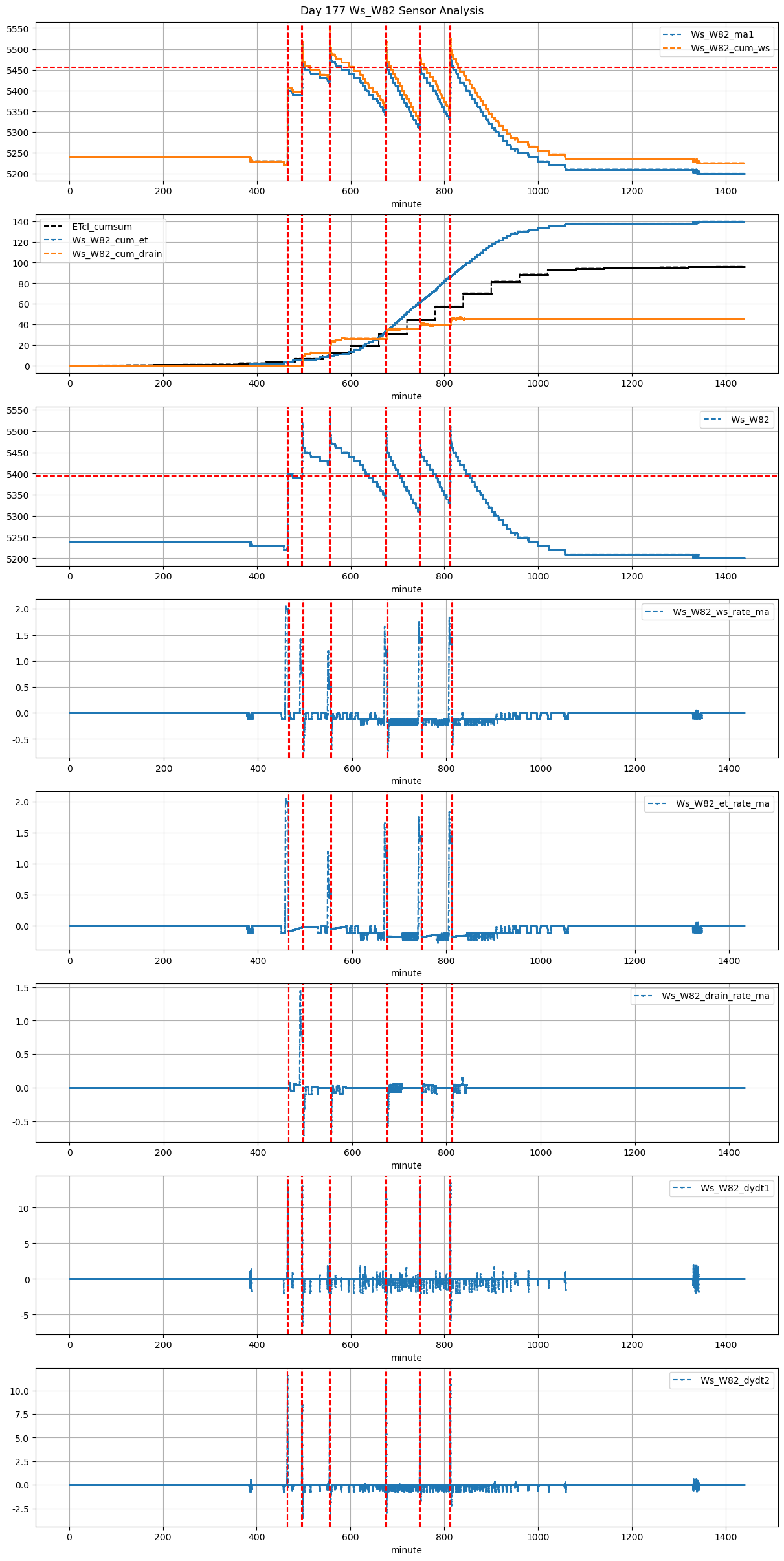

Figure figure_5.png

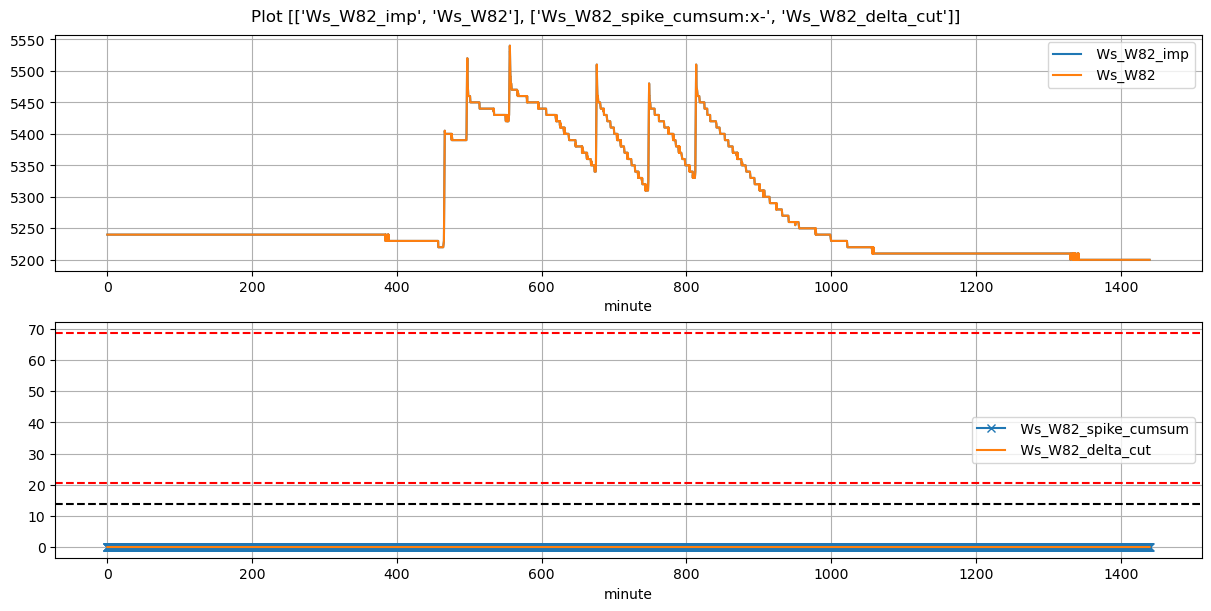

Figure figure_4.png
