Ws Sensor Analysis Report - Day 32

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 2
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 2357.82 L
Avg Total Drain Amount: 570.56 L
Avg In-Fertigation Drain Amount: 48.10 L
Avg Post-Fertigation Drain Amount: 522.46 L
Avg Drainage Rate: 24.20%

Detail Section

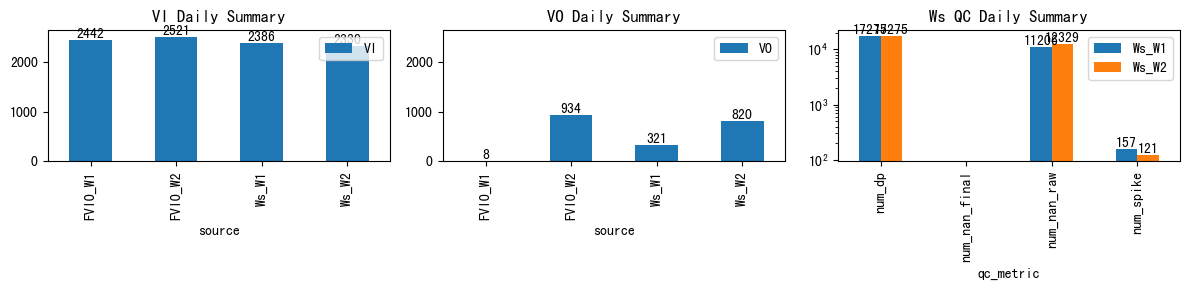

VI and VO Daily Summary

Summary Statistics - Ws_W1

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2385.80 L
Total Drain Amount: 320.74 L
In-Fertigation Drain Amount: 15.60 L
Post-Fertigation Drain Amount: 305.14 L
Drainage Rate: 13.44%

Ws Cleaning Summary Table - Ws_W1

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W1	17,275	11,206	0	157	7.94

Fertigation Events Details Table - Ws_W1

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-04-02 09:00:00+08:00	32	540	Ws_W1	2.166106	54.833333	540.0	539.416667	545.02	545.166667	17287.166667	17626.0	301	-0.075401	-0.120000	0.000000	1.172952	1.125692	338.833333	True	-35.0	8.8	338.833333	0.0	0.000000	0.000000	594	538	-0.574388	NaN	356.0	0.0	NaN	NaN
2026-04-02 10:00:00+08:00	32	600	Ws_W1	2.166106	53.000000	600.0	599.583333	605.02	607.000000	17450.000000	17797.0	301	-0.082345	-0.260700	0.000000	1.117333	1.152824	347.000000	True	-25.0	118.8	347.000000	0.0	0.000000	0.000000	25	398	-0.498464	NaN	351.0	0.0	NaN	NaN
2026-04-02 11:00:00+08:00	32	660	Ws_W1	2.166106	52.583333	660.0	659.750000	665.03	667.416667	17574.333333	17898.0	302	-0.299001	-0.482099	0.000000	1.047333	1.071744	323.666667	True	-15.0	143.2	332.200000	8.5	35.253933	43.753933	75	418	-0.686460	17862.746067	348.0	0.0	NaN	NaN
2026-04-02 12:00:00+08:00	32	720	Ws_W1	2.166106	51.666667	720.0	719.500000	725.02	728.333333	17650.000000	17974.0	301	-0.275281	-0.351235	0.000000	1.020000	1.076412	324.000000	True	-30.0	198.8	331.100000	7.1	32.665622	39.765622	165	523	-0.562679	17941.334378	341.0	0.0	NaN	NaN
2026-04-02 13:00:00+08:00	32	780	Ws_W1	2.166106	55.000000	780.0	778.000000	785.00	785.000000	17760.000000	18095.0	300	-0.183833	-0.419444	0.000000	1.090000	1.116667	335.000000	True	-120.0	0.0	335.000000	0.0	70.295118	70.295118	465	780	-0.576408	18024.704882	344.0	0.0	NaN	NaN
2026-04-02 14:00:00+08:00	32	840	Ws_W1	2.166106	54.916667	840.0	839.583333	845.00	845.083333	17845.000000	18190.0	300	-0.155431	-0.495679	0.000000	1.145619	1.150000	345.000000	True	-25.0	5.0	345.000000	0.0	75.427326	75.427326	390	9	-0.681811	18114.572674	354.0	0.0	NaN	NaN
2026-04-02 15:00:00+08:00	32	900	Ws_W1	2.166106	60.000000	900.0	899.583333	905.00	905.750000	17953.333333	18310.0	300	-0.112724	-0.595370	-0.357716	1.067333	1.188889	356.666667	True	-25.0	45.0	356.666667	0.0	91.502696	91.502696	514	320	-0.783648	18218.497304	348.0	8.0	NaN	NaN

Figures - Ws_W1

Figure figure_7.png

Figure figure_6.png

Figure figure_5.png

Figure figure_3.png

Figure figure_2.png

Summary Statistics - Ws_W2

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2329.83 L
Total Drain Amount: 820.38 L
In-Fertigation Drain Amount: 80.61 L
Post-Fertigation Drain Amount: 739.77 L
Drainage Rate: 35.21%

Ws Cleaning Summary Table - Ws_W2

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W2	17,275	12,329	0	121	0.00

Fertigation Events Details Table - Ws_W2

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-04-02 09:00:00+08:00	32	540	Ws_W2	1.668841	54.666667	540.0	539.583333	545.02	545.333333	14738.428571	15053.000000	301	-0.180970	-0.152881	0.000000	1.117400	1.045088	314.571429	True	-25.0	18.8	331.100000	0.00000	0.000000	0.000000	34	903	-0.249445	NaN	NaN	NaN	350.0	4.0
2026-04-02 10:00:00+08:00	32	600	Ws_W2	1.668841	54.500000	600.0	599.583333	605.02	605.500000	14925.500000	15245.000000	301	-0.087646	-0.195473	0.000000	1.057667	1.061462	319.500000	True	-25.0	28.8	331.100000	11.00541	22.010820	33.016229	114	43	-0.297151	15222.989180	NaN	NaN	363.0	8.0
2026-04-02 11:00:00+08:00	32	660	Ws_W2	1.668841	54.500000	660.0	659.416667	665.03	665.500000	15101.600000	15416.000000	302	-0.184977	-0.620679	0.000000	1.063333	1.041060	314.400000	True	-35.0	28.2	332.200000	17.80000	96.629242	114.429242	650	358	-0.714016	15319.370758	NaN	NaN	363.0	158.0
2026-04-02 12:00:00+08:00	32	720	Ws_W2	1.668841	54.833333	720.0	720.000000	725.02	725.166667	15120.000000	15435.333333	301	-0.276321	-0.826106	0.000000	1.056000	1.047619	315.333333	True	0.0	8.8	331.100000	15.80000	105.666500	121.466500	1020	103	-0.667319	15329.666833	NaN	NaN	366.0	179.0
2026-04-02 13:00:00+08:00	32	780	Ws_W2	1.668841	54.333333	780.0	779.583333	785.00	785.666667	15120.000000	15424.666667	300	-0.294424	-0.820988	0.000000	1.078000	1.015556	304.666667	True	-25.0	40.0	330.000000	25.30000	123.142989	148.442989	1085	60	-0.651540	15301.523678	NaN	NaN	362.0	188.0
2026-04-02 14:00:00+08:00	32	840	Ws_W2	1.668841	54.666667	840.0	839.750000	845.00	845.333333	15106.666667	15451.000000	300	-0.243862	-0.833333	0.000000	1.061667	1.147778	344.333333	True	-15.0	20.0	344.333333	0.00000	151.475218	151.475218	1530	150	-0.661223	15299.524782	NaN	NaN	360.0	192.0
2026-04-02 15:00:00+08:00	32	900	Ws_W2	1.668841	60.000000	900.0	899.500000	905.00	905.583333	15132.666667	15452.000000	300	-0.166890	-1.095679	-0.189727	1.050000	1.064444	319.333333	True	-30.0	35.0	330.000000	10.70000	240.850218	251.550218	2175	170	-0.997624	15211.149782	NaN	NaN	357.0	205.0

Figures - Ws_W2

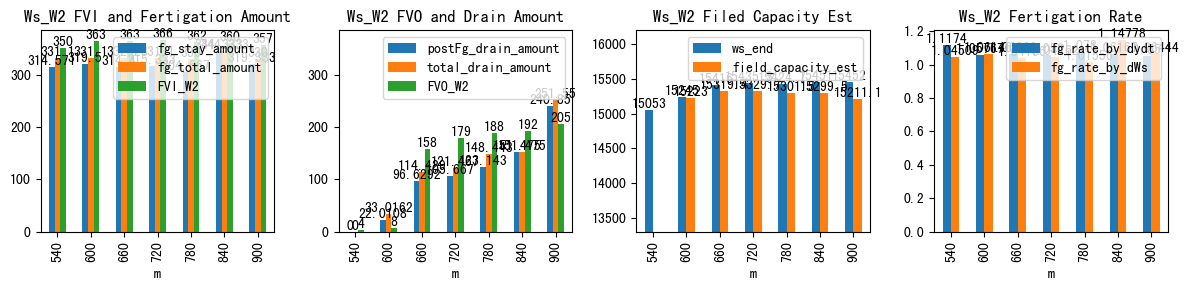

Figure figure_10.png

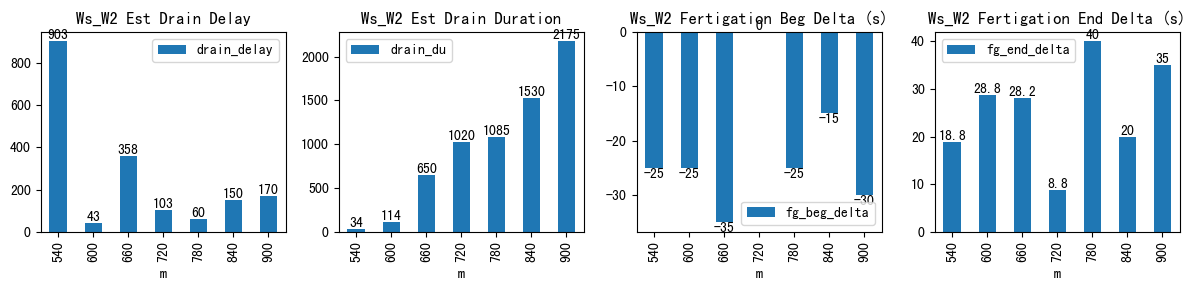

Figure figure_9.png

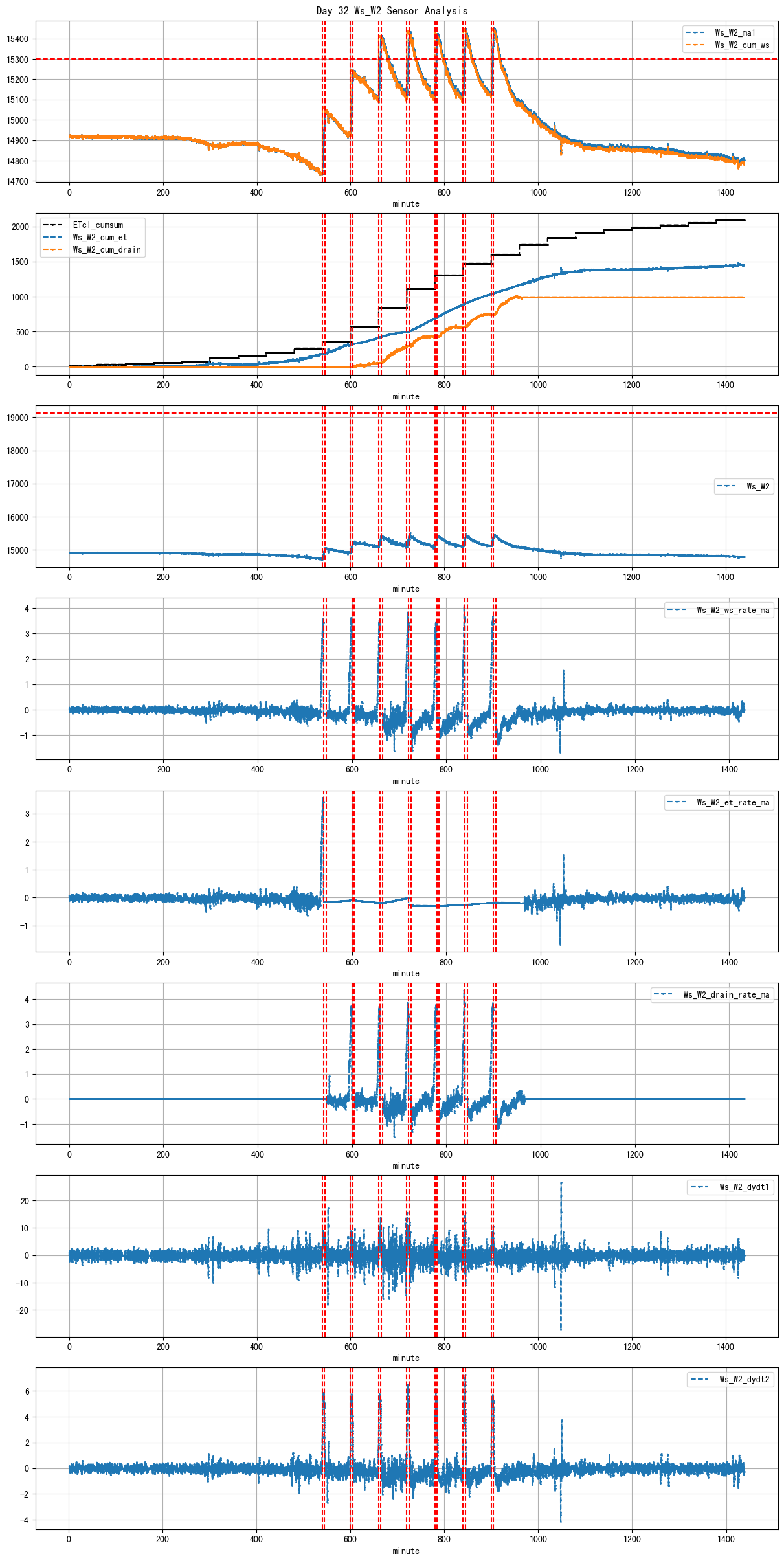

Figure figure_8.png

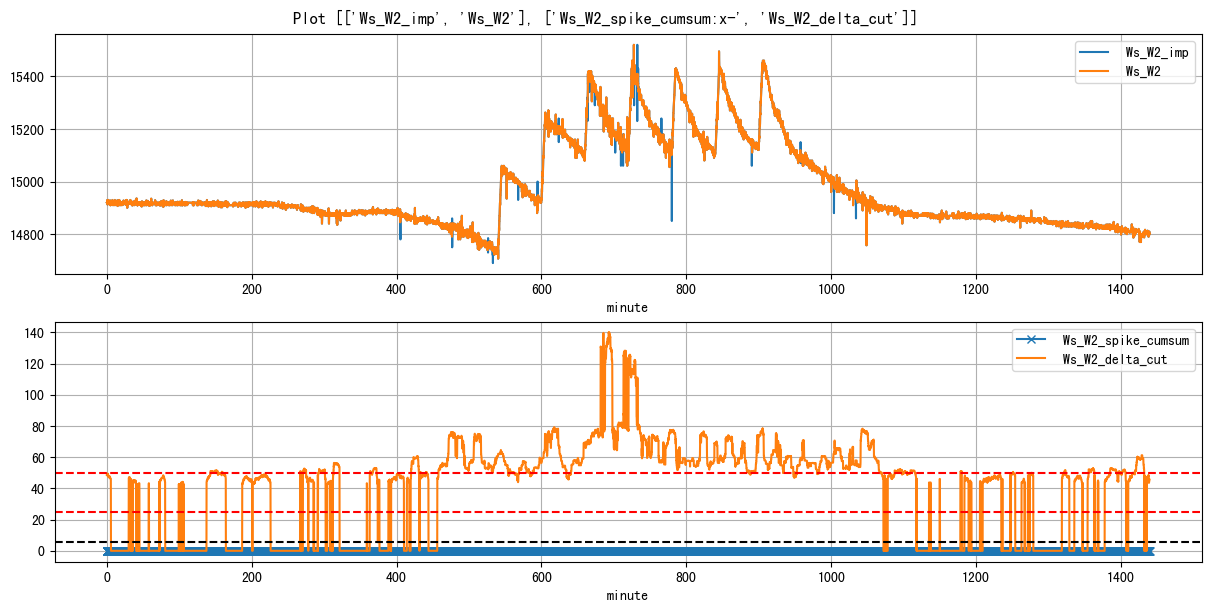

Figure figure_4.png

Figure figure_2.png
