Ws Sensor Analysis Report - Day 102

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 140.81 L
Avg Total Drain Amount: 21.61 L
Avg In-Fertigation Drain Amount: 0.40 L
Avg Post-Fertigation Drain Amount: 21.21 L
Avg Drainage Rate: 15.34%

Detail Section

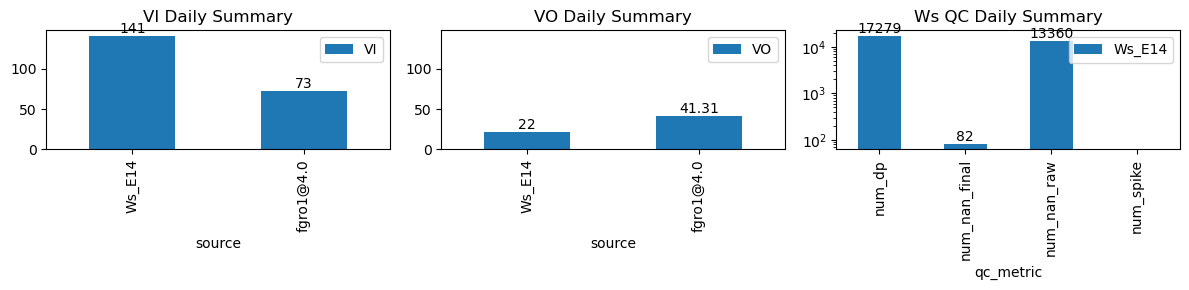

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 140.81 L
Total Drain Amount: 21.61 L
In-Fertigation Drain Amount: 0.40 L
Post-Fertigation Drain Amount: 21.21 L
Drainage Rate: 15.34%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,279	13,360	82	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-01-16 08:57:24+08:00	102	537	Ws_E14	0.418046	30	537.4	537.833333	538.0	539.000000	14283.000000	14382.0	36	-0.027014	-0.055324	-0.038056	0.403095	0.550000	19.800000	True	26.0	60.0	20.016	0.0	0.000000	0.000000	10	114	-0.238960	NaN	NaN	NaN
2026-01-16 09:55:00+08:00	102	595	Ws_E14	0.418046	30	595.0	595.416667	595.6	597.000000	14356.000000	14458.0	36	-0.028743	-0.077361	-0.078403	0.365238	0.566667	20.400000	True	25.0	84.0	20.400	0.0	0.000000	0.000000	34	149	-0.278130	NaN	NaN	NaN
2026-01-16 11:10:00+08:00	102	670	Ws_E14	0.418046	30	670.0	670.416667	670.6	672.000000	14384.533333	14484.0	36	-0.110932	-0.129097	-0.115347	0.384971	0.552593	19.893333	True	25.0	84.0	20.016	0.0	0.000000	0.000000	34	194	-0.246396	NaN	NaN	NaN
2026-01-16 12:10:00+08:00	102	730	Ws_E14	0.418046	30	730.0	730.500000	730.6	732.083333	14410.650000	14512.0	36	-0.124464	-0.259884	-0.084444	0.373524	0.563056	20.270000	True	30.0	89.0	20.270	0.0	5.072094	5.072094	275	98	-0.543540	14486.639532	NaN	NaN
2026-01-16 13:10:00+08:00	102	790	Ws_E14	0.418046	30	790.0	790.416667	790.6	791.333333	14414.000000	14513.0	36	-0.113317	-0.285298	-0.102694	0.424714	0.550000	19.800000	True	25.0	44.0	20.016	0.2	4.694055	4.894055	120	83	-0.554273	14489.529727	NaN	NaN
2026-01-16 14:10:00+08:00	102	850	Ws_E14	0.418046	30	850.0	850.416667	850.6	851.500000	14417.000000	14516.0	36	-0.110708	-0.271042	-0.109601	0.412714	0.550000	19.800000	True	25.0	54.0	20.016	0.2	4.689903	4.889903	230	63	-0.639302	14492.550484	NaN	NaN
2026-01-16 15:20:00+08:00	102	920	Ws_E14	0.418046	30	920.0	920.500000	920.6	921.500000	14413.600000	14514.0	36	-0.063887	-0.283056	-0.054765	0.411143	0.557778	20.080000	True	30.0	54.0	20.080	0.0	6.751066	6.751066	289	59	-0.686317	14480.244671	NaN	NaN

Figures - Ws_E14

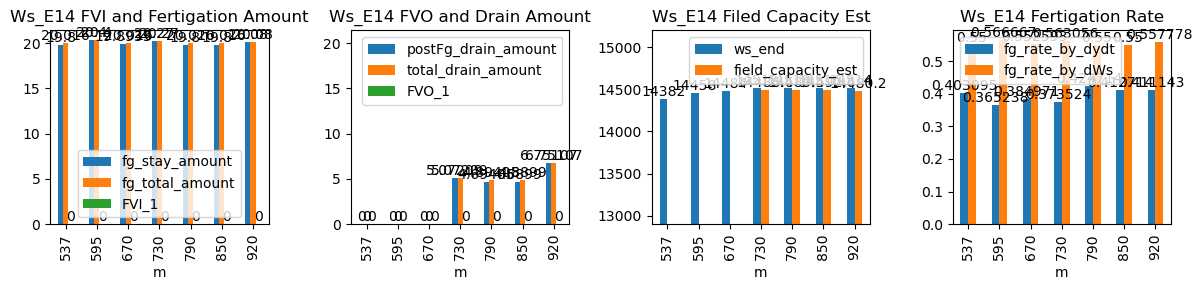

Figure figure_8.png

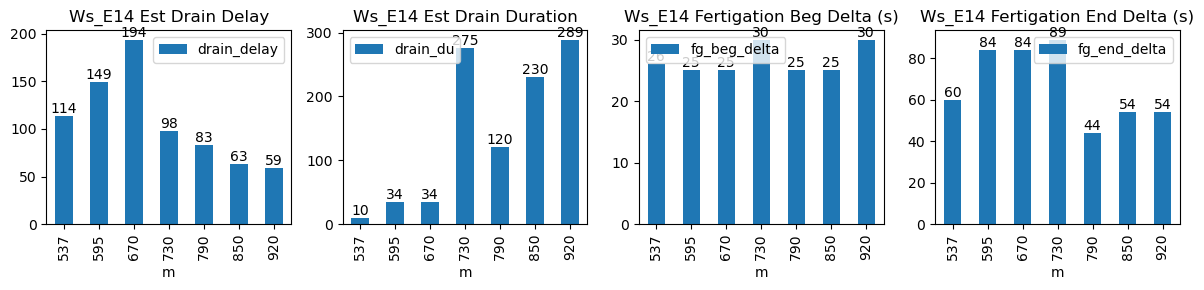

Figure figure_7.png

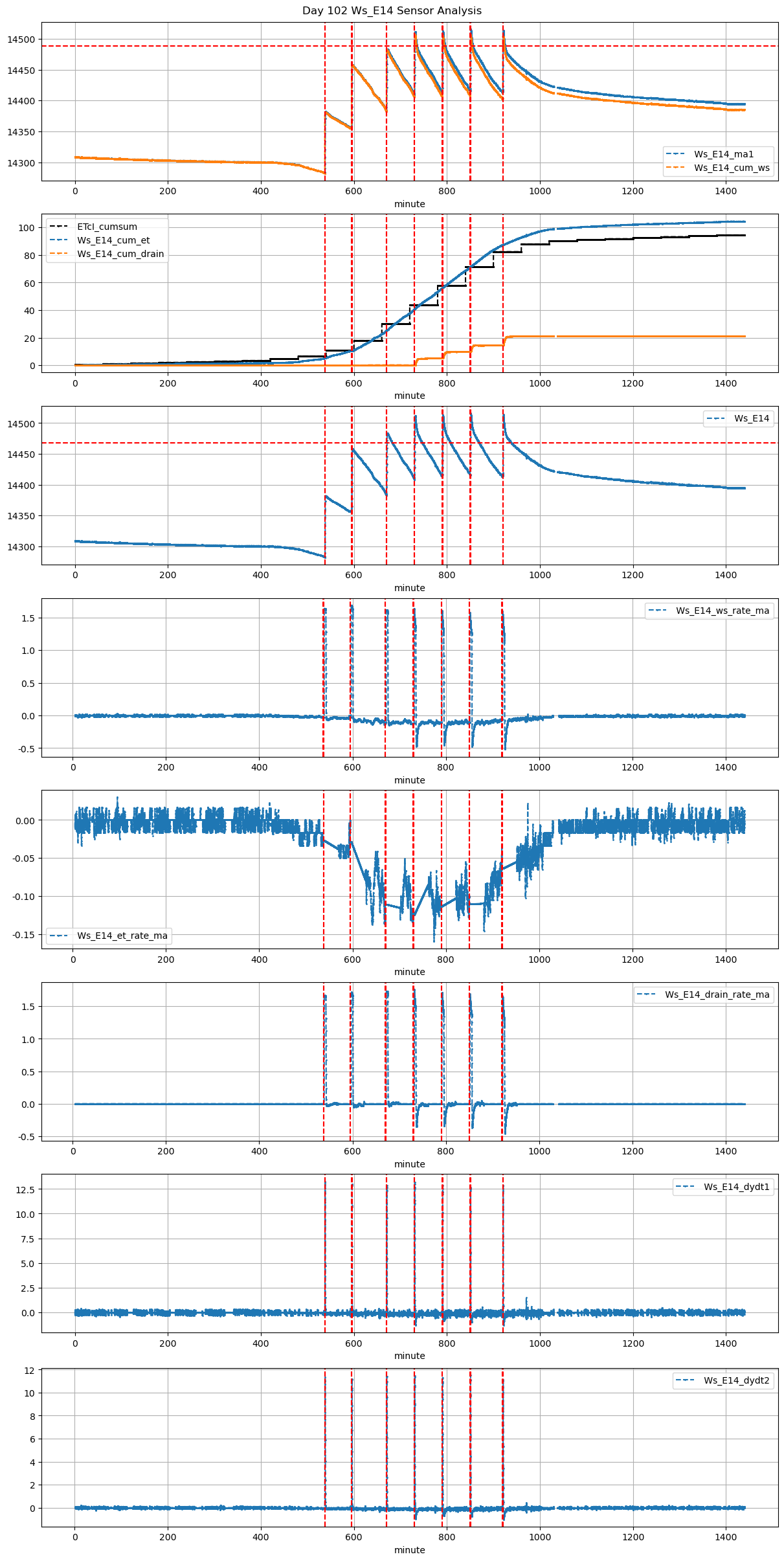

Figure figure_6.png

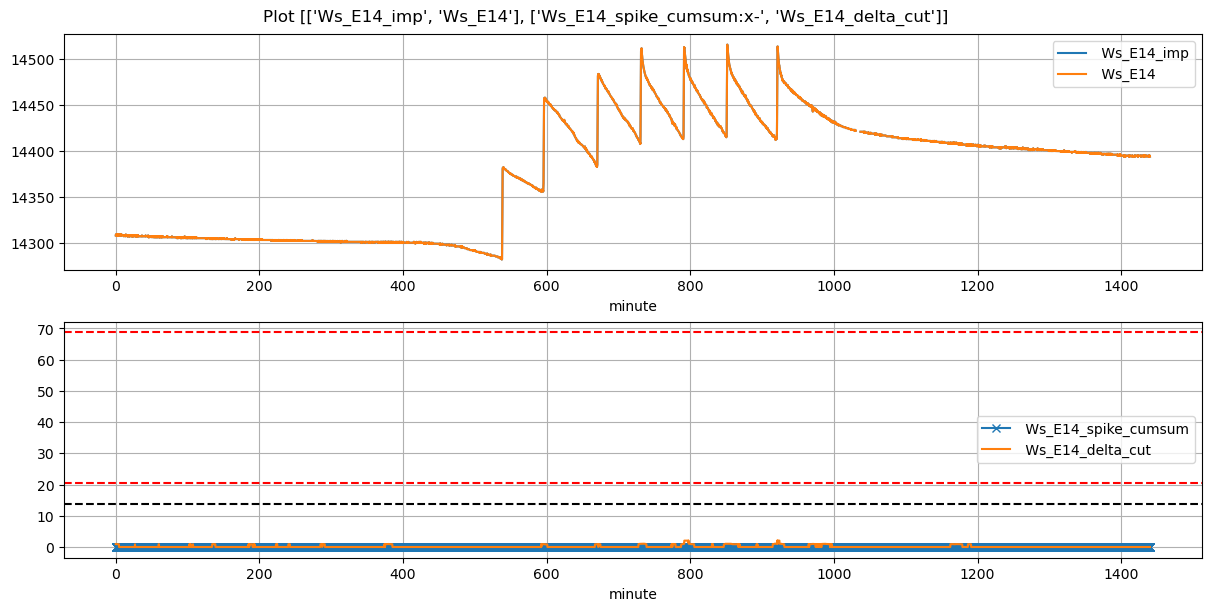

Figure figure_5.png

Figure figure_4.png
