Ws Sensor Analysis Report - Day 131

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 12.0
Avg Fertigation Amount: 242.35 L
Avg Total Drain Amount: 106.86 L
Avg In-Fertigation Drain Amount: 10.90 L
Avg Post-Fertigation Drain Amount: 95.96 L
Avg Drainage Rate: 44.09%

Detail Section

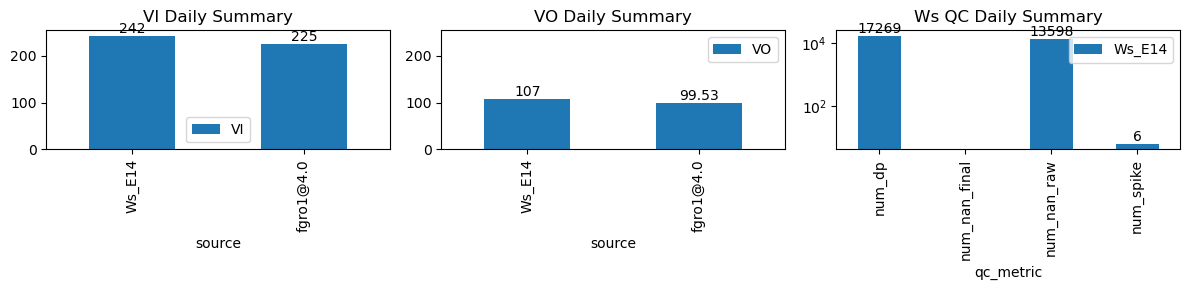

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 12
Number of Fertigation Events detected: 12
Total Fertigation Amount: 242.35 L
Total Drain Amount: 106.86 L
In-Fertigation Drain Amount: 10.90 L
Post-Fertigation Drain Amount: 95.96 L
Drainage Rate: 44.09%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,269	13,598	0	6	49.50

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-14 08:22:27+08:00	131	502	Ws_E14	0.751927	27.500000	502.45	502.750000	503.05	503.500000	14371.000000	14470.0	36	-0.016290	-0.024861	0.000000	0.421633	0.550000	19.800000	True	18.0	27.0	20.196	0.0	0.000000	0.000000	15	371	-0.264895	NaN	NaN	NaN
2026-02-14 08:51:01+08:00	131	531	Ws_E14	0.751927	27.666667	531.02	531.333333	531.62	532.333333	14461.000000	14561.0	36	-0.033590	-0.053009	0.000000	0.408743	0.555556	20.000000	True	18.8	42.8	20.196	0.0	0.000000	0.000000	15	392	-0.280215	NaN	NaN	NaN
2026-02-14 09:20:00+08:00	131	560	Ws_E14	0.751927	28.416667	560.00	560.333333	560.60	561.583333	14549.000000	14648.0	36	-0.043267	-0.062945	0.000000	0.388929	0.550000	19.800000	True	20.0	59.0	20.196	0.4	3.342968	3.742968	99	734	-0.397503	14631.285162	NaN	NaN
2026-02-14 09:50:00+08:00	131	590	Ws_E14	0.751927	28.750000	590.00	590.333333	590.60	591.250000	14624.000000	14723.0	36	-0.077631	-0.224491	0.000000	0.415429	0.550000	19.800000	True	20.0	39.0	20.196	0.4	6.804883	7.204883	139	299	-0.392148	14688.975584	NaN	NaN
2026-02-14 10:20:00+08:00	131	620	Ws_E14	0.751927	28.916667	620.00	620.333333	620.60	621.083333	14676.000000	14773.0	36	-0.097062	-0.395764	0.000000	0.426000	0.538889	19.400000	True	20.0	29.0	20.196	0.8	13.879695	14.679695	120	38	-1.032777	14703.601526	NaN	NaN
2026-02-14 10:50:00+08:00	131	650	Ws_E14	0.751927	29.916667	650.00	650.333333	650.60	651.083333	14685.500000	14779.5	36	-0.124965	-0.451875	0.000000	0.425524	0.522222	18.800000	True	20.0	29.0	20.196	1.4	8.466125	9.866125	230	33	-0.880079	14737.169373	NaN	NaN
2026-02-14 11:21:26+08:00	131	681	Ws_E14	0.751927	27.500000	681.43	681.833333	682.03	682.500000	14713.460000	14805.5	36	-0.230694	-0.530370	0.000000	0.434857	0.511333	18.408000	True	24.2	28.2	20.196	1.8	12.967958	14.767958	340	38	-0.945090	14740.660210	NaN	NaN
2026-02-14 11:50:00+08:00	131	710	Ws_E14	0.751927	29.916667	710.00	710.333333	710.60	711.083333	14701.014286	14794.5	36	-0.137900	-0.478750	0.000000	0.415929	0.519365	18.697143	True	20.0	29.0	20.196	1.5	15.455511	16.955511	365	38	-0.967323	14717.222443	NaN	NaN
2026-02-14 12:21:26+08:00	131	741	Ws_E14	0.751927	28.500000	741.43	741.833333	742.03	742.500000	14688.966667	14784.5	36	-0.142292	-0.448796	0.000000	0.437429	0.530741	19.106667	True	24.2	28.2	20.196	1.1	13.729585	14.829585	230	38	-0.868140	14715.852077	NaN	NaN
2026-02-14 12:51:17+08:00	131	771	Ws_E14	0.751927	27.583333	771.28	771.666667	771.88	772.416667	14688.200000	14781.5	36	-0.132435	-0.396840	0.000000	0.423429	0.518333	18.660000	True	23.2	32.2	20.196	1.5	14.010753	15.510753	120	37	-1.037402	14711.446235	NaN	NaN
2026-02-14 13:20:00+08:00	131	800	Ws_E14	0.751927	30.000000	800.00	800.333333	800.60	801.166667	14689.500000	14780.5	36	-0.150185	-0.385347	-0.151736	0.398571	0.505556	18.200000	True	20.0	34.0	20.196	2.0	7.306850	9.306850	339	38	-0.937275	14743.965752	NaN	NaN
2026-02-14 15:26:01+08:00	131	926	Ws_E14	0.751927	30.000000	926.02	926.416667	926.62	927.166667	14550.500000	14647.5	36	-0.082222	-0.072375	-0.078472	0.428952	0.538889	19.400000	True	23.8	32.8	20.196	0.0	0.000000	0.000000	15	92	-0.204375	NaN	NaN	NaN

Figures - Ws_E14

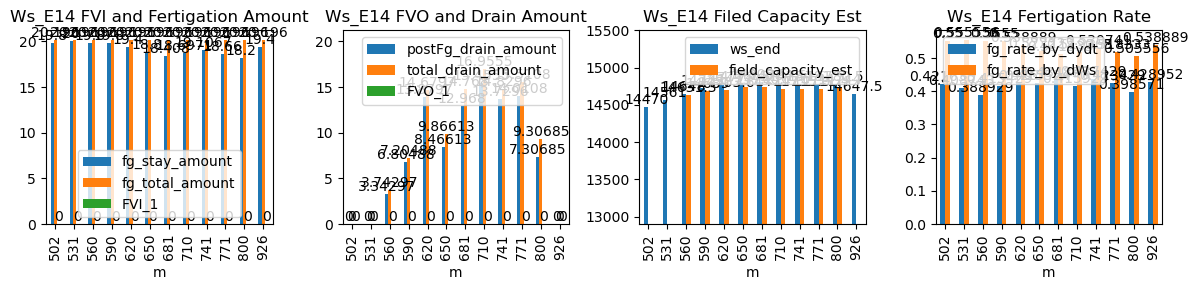

Figure figure_8.png

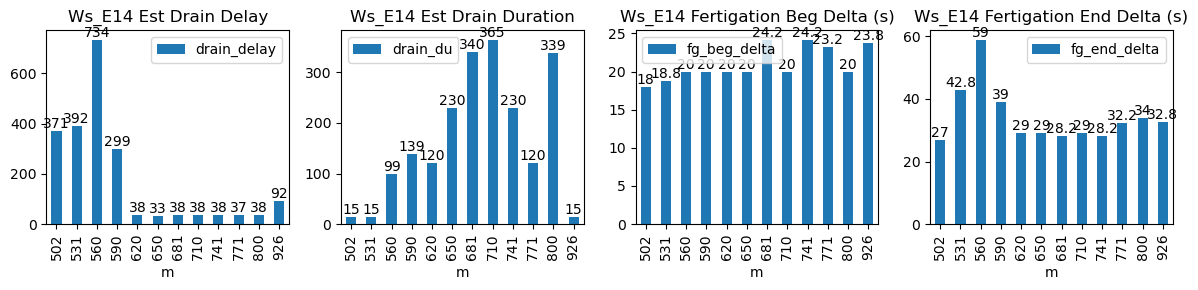

Figure figure_7.png

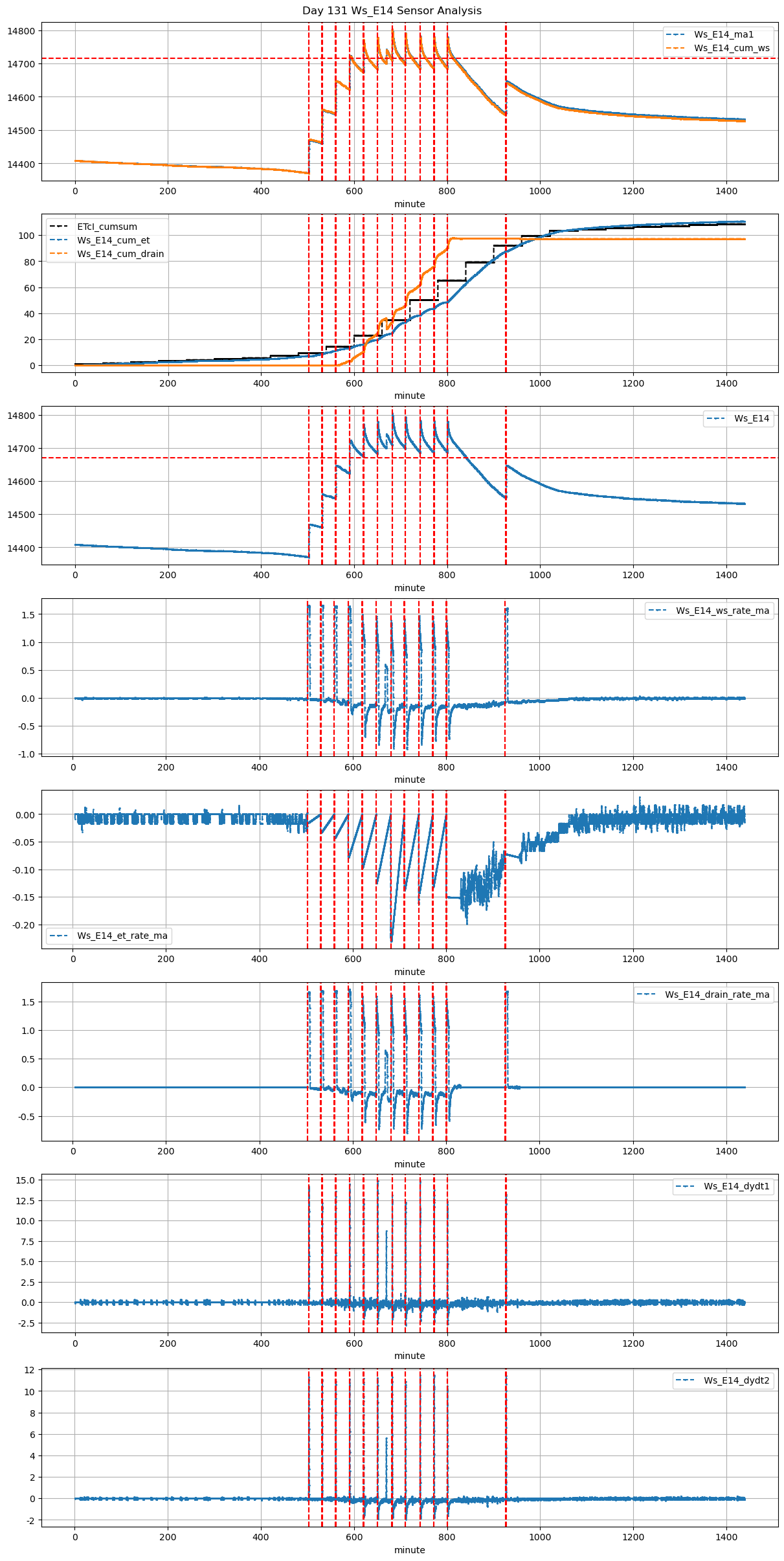

Figure figure_6.png

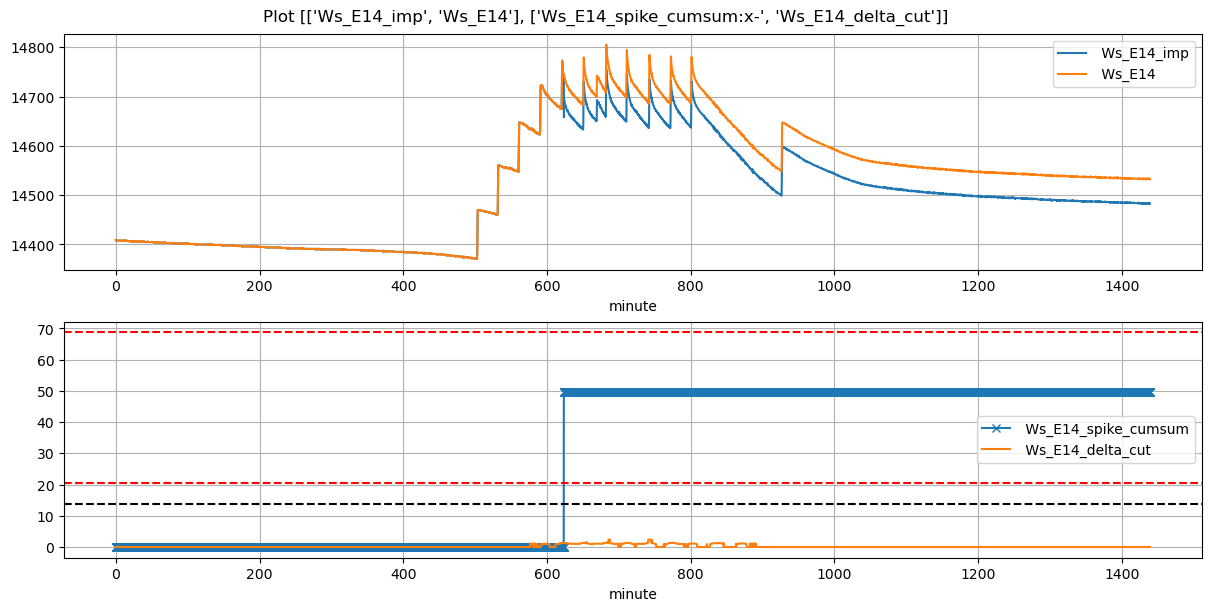

Figure figure_5.png

Figure figure_4.png
