Ws Sensor Analysis Report - Day 130

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 10.0
Avg Fertigation Amount: 202.08 L
Avg Total Drain Amount: 110.19 L
Avg In-Fertigation Drain Amount: 9.40 L
Avg Post-Fertigation Drain Amount: 100.79 L
Avg Drainage Rate: 54.53%

Detail Section

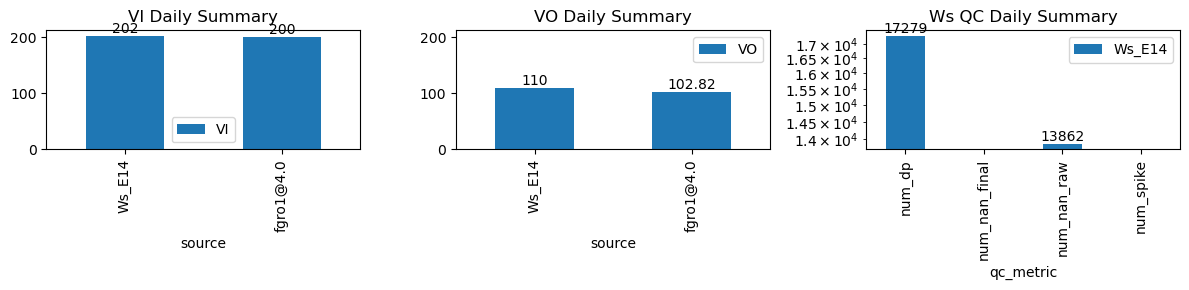

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 10
Number of Fertigation Events detected: 10
Total Fertigation Amount: 202.08 L
Total Drain Amount: 110.19 L
In-Fertigation Drain Amount: 9.40 L
Post-Fertigation Drain Amount: 100.79 L
Drainage Rate: 54.53%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,279	13,862	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-13 08:23:44+08:00	130	503	Ws_E14	0.756105	30.000000	503.73	504.083333	504.33	504.916667	14397.000000	14495.0	36	-0.025530	-0.030903	0.000000	0.428571	0.544444	19.600000	True	21.2	35.2	20.196000	0.0	0.000000	0.000000	15	285	-0.261698	NaN	NaN	NaN
2026-02-13 08:55:00+08:00	130	535	Ws_E14	0.756105	28.916667	535.00	535.333333	535.60	536.083333	14483.000000	14582.0	36	-0.049435	-0.031111	0.000000	0.433714	0.550000	19.800000	True	20.0	29.0	20.196000	0.0	0.000000	0.000000	20	153	-0.247462	NaN	NaN	NaN
2026-02-13 09:25:00+08:00	130	565	Ws_E14	0.756105	28.250000	565.00	565.416667	565.60	566.750000	14574.433333	14676.0	36	0.000000	-0.097897	0.000000	0.401884	0.564259	20.313333	True	25.0	69.0	20.313333	0.0	0.000000	0.000000	34	389	-0.346212	NaN	NaN	NaN
2026-02-13 09:55:00+08:00	130	595	Ws_E14	0.756105	28.833333	595.00	595.333333	595.60	596.166667	14649.000000	14745.0	36	-0.069633	-0.439699	0.000000	0.432857	0.533333	19.200000	True	20.0	34.0	20.196000	1.0	15.438572	16.438572	365	38	-1.016153	14667.807142	NaN	NaN
2026-02-13 10:25:00+08:00	130	625	Ws_E14	0.756105	28.916667	625.00	625.333333	625.60	626.083333	14655.000000	14747.0	36	-0.108439	-0.510278	0.000000	0.417810	0.511111	18.400000	True	20.0	29.0	20.196000	1.8	15.470583	17.270583	345	38	-0.989037	14669.647084	NaN	NaN
2026-02-13 10:55:00+08:00	130	655	Ws_E14	0.756105	28.833333	655.00	655.416667	655.60	656.166667	14650.000000	14745.0	36	-0.121540	-0.473958	0.000000	0.426643	0.527778	19.000000	True	25.0	34.0	20.196000	1.2	15.026763	16.226763	450	38	-1.050006	14669.866185	NaN	NaN
2026-02-13 11:25:00+08:00	130	685	Ws_E14	0.756105	28.833333	685.00	685.333333	685.60	686.166667	14647.000000	14741.0	36	-0.136045	-0.455208	0.000000	0.406667	0.522222	18.800000	True	20.0	34.0	20.196000	1.4	14.021228	15.421228	315	38	-0.927704	14670.893859	NaN	NaN
2026-02-13 11:55:00+08:00	130	715	Ws_E14	0.756105	28.916667	715.00	715.166667	715.60	716.083333	14647.000000	14742.0	36	-0.102445	-0.468611	0.000000	0.395714	0.527778	19.000000	True	10.0	29.0	20.196000	1.2	16.288467	17.488467	435	33	-1.067716	14660.557664	NaN	NaN
2026-02-13 12:25:00+08:00	130	745	Ws_E14	0.756105	28.833333	745.00	745.333333	745.60	746.166667	14642.800000	14737.0	36	-0.129603	-0.453917	0.000000	0.417571	0.523333	18.840000	True	20.0	34.0	20.196000	1.4	13.331674	14.731674	380	38	-0.898572	14670.341628	NaN	NaN
2026-02-13 12:55:00+08:00	130	775	Ws_E14	0.756105	30.000000	775.00	775.416667	775.60	776.166667	14647.260000	14741.0	36	-0.094626	-0.439028	-0.114056	0.421200	0.520778	18.748000	True	25.0	34.0	20.196000	1.4	11.209771	12.609771	219	38	-0.874216	14684.951147	NaN	NaN

Figures - Ws_E14

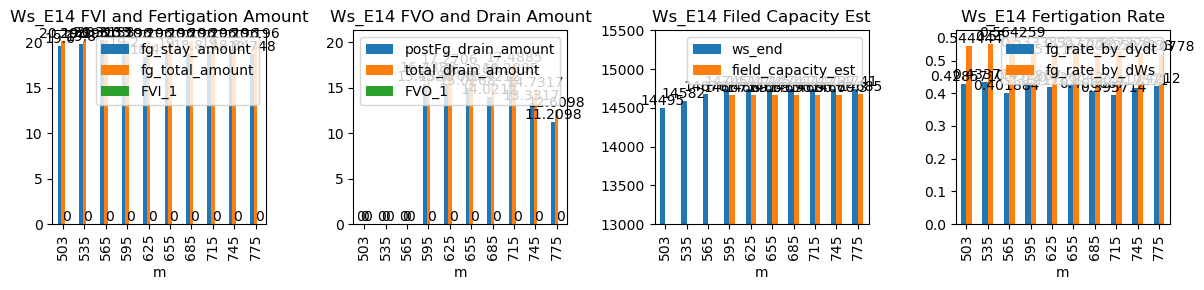

Figure figure_8.png

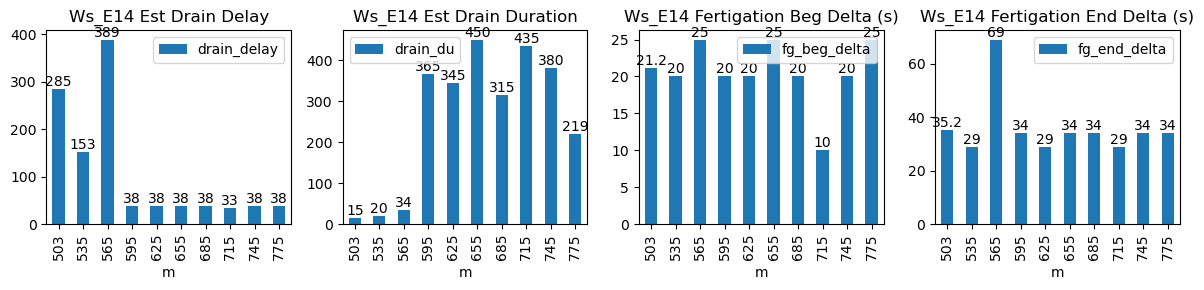

Figure figure_7.png

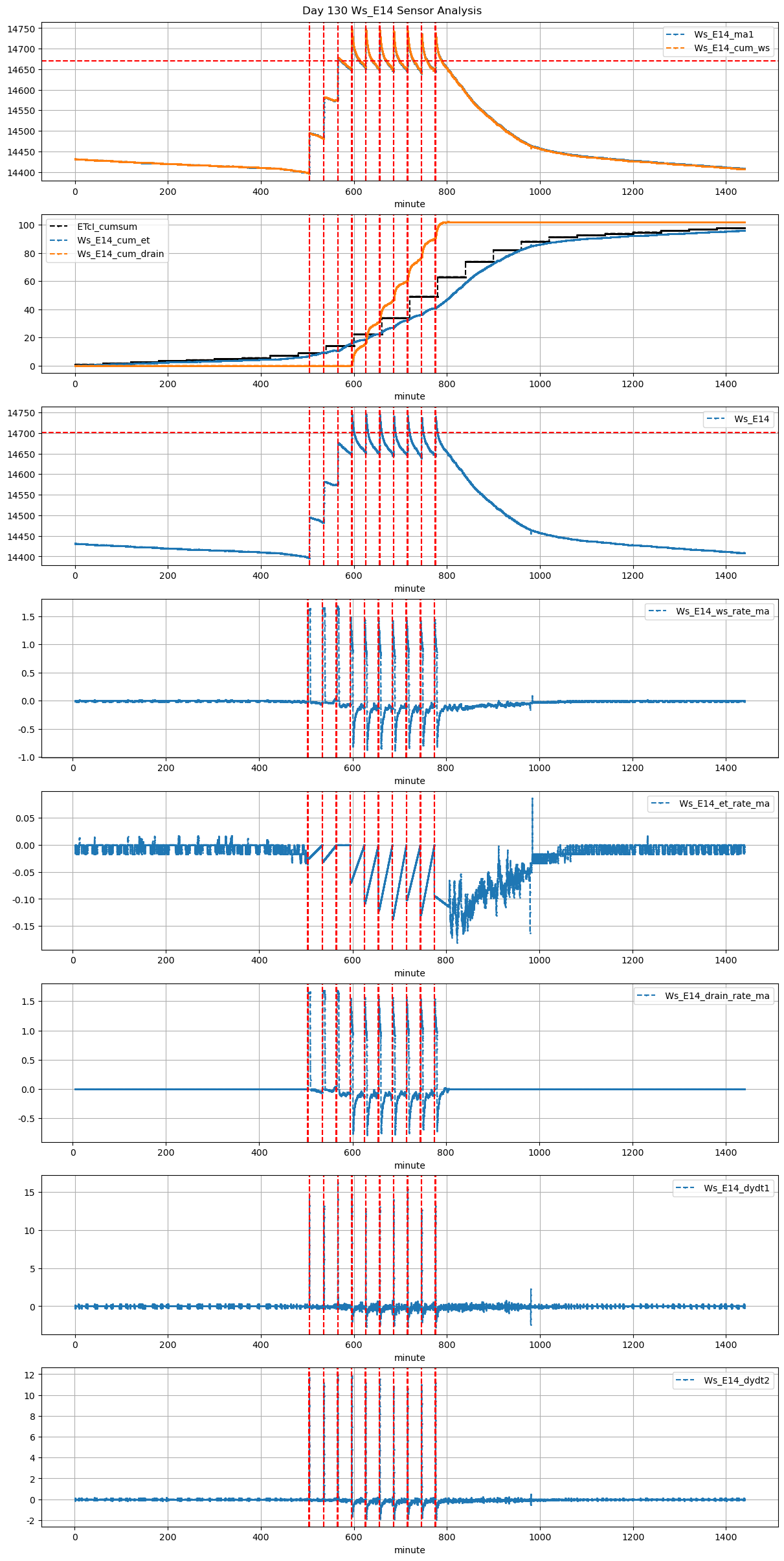

Figure figure_6.png

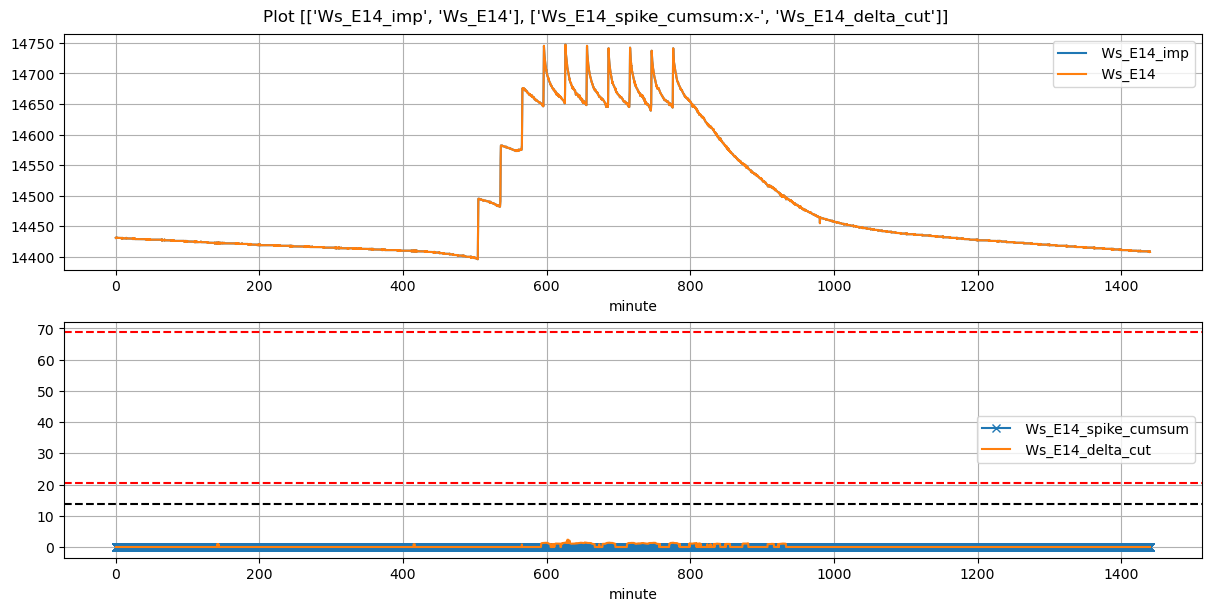

Figure figure_5.png

Figure figure_4.png
