Ws Sensor Analysis Report - Day 133

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 159.60 L
Avg Total Drain Amount: 85.29 L
Avg In-Fertigation Drain Amount: 6.30 L
Avg Post-Fertigation Drain Amount: 78.99 L
Avg Drainage Rate: 53.44%

Detail Section

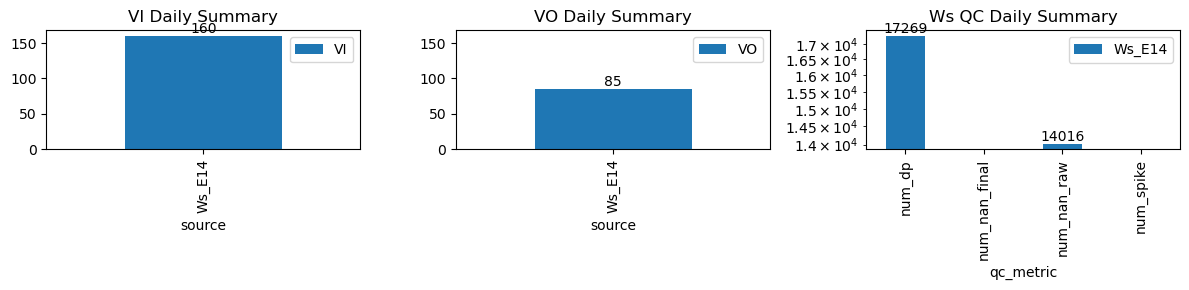

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 159.60 L
Total Drain Amount: 85.29 L
In-Fertigation Drain Amount: 6.30 L
Post-Fertigation Drain Amount: 78.99 L
Drainage Rate: 53.44%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,269	14,016	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-16 08:21:01+08:00	133	501	Ws_E14	0.706918	27.583333	501.02	501.416667	501.7	503.416667	14535.000000	14651.0	41	0.000000	-0.004833	0.000000	0.377300	0.565854	23.200000	True	23.8	103.0	23.200000	0.0	0.000000	0.000000	10	382	-0.234115	NaN	NaN	NaN
2026-02-16 08:51:01+08:00	133	531	Ws_E14	0.706918	27.500000	531.02	531.416667	531.7	533.500000	14649.000000	14766.0	41	-0.001806	-0.005810	0.000000	0.361875	0.570732	23.400000	True	23.8	108.0	23.400000	0.0	0.000000	0.000000	15	117	-0.209622	NaN	NaN	NaN
2026-02-16 09:21:01+08:00	133	561	Ws_E14	0.706918	28.500000	561.02	561.416667	561.7	562.500000	14763.000000	14880.0	41	-0.007608	-0.316400	0.000000	0.453000	0.570732	23.400000	True	23.8	48.0	23.400000	0.0	9.333154	9.333154	510	77	-0.742738	14833.334228	NaN	NaN
2026-02-16 09:51:01+08:00	133	591	Ws_E14	0.706918	28.833333	591.02	591.416667	591.7	592.166667	14831.386667	14937.0	41	-0.017889	-0.537292	0.000000	0.427025	0.515187	21.122667	True	23.8	28.0	22.399667	1.3	16.584726	17.884726	685	42	-1.233104	14854.076370	NaN	NaN
2026-02-16 10:21:01+08:00	133	621	Ws_E14	0.706918	28.833333	621.02	621.416667	621.7	622.166667	14845.000000	14949.0	41	-0.029236	-0.569444	0.000000	0.432000	0.507317	20.800000	True	23.8	28.0	22.399667	1.6	17.819447	19.419447	574	37	-1.434416	14859.902764	NaN	NaN
2026-02-16 10:51:01+08:00	133	651	Ws_E14	0.706918	28.833333	651.02	651.250000	651.7	652.166667	14851.000000	14955.0	41	-0.033368	-0.585370	0.000000	0.389589	0.507317	20.800000	True	13.8	28.0	22.399667	1.6	18.077348	19.677348	615	37	-1.468083	14864.613261	NaN	NaN
2026-02-16 11:21:01+08:00	133	681	Ws_E14	0.706918	30.000000	681.02	681.166667	681.7	682.250000	14853.000000	14956.0	41	-0.038032	-0.570509	-0.029469	0.359500	0.502439	20.600000	True	8.8	33.0	22.399667	1.8	17.175485	18.975485	745	42	-1.349818	14870.122573	NaN	NaN

Figures - Ws_E14

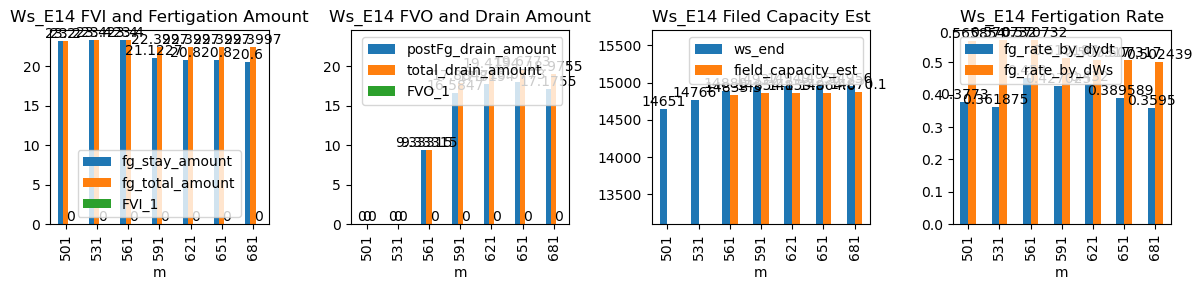

Figure figure_8.png

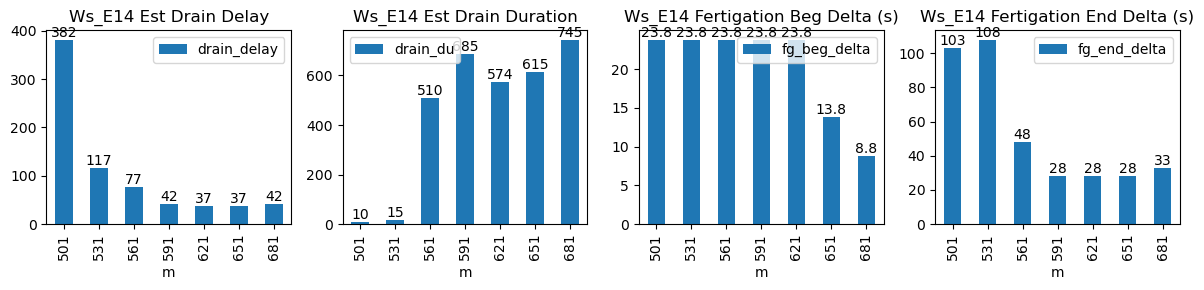

Figure figure_7.png

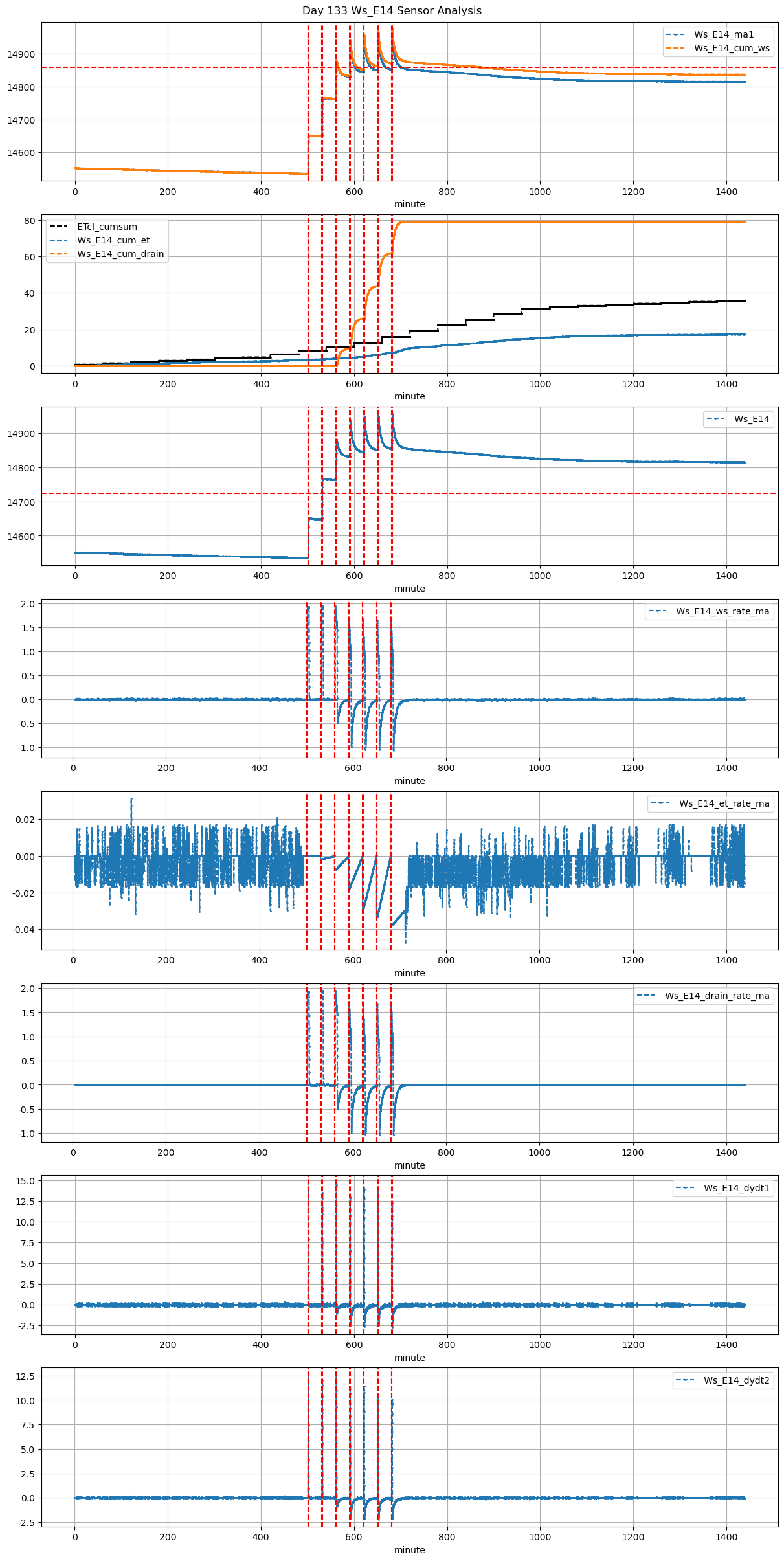

Figure figure_6.png

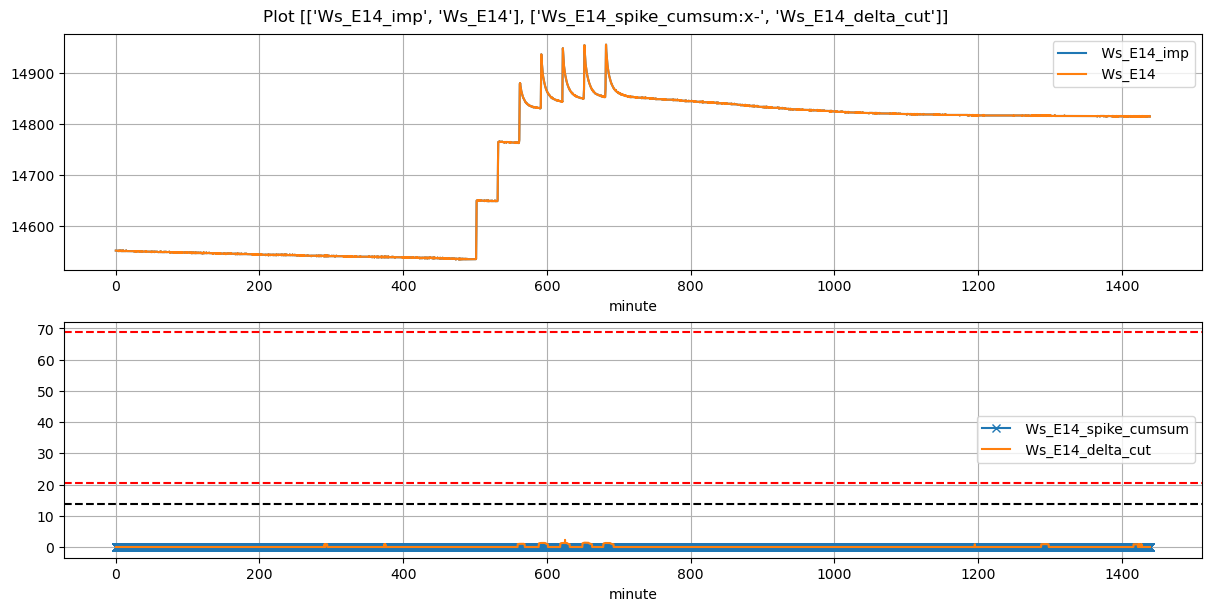

Figure figure_5.png

Figure figure_4.png
