Ws Sensor Analysis Report - Day 140

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 277.24 L
Avg Total Drain Amount: 104.42 L
Avg In-Fertigation Drain Amount: 14.50 L
Avg Post-Fertigation Drain Amount: 89.92 L
Avg Drainage Rate: 37.66%

Detail Section

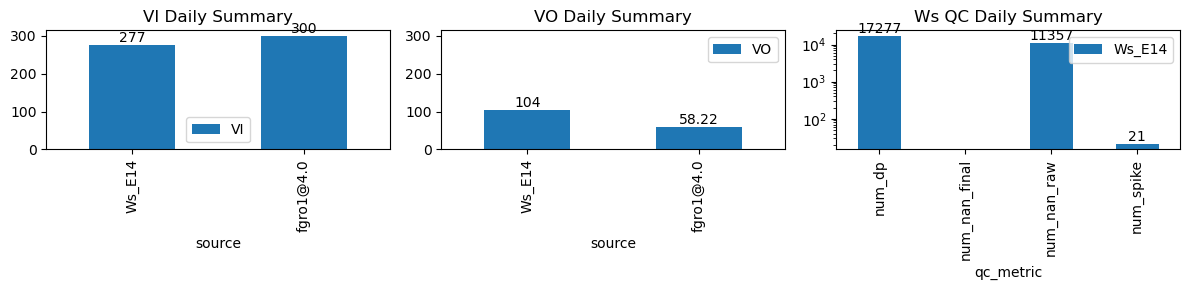

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 277.24 L
Total Drain Amount: 104.42 L
In-Fertigation Drain Amount: 14.50 L
Post-Fertigation Drain Amount: 89.92 L
Drainage Rate: 37.66%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,277	11,357	0	21	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-23 08:12:56+08:00	140	492	Ws_E14	1.036858	30.000000	492.93	493.250000	493.83	496.583333	14080.000000	14240.0	54	-0.037741	-0.045139	-0.057500	0.342000	0.592593	32.000000	True	19.2	165.2	32.000000	0.0	0.000000	0.000000	19	170	-0.803213	NaN	NaN	NaN
2026-02-23 08:56:16+08:00	140	536	Ws_E14	1.036858	28.333333	536.27	536.583333	537.19	537.666667	14208.316667	14362.0	55	-0.045295	-0.016389	0.000000	0.472600	0.558848	30.736667	True	18.8	28.6	30.736667	0.0	0.000000	0.000000	20	328	-0.278625	NaN	NaN	NaN
2026-02-23 09:26:16+08:00	140	566	Ws_E14	1.036858	26.916667	566.27	566.500000	567.19	569.083333	14346.000000	14499.0	55	-0.054091	-0.048333	0.000000	0.379449	0.556364	30.600000	True	13.8	113.6	30.600000	0.0	0.000000	0.000000	15	253	-0.510515	NaN	NaN	NaN
2026-02-23 09:56:16+08:00	140	596	Ws_E14	1.036858	28.333333	596.27	596.583333	597.19	597.666667	14472.566667	14624.0	55	-0.068833	-0.483657	0.000000	0.468180	0.550667	30.286667	True	18.8	28.6	30.580000	0.3	13.060506	13.360506	530	73	-0.785938	14558.697470	NaN	NaN
2026-02-23 10:26:16+08:00	140	626	Ws_E14	1.036858	28.333333	626.27	626.583333	627.19	627.666667	14541.816667	14676.0	55	-0.102444	-0.631597	0.000000	0.434467	0.487939	26.836667	True	18.8	28.6	30.580000	3.7	19.447982	23.147982	380	43	-1.327844	14578.760089	NaN	NaN
2026-02-23 10:56:16+08:00	140	656	Ws_E14	1.036858	28.333333	656.27	656.583333	657.19	657.666667	14557.000000	14690.0	55	-0.120903	-0.732431	0.000000	0.430100	0.483636	26.600000	True	18.8	28.6	30.580000	4.0	21.534199	25.534199	339	38	-1.469197	14582.329003	NaN	NaN
2026-02-23 11:26:16+08:00	140	686	Ws_E14	1.036858	28.333333	686.27	686.583333	687.19	687.666667	14555.466667	14691.0	55	-0.130694	-0.684792	0.000000	0.429200	0.492848	27.106667	True	18.8	28.6	30.580000	3.5	21.983299	25.483299	264	38	-1.414811	14581.083506	NaN	NaN
2026-02-23 11:56:16+08:00	140	716	Ws_E14	1.036858	30.000000	716.27	716.583333	717.19	717.666667	14553.933333	14692.0	55	-0.162824	-0.654167	-0.140810	0.429800	0.502061	27.613333	True	18.8	28.6	30.580000	3.0	13.892664	16.892664	225	43	-1.787973	14622.536678	NaN	NaN
2026-02-23 14:56:33+08:00	140	896	Ws_E14	1.036858	30.000000	896.55	896.833333	897.47	899.250000	14394.000000	14549.0	55	-0.092778	-0.110111	-0.067847	0.397267	0.563636	31.000000	True	17.0	106.8	31.000000	0.0	0.000000	0.000000	20	251	-1.009427	NaN	NaN	NaN

Figures - Ws_E14

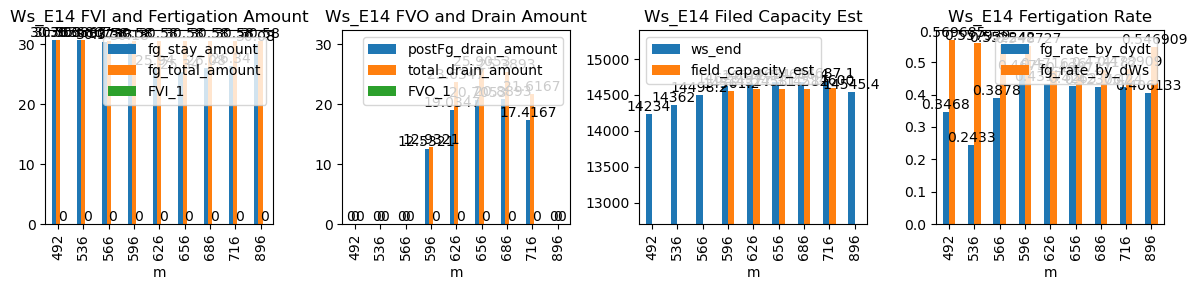

Figure figure_8.png

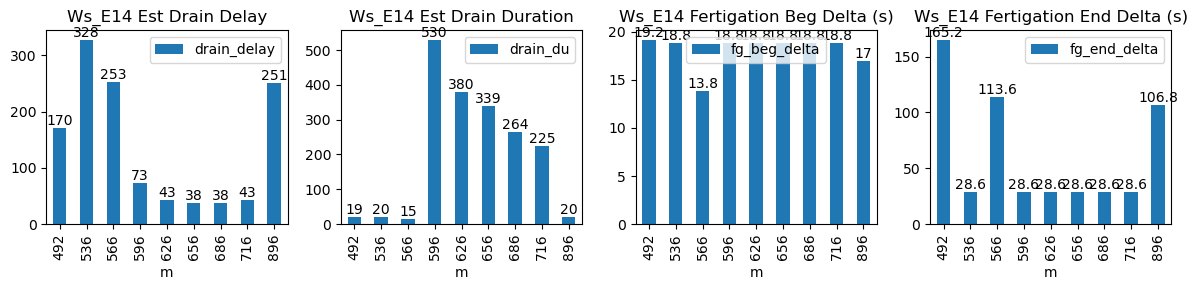

Figure figure_7.png

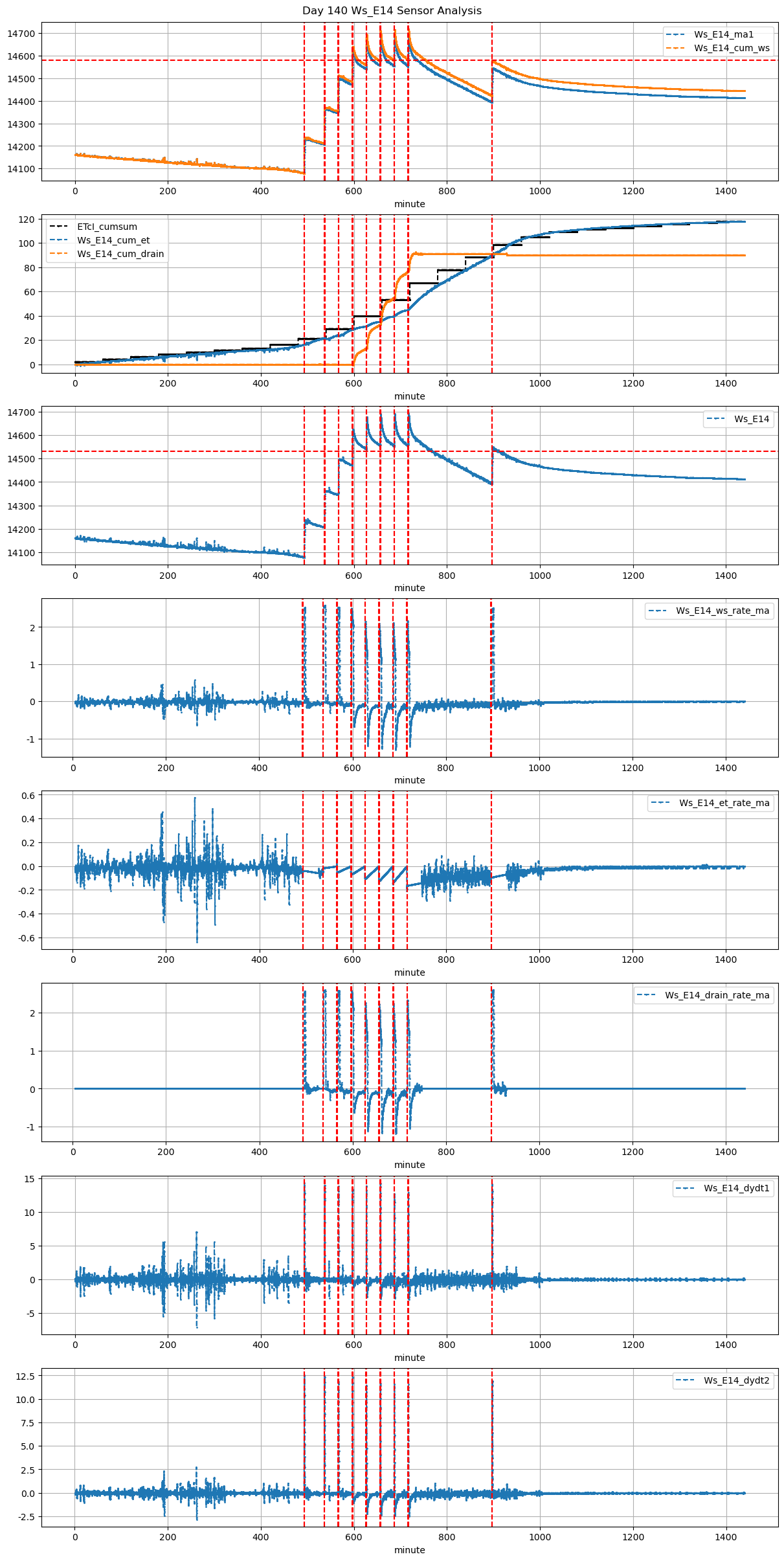

Figure figure_6.png

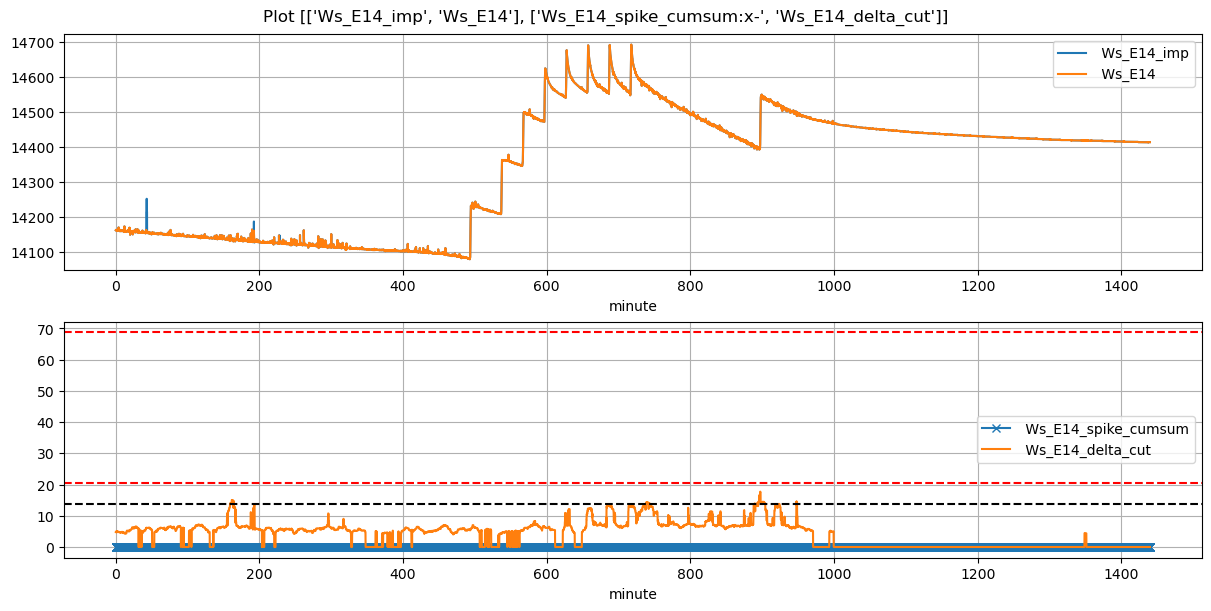

Figure figure_5.png

Figure figure_4.png
