Ws Sensor Analysis Report - Day 81

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 146.40 L
Avg Total Drain Amount: 76.07 L
Avg In-Fertigation Drain Amount: 9.05 L
Avg Post-Fertigation Drain Amount: 67.02 L
Avg Drainage Rate: 51.96%

Detail Section

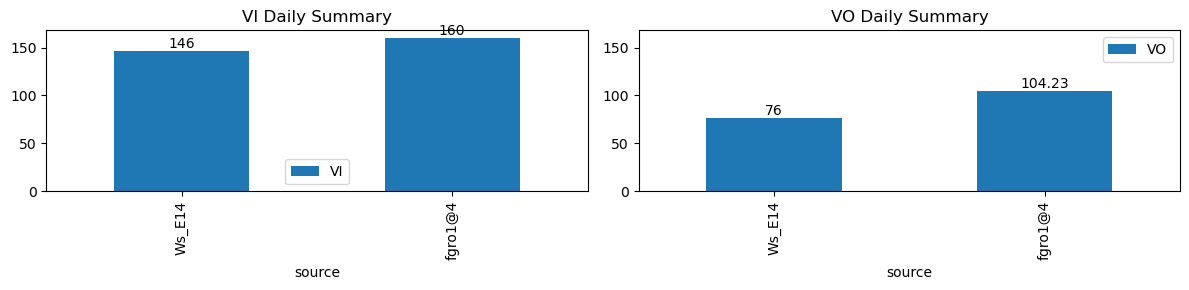

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 146.40 L
Total Drain Amount: 76.07 L
In-Fertigation Drain Amount: 9.05 L
Post-Fertigation Drain Amount: 67.02 L
Drainage Rate: 51.96%

Ws Cleaning Summary Table - Ws_E14

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E14	17269	0	13096	0	4

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-26 09:15:46+08:00	81	555	Ws_E14	0.690597	30	555.77	556.083333	556.37	557.333333	NaN	NaN	NaN	14221.00	14318.0	36	-0.036678	-0.050000	-0.040833	0.412857	0.538889	19.40	18.8	57.8	19.4	0.00	1.157790	NaN	1.157790
2025-12-26 09:55:00+08:00	81	595	Ws_E14	0.690597	30	595.00	595.333333	595.60	596.583333	NaN	NaN	NaN	14297.00	14392.0	36	-0.014171	-0.311528	-0.057188	0.391429	0.527778	19.00	20.0	59.0	19.0	0.00	9.188589	14346.057054	9.188589
2025-12-26 11:00:00+08:00	81	660	Ws_E14	0.690597	30	660.00	660.333333	660.60	661.500000	NaN	NaN	NaN	14315.00	14398.0	36	-0.016761	-0.345139	-0.056885	0.396000	0.461111	16.60	20.0	54.0	18.0	1.40	11.691812	14339.540939	13.091812
2025-12-26 11:50:00+08:00	81	710	Ws_E14	0.690597	30	710.00	710.333333	710.60	711.500000	NaN	NaN	NaN	14318.00	14399.0	36	-0.021798	-0.395833	-0.007024	0.384571	0.450000	16.20	20.0	54.0	18.0	1.80	14.242075	14327.789625	16.042075
2025-12-26 12:36:05+08:00	81	756	Ws_E14	0.690597	30	756.08	756.416667	756.68	757.583333	NaN	NaN	NaN	14316.00	14397.0	36	-0.097569	-0.383750	-0.077736	0.378286	0.450000	16.20	20.2	54.2	18.0	1.80	7.507197	14359.464014	9.307197
2025-12-26 13:20:00+08:00	81	800	Ws_E14	0.690597	30	800.00	800.250000	800.60	801.416667	NaN	NaN	NaN	14319.25	14402.0	36	-0.054096	-0.375833	-0.074340	0.384286	0.459722	16.55	15.0	49.0	18.0	1.45	9.261500	14355.692501	10.711500
2025-12-26 14:06:05+08:00	81	846	Ws_E14	0.690597	30	846.08	846.416667	846.68	847.583333	NaN	NaN	NaN	14321.00	14403.0	36	-0.062778	-0.377083	-0.090167	0.389048	0.455556	16.40	20.2	54.2	18.0	1.60	9.232284	14356.838581	10.832284
2025-12-26 15:00:00+08:00	81	900	Ws_E14	0.690597	30	900.00	900.250000	900.60	901.416667	NaN	NaN	NaN	14314.00	14399.0	36	-0.063136	-0.348611	0.000000	0.400857	0.472222	17.00	15.0	49.0	18.0	1.00	4.733933	14375.330333	5.733933

Figures - Ws_E14

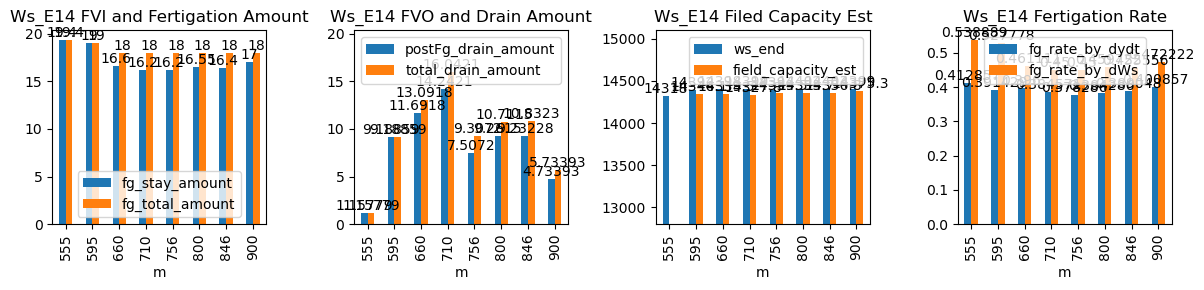

Figure figure_9.png

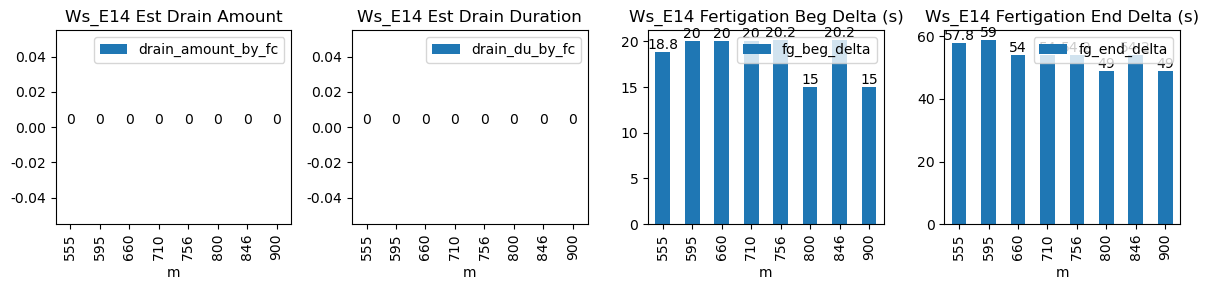

Figure figure_8.png

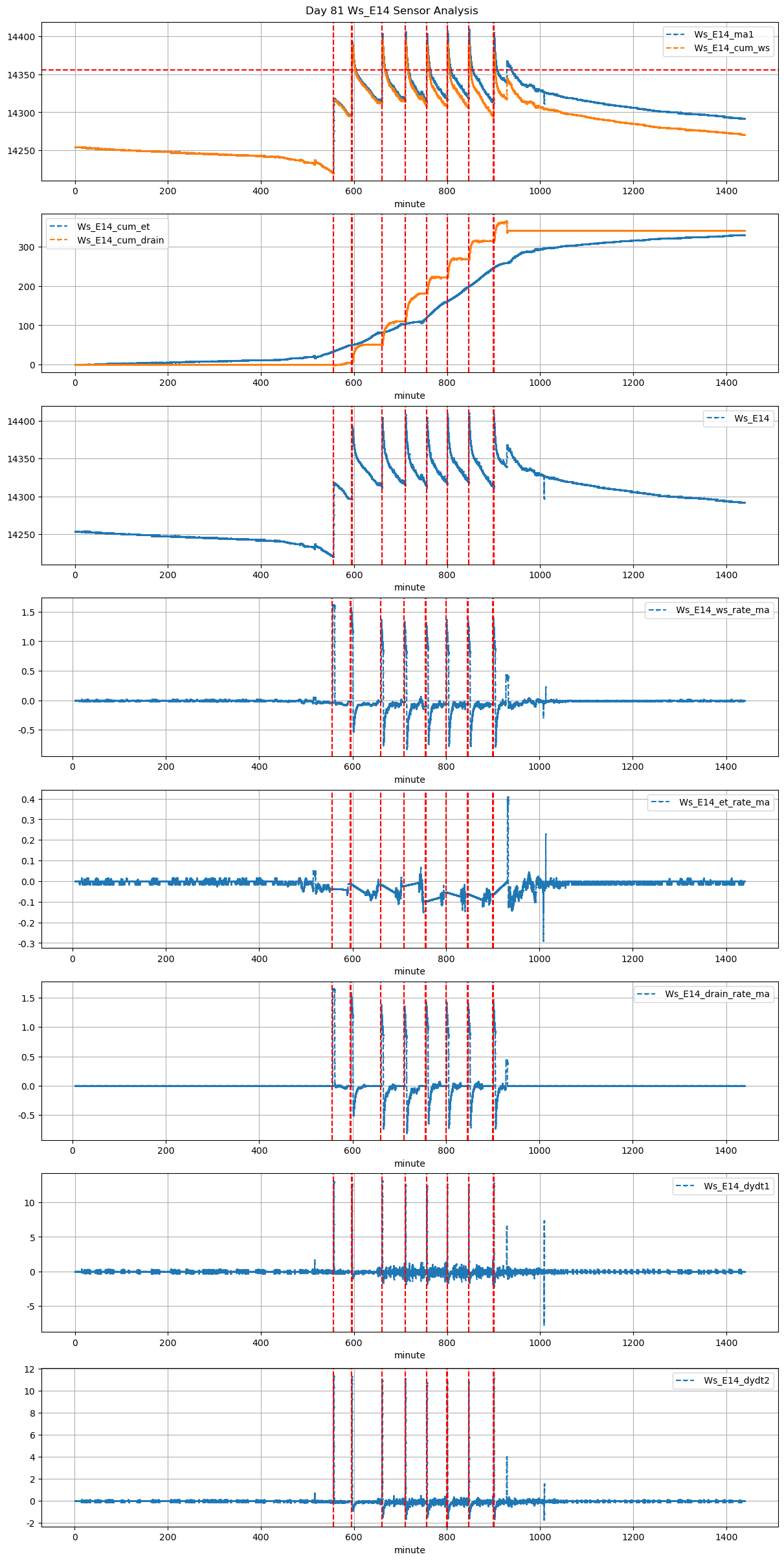

Figure figure_7.png

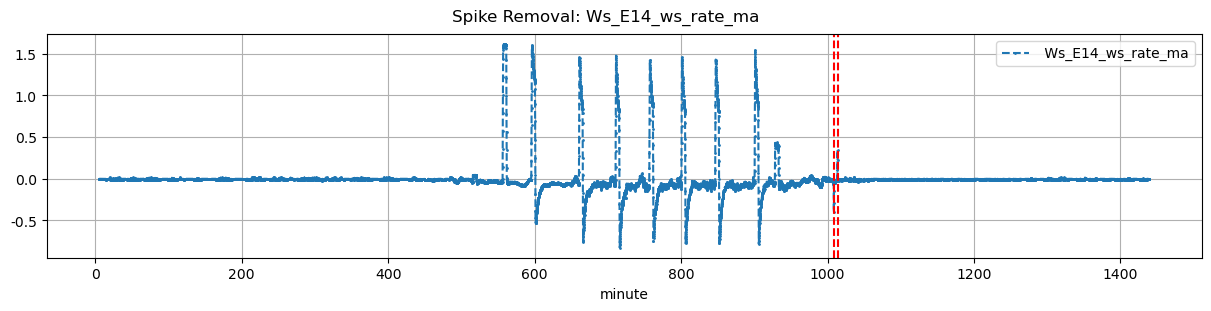

Figure figure_6.png

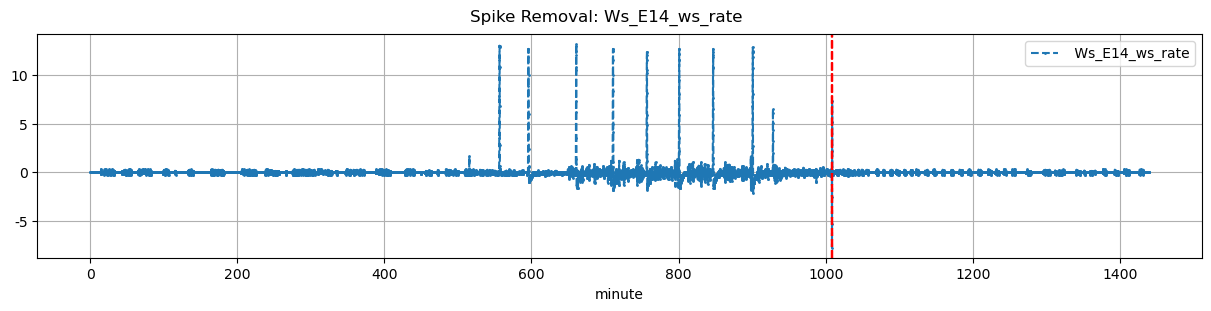

Figure figure_5.png

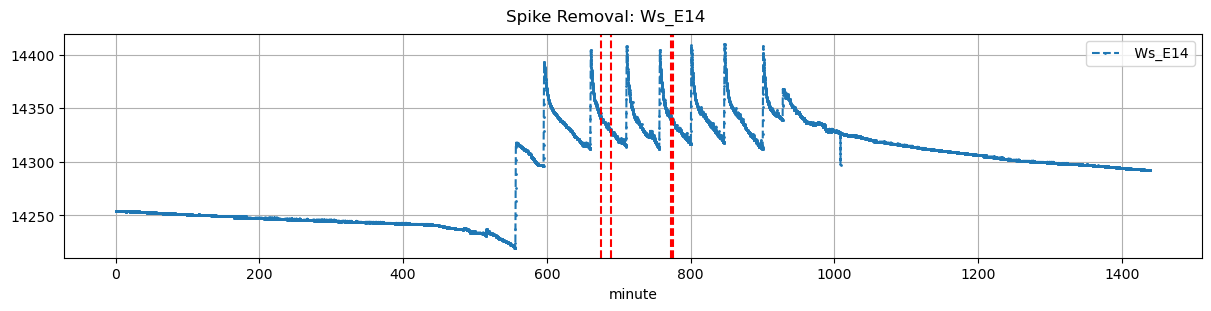

Figure figure_4.png
